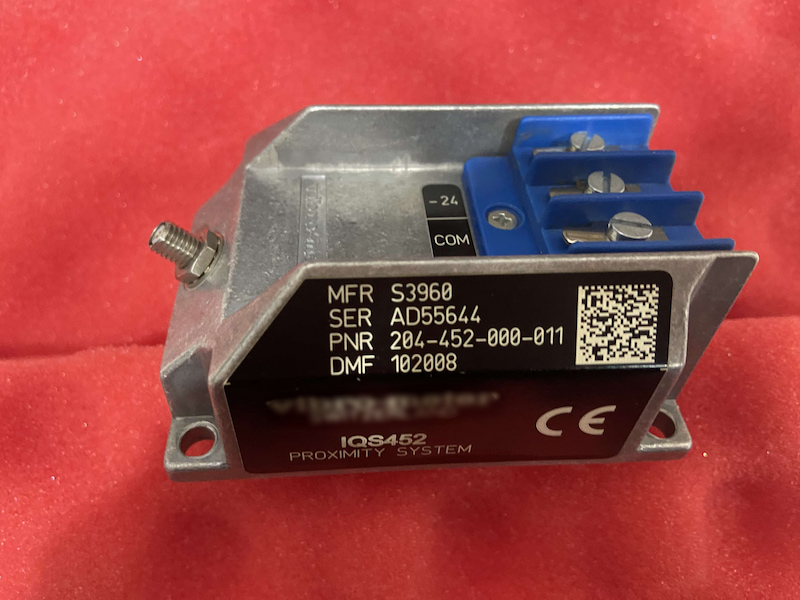

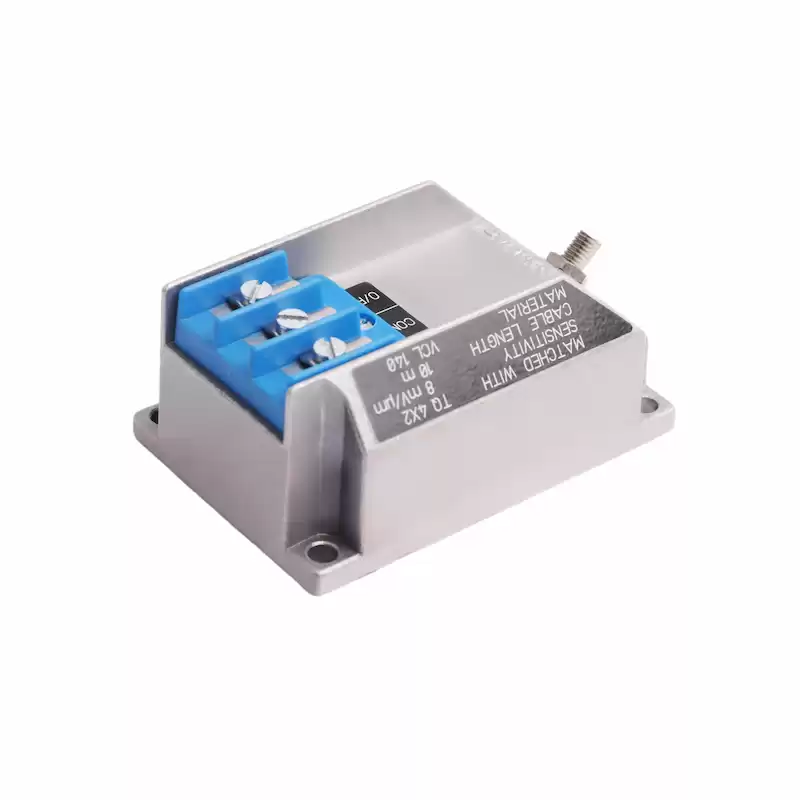

IQS452 204-452-000-011 Signal Conditioner

For the best price on IQS452, The IQS450 signal conditioner contains a high frequency modulator/demodulator that supplies a driving signal to the transducer. This generates the necessary electromagnetic field used to measure the gap. The conditioner circuitry is made of high-quality components and is mounted in an aluminium extrusion.please contact us and we will get back to you within 24 hours.



IQS452 204-452-000-011 signal conditioner



The IQS452 signal conditioner supplies a driving signal to the matching proximity transducer. This generates the necessary electromagnetic field used to measure the gap between the transducer tip and the target, using the eddy current principle. As this gap distance varies, the output of the conditioner provides a dynamic signal proportional to the movement of the target.



The power for the transducer-conditioner system is obtained from the associated processor modules or rack power supply. The conditioner circuitry is made of high-quality components and is mounted and potted in an aluminium extrusion to seal out moisture and dust. Please refer to the accessory list for the range of available enclosures for additional protection and for multi-channel installations.



CHARACTERISTICS



• For use with the TQ 400 series transducers



• Temperature compensated



• Conforms to API 670 recommendations



• Certified to CENELEC standards



• Output protected against short circuits



• Voltage or current output



IQS452



Technical Specifications

Manufacturer VM
Part Number 204-452-000-011
Ordering Information 204-452-000-011
Product Catalog IQS452
Description Signal Conditioner
Voltage -20 V to -32 V
Current 13 ±1 mA (25 mA max.)
Dimensions 79.4 mm x 54 mm x 36.5 mm
Weight 140 g
