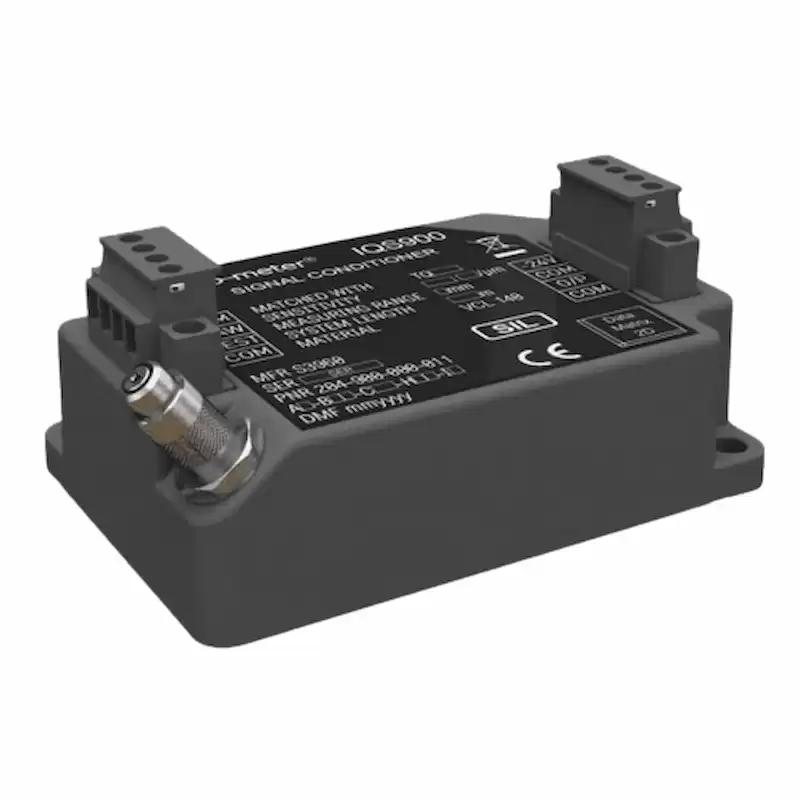

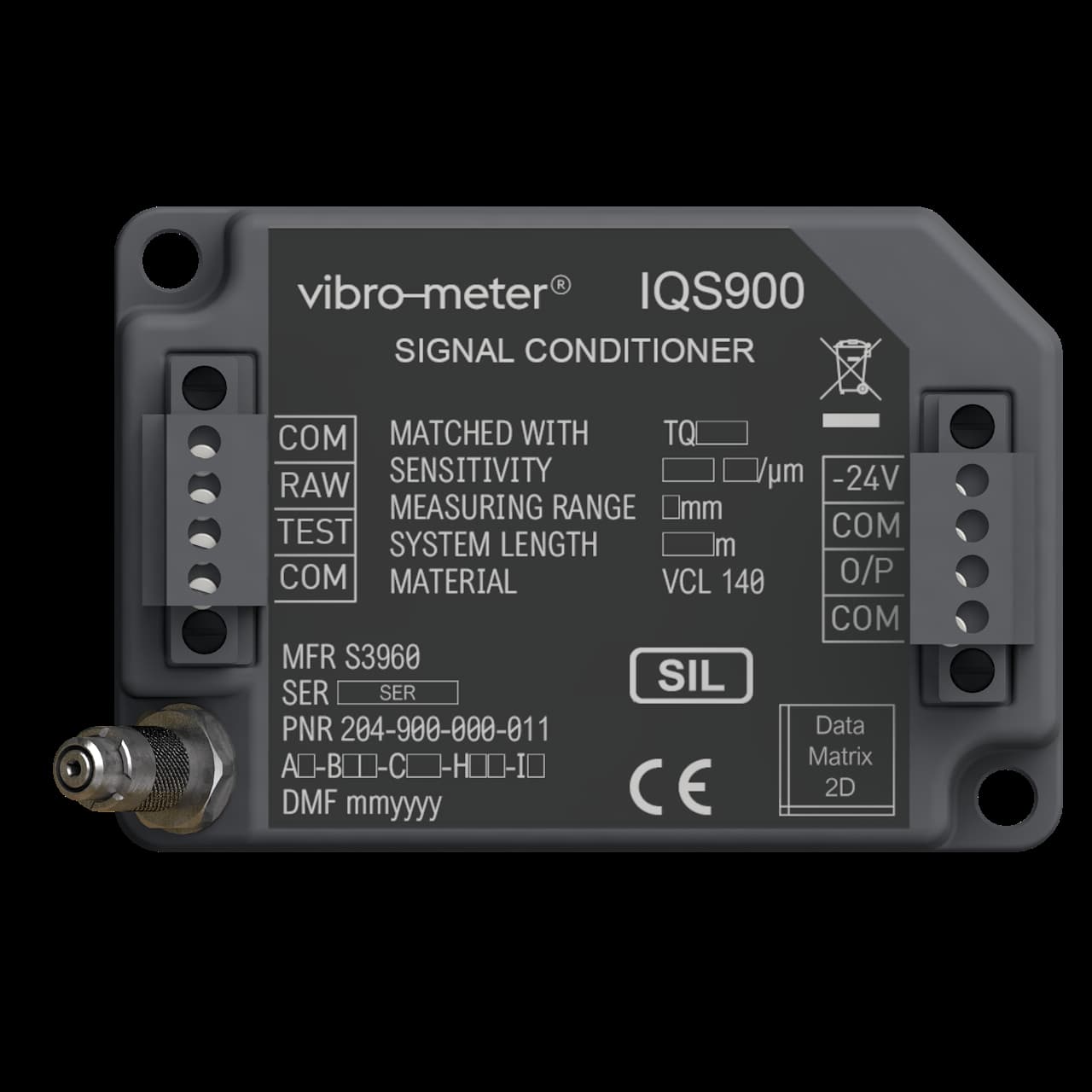

IQS900 204-900-000-011
IQS900 signal conditioner
The IQS900 signal conditioner contains a high frequency modulator/demodulator that supplies a driving signal to a TQ9xx sensor.
This generates an electromagnetic field in the tip of the sensor, which generates eddy-currents in the metallic target. When the target moves, the eddy-currents change, which causes a change in the electrical characteristics of the TQ9xx that the signal conditioner converts into a signal that is proportional to the distance to the target.
The IQS900's output is an analogue signal consisting of a dynamic component (AC) that corresponds to the measured vibration (displacement) and a quasi-static component (DC) that corresponds to the measured gap. The output can be configured as a current or a voltage signal, suitable for transmission to a monitoring system via current (2-wire) or voltage (3-wire) transmission cables, respectively.
For an IQS900 signal conditioner with optional diagnostics, the quasi-static DC component also functions as a diagnostic indicator. That is, the IQS900's diagnostic circuitry continuously checks the integrity of the measurement chain and will drive the measurement/diagnostic component (DC) outside of its normal operating range to indicate a problem with the sensor, the cabling and/or the signal conditioner itself.
For test purposes, the IQS900 provides a "raw" voltage output signal and supports a test voltage input signal that allow the measurement chain/system operation to be tested in situ, thereby simplifying commissioning and troubleshooting.
IQS900 has the following main features:
Multifunctional sensing measurement: It can simultaneously measure a variety of physical quantities, including temperature, humidity, pressure, gas concentration, etc., to provide users with comprehensive environmental data.
High accuracy and stability: It uses advanced sensor technology and signal processing algorithms to ensure high measurement accuracy and good stability.
Industrial-grade design: It meets industrial standards, has good durability and reliability, and is suitable for long-term operation in harsh environments.
Intelligent function: Built-in intelligent algorithm, which can analyze data and make feedback in real time, and supports remote monitoring and control.
Easy to integrate: It provides standard interfaces and communication protocols, which is convenient for integration with various systems, rapid deployment and use.
In short, IQS900 is a high-performance, multi-functional, stable and reliable smart sensor, which provides an ideal solution for data acquisition and control in the industrial and scientific fields.
