Anhui Quickly Industrial Heating Technology Co., ltd is a family of privately-owned companies focused on the development of infrared heating technology which dramatically reduces the time and space required for industrial heating and drying processes and provides quantum leaps forward in efficiencies for our global customers.

All products

double tube fast medium wave infrared emitters 4000W 380V

Fast response medium wave infrared emitters are heaters that fall between the short and standard medium-wave. Utilizing the best of both wavelength. Response times as fast as short wave, with a maximum power output of 120 kW/m2 and lengths up to 4 meters. The heaters is suitable for drying processes because of transferring heat at a medium wave spectrum (2-4micron) .

fast medium wave infrared emitters with gold coating for glass cutting

Fast medium wave infrared heaters can design twin tube IR emitters with different filament configurations such as single side connection cable and two sides connection cable, one heating channel and two heating channels. The Max. length is up to 4.0 meters and all the fast medium wave IR heat lamps can be fixed white ceramic or gold reflector directly on the quartz tube.

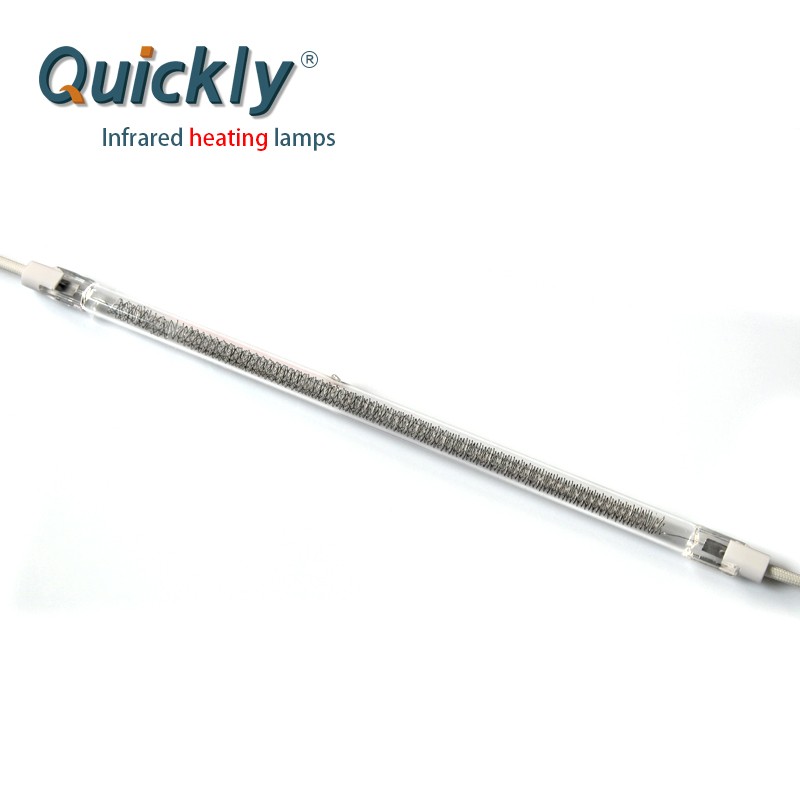

star filament fast medium wave quartz tube heater IR lamps

Fast response medium wave infrared emitters have same product processing as short wave infrared lamps, made up from coiled tungsten filament and surrounded by a quartz glass and kinds of halogen gas. It belongs to vacuum lamp. It can be made into single round tube and twin tubes based on the working situation.

Fast Medium Wave Quartz Twin Tube Infrared Heaters Lamp IR Elements for BoPET Films Production

Fast Medium Wave Infrared Heating Lamp is mainly used in the longitudinal stretching process section in BOPET film production.In order to achieve the high light transmittance and the process requirements of raising the temperature to 100℃ within 5s,fast medium wave infrared emitters are best choice as its fall between the short and standard medium-wave. Utilizing the best of both wavelength. Response times as fast as short wave, with a maximum power output of 120 kW/m2 and lengths up to 4 meters.

Quartz IR Emitters Halogen Infrared Heater Lamp Tube for Electrode Coating Heating Process of Lithium Batteries

Fast medium wave infrared heaters can design twin tube IR emitters with different filament configurations.The Max. length is up to 4.0 meters and all heating lamp can be switched on and off within few seconds, converting more than 85% of input power into infrared heat.Quickly support quartz tube infrared lamp for different applications such as industry coating, plastic forming, automotive industry, glass making, spinning, solar PV, food baking, drying of printing inks, quick drying of primer and paint on furniture, printed circuit, and so on
