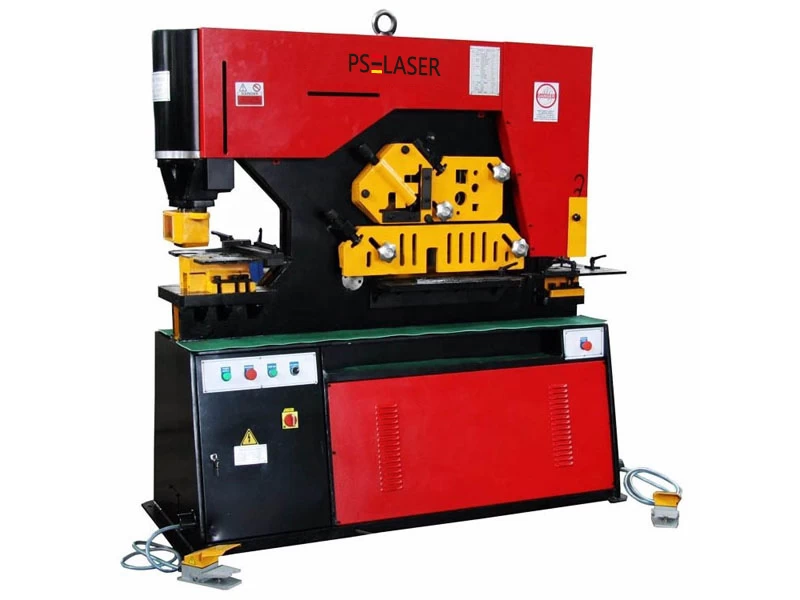

Product Item: Ironworker Machine Q35Y Series
Structure and performance introduction:
1)This series of
products are ideal equipment for cutting all kinds of angle steel, I-beam,
U-shape steel, right angle or 45 degree angle steel. Multi-workstations make it
possible to finish series operations simultaneously on one machine, such as
punching, shearing and notching, Dual-piston-type combined punching and
shearing machine allows two-man operation at the same time (stamping +another work
station), German Rexroth’s integrated hydraulic valve block ensures the
stability of the machine, Through Thermal Effect of annealing processing, the
entire rack is able to keep its shape forever, without deformation. The
introduction of imported brand accessories ensures the parts ’ service life and
use precision.

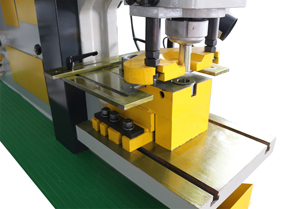

2)Punching:
effective punching can be achieved with the machine, and stamping die is easy
to be replaced.
3)Bar cutting: you
can quickly cut the round bar and square steel, if you want to cut U-shaped,
I-beam or T-profile section steel only by exchanging the cutting blade and the
operation procedure is very simple.
4)Angle cutting:
you can cut several 90 ° and 45 ° angles with the help of special dies.

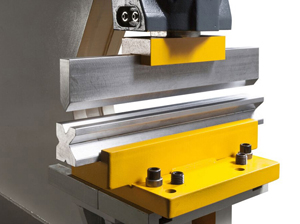

5)Metal Sheet
Bending: it is very easy to fulfill the daily metal sheet bending work by
making the bending moulds.

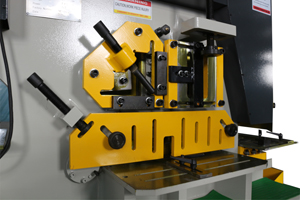

6)Notching: The
machine is equipped with a large-shaped slotting blade head, which can meet
your general use, as to, special shaping blade head can be customized.

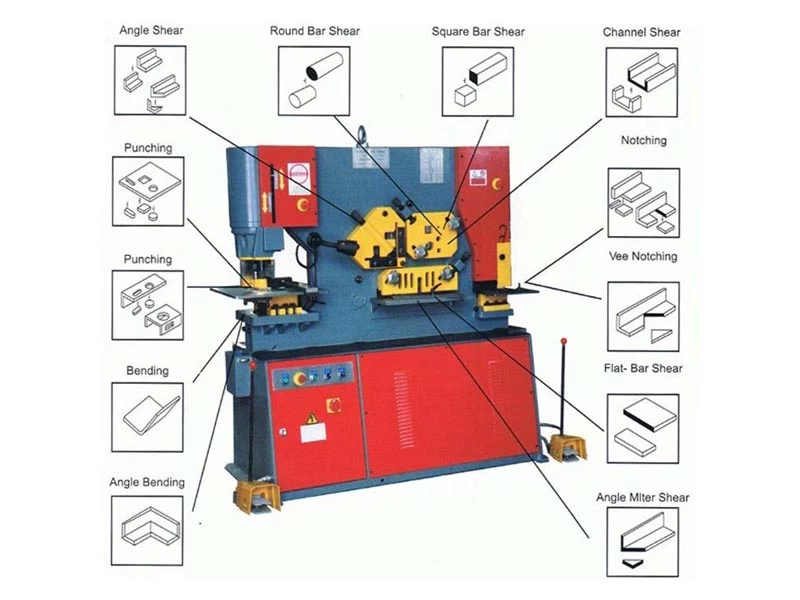

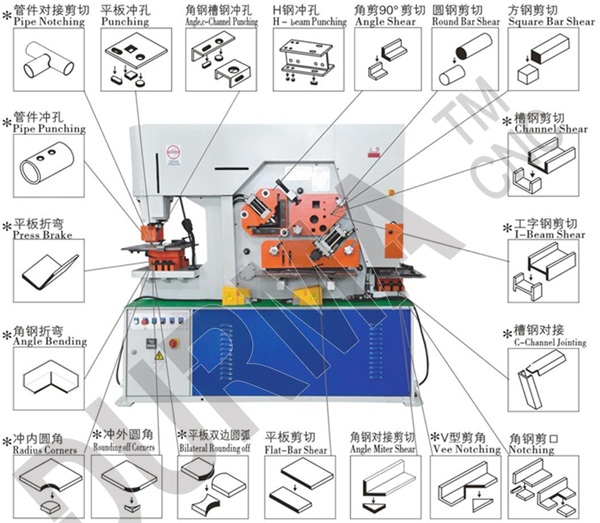

Hydraulic Ironworker Machine Main functions：
1)2 independent
hydraulic piston rods and foot-pedal allows two people operating at the same
time.
2)More efficient
stroke-control functions of piston rod.
3)Central lubricating system
4)Motor-driven rear
stopper
5)Lighting devices for work
6)5 independent
work-positions: punch pin and die (standard punching dies),cutting blade group
for round and square steel, shearing blades for steel plate, slotting and
angle-cutting blade.
Punching And Shearing Machine Technical Specifications:
Technical Specifications
|
Q35Y-30
|
Punching Pressure(T)
|
160
|
Depth of throat(mm)
|
600
|
Features
|
Punching holes
|
Diameter Max thickness
|
mm
|
38x26
|
Diameter thickness
|
mm
|
38x26
|
Max diameter
|
mm
|
36
|
Stroke
|
mm
|
80
|
Work stroke
|
mm
|
x30
|
Throat Depth
|
mm
|
600
|
Steel bar cutting
|
Round steel
|
mm
|
65
|
Square steel
|
mm
|
55x55
|
Angle cutting
|
Angle cutting
|
mm
|
180x180x16
|
Angle
|
°(degree)
|
80x80x10
|
Edged surface
|
mm
|
11.5
|
Slotting
|
Thickness
|
mm
|
280
|
Width
|
mm
|
86
|
Depth
|
mm
|
|
U-shaped and I-beam cutting
|
mm
|
180x180x16
|
T-section cutting
|
mm
|
80x80x10
|
I-beam cutting
|
mm
|
280x124x10.5
|
V-slotting die
|
mm
|
600
|
V-bending
|
mm
|
26
|
Pressure
|
kn
|
1600
|
Motor Power
|
kw
|
15
|
Weight
|
kg
|
6800
|
Machine outline size( L x W x H )
|
mm
|
3680x1040x2300
|
|
Please contact us for other parameters.
|
Standard Configuration List ( Optional )：
|
No
|
Item
|
Manufacturer
|
Remarks
|
|
1
|
Electrics
|
Schneider - France
|
Standard
|
|
2
|
Main motor
|
Siemens - Germany
|
|
3
|
Oil pump
|
SUNNY - USA
|
|
4
|
Valve block
|
Rexroth - Germany
|
|
5
|
Pedal switch
|
KACON - South Korea
|
|
6
|
Wind-cooler for oil
|
China
|
|
7
|
Sealing ring
|
Parker - USA
|
|
8
|
Oil pipe connector
|
pressure hose - Germany
|
|
9
|
Safety guard
|
DURMACNC
|
|
10
|
Manual stopper positioning
|
DURMACNC
|
Optional
|
|
11
|
Electric stopper positioning
|
DURMACNC
|
|
12
|
Automatic holding system ( Manual & Automatic)
|
DURMACNC
|
|
13
|
Infrared ray positioning ( Punching position )
|
China
|
|
14
|
Tandem (punching part and shearing)
|
DURMACNC
|
