The 12/24 volt DC, 0.5A Positive Logic Output module for the Series 90-30 Programmable Logic Controller provides 32 discrete outputs. The outputs are arranged in four isolated groups of eight (A1 - A8, B1 - B8, C1 - C8, and D1 - D8); each group has its own common.
|
|
|

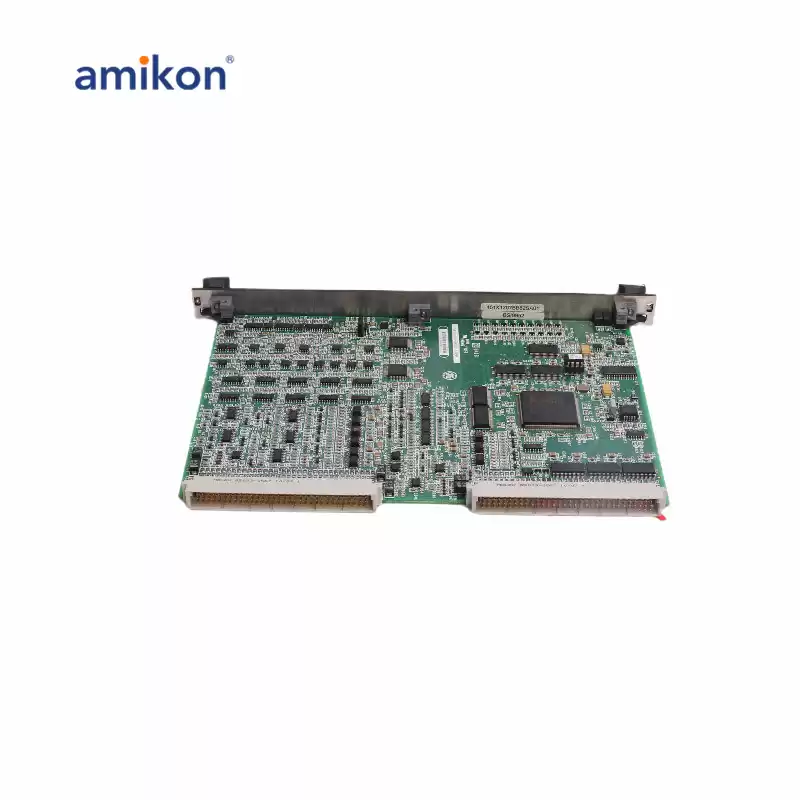

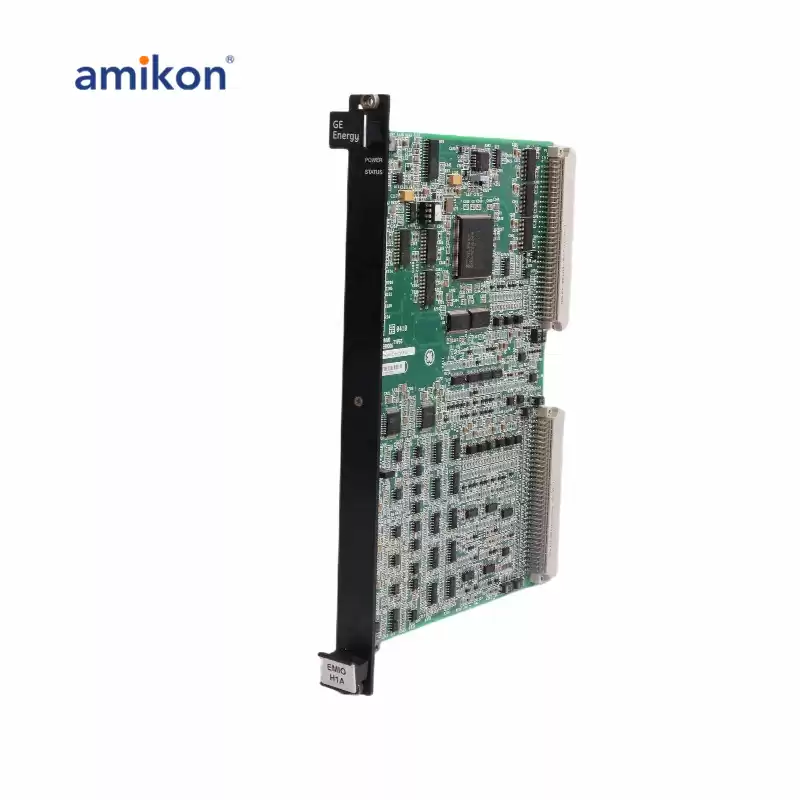

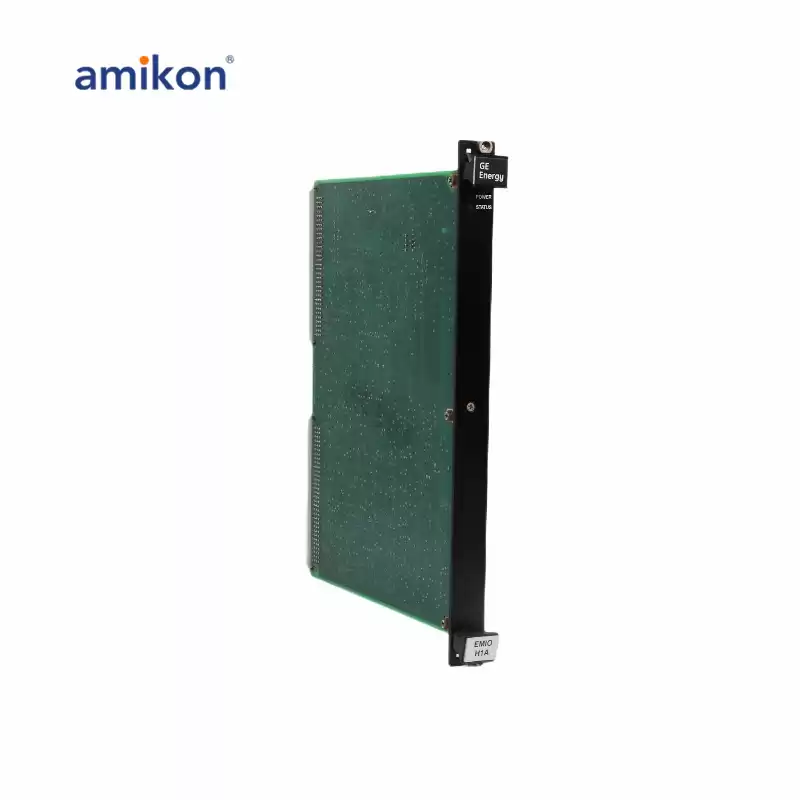

IS200EMIOH1AFB Data sheet
|
The outputs are positive logic or sourcing type outputs in that they switch the loads on the positive side of the power supply, and therefore supply current to the load.
|
|
The outputs can switch user loads over the range of +12 through +24 VDC (+20%, –15%) and are capable of sourcing a maximum current of 0.5 amps per point.
|
|
Two pins are provided on the user I/O connectors for each group common. Each pin has a current handling capability of 3 amperes.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
