In terms of power for the EPSM models, a power supply of 125 VDC is sent from the EPDM, after the power supply has been received the EPSM will generate the voltages into 5 VDC, 15 VDC, or 24 VDC.
|
|
|

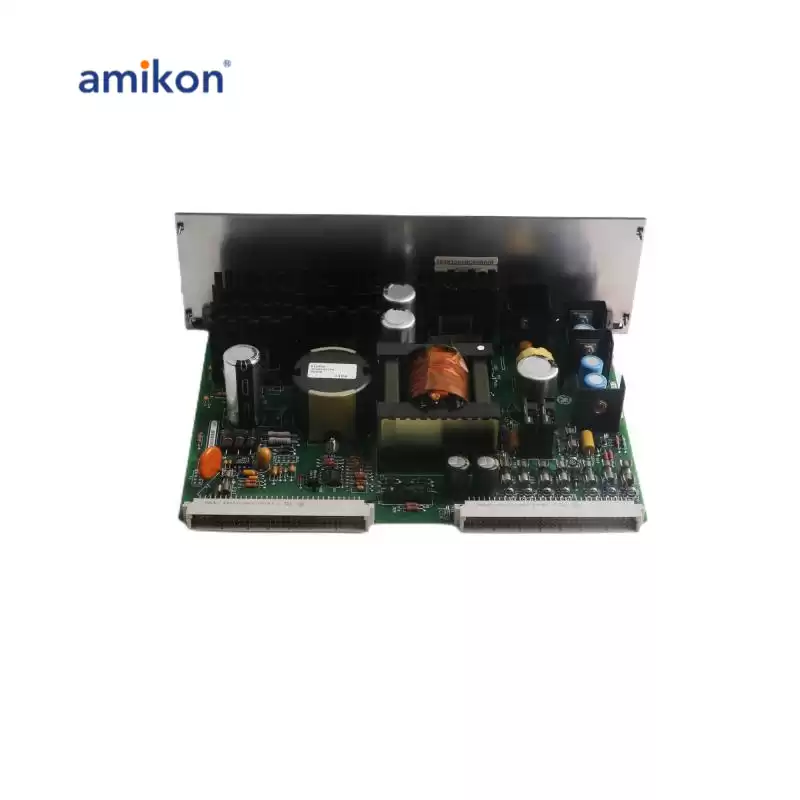

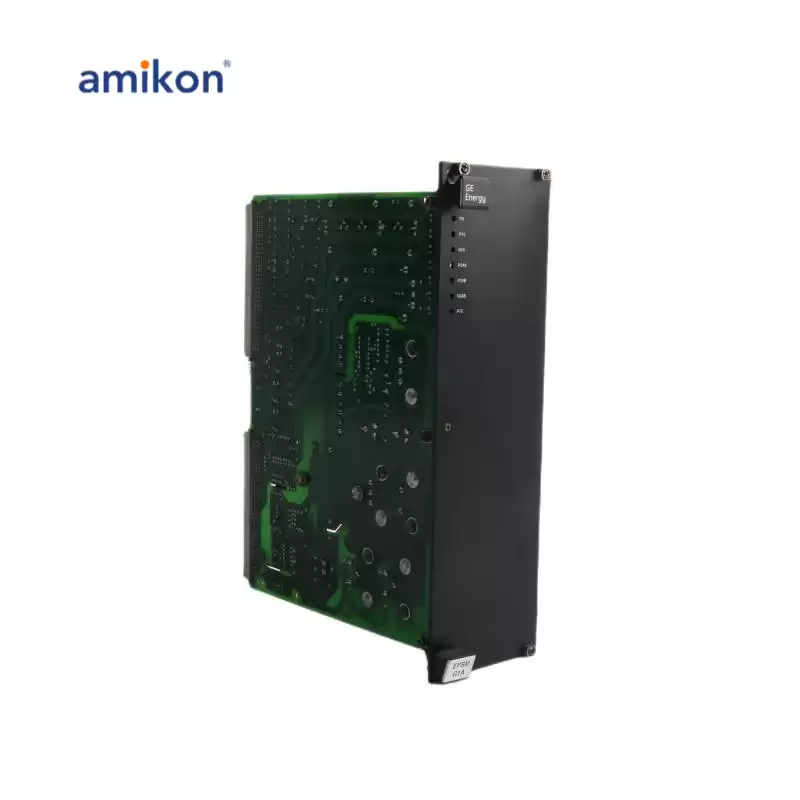

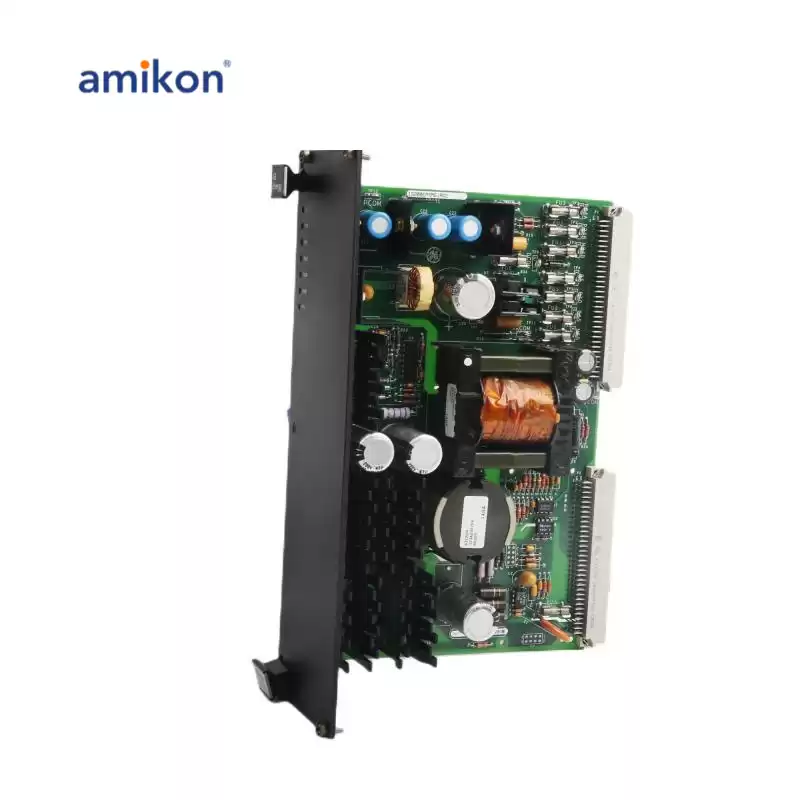

IS200EPSMG1ADC sheet
|
The power supplies for the M1, M2, and C controllers are located in the power supply module which is located underneath the control rack in the control cabinet.
|
|
The product-specific manual that is used with the IS200EPSMG1A board is GEI-100462.
|
|
mounted in the EPBP backplane and provides logic level power to other controllers.
|
|
