This board can support E, J, K, S, and T standard thermocouples as well as mV inputs with a span of -8 to 45 mV. E, J, K, S, and T thermocouples can be either grounded or ungrounded and can be located up to 984 feet from the turbine I/O panel.
|
|
|

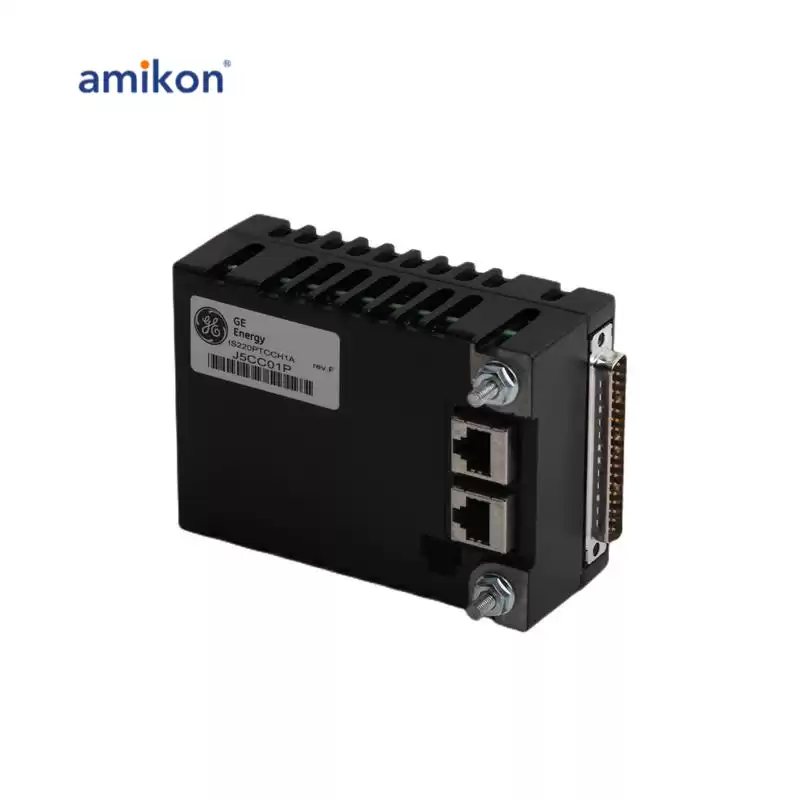

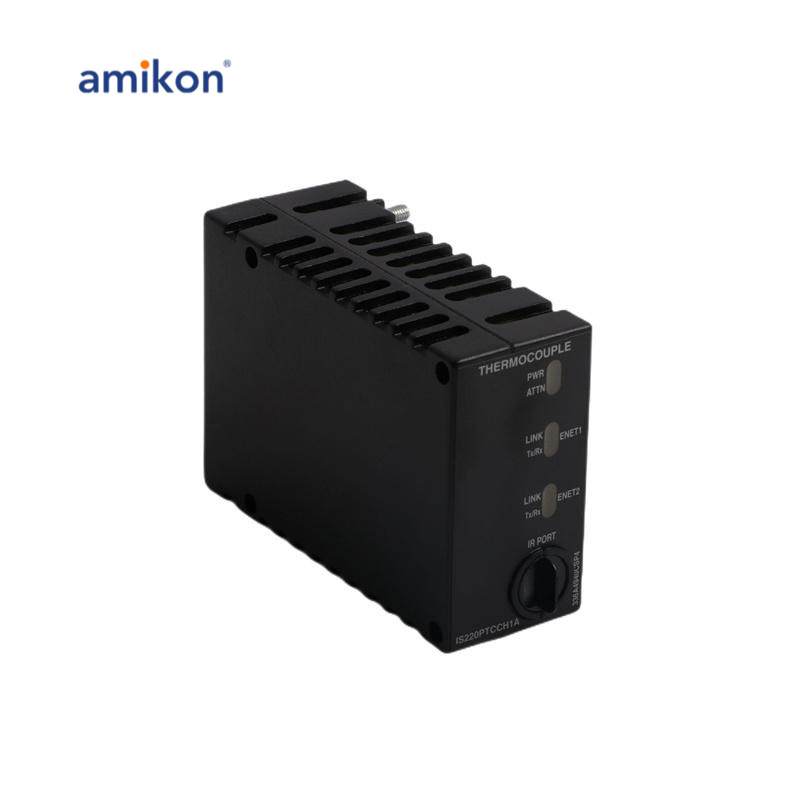

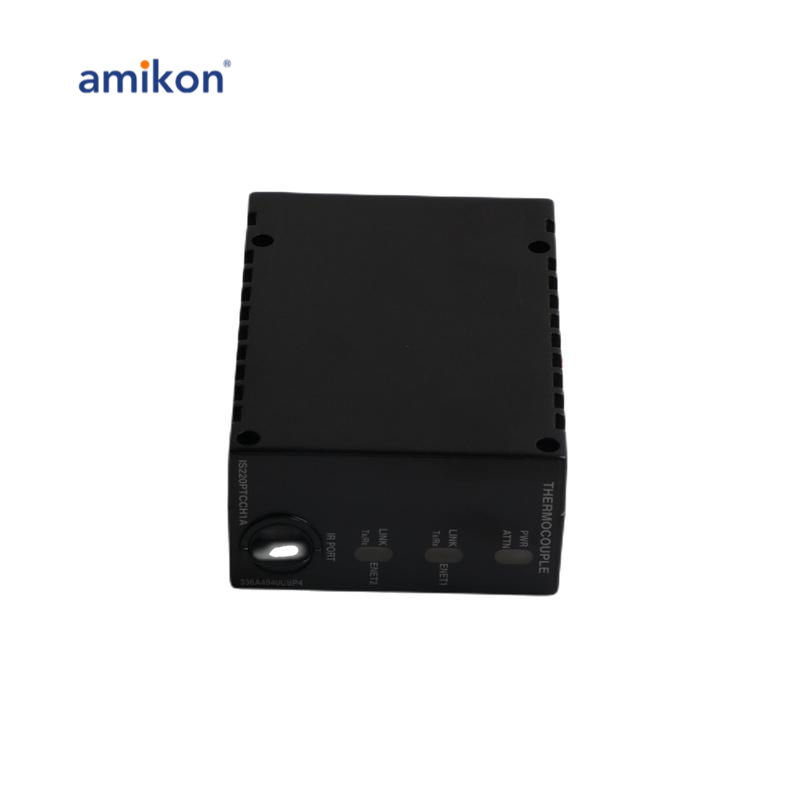

IS220PTCCH1A Data sheet
|
Common mode voltage is +/- 5 volts with AC common-mode rejection of 100dB @50/60Hz. Common mode rejection includes filtering for both hardware and software.
|
|
The IS220PTCCH1A offers a maximum software error/conformity error of .25 degrees Fahrenheit.
|
|
Can be used in simplex, duplex, and triple modular redundant applications.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
