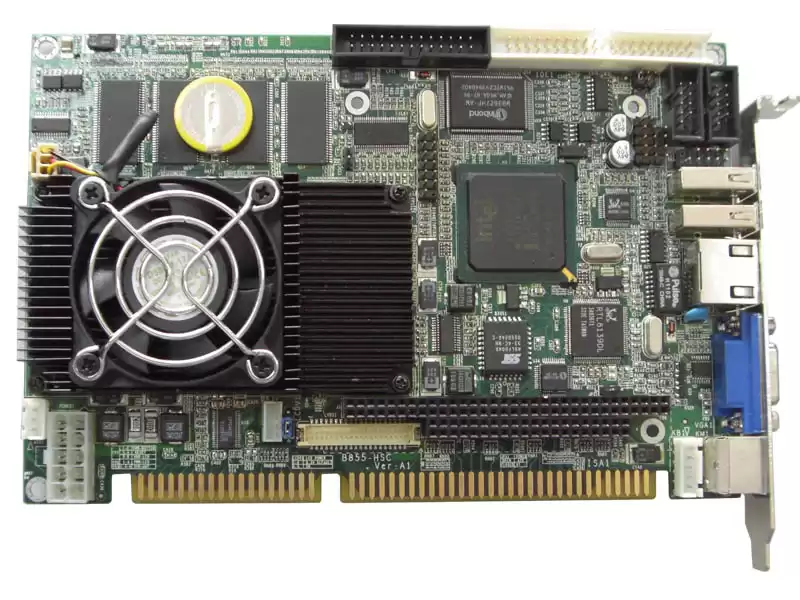

ISA Half Size Card Industrial Motherboard

ISA Half size card motherboard, Intel® CM600M CPU and 256M RAM soldered on board.









ISA Half Size Card Industrial Motherboard



Product Introduction

Motherboards are the foundation of all computers. They are printed-circuit boards (housing the computer’s basic circuitry and vital components), into which other boards, or cards, are plugged. They manage all data transactions between the CPU (central processing unit) and the peripheral devices. Their main components are memory, CPU, microprocessor and coprocessors, BIOS, interconnecting circuitry, controllers, mass storage, parallel and serial ports, and expansion slots. Other component devices and peripherals can be added through expansion slots, including the monitor screen, the keyboard, disk drives, etc.



Product Features

■ Soldered on-board Intel® C-M 600M Hz CPU

■ Soldered on-board 256M DDR

■ 10M/100M LAN

■ VGA,LVDS interface

■ 2COM RS232(COM2 support RS422 / 485)

■ 4USB2.0

■ 16bits GPIO

■ PC/104

■ 1〜255S Reset Watchdog

ISA Half-length card motherboard

Specification

CPU/GPU Soldered on-board Intel®Celeron M  600M Hz CPU
System on Chip Intel@852GM or 855GM
Memory Soldered on-board 256M DDR SDRAM
1DDR SO-DIMM slotup to 1GB SDRAM
Storage 1×IDE1 CF slot
Sound card Realtek AC97Audio
Ethernet  10M/100M
Display  CPU集成显卡
Display Interface 1×VGA,   LVDS
USB2.0 4
GPIO 16 bits
LPT 1
COM 2RS232COM2 support RS422 / RS485
Backplan I / O PS/2,  VGA,  RJ45 LAN,  2USB2.0
Board I / O  2USB ,  2COM ,  front audio ,  CLR_CMOS ,  CPU fan power ,  System fan power , GPIO
Front panel ,  8P ATX,  LVDS,  invert,  Print,  IDE
Expansion ISA,   PC/104
System  Support WindowsWINXP ...),Linux



Mechanical & Environmental

Power supply

ATX

Heat dissipation

Fans and heat sinks

Size(L×W)

185mm×122mm

Working temperature

-15~55℃

Storage temperature

-40~75℃

Environmental humidity

0~90%air humidity,no condensation

Packing list

ISA-2711CMLDNA×1,IDEwire×1,ATX power cable×1,COM cable×1,USB cable x1



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
