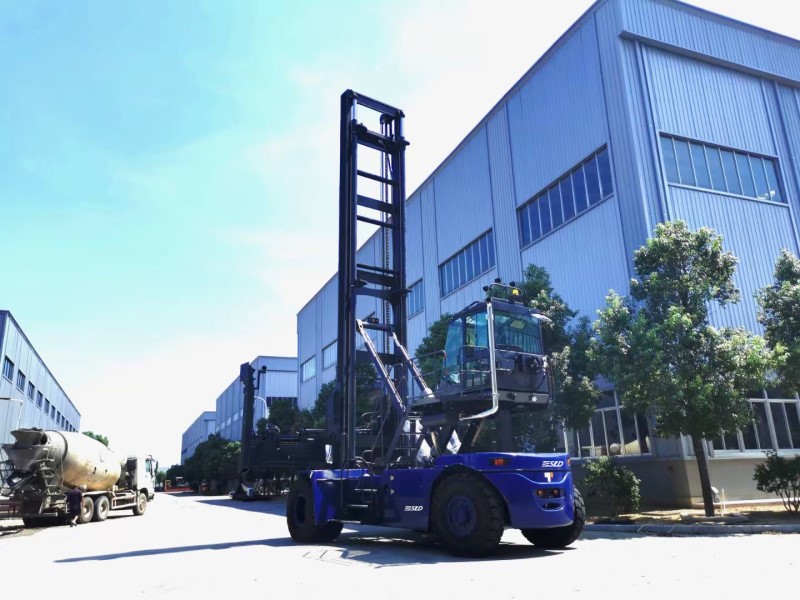

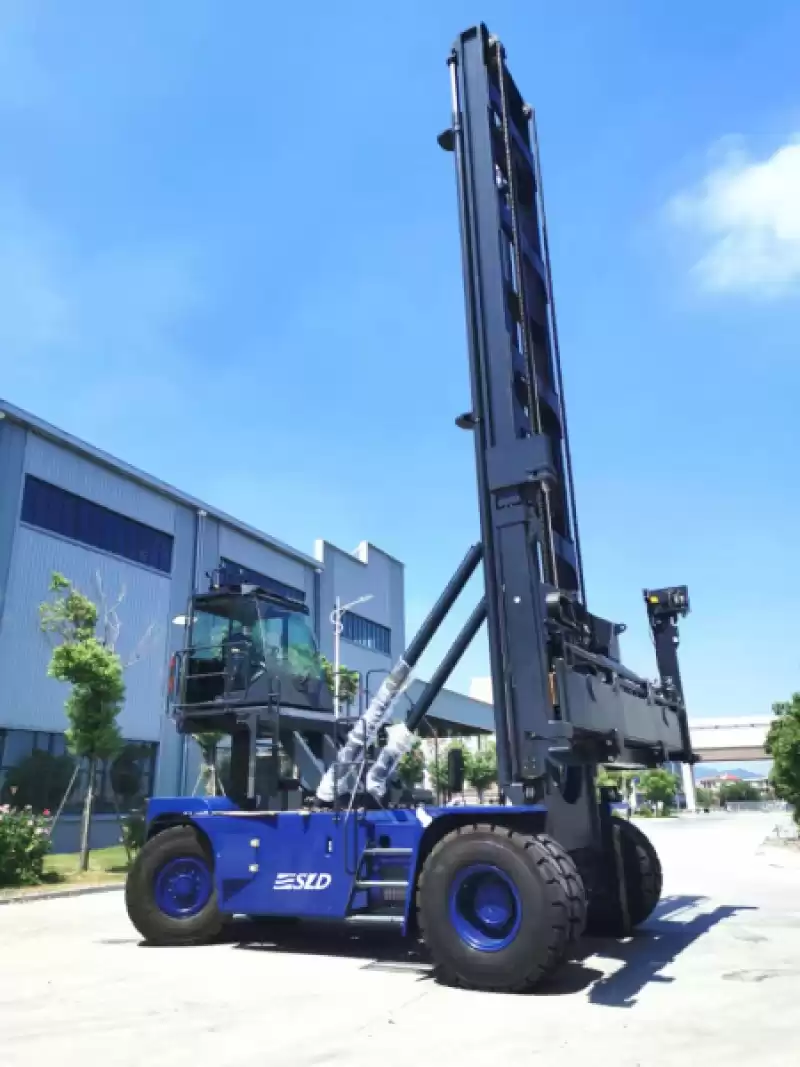

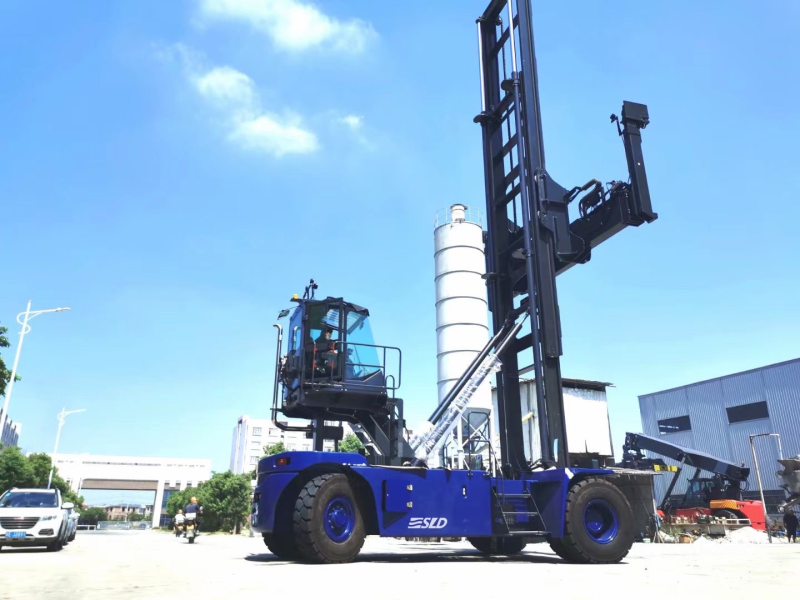

ISO 20ft And 40ft Empty Container Handler advantages:
1, High Quality Powerful Engine
Equipped with CUMMINS turbocharger engine, with full
electrical control system to ensure economic fuel consumption. Strong power to meet various working
condition. Comply with EU stage III gas emission standard Full lubrication
performance to ensure the low noise level. The electric engine protection system
shutdown the engine to avoid the damage when low lub-oil pressure /
high temperature.
2, The Automatic Transmission
Auto-gear transmission with 5 forwards /
3 reverse speed, makes the truck operation smooth and good economic
performance. Minimum maintenance, long service life
time.
3, Color Display
A reliable color display shows the
lifting weight / boom angle / lifting height / main pressure / engine status /
oil level / error code etc. all important information .The quick responding controller helps
the operation high efficiency .
4, Full Can-bus Control System
ECH empty container handler is equipped
with full Can-bus control system.
The engine/transmission/electric
system/hydraulic system/loading safety system/spreader system are all
integrated in the Can-bus system, all devices are monitored at real time.
Parker control units ensure the system reliable and flexible.
|
CHARACTERISTICS
|
|
Model
|
ECH90
|
|
Load capacity
|
9 tons
|
|
Maximum stacking layer
|
7
|
|
Lifting speed (Laden/Unladen)
|
m/s
|
0.55/0.60
|
|
Lowering speed (Laden/Unladen)
|
m/s
|
0.60/0.60
|
|
Travel speed (Laden/Unladen)
|
Km/h
|
26/28
|
|
Climbing ability
|
%
|
38
|
|
Tractive force
|
KN
|
157.5
|
|
DIMENSIONS
|
|
Wheelbase
|
y(mm)
|
4520
|
|
Height of mast,lowered
|
h1 (mm)
|
11111
|
|
Tilt angle (Forward/Backward)
|
Degree
|
3/4
|
|
Height of mast,extended
|
h4 (mm)
|
19244
|
|
Height of cabin
|
h6 (mm)
|
4326
|
|
Height, operator's seat
|
h7 (mm)
|
3226
|
|
Twistlock height lowered
|
h13 (mm)
|
2290
|
|
Maximum twistlock height
|
h3 (mm)
|
18642
|
|
Overall length
|
l1 (mm)
|
6850
|
|
Length to spreader face
|
l2 (mm)
|
6682
|
|
Overall width
|
b1/b2 (mm)
|
4120/2570
|
|
Width of spreader 20'/40'
|
b3 (mm)
|
6050/12150
|
|
Turning radius
|
Wa (mm)
|
6300
|
|
Wheelspan,front wheels
|
b10 (mm)
|
3280
|
|
WEIGHTS
|
|
Service weight
|
kg
|
38280
|
|
Axle load,front/rear
|
kg
|
36610/10670
|
|
Axle without load,front/rear
|
b13 (mm)
|
22480/15800
|
|
ENGINE
|
|
Engine manufacturer/type
|
Cummins/QSB6.7
|
|
Cylinder number/Displacement
|
6/6700cm3
|
|
Rated power
|
164KW@2200rpm
|
|
Maximun torque
|
949NM@1500rpm
|
|
Rated current of alternator
|
100A
|
|
Battery
|
24V(2x12/110)
|
|
TRANSMISSION
|
|
Manufacturer/type
|
ZF/3WG211AUTO
|
|
Clutch type
|
Torque converter
|
|
Transmission
|
Auto-shift/interlock
|
|
Gear number
|
3F/3R
|
|
BRAKESYSTEM
|
|
Service brake
|
Wet-disk
|
|
Parking brake
|
Brake enabled when power off
|
|
DRIVE AXLE
|
|
Manufacturer
|
Kessler/Germany
|
|
Type
|
D81PL488-NLB
|
|
STEER AXLE
|
|
Manufacturer
|
OMCI/Italy
|
|
Type
|
ASF
|
|
Steering type
|
Double action cylinder
|
|
TYRES
|
|
Drive wheels
|
14.00-24 28PR
|
|
Steering wheels
|
14.00-24 28PR
|
|
Type
|
Pneumatic
|
|
Pressure
|
10 bar
|
|
Quantity, front/rear
|
4/2
|
