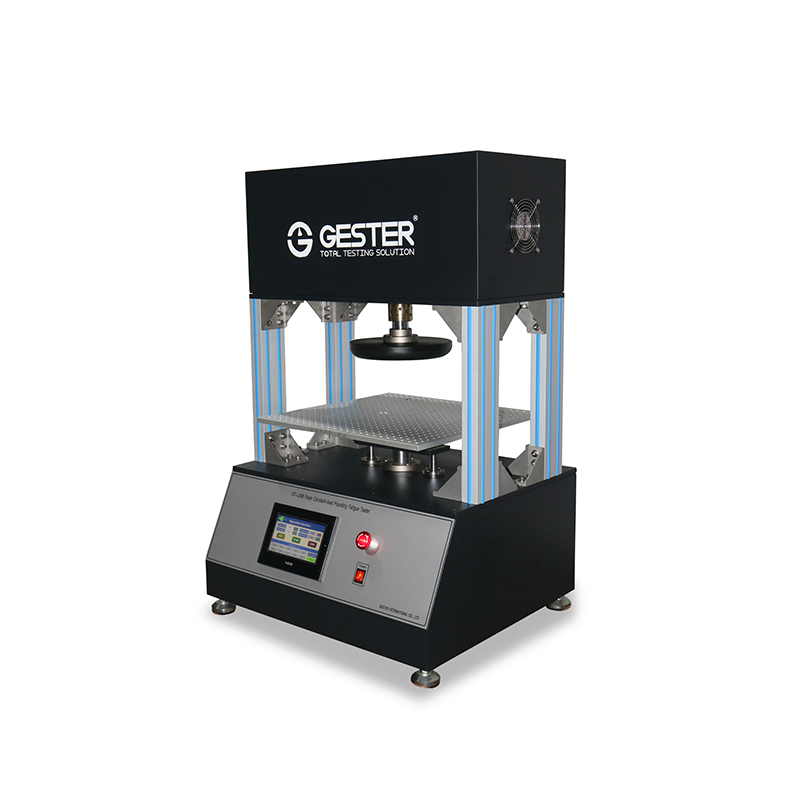

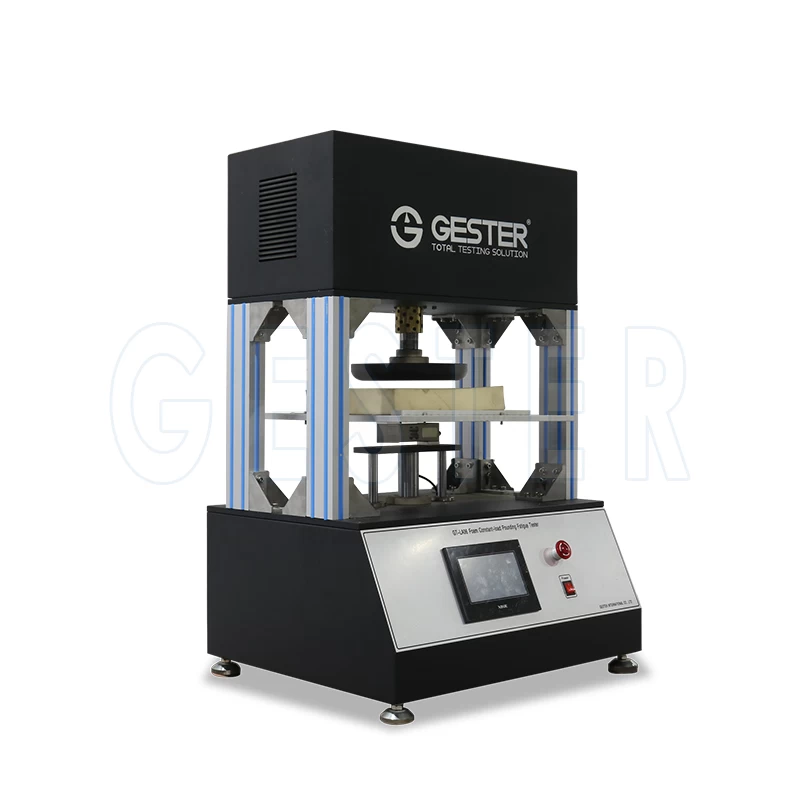

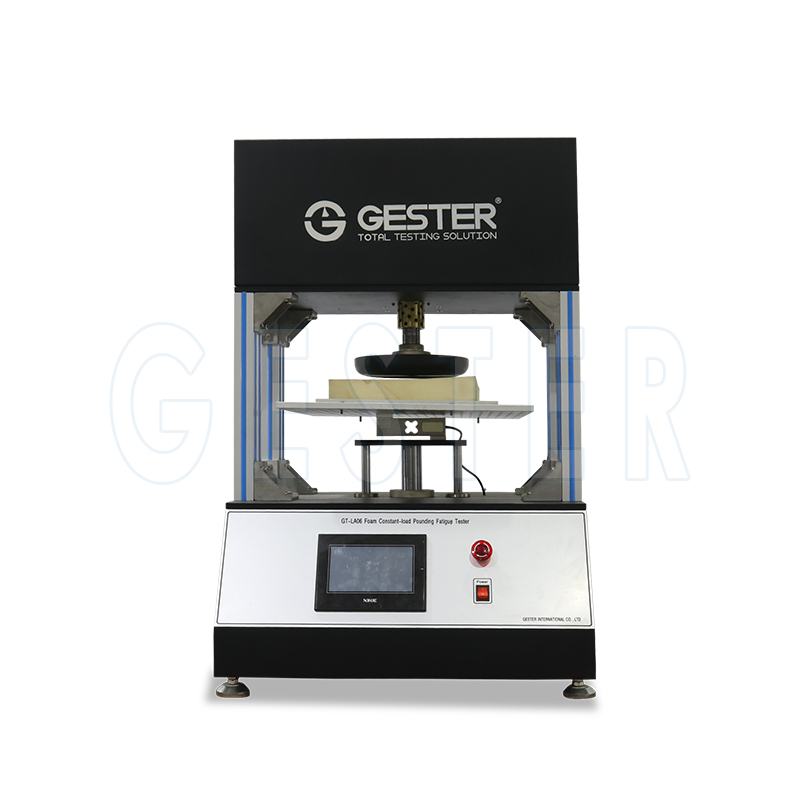

ISO 3385 Foam Constant-load Pounding Fatigue Tester GT-LE03

Foam Constant-load Pounding Fatigue Tester GT-LE03 Determine the thickness reduced value and hardness decreased value of porous elastic materials used in interior decoration.



Facebook Twitter Pinterest LinkedIn 分享


Foam Pounding Fatigue Tester

Applications:

Foam Pounding Fatigue Tester Determine the thickness reduced value and hardness decreased value of porous elastic materials used in interior decoration.



Principle:

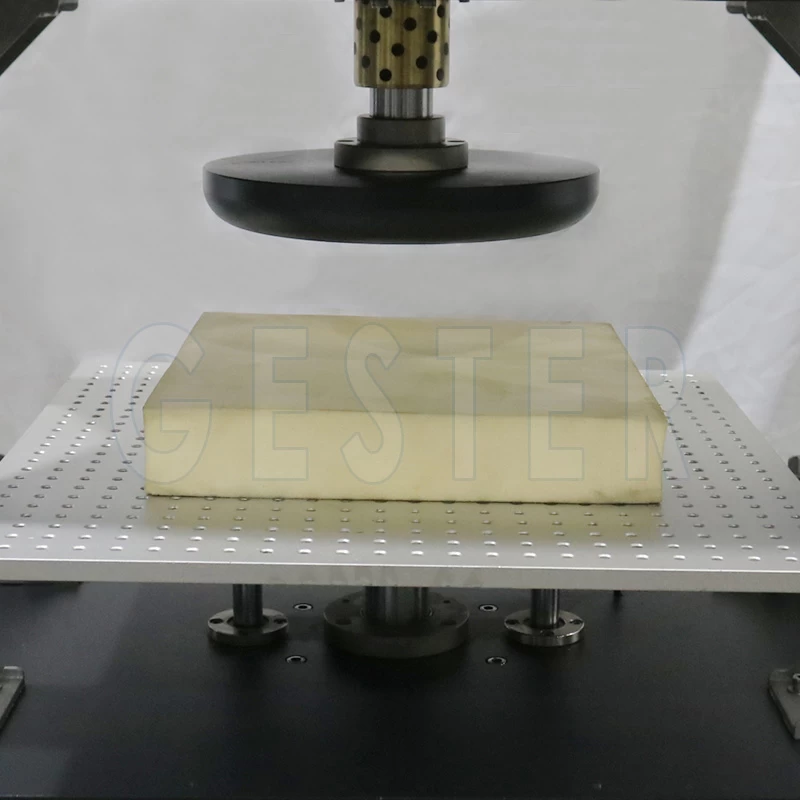

Put a square sample on the lower platform, and Repeatedly recess the sample by an indenter, whose size is smaller than the specimen. Reach the max.load under a certain range during each impact period, and then evaluate the sample performance after a certain times.


Standards:

GB/T 18941, GB/T 12825, ISO 3385, ASTM D3574-TEST I3


Key Specifications:

Model

GT-LE03

Test speed

70±5 r/min or 10±1 r/min

Test Times

0~999999 times, settable.

Upper Platen

Diameter: Φ250mm

Fillet of lower edge: R25mm

Stroke

80mm

Sample load

750±20N

Dimension (specimen)

(380±20)x(380±20)x(50±2)mm

Counting

0~999,999 times

Size (W*D*H)

69x50x115cm

Weight

About 150kg

Power

1∮, AC  220V  50Hz



Applications Industry
All kinds of Foam Material can be tested on the ISO 3385 Foam Constant-load Pounding Fatigue Tester GT-LE03
