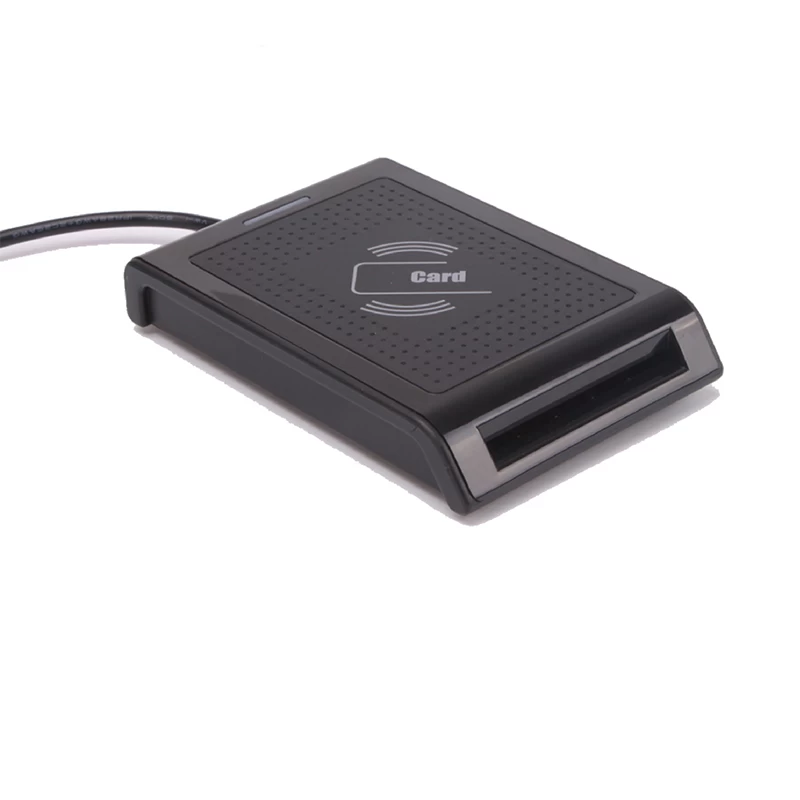

ISO/IEC 7816 Contact Smart Card Reader

The type of C-series Contact Smart Card Readers are supported operating systems：Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux®, Android4.0 above.

Facebook Twitter Pinterest LinkedIn 分享

ISO/IEC 7816 Contact Smart Card Reader


Host Interface
Interface USB 2.0 Full Speed Device (HID)or High Speed RS232 (9600-115200bps) or PC/SC CCID
Power Source
From USB port
Supported Operating Systems

Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux®, Android4.0 above


Contact Smart Card Interface
Standard
ISO/IEC 7816 Class A, B, C (5V, 3V, 1.8V)
Support the card type
CPU(T=0&T=1), 4442, 4428, 24Cxx, AT88SC102, AT88SC1604, AT88SC1608, AT88SC153
Smart Card Read /Write Speed
9,600-115,20bps
Supply Current
Max. 50mA
Short Circuit Protection
(+5) V /GND on all pins
Card Connector Type
ICC Slot 0: Landing
Card Insertion Cycles Min200,000


SAM Card Interface (Up to 2 Slots)
Standard
ISO/IEC 7816 Class B (3V)
Protocol
T=0; T=1
Smart Card Read /Write Speed
9,600-115,200bps


Built-in Peripherals
Buzzer
Monotone
LED Status Indicators
3 LED (green, blue, red)
Physical Specifications
Dimensions
118mm (L) x 78mm (W) x 18mm (H)
Weight
210g
Operating Conditions
Temperature
 -10°C – 60°C
Humidity
10% to 90%, non-condensing
