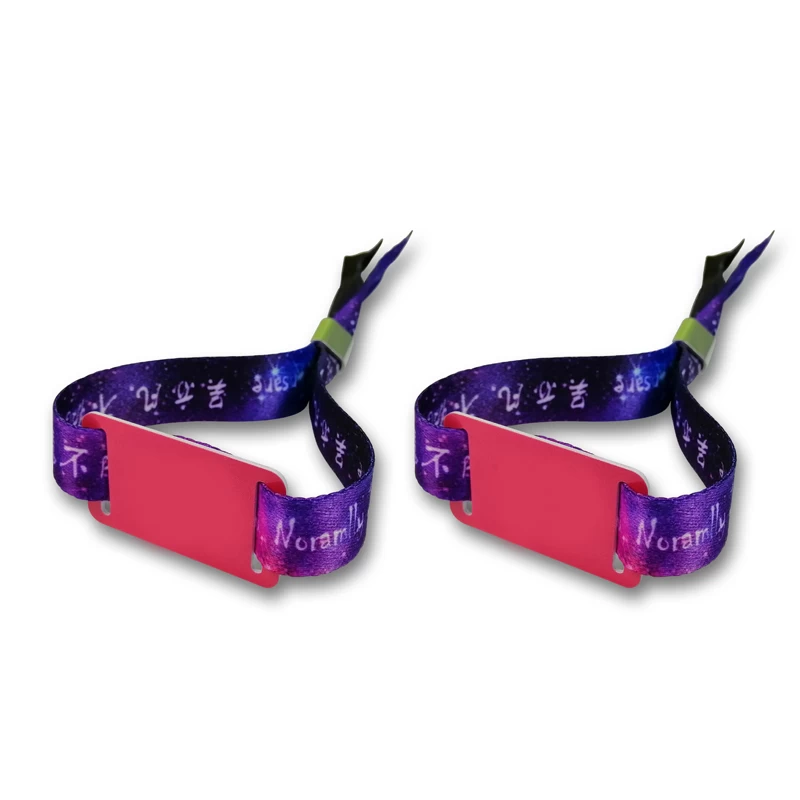

RFID Woven wristband
1. Material: woven+mini PVC or PVC+epoxy
2. Tag Size: 39x23mm with hole 2x18mm
3. Woven length: customized, normally
400mm.
Personalization:
1. printing LOGO, or NUMBER
2. Laser RUNNING NUMBER, or UID NUMBER, or
LETTER
MIFARE and MIFARE Ultralight are registered
trademarks of NXP B.V. and are used under license
MIFARE Ultralight®
MIFARE® Ultralight-based tickets offer an
ideal solution for low-cost, high-volume applications such as public transport,
loyalty cards. and event ticketing
They serve as a perfect contactless
replacement for magnetic stripe, barcode, or QR-code systems.
The introduction of the contactless MIFARE
Ultralight® ICs for limited-use applications can lead to reduced system
installation and maintenance costs.
MIFARE Ultralight C - Contactless ticket IC
1. General description:
NXP Semiconductors has developed the MIFARE
Ultralight C - Contactless ticket IC MF0ICU2 to be used in a contactless smart
ticket or smart card in combination with Proximity Coupling Devices (PCD).
The communication layer (MIFARE RF
Interface) complies to parts 2 and 3 of the ISO/IEC 14443 Type A standard
2. Features and benefits
MIFARE RF Interface (ISO/IEC 14443 A)
Contactless transmission of data and supply
energy
Operating distance up to 100 mm depending
on antenna geometry and reader configuration
Operating frequency of 13.56 MHz
Data transfer of 106 kbit/s
Data integrity of 16-bit CRC, parity, bit
coding, bit counting
True anticollision
7 byte serial number (cascade level 2
according to ISO/IEC 14443-3)
Typical ticketing transaction: < 35 ms
Fast counter transaction: < 10 ms
2.1 EEPROM
1536-bit total memory
512-bit compatible to MF0ICU1
36 pages, 1152-bit user r/w area
Field programmable read-only locking
function per block
Field programmable read-only locking
function per page for first 512-bit
16-bit one-way counter
32-bit user definable One-Time Programmable
(OTP) area
Write endurance 100000 cycles
Data retention of 10 years
3. Applications
Events, concerts, park, etc
