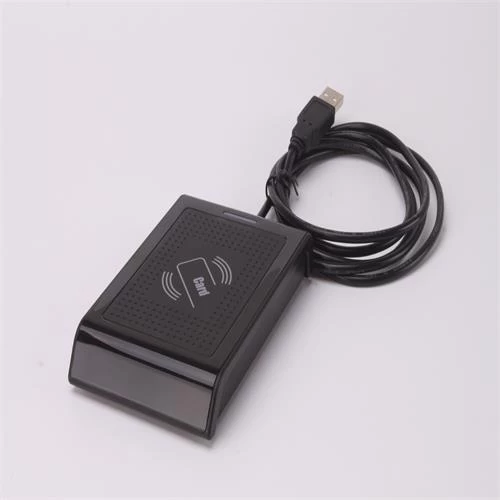

ISO15693 rfid reader HF 13.56MHZ USB RFID reader

                          C-series Contactless Smart Card Reader

Host Interface

Interface

USB 2.0 Full Speed Device (HID)or High Speed RS232 (9600-115200bps)

or PC/SC CCID

Power Source

From USB port

Supported Operating Systems

Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux®, Android4.0 above

Contactless Smart Card Interface

Standard

ISO/IEC 14443 TypeA, TypeB (Optional), ISO/IEC 15693 (Optional)

Support the card type

Mifare ® Classic Protocols card,UltraLight,UltraLight C,T=CL CPU card,

Ntag213,Ntag215,Ntag216,DESfire(Optional),I-CODE2 (Optional)

Smart Card Read /Write Speed

106kbit/s, 212kbit/s, 424kbit/s, 848Kbit/s

Operating Distance

Up to 50 mm

SAM Card Interface (Up to 2 Slots)

Standard

ISO/IEC 7816 Class B (3V)

Protocol

T=0; T=1

Smart Card Read /Write Speed

9,600-115,200 bps

Built-in Peripherals

Buzzer

Monotone

LED Status Indicators

2 LED (green and red)

Physical Specifications

Dimensions

118mm (L) x 78mm (W) x 18mm (H)

Weight

150g

Operating Conditions

Temperature

-10°C – 60°C

Humidity

10% to 90%, non-condensing
