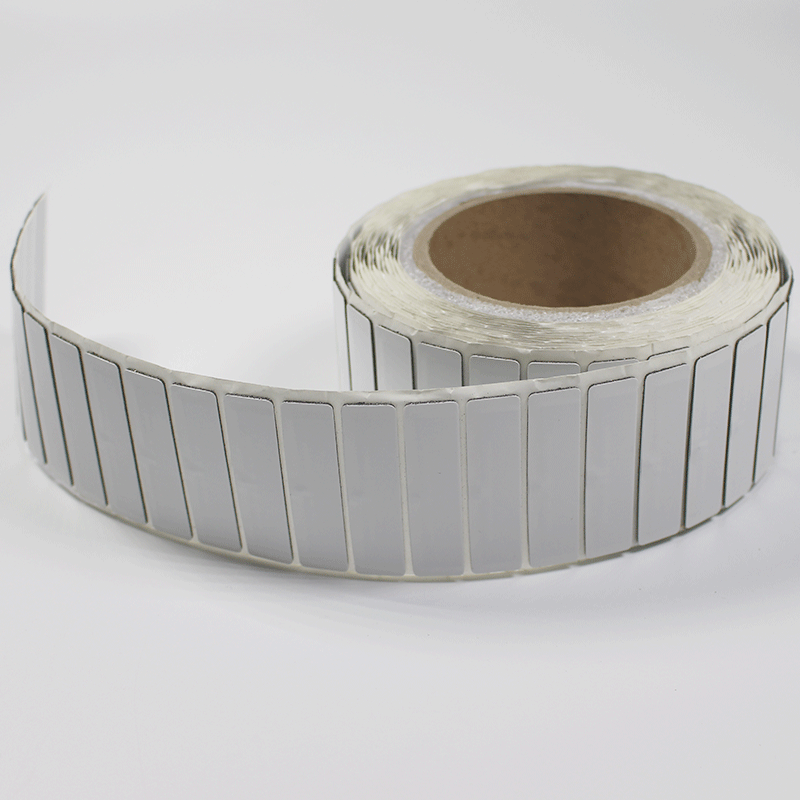

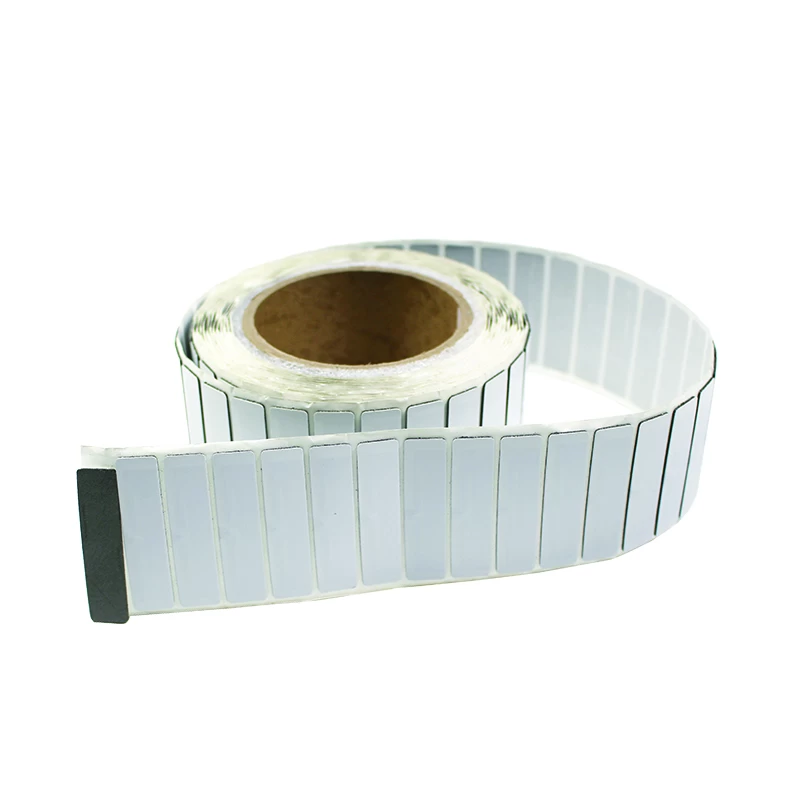

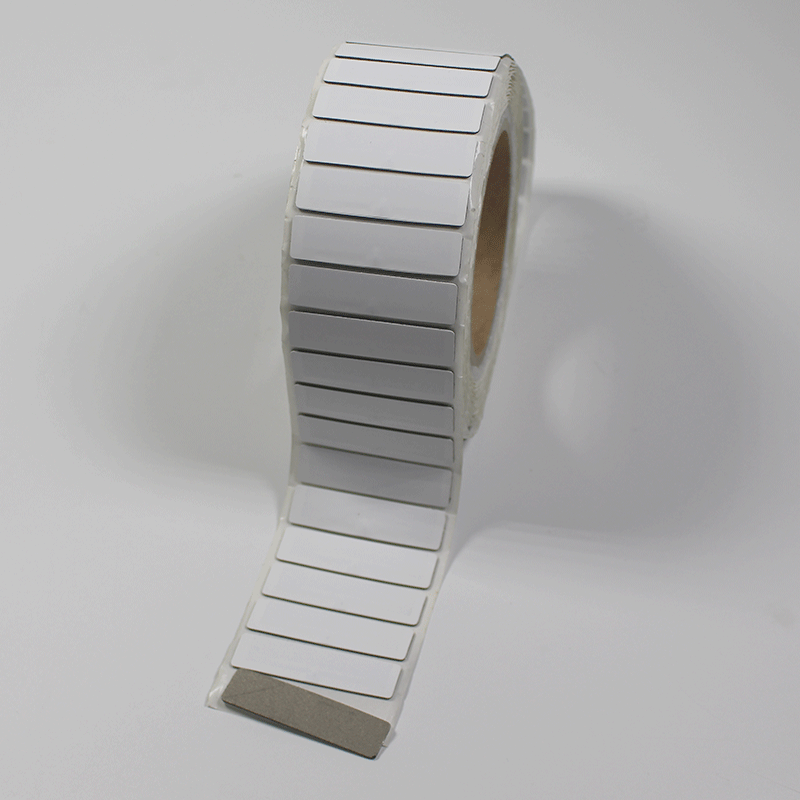

52x18MM Flexible Printable RFID UHF Anti-metalTag Advantage:
Mounted on a metal surface for stable operation;
100% tested by the European Union's label compliance test system;
100% passed the memory write test;
Material and design are tested for reliability;
Can be used to print on thermal printers
|
ISO
|
EPC Class1 Gen2; ISO18000-6C
|
|
frequency
|
902-928MHz
|
|
Chip
|
Alien H3
|
|
memory
|
EPC 96bits
|
|
writable
|
yes rewritable
|
|
memory lead time
|
fifty years
|
|
Warranty
|
1year
|
|
Material
|
Coated paper+Absorbing material
|
|
Color
|
white
|
|
Size
|
52x18MM thickness:1.1MM
|
|
Temperature
|
-25C~ +85C
|
Storage temperature
|
-30 C~ +110 C
|
|
Save humidity
|
5%～95%
|
|
Adhesive
|
white adhesive
|
|
weight
|
~1g
|
|
package
|
500pcs/roll
|
|
Drop test
|
Hih 1Meter /200times
|
|
Alcohol test
|
95%Concentration alcohol test passed
|
|
Gasoline test
|
NO. 92 test passed
|
|
High and low temperature alternating test
|
-40 degrees to +150 degrees 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test
|
|
RoHS
|
yes
|
|
IP degree
|
IP65
|
|
Fixed RFID reader on metal surface
|
about 0-5 Meter test by JT-8290
|
|
Handheld reader on metal surface
|
about 0-2CM ( JT-972 RFID handheld reader)
|
|
Polarization direction
|
Linear Polarization
|
|
Text
|
100% tested it before we send out
|
Application:
Tool management;
IT facility chassis management;
Metal container management;
Management of office equipment and facilities with metal casings indoors and outdoors;
Personnel inspection management;
Fixed asset management
