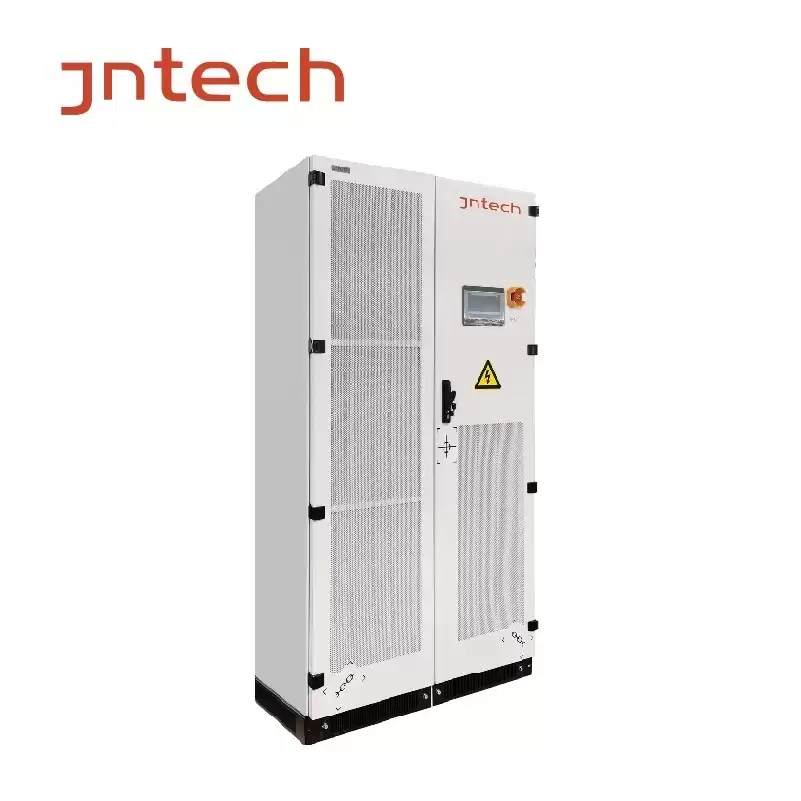

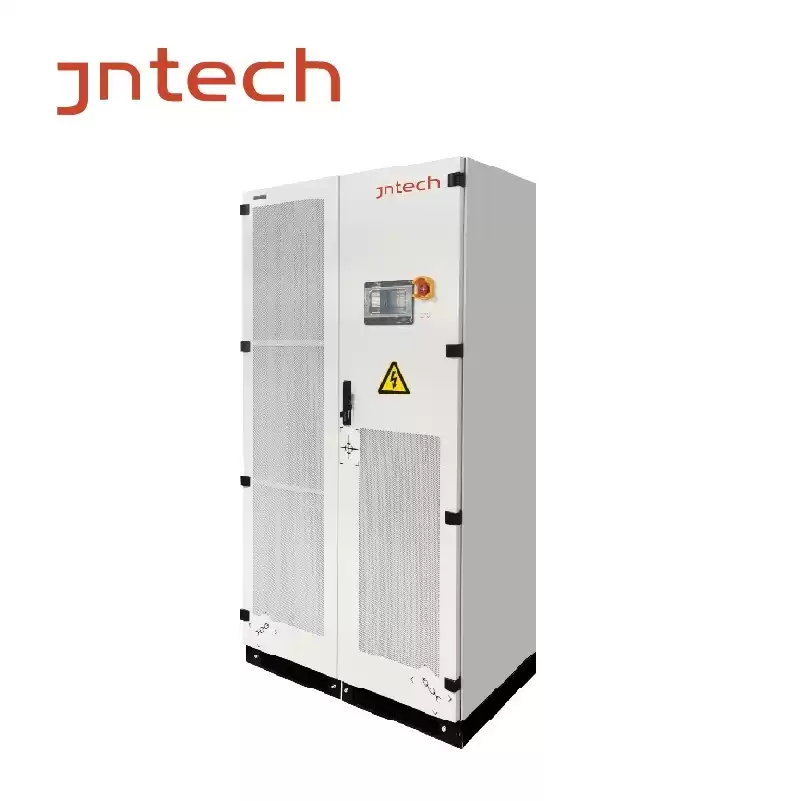

Isolated Energy Storage Bidirectional Converter

Isolated Energy Storage Bidirectional Converter (IESBC) is a device that is used for energy storage in different applications such as renewable energy systems, microgrids, and electric vehicles. The IESBC is an essential component of the energy storage system, which allows for efficient and reliable bidirectional energy transfer between the storage system and the grid. The IESBC is designed with galvanic isolation, which eliminates the need for a neutral connection and provides improved safety and protection against electrical hazards.



Isolated Energy Storage Bidirectional Converter

Isolated Energy Storage Bidirectional Converter

Features:

  1. Wide battery voltage range.
  2. High and low pressure ride-through capability.
  3. Multiple battery access levels available.
  4. Advanced active island protection technology.
  5. Adjustable and manageable active and reactive power.
  6. Integrated EMS; easy to set peak and off-peak time.
  7. Soft start feature prevents battery shock.
  8. Includes PQ, VF, VSG and black start functionalities.
  9. Redundant design of AC and DC dual auxiliary power supply
