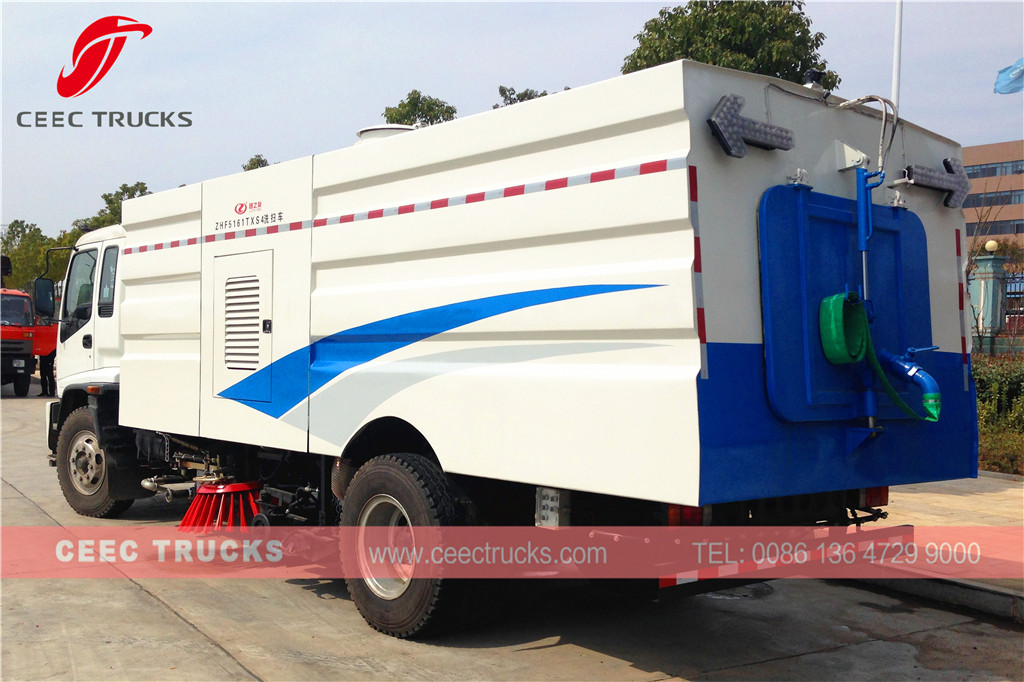

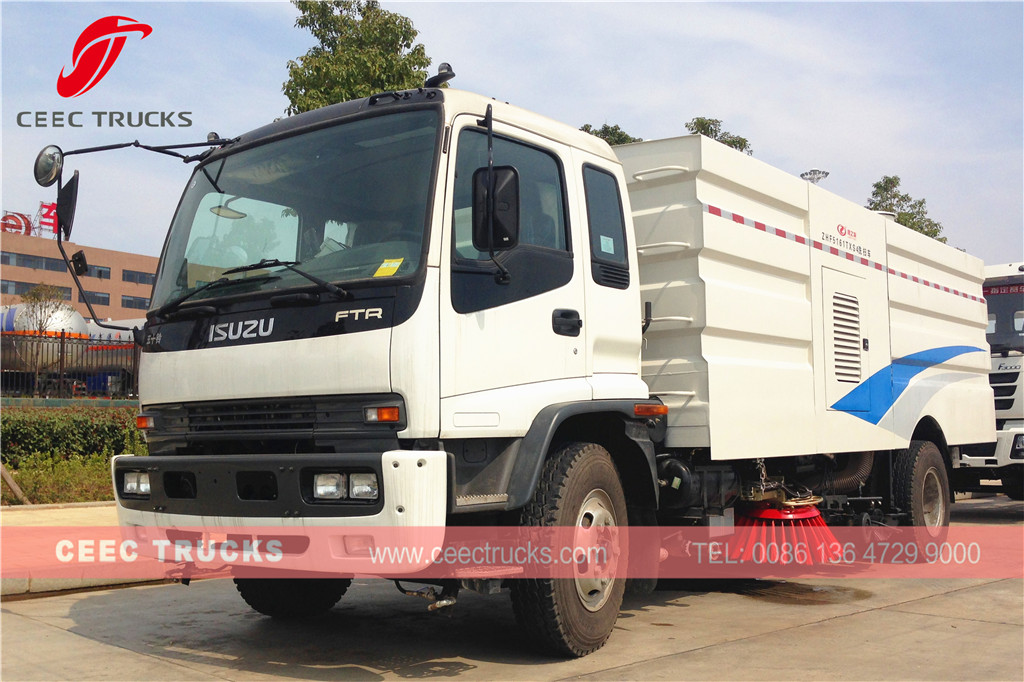

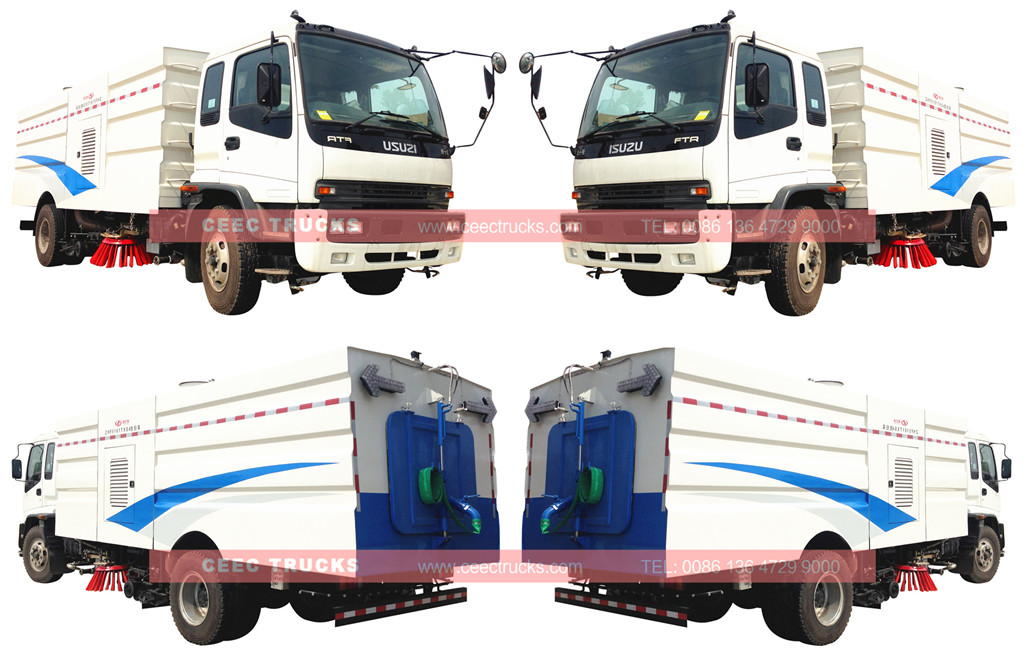

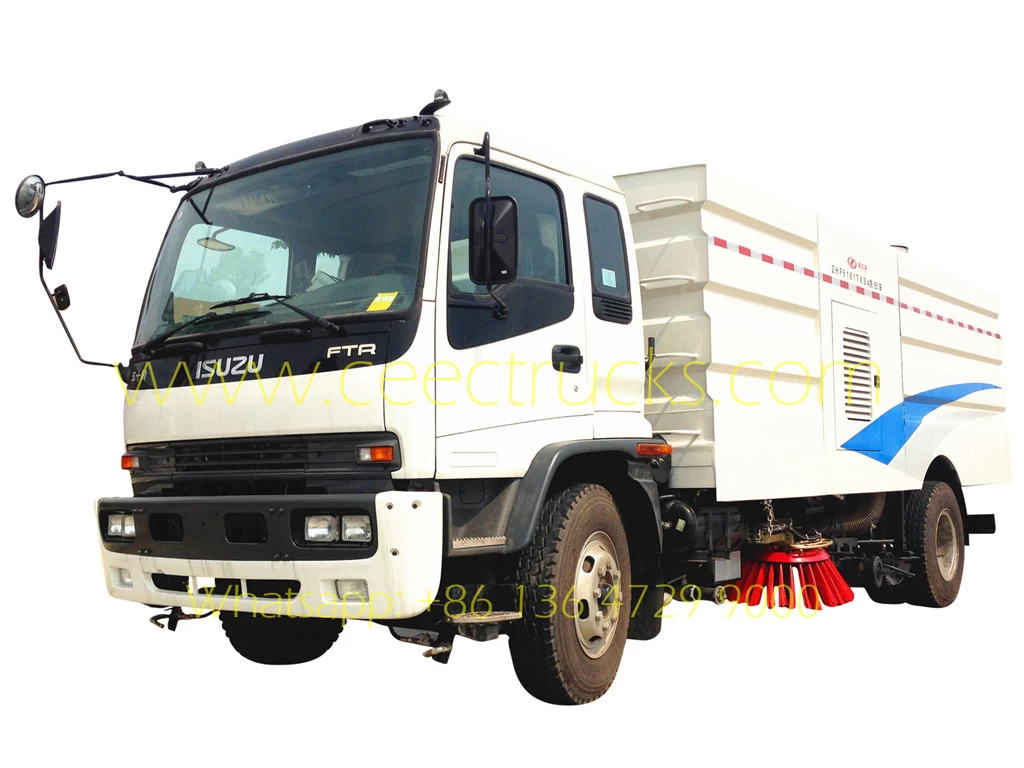

ISUZU 12CBM road sweeper truck

ISUZU brand 12CBM road sweeper use 4500mm wheelbase ISUZU chassis, ISUZU 190HP diesel engine, MLD 6-shift manual gearbox, equipped with 12cbm stainless steel material tanker. Italy Brevini brand motor for high performance. painting & logos based on requirement





ISUZU 12CBM road sweeper truck



 Applications:



Road Sweeper truck 12cbm (also called vacuum road sweeping truck, trash collection truck, road sweeper truck, road cleaning vehicle, vacuum road sweeper, ISUZU road sweeper,street sweeper truck) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.



CEEC TRUCKS supply ISUZU 12,000L road sweeper truck is best selling model, which use whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU or JMC 57KW auxiliary engine, efficiently avoiding secondary pollution.



The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU diesel engine, super powerful, no overhaul within 100,000 km.

---- Road Sweeper body capacity from 1 to 16 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



ISUZU Road Sweeper (12,000L)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

8200*2500*3200 mm

GVW / Kerb Weight

16,000kg / 9,400 kg

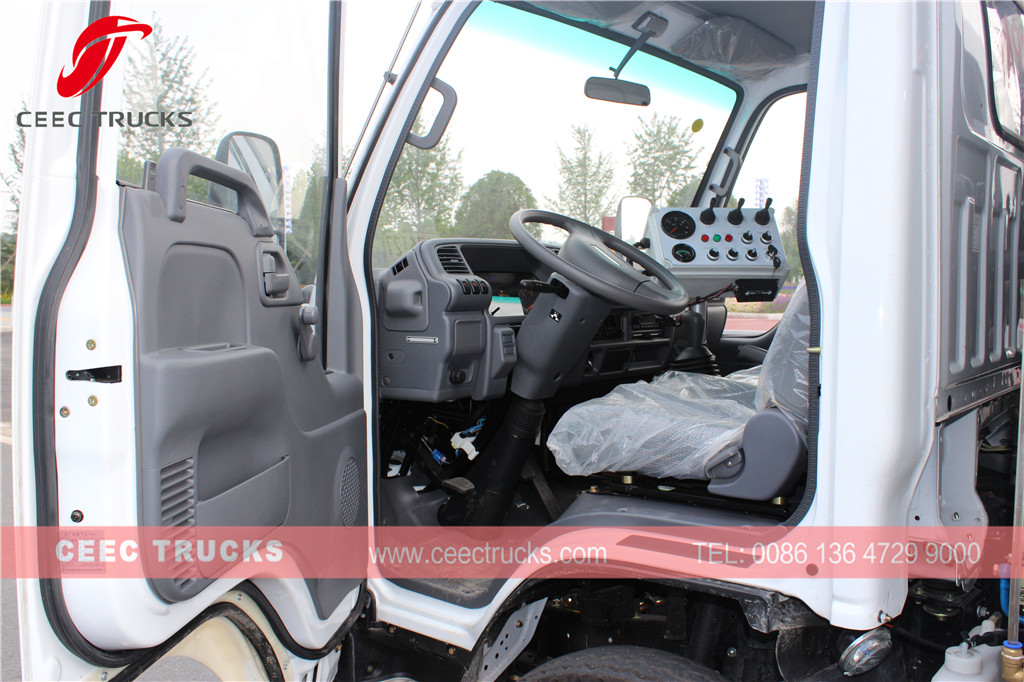

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

190 HP (140 KW)

Displacement

5193 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

4500 mm / 2

Tire Specification

9.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

8 cbm dust tank & 4 cbm water tank

Tanker material

Stainless steel

Vacuum sweeping capacity

31,000 cbm/h

Vacuum sweeping speed

3-15 km/h

Max. sweeping width

2200 mm

Vacuum suction plate

Under the road sweeper tanker

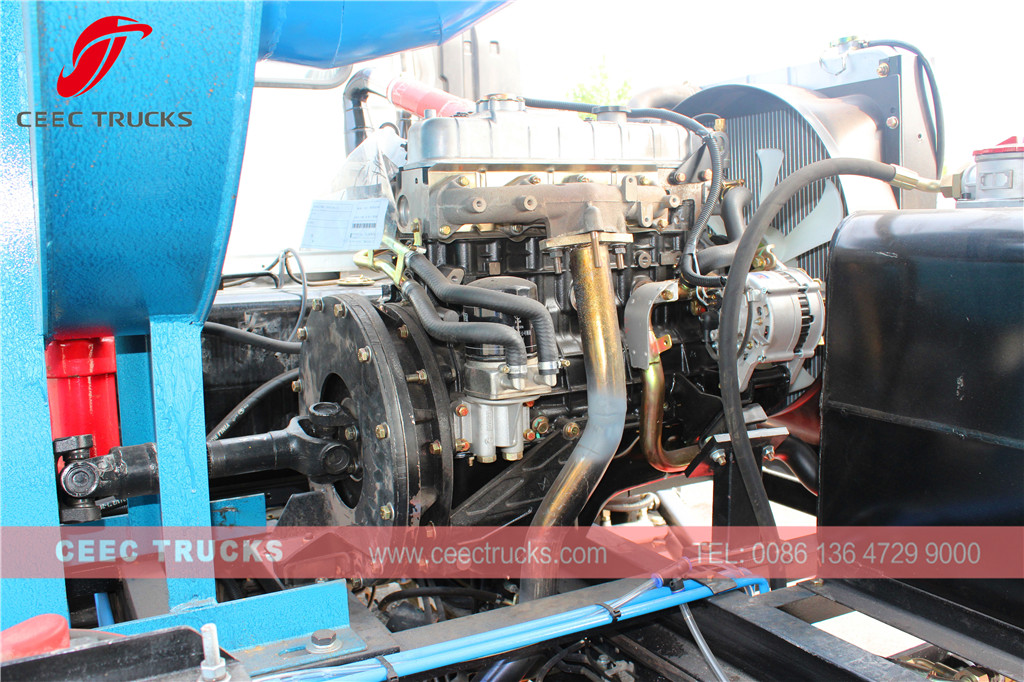

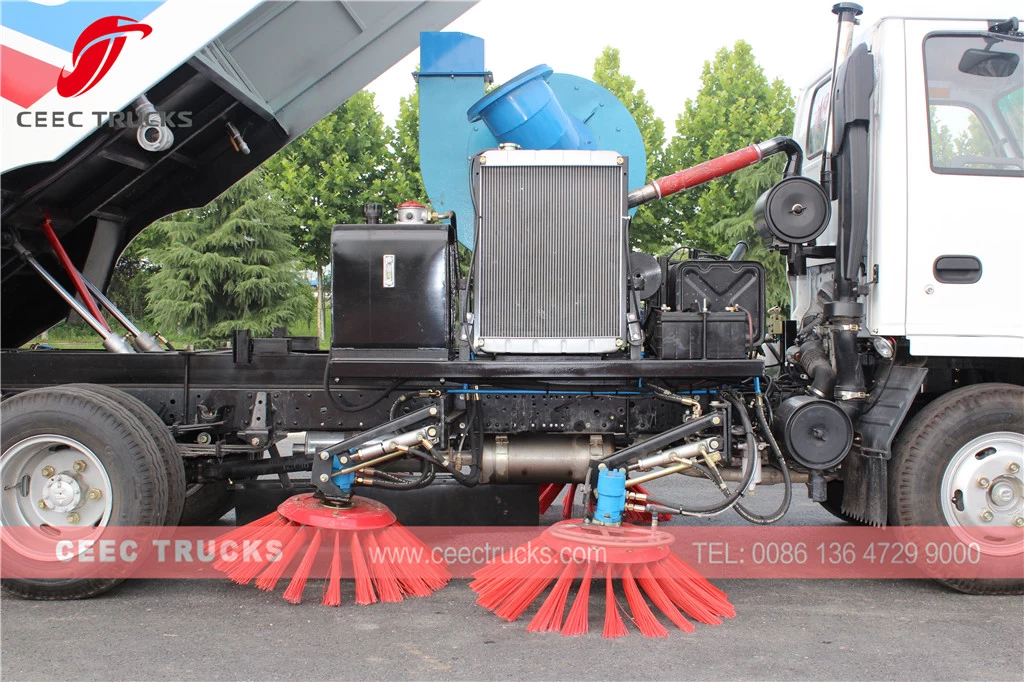

Auxiliary engine

ISUZU engine, 77HP (57kw), super powerful

JMC engine, 77HP (57kw), super powerful

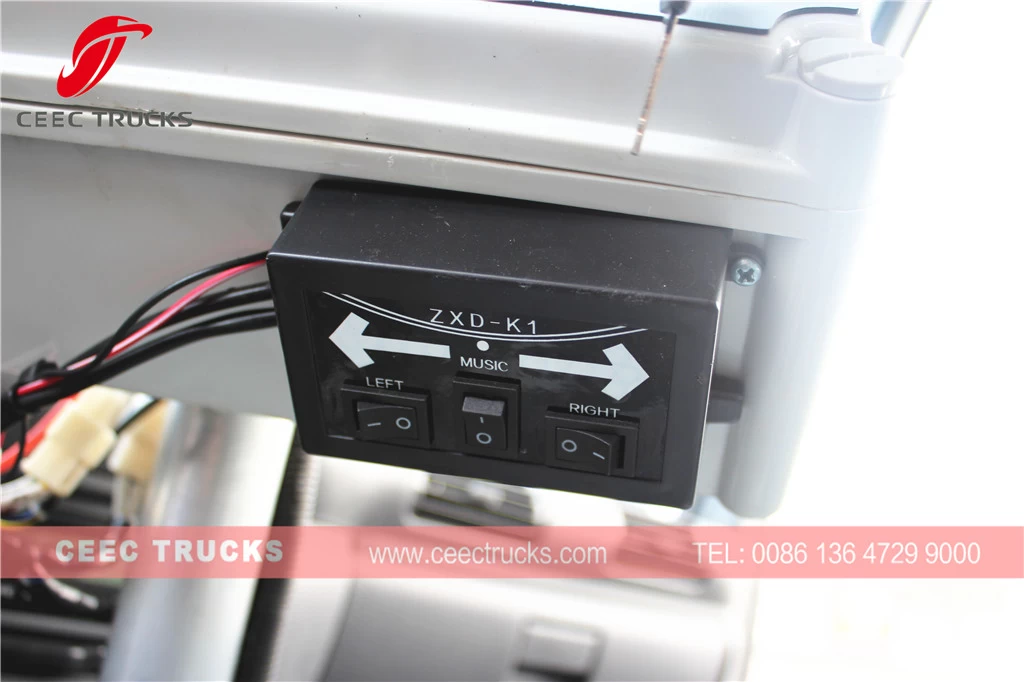

All standard accessories: Warning lights, music alarm, basic tool kit, English manual...

Optional

** Back alarm and Camera can be equipped.

** Italy Brevini motor can be optional.

** Air blower can be of stainless steel



 road sweeping truck drawing
