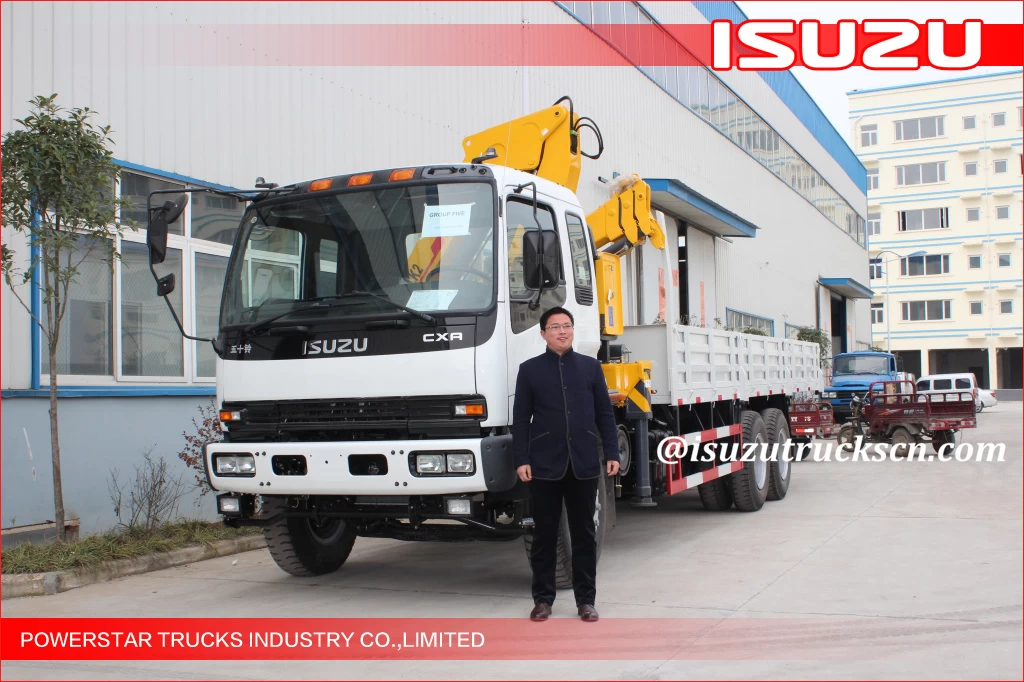

ISUZU 12tons truck mounted crane hydraulic truck mounted crane
ISUZU Durable Hydraulic Lifting Telescopic Boom Truck Crane Mounted With12000 kg Crane
- Name: Telescopic Boom Truck Mounted Crane
- Max. Lifting Capacity: 12000 kg
- Max. Lifting Moment: 30 T.M
- Max. Oil Flow of Hydraulic System: 80+32 L/min
- Max. Lifting Height:16.5meters
- Brand: XCMG
- Crane Weight: 4415 kg
- Oil Tank Capacity: 200 L
Description:
ISUZU Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are longer, with wide operating range.
Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Telescoping Boom Crane is an overbuilt, yet very compact, lifting device that can tackle heavy loads without taking up a lot of valuable cargo space. Adjustable boom elevation and reach means you can set the lifting point right where you need it.
Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.
Competitive Advantage:
1, Single cylinder synchronization guy cable technology make work efficiency more higher than before
2, Advanced development means make sure that the design is very reliable
3, The more symmetrical center design of pentagon&hexagon boom make it has bigger anti-bendding capacity.
4, Compact Hinge point design take up smaller space.
5, The work is more safety after fitted with overwind alarm equipment
6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system
7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling
8, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation
9, Anti-slewing impulse equipment that make vehicle running safely.
Parameters:
Model
|
SQS300 I
|
Unit
|
Max Lifting Capacity
|
12000
|
kg
|
Max Lifting Moment
|
30
|
T.M
|
Recommend Power
|
30
|
kw
|
Max Oil Flow of Hydraulic System
|
80+32
|
L/min
|
Max Pressure of Hydraulic System
|
26
|
MPa
|
Oil Tank Capacity
|
200
|
L
|
Rotation Angle
|
360°All Rotation
|
Crane Weight
|
4415
|
kg
|
Installation Space
|
1300
|
mm
|
Choice of Chassis
|
ISUZU, HINO
|
SQS300 I Lifting capability diagram
|
Working radius (m)
|
2.5
|
5.0
|
8.0
|
10.5
|
13.5
|
16.5
|
Lifting capacity (kg)
|
12000
|
6000
|
3800
|
2500
|
1700
|
1300
|
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg
|
Spread
|
Fixed
|
2179mm
|
Single extension
|
2256-3556mm
|
Double extension
|
2212-4752mm
|
