Applications:

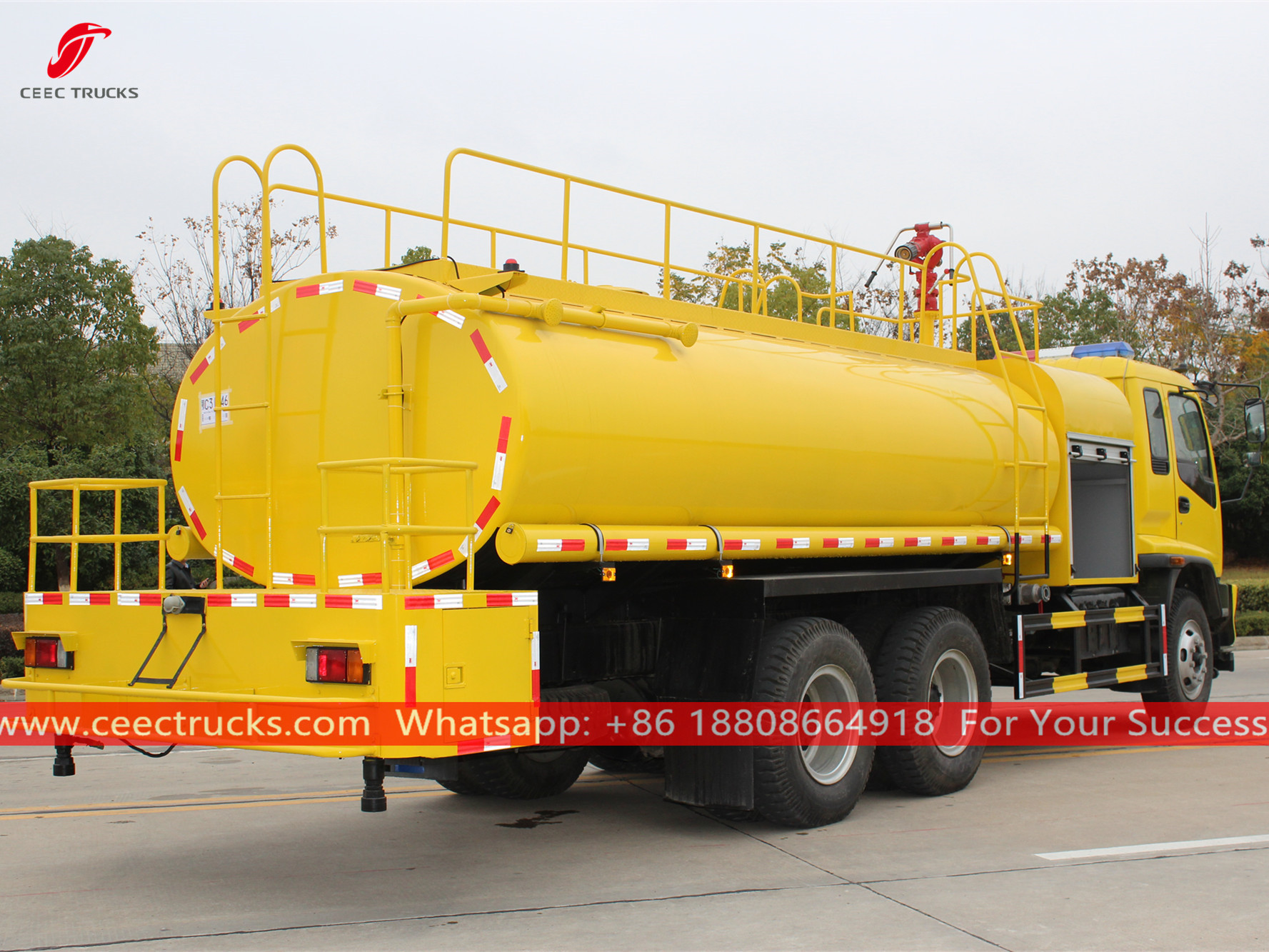

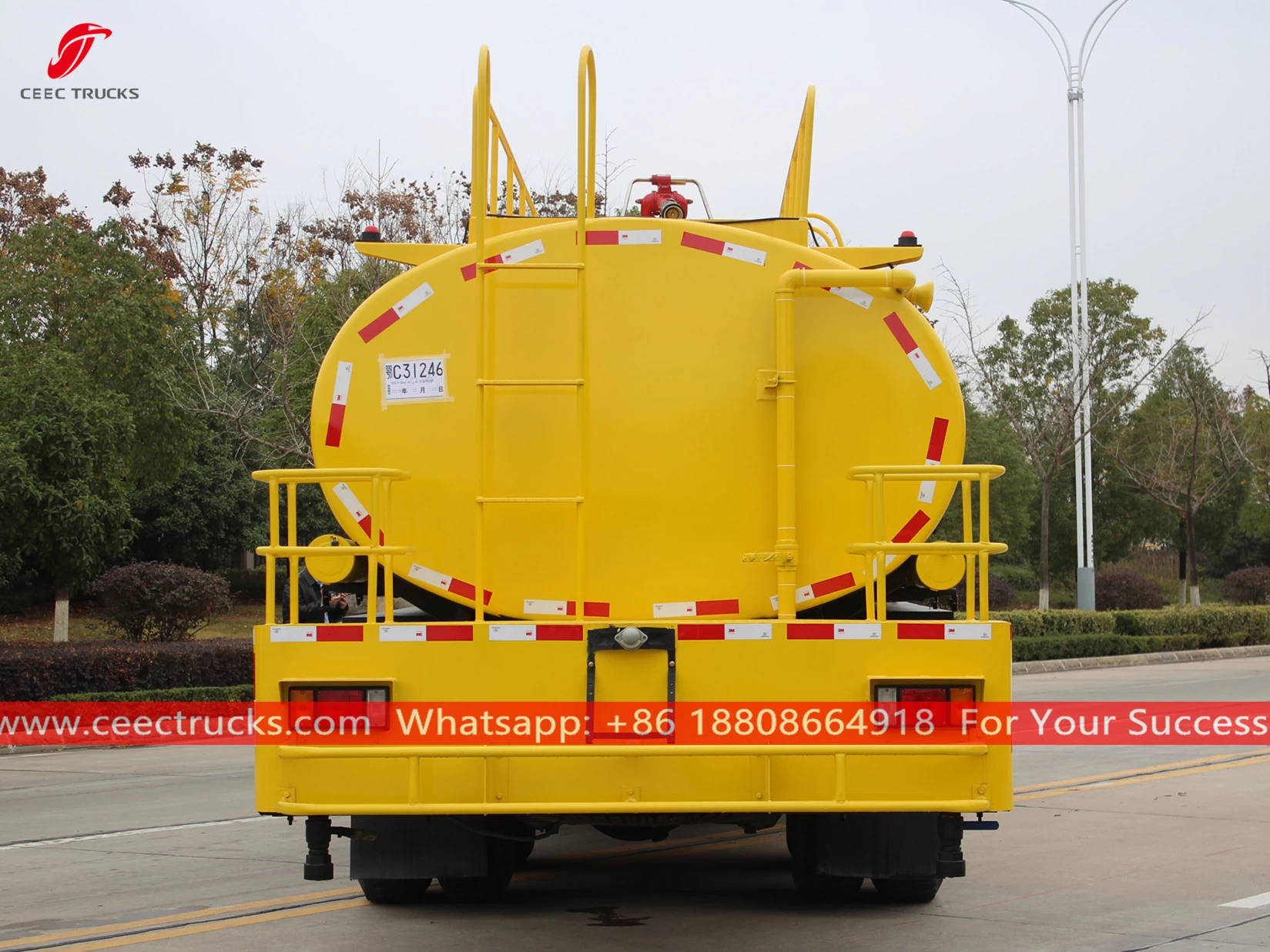

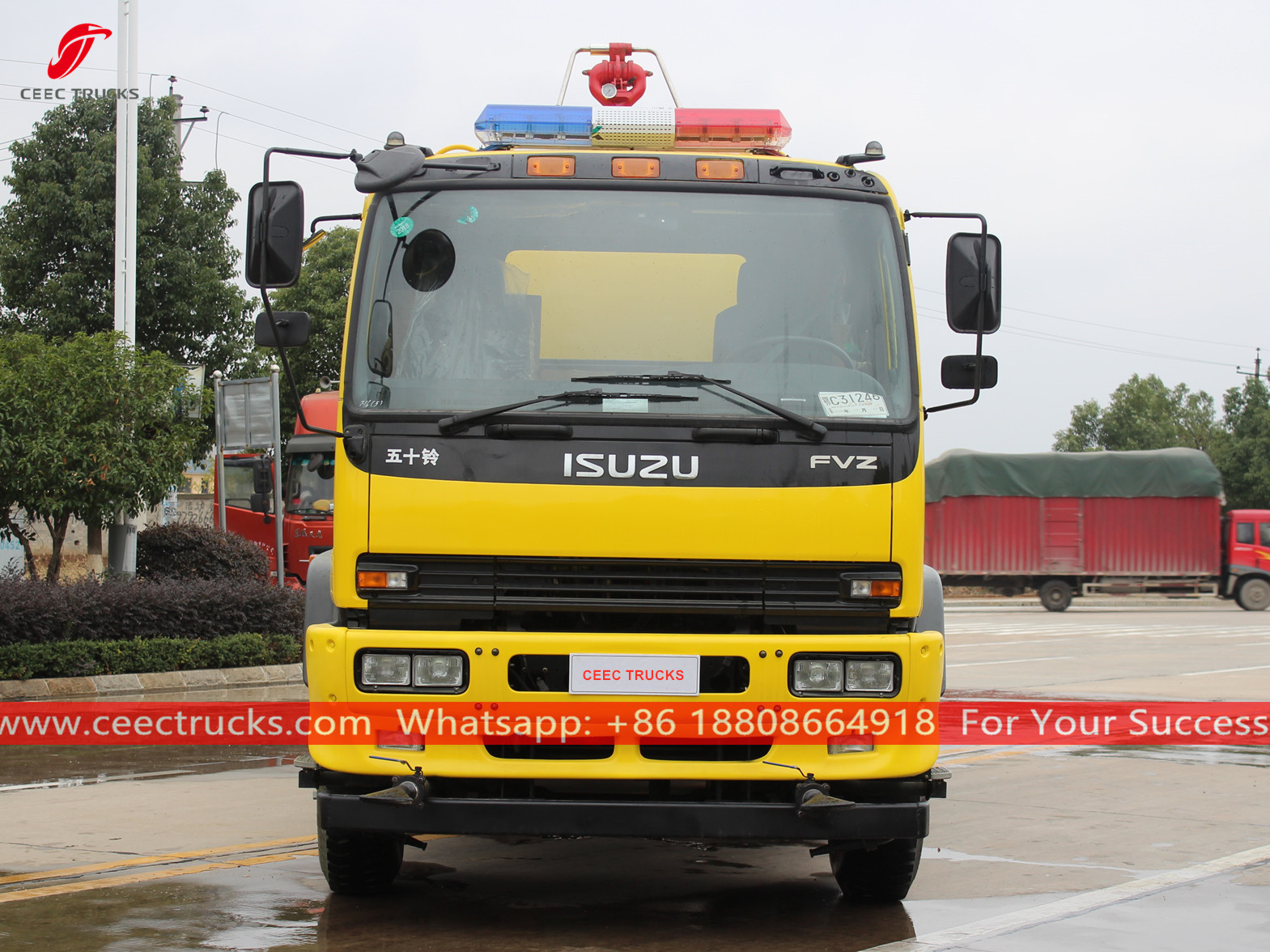

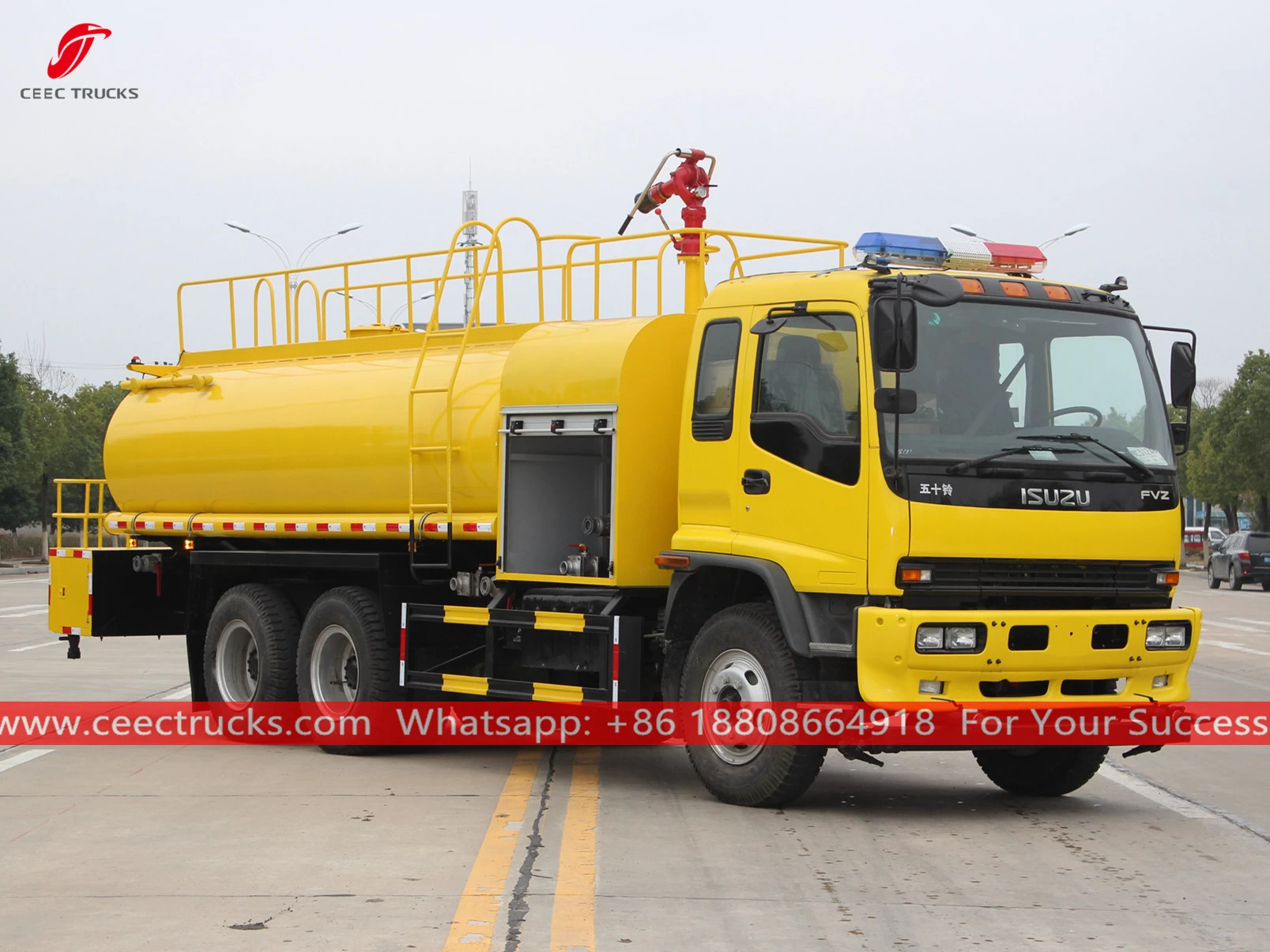

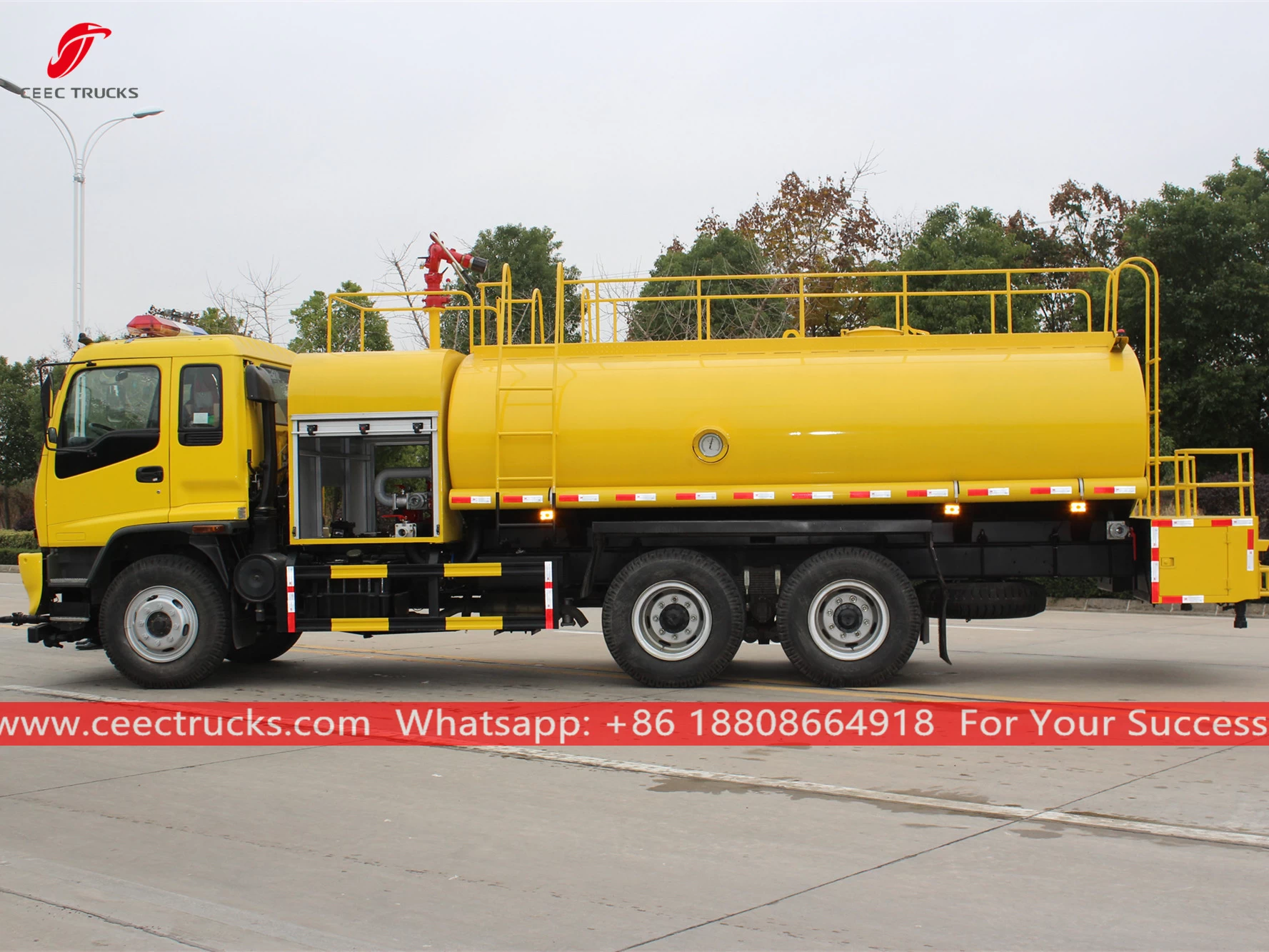

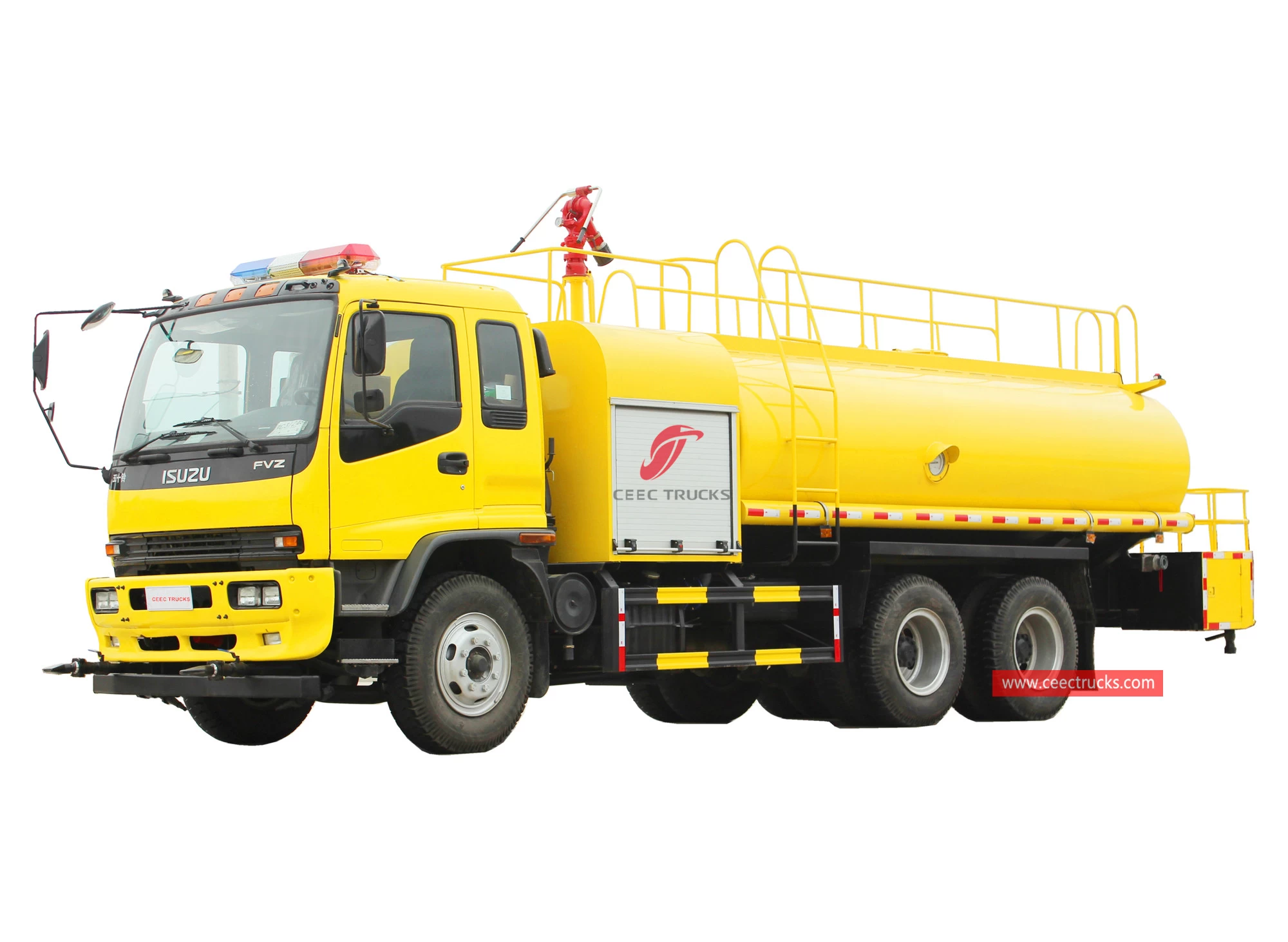

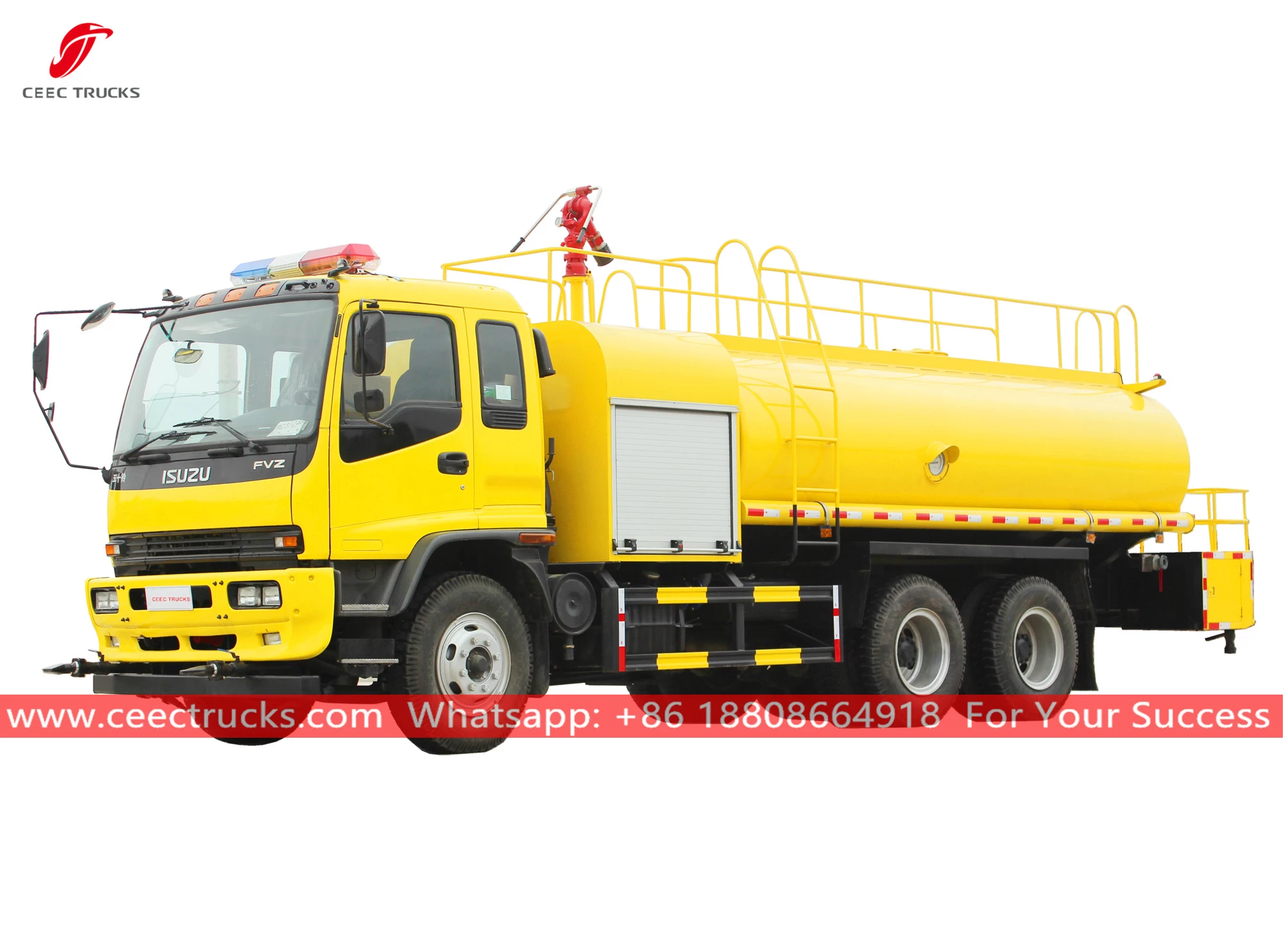

ISUZU FVZ Water bowser fire truck (also called ISUZU FVZ Fire Water Tank Truck, ISUZU Fire Water truck for sale, ISUZU Fire Fighting Water Sprinkler Truck, 3 axles water fire truck ISUZU, 10-wheel Water tank fire truck ISUZU, hot sale water spraying fire truck ISUZU) is used for the road flushing, tree and lawn greening, high building
cleaning, construction of road and factories. It has the functions of
flushing, watering, transporting water and fire fighting.
CEEC TRUCKS water truck is mainly composed of chassis, tanks, pumps, valves, and
the water pipe, sprinkler and other parts. Water truck is made of high
quality carbon steel sheet.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Fire pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
Specifications:
|

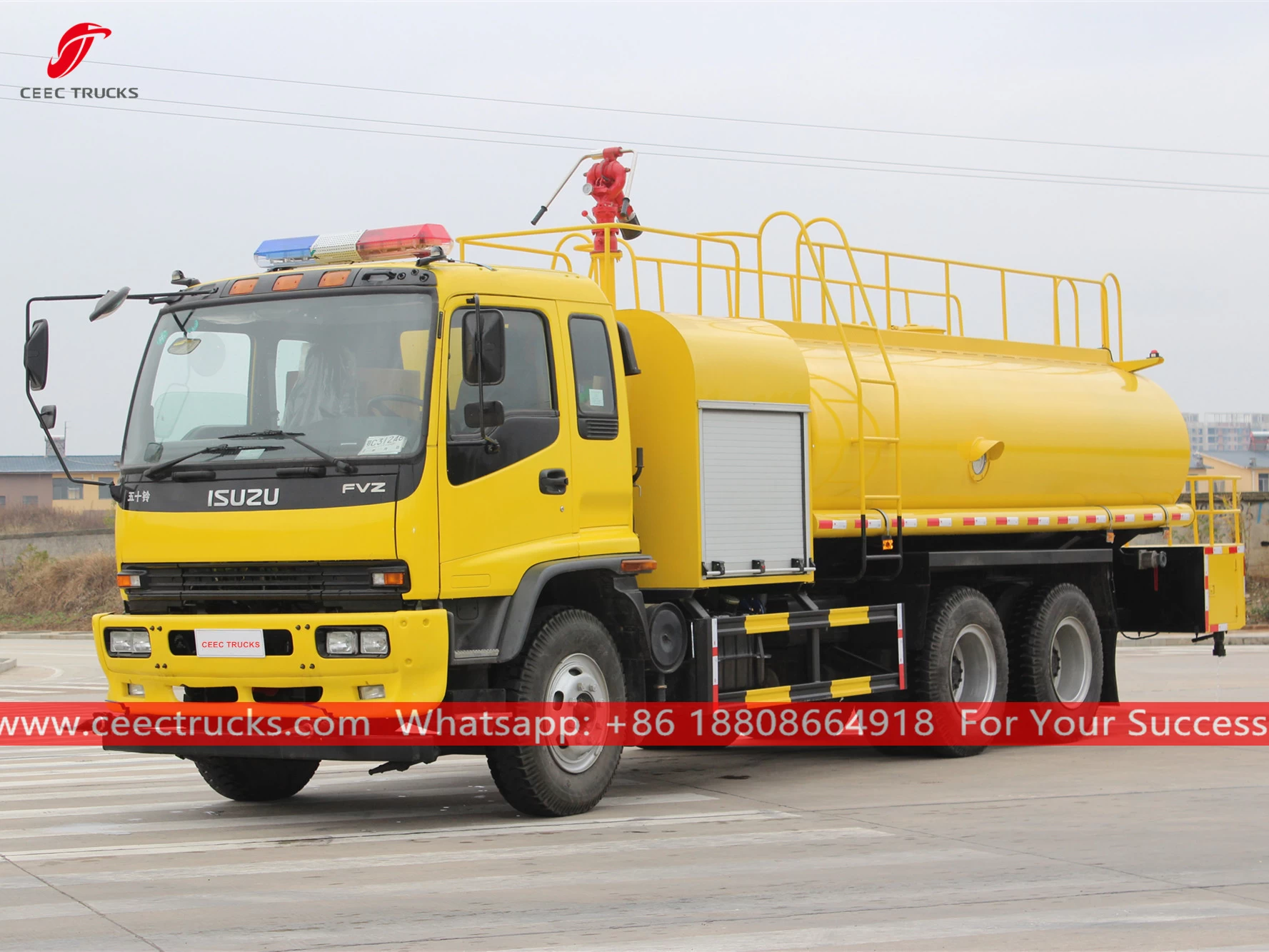

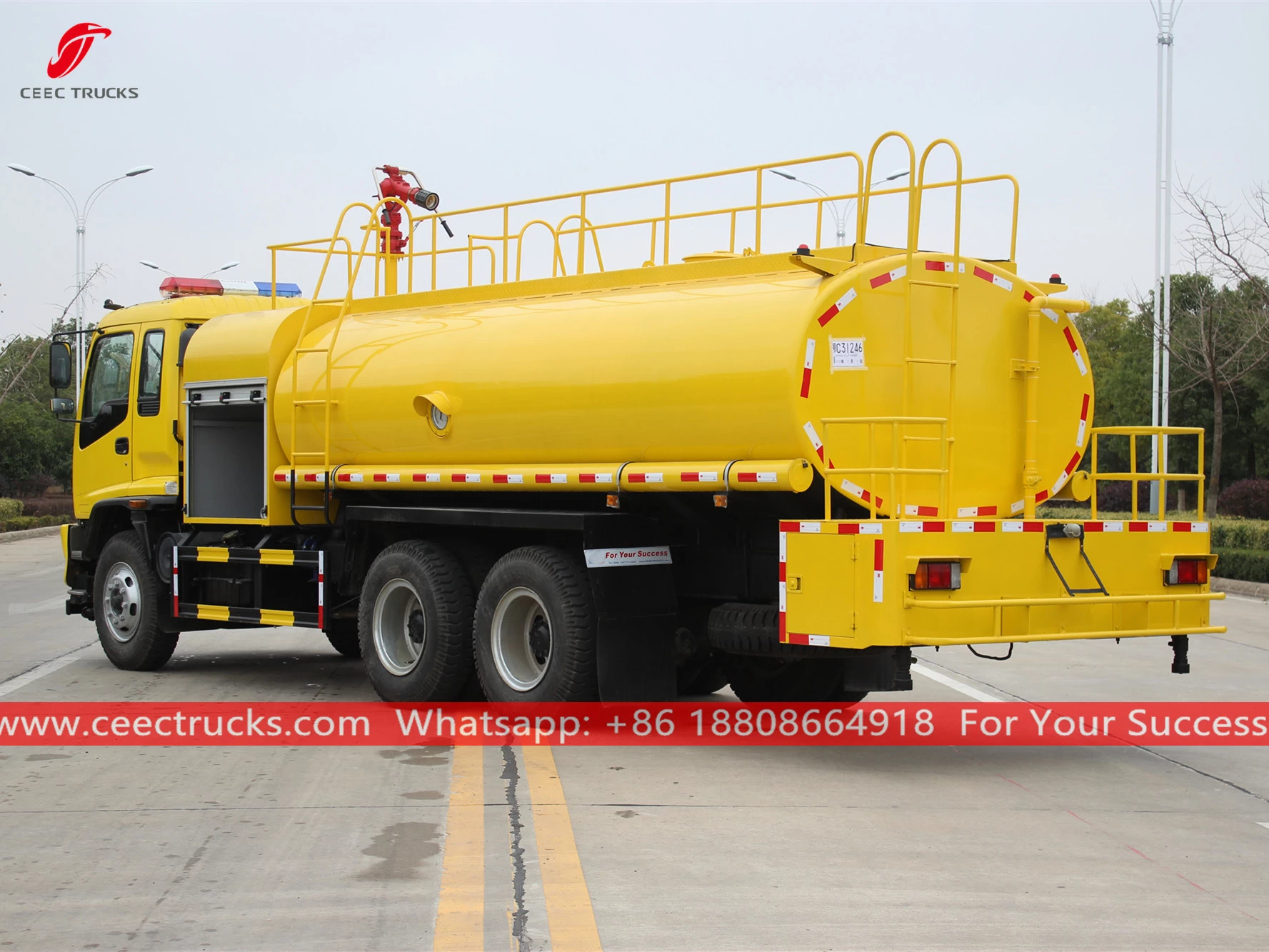

ISUZU Water Tanker Fire Truck(14,000L)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
9600 * 2400 * 2900 mm
|
|
GVW / Kerb Weight
|
25,000kg / 10,700kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
300 HP (221 KW)
|
|
Displacement
|
7790 ml
|
|
Emission Standard
|
Euro 4
|
|
Chassis
|
Drive Type
|
6X4 (left hand drive)
|
|
Transmission
|
8 speed levers with 2 reverse
|
|
Wheelbase/No. of axle
|
5700+1300 mm / 3
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
110 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Tank Capacity
|
14,000 Liters
|
|
Tank shape
|
Ellipse
|
|
Material
|
Carbon steel, 4mm
|
|
Body Material
|
Whether resisting steel
|
|
Fire pump
|
China famous brand
|
|
Loading type
|
Self loading
|
|
Front spray bar
|
YES
|
|
Rear spray bar
|
YES
|
|

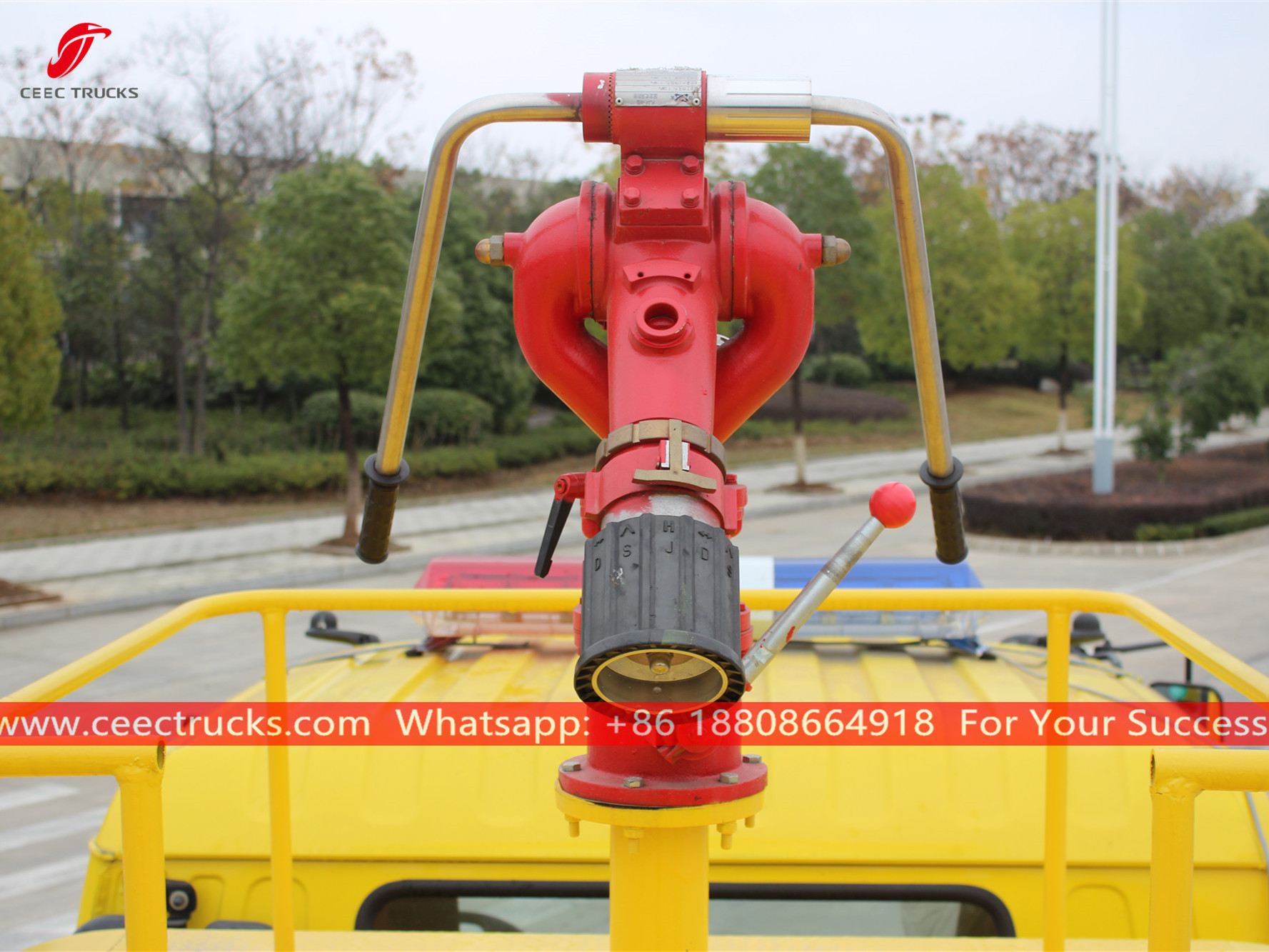

Fire Canon
|
48L/s
|
|
Fire coupling
|
Standard
|
|
Control
|
Manual (Optional air operated)
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
