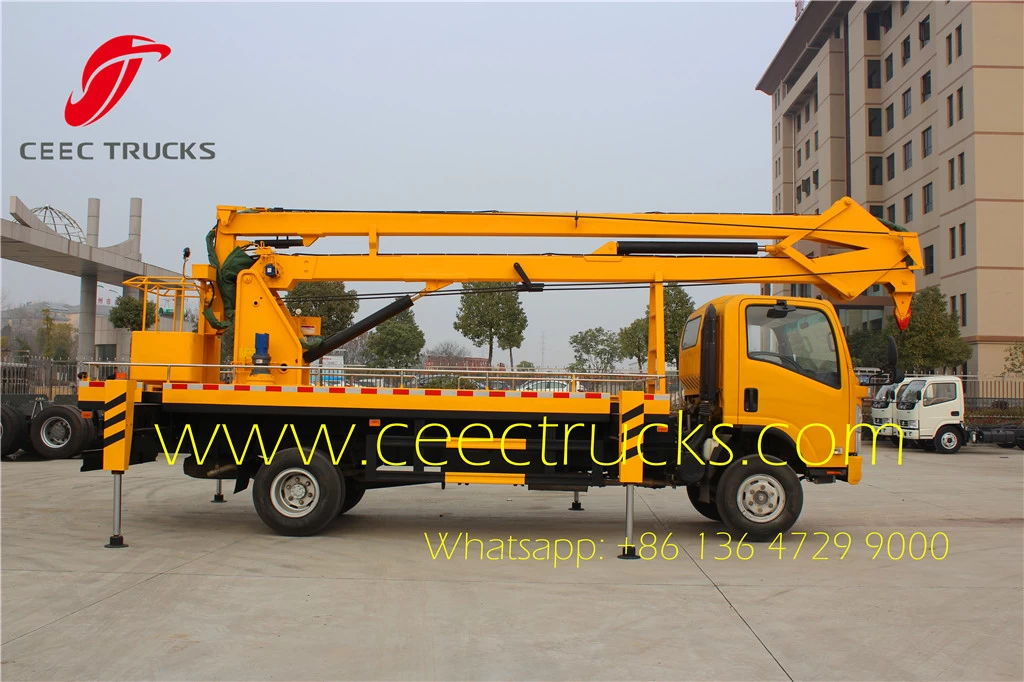

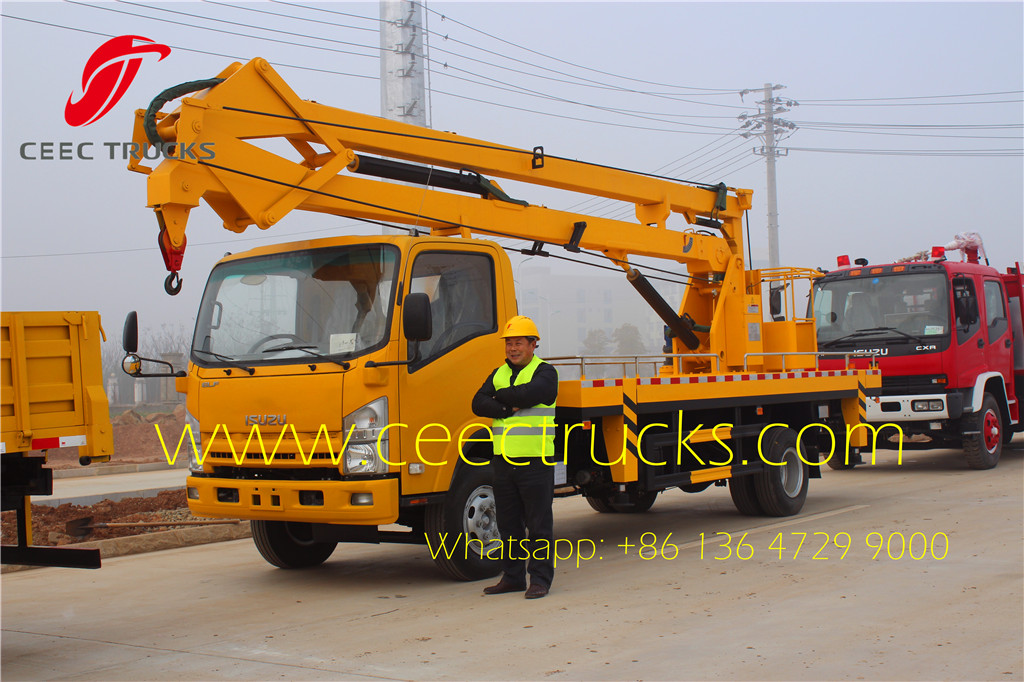

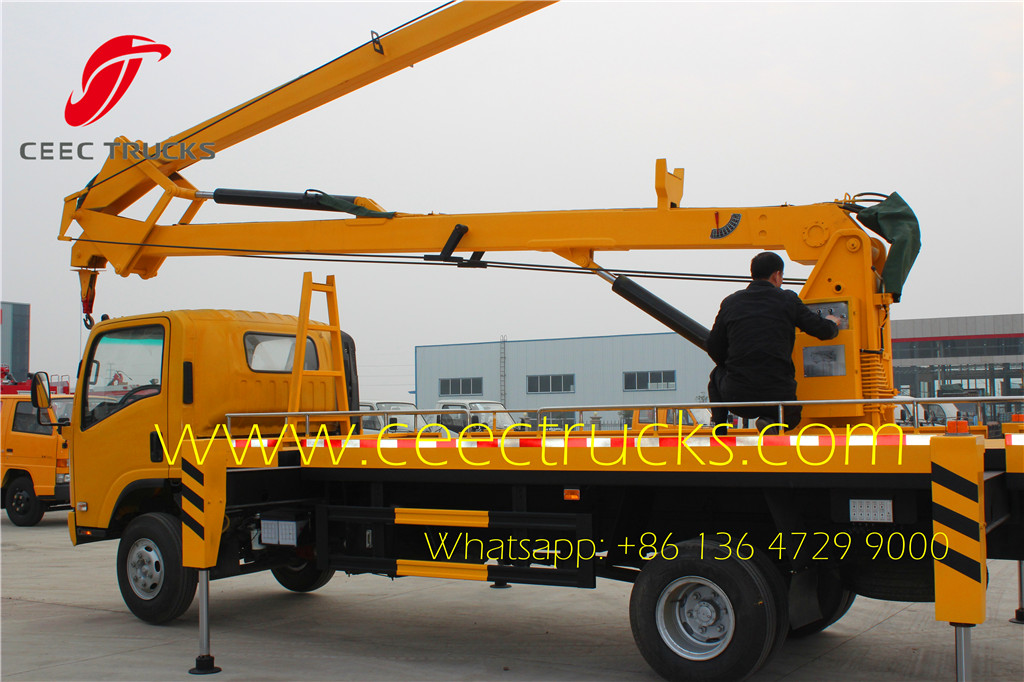

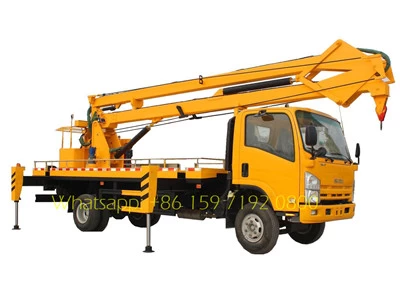

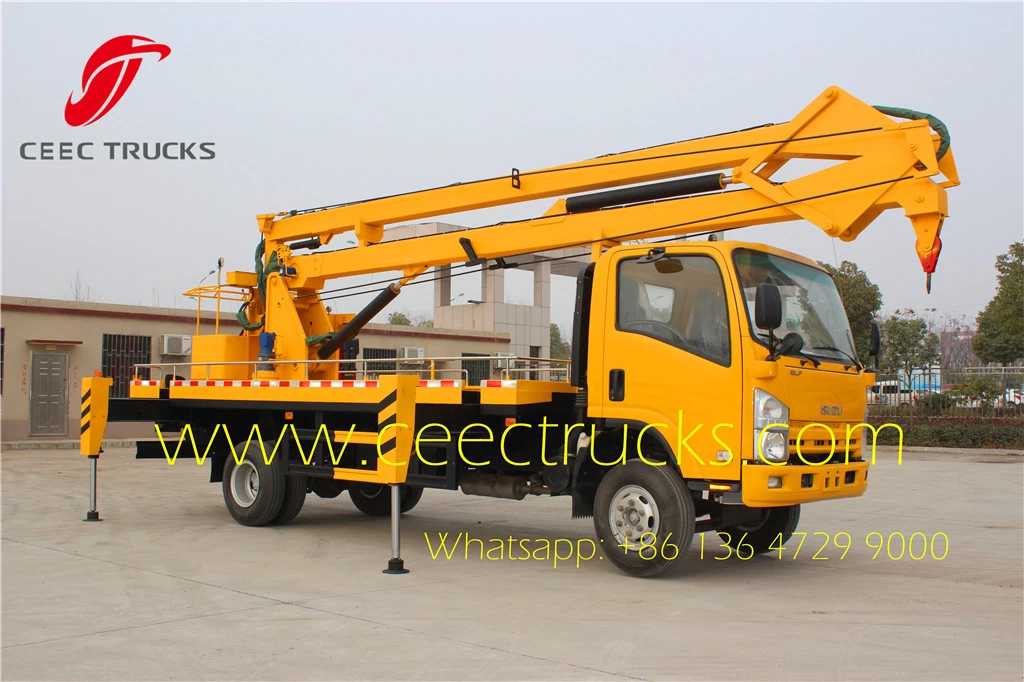

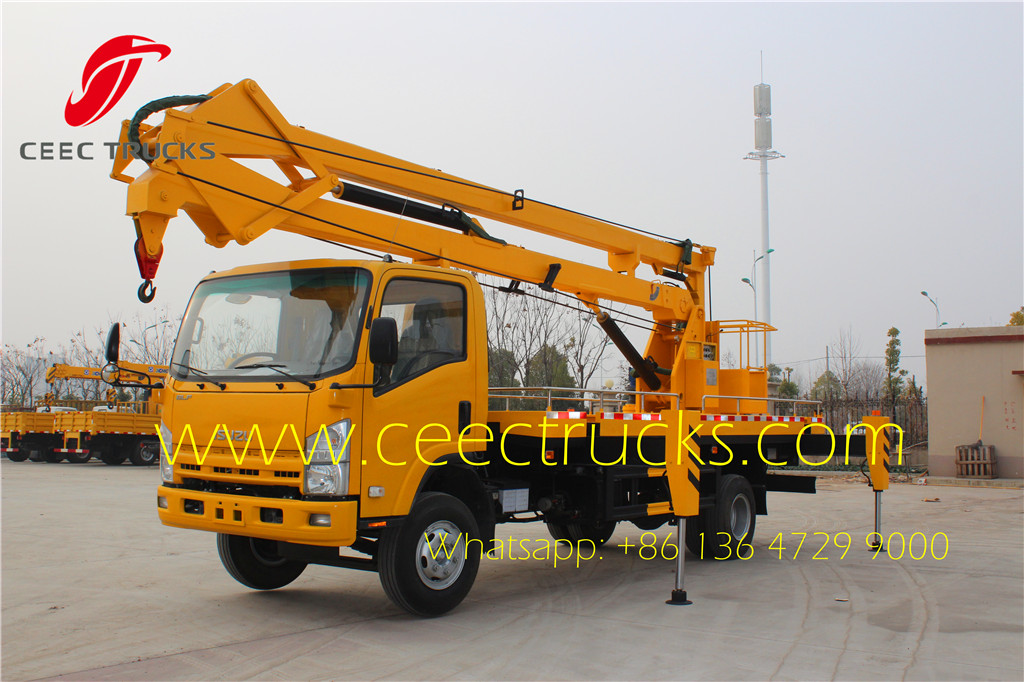

ISUZU 18 m Hydraulic Lifting Aerial Work Platform Truck
ISUZU aerial work platform truck
mainly use Japanese technology 4*2 chassis, with Left Hand Drive model
for most countries over the world. The 18m high lifting platform truck
equipped ISUZU 4HK1-TCG40 engine, 190 HP super powerful. MLD 6-shift
manual gearbox special satisfy human driving feeling. Myanmar hydraulic
lifting platform maximum lifting height can be up to 18m, suitable for
street lamp maintenance, AD board washing, and some other place for high
aerial working.
Philippines export ISUZU 14-19 m aerial work platform trucks features:
◆ ISUZU LHD 4*2 chassis, 4HK1-TC engine 190HP, MLD 6-shift manual gearbox

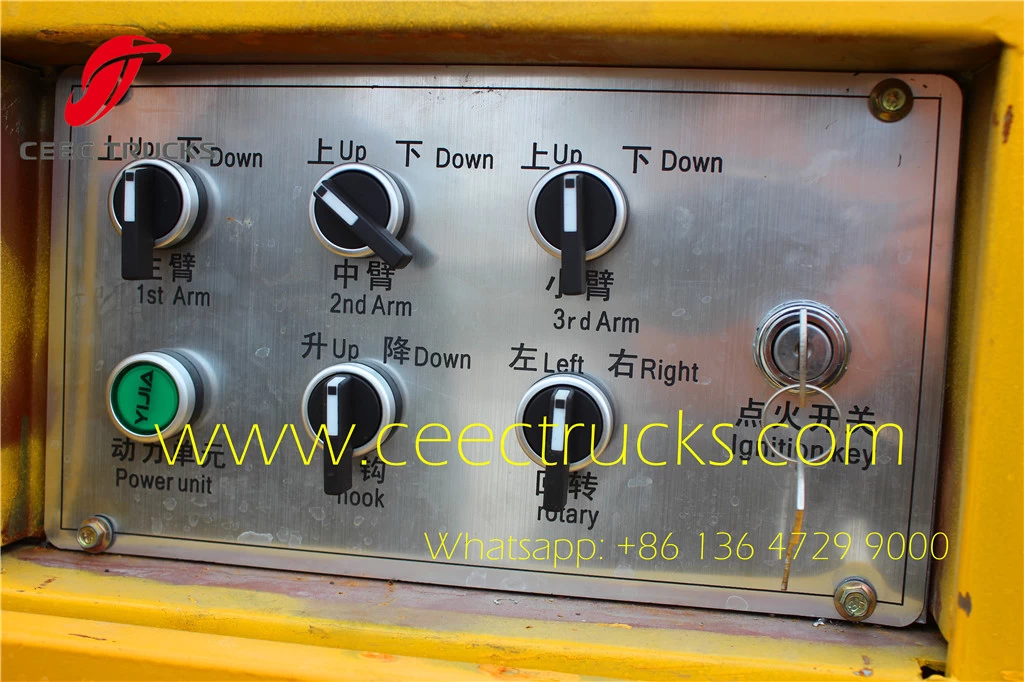

◆ Can be operated at both turret and platform with all English version control plate
◆ Step less speed regulation for safety operation
◆ Imported key components, higher reliability, excellent property and long life-span.
◆ Larger span of trigger, higher stability
◆ Urgent power for emergency, very useful equipment
◆ ISUZU work platform operation height : 12M, 14M, 16M, 18M, 20M, 22M

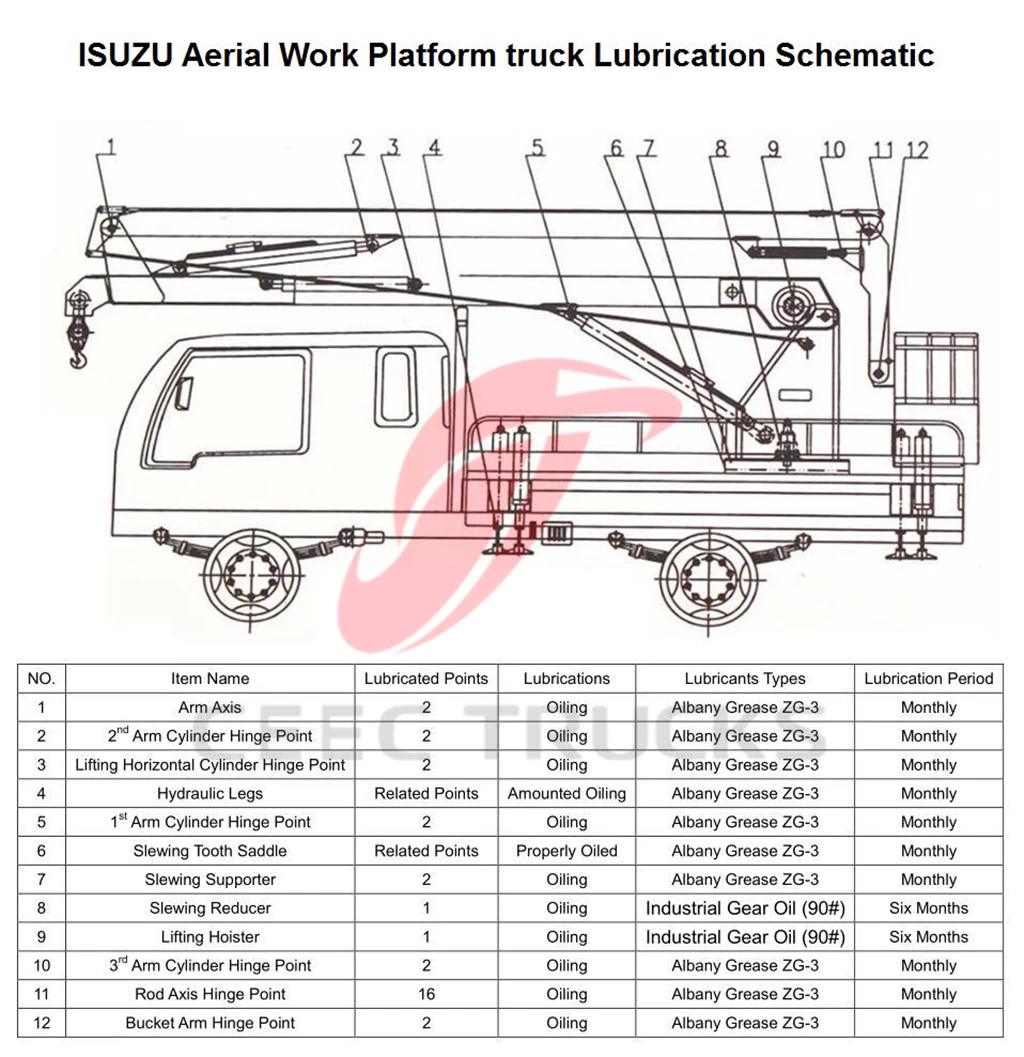

ISUZU 18 m aerial work platform lubrication suggestion:
Similar Key Words: ISUZU 18 m aerial platform truck, isuzu hydraulic lifting platform, beiben 20 m high altitude platform, dongfeng 16 m aerial work platform, Isuzu work platform Myanmar, Fiji 19 m aerial work platform truck
|
ISUZU Aerial Platform Truck (14-18M)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
8100 x 2280 x 3300 mm
|
|
GVW / Kerb Weight
|
9,400 kg / 7,560 kg
|
|
Cab
|
Cab Capacity
|
2+3 persons allowed
|
|
Air Conditioner
|
With air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU engine, 4HK1-TCG40
|
|
Power
|
190 Ps (140KW)
|
|
Displacement
|
5193 ml
|
|
Emission Standard
|
Euro IV
|
|
Chassis
|
Drive Type
|
4X2, left hand drive
|
|
Transmission
|
ISUZU MLD transmission, 6-forward
gears & 1 reverse, no overhaul within 500,000km
|
|
Wheelbase/No. of axle
|
3360 mm / 2
|
|
Tyre Specification
|
7.00-16 or 7.00R16
|
|
Tyre Number
|
6 tyres and 1 spare tyre
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Cage Rated Capacity
|
200 kg
|
|

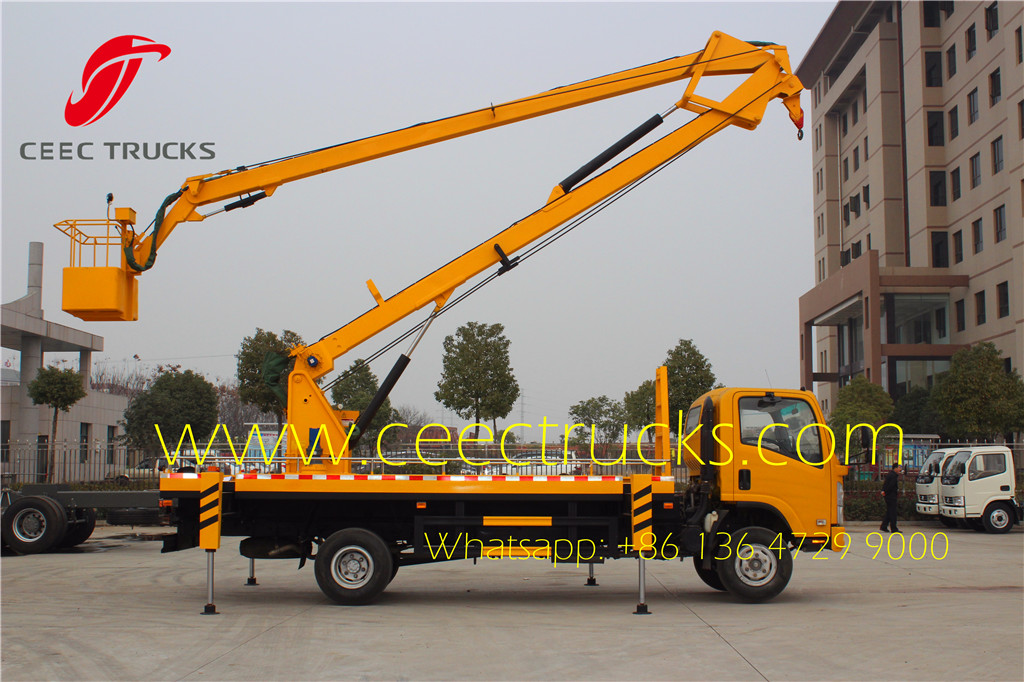

Working Height
|
14-18 M
|
|

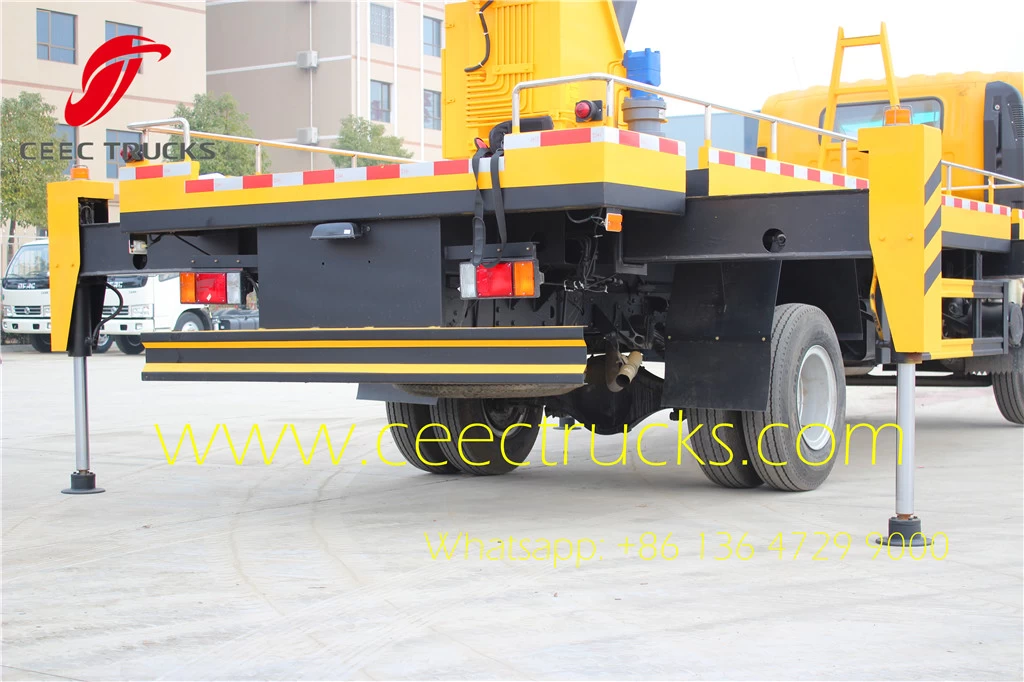

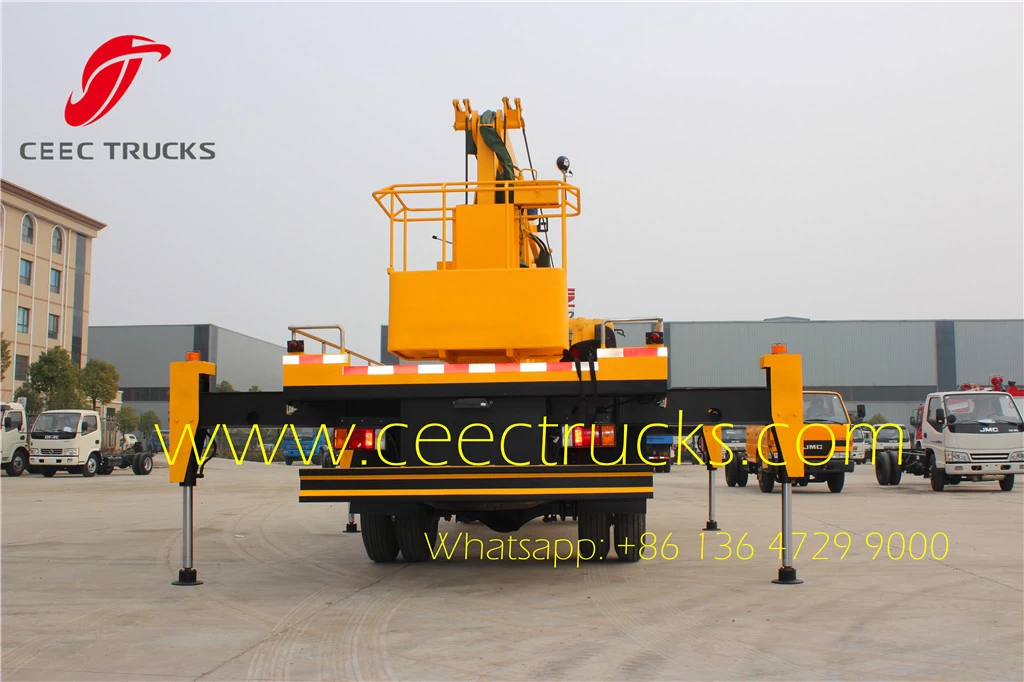

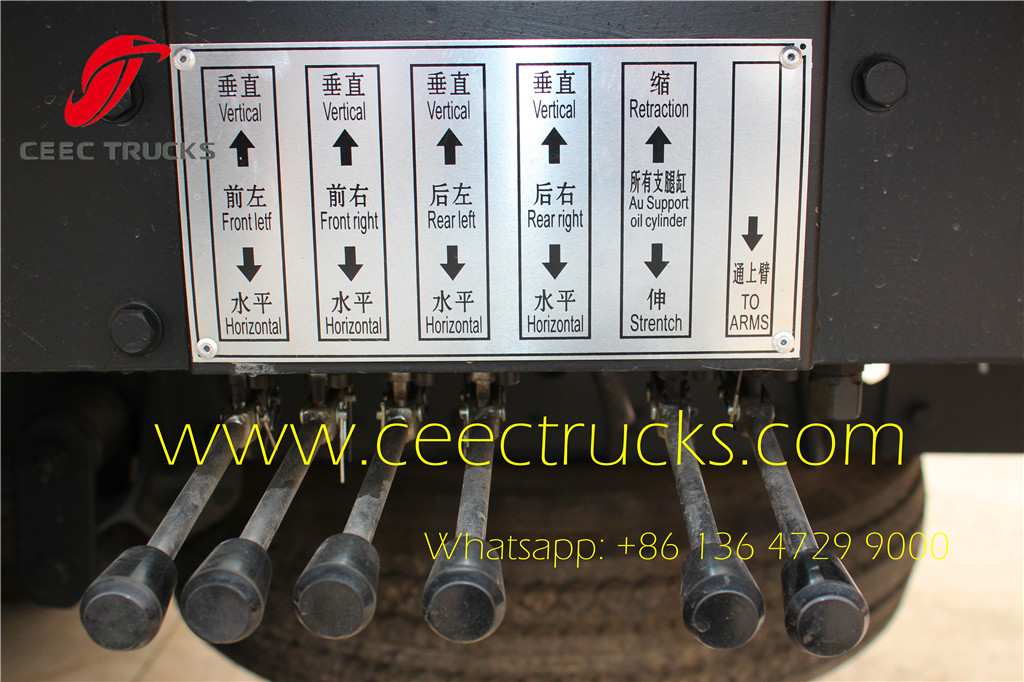

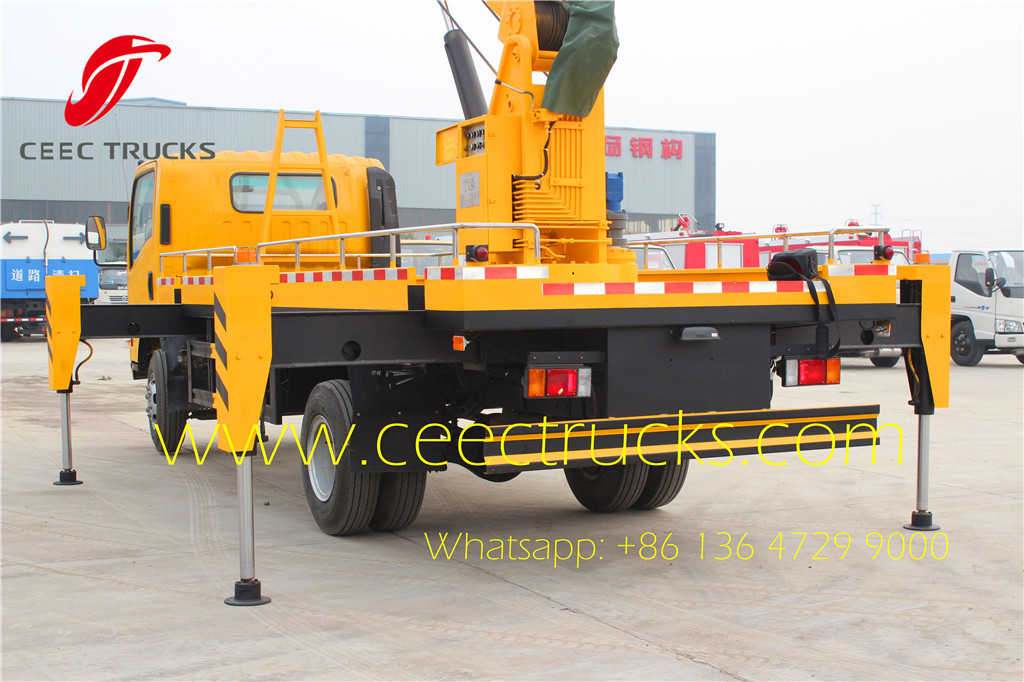

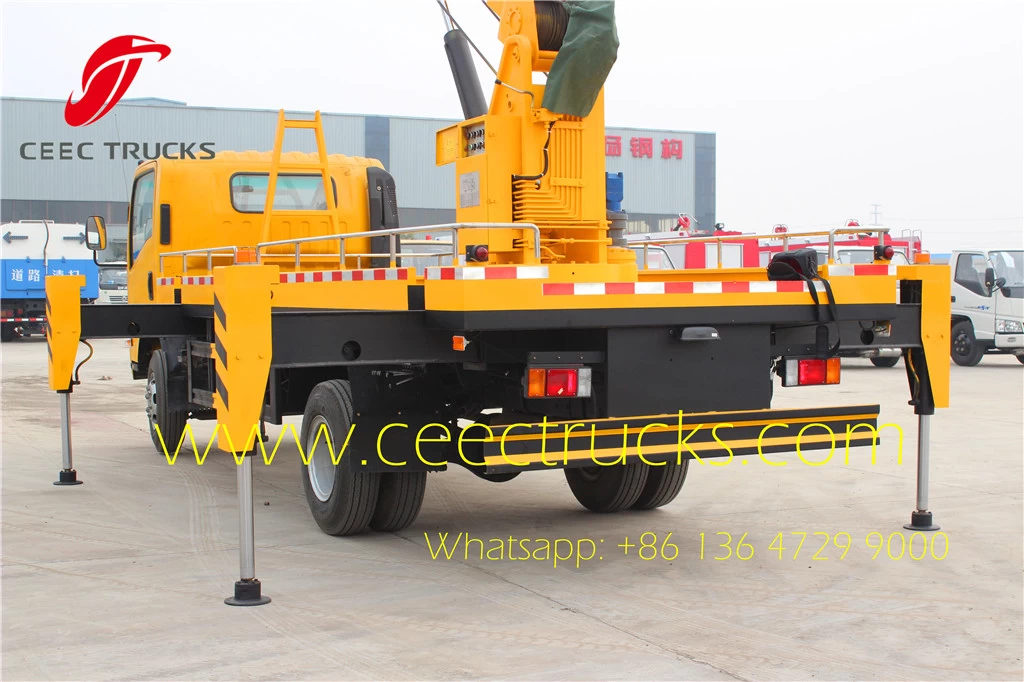

Outriggers
|
4pcs, H-type; Hydraulically extend and retract
|
|
Slewing
|
360° continuous rotation with
base turntable
|
|

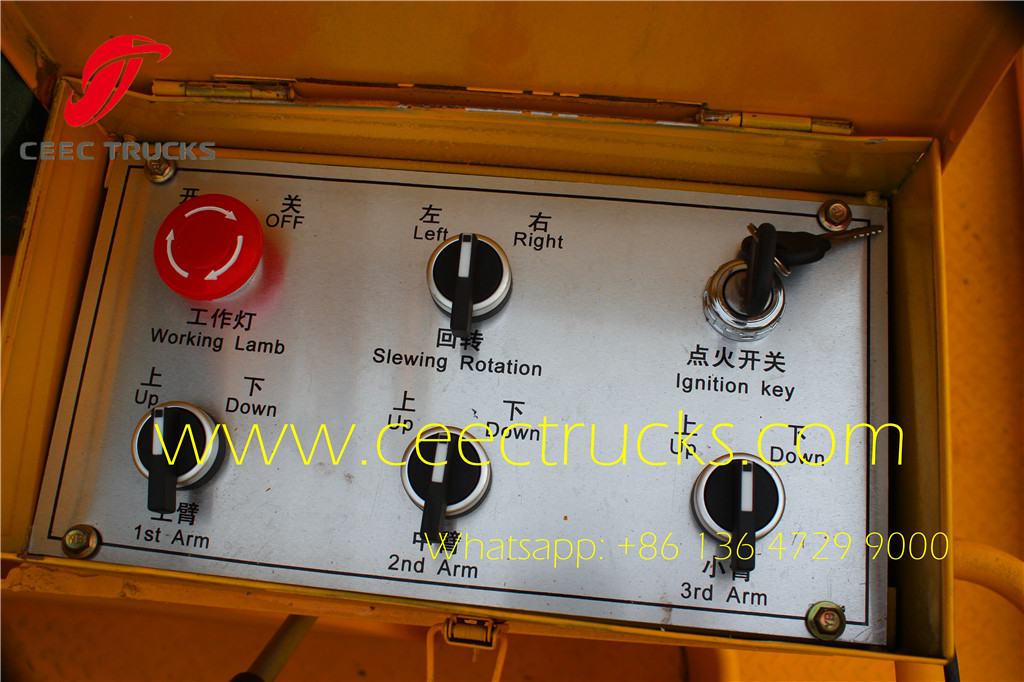

Control
|
Control both on the ground and
in the cage
|
|
Emergency electrical/manual
pump is equipped to operate the equipment in case of engine failure.
|
|
Emergency stop switches at base
and operator’s cage.
|
|
Optional
|
Insulated cage; Cargo box; Hoist hook with cables can
be equipped for the function of a crane.
|
CEEC Recommend environmental protection truck series

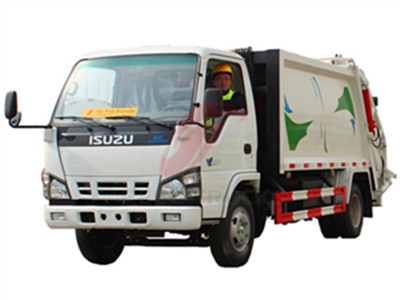

| ISUZU 4 CBM garbage compactor truck
|
