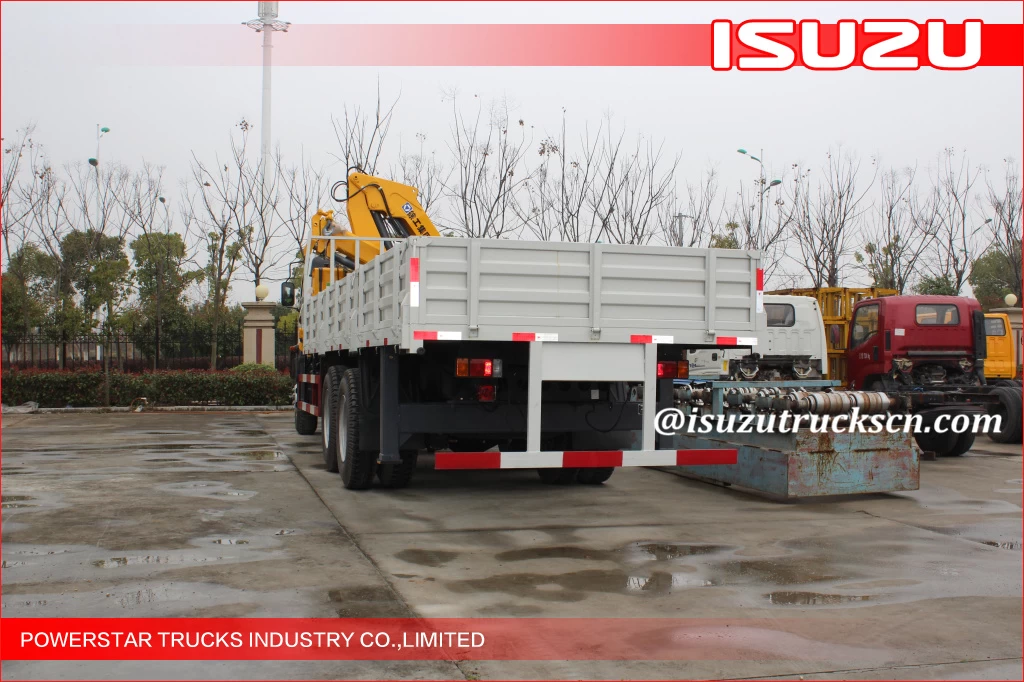

Isuzu 4 Ton Architecture Truck Mounted Crane SQ4ZK2

Isuzu 4 Ton Architecture Truck Mounted Crane SQ4ZK2

Durable 4 Ton Architecture Truck Mounted Crane, Driven By Hydraulic

1. Name: Knuckled boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
2. Max Lifting Capacity: 4 ton
3. Max Lifting Moment: 8.4 t.m
4. Max Oil Flow of Hydraulic System: 25 L/min
5. Max. Lifting height: 10meters
6. Brand: XCMG
7. Crane Weight: 1200 kg
8. Oil Tank Capacity: 60 L
9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.

Description:

Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Knuckle boom crane SQ4ZK2 is used for lifting 4tons, moment is 8.4T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Specifications:

Optional parts:

1, Moment limited device

2, Remote control equipment

3, Anti-overwind magnet valve

4, High seat on column

5, Work light

6, Assistant stabilizer leg
