ISUZU 5 CBM Garbage Compactor Truck also can be called Trash Compressor Truck, Refuse Compression Truck, Refuse Collection Truck, Rubbish Compactor Truck, Bin Lorry Truck etc. China NO.1 isuzu refuse compressor trucks are mainly designed and produced to collect, compress and transport municiple solid waste.

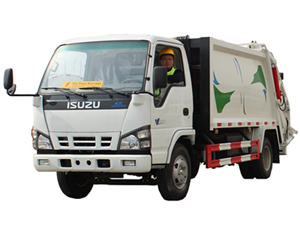

ISUZU 5CBM refuse compression truck
Below details will help know what is ISUZU 5 CBM Garbage Compactor Truck:
----Garbage compactor truck is composed of hermitical garbage box, hydraulic system and operating system.
----The garbage truck could apply pressure to the waste to breakdown bulky items, to load and transport more garbage by one time.
----Dirty liquid flows into waste water collection tank,perfectly preventing re-pollution. ----When arriving at destination, thegarbage can be discharged completely.
----The operation system could be manual or electrical control
----It is ideal solution for all kinds of solid wastecollection.
Above show CEEC produced ISUZU 5CBM trash compressor truck Compact System, which mainly consist of Tilting Device (optional for 240L & 360L, 660L & 1100L rubbish bins); Slide Plate; Scraper; Push Plate & Rear Tail Gate. All parts are well-designed, strong structure and light self-weight.
Similary Key Words: ISUZU 5 CBM garbage compactor truck, waste management trucks, isuzu refuse compression truck, professional rubbish compactor, 5000 L compressed garbage trucks
| Items
|
Parameter
|
|
Truck Model
|
CEEC5060ZYS
|
|
Compression Tank Parameter
|
Tank Capacity
|
5CBM
|
|
Tank Material
|
Carbon Steel Q235 (Q345 for optional)
|
|
Tank Shape
|
Curved Shape Tank
(Square shape for optional)
|
|
Overall dimension (mm)
|
Length
|
6150
|
|
Width
|
1950
|
|
Height
|
2550
|
|
Tank Thickness
|
Side
|
4mm
|
|
Floor
|
4mm
|
|
Chassis
|
Chassis Brand
|
ISUZU
|
|
Drive Mode
|
4x2
|
|
Tire type
|
7.00-16 tire
|
|
Tire No.
|
6+1 units
|
|
Max speed
|
90 km/h
|
|
Cab
|
1. Flat
roof, All-steel-welded construction
2. spring
suspensions with hydraulic shock absorbers
3. Air
condition
4. 2 seats
1-DIN AM/FM CD/MP3 Player
|
|
Engine
|
Power
|
70 kw / 95hp
|
|
Fuel type
|
diesel
|
|
Emission Standard
|
Euro 3 & Euro
4
|
|
Gearbox
|
Control type
|
Manual
|
|
Gear
|
5 forward & 1
reverse
|
|
CEEC Compactor
Trucks
Loading Introduction
|
|
Garbage compactor trucks on sale
| Picture
|
|
|
|
|
|
| Engine
|
4KH1-TC
|
4HK1-TC
|
CUMMINS
|
CUMMINS
|
WP10.380E32
|
| Model
|
ISUZU
|
ISUZU
|
Dongfeng
|
Dongfeng
|
Beiben 2538
|
| Rated Power
|
120HP
|
190HP
|
190HP
|
240HP
|
380HP
|
| Payload
|
5 CBM
|
8 CBM
|
12 CBM
|
20 CBM
|
22 CBM
|
| Drive Type
|
4*2
|
4*2
|
4*2
|
6*4
|
6*4
|
