ISUZU 5 CBM vacuum road sweeper truck

2017 TOP performance ISUZU brand road sweeper, use small ISUZU 4*2 chassis, 5cbm stainless steel material tanker, ISUZU 120HP diesel engine, MSB 5-shift manual transmission box. with original import & china brand motor and valves optional. All kinds of painting & logos depend on request

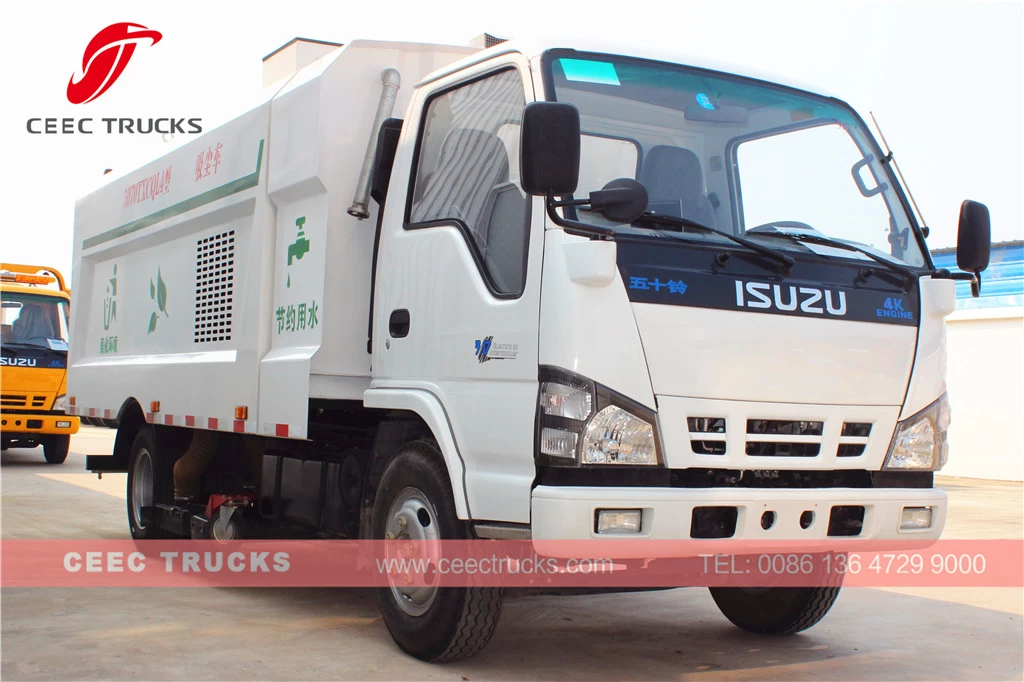

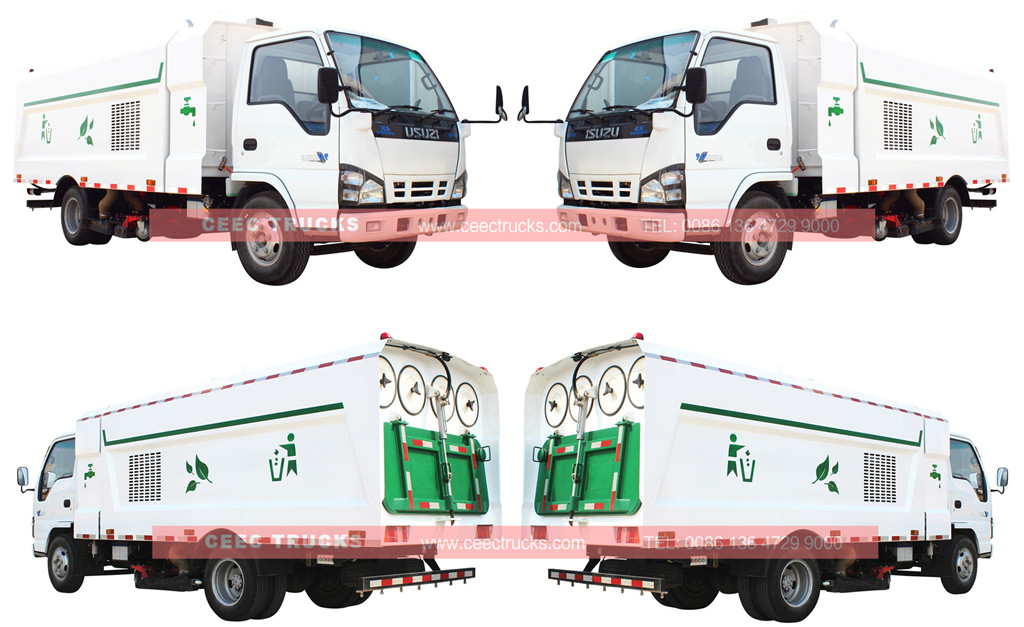

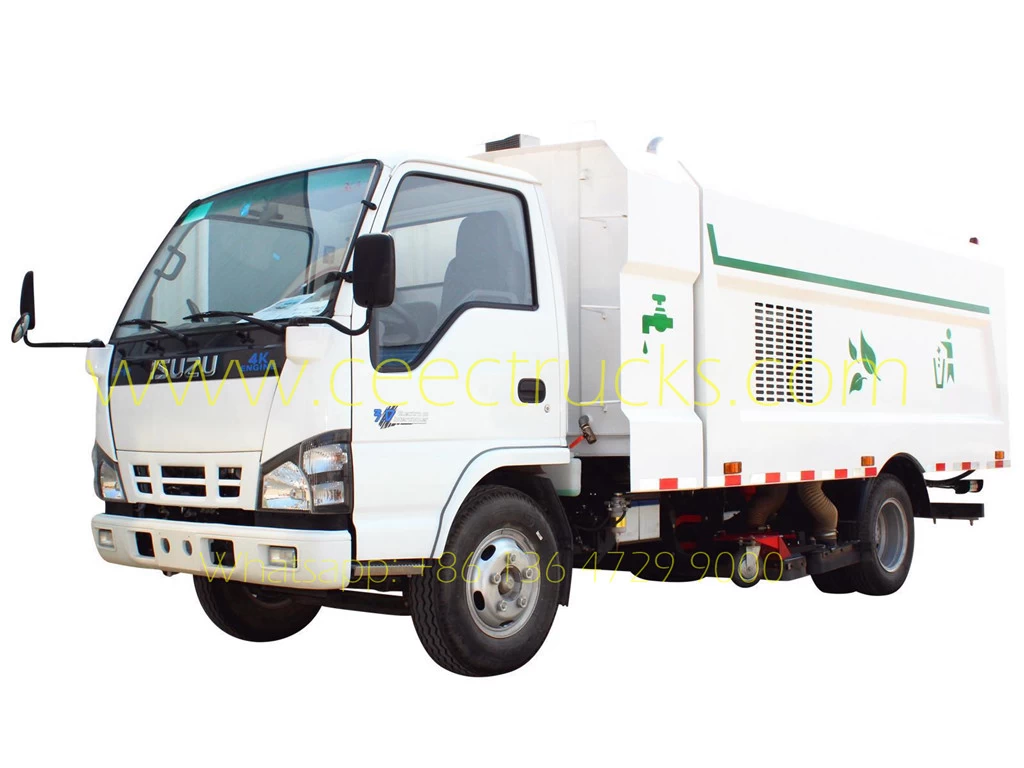

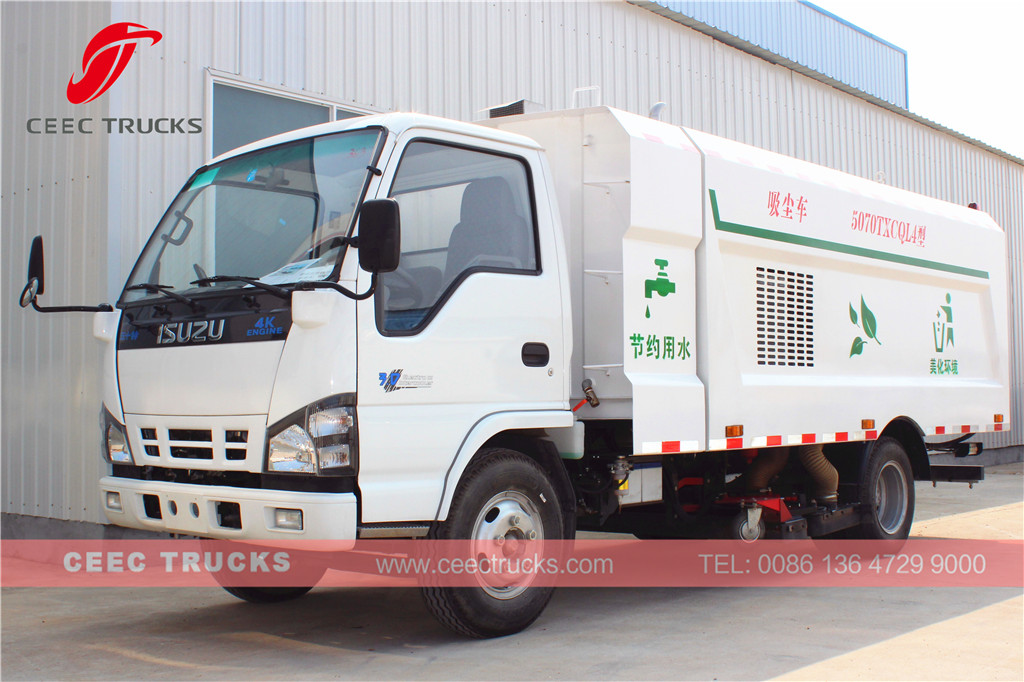

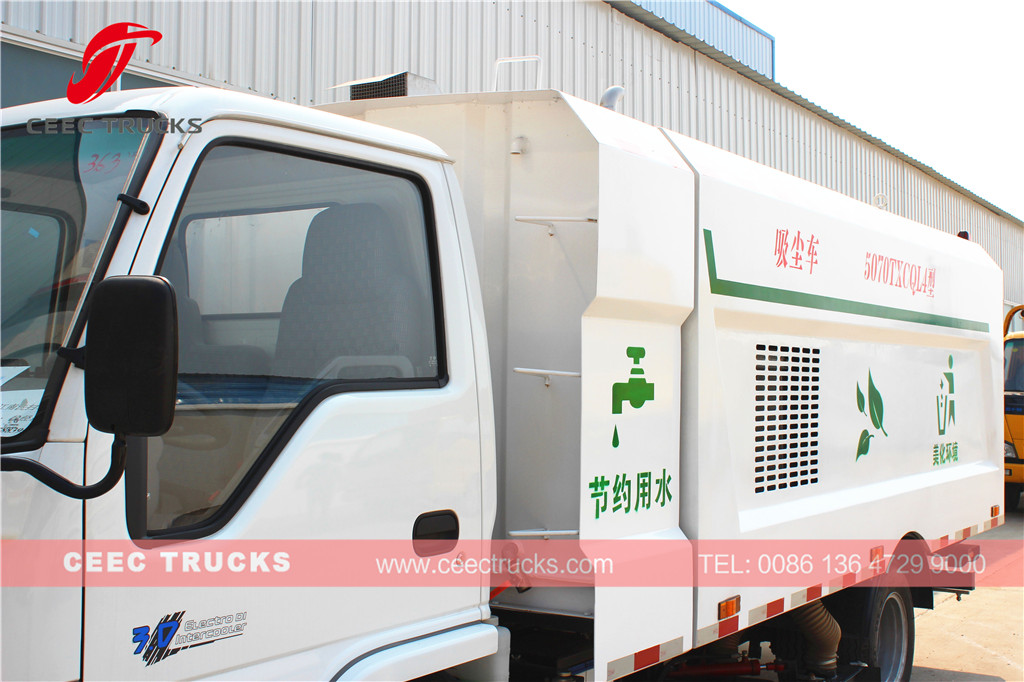

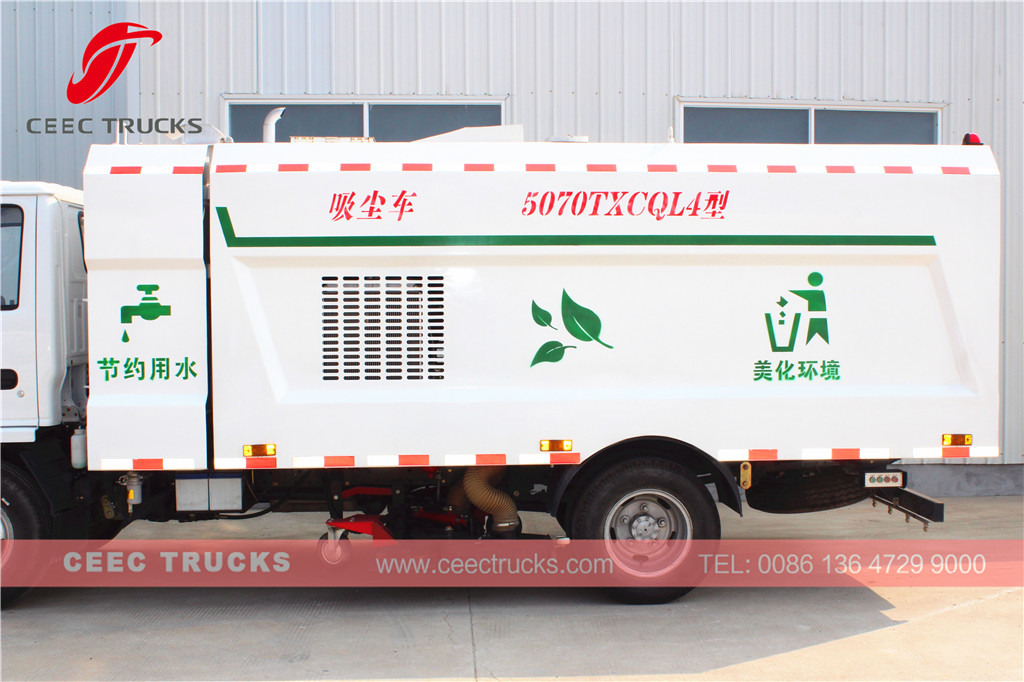

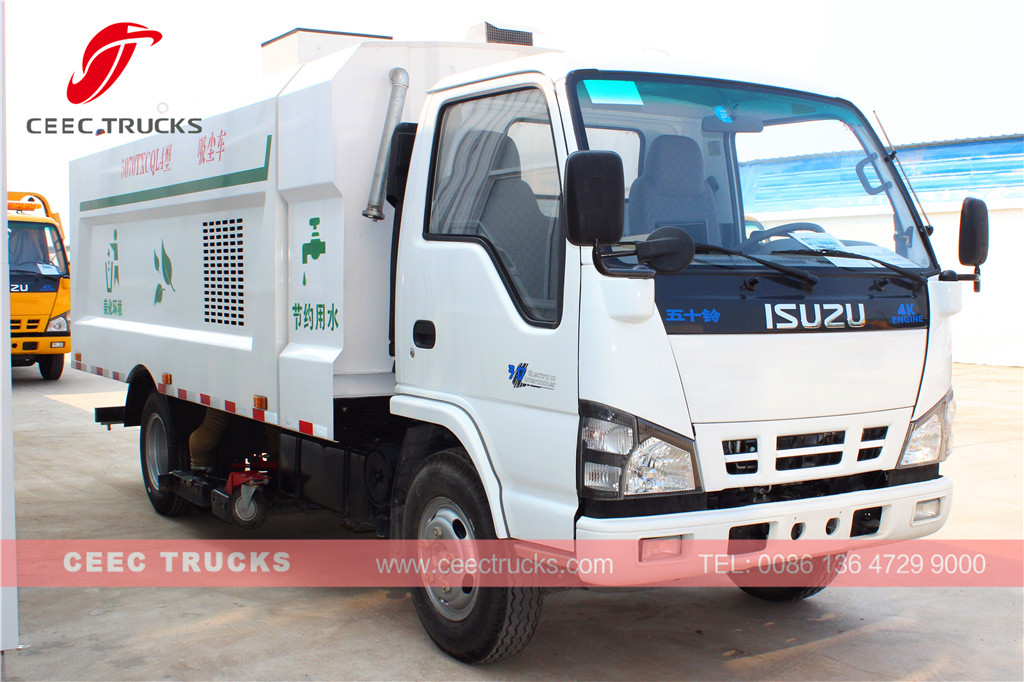

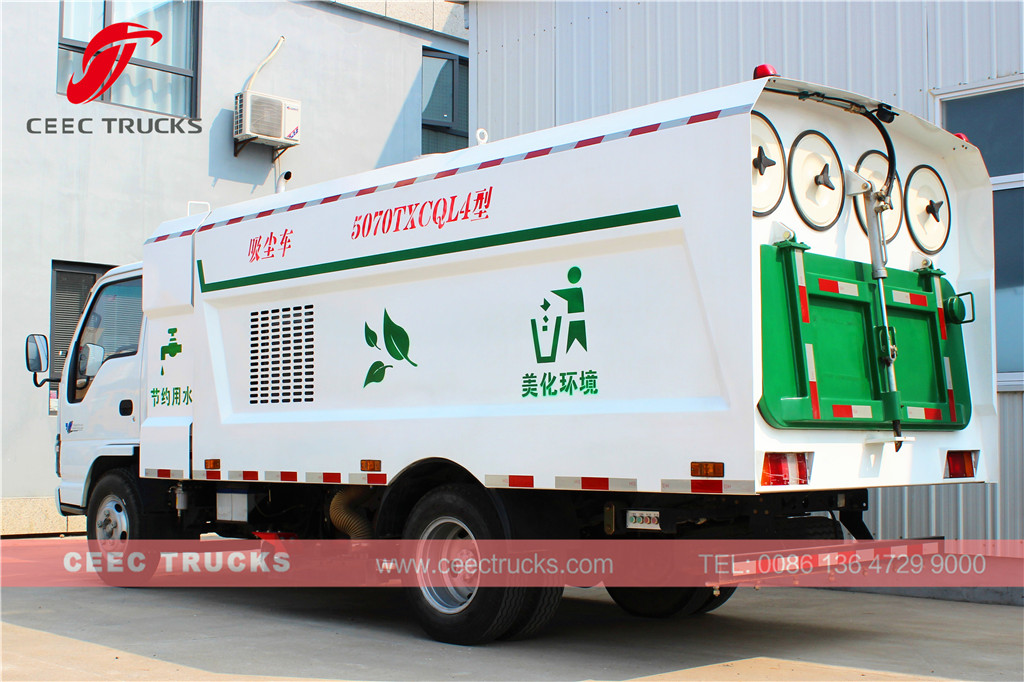

wholeview for ISUZU sweeper truck



 Applications:



Road Sweeper 5cbm ISUZU (also called road sweeper truck, hydraulic street sweeper, vacuum road sweeping truck, trash collection truck, road cleaning vehicle) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.



CEEC TRUCKS 5cbm isuzu road sweeper truck is best selling model, which use whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU or JMC 57kw auxiliary engine, efficiently avoiding secondary pollution.



The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU diesel engine, super powerful, no overhaul within 100,000 km.

---- Road Sweeper body capacity from 1 to 16 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



ISUZU road sweeper truck (5 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

6000 * 2000 * 2600 mm

GVW / Kerb Weight

7,300kg / 5,500kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

120 HP (88 KW)

Displacement

2771 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

MSB 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

4 cbm dust tank & 1 cbm water tank

Tanker material

Stainless steel

Sweeping capacity

42,000 cbm/h

Sweeping speed

3-15 km/h

Max. sweeping width

3200 mm

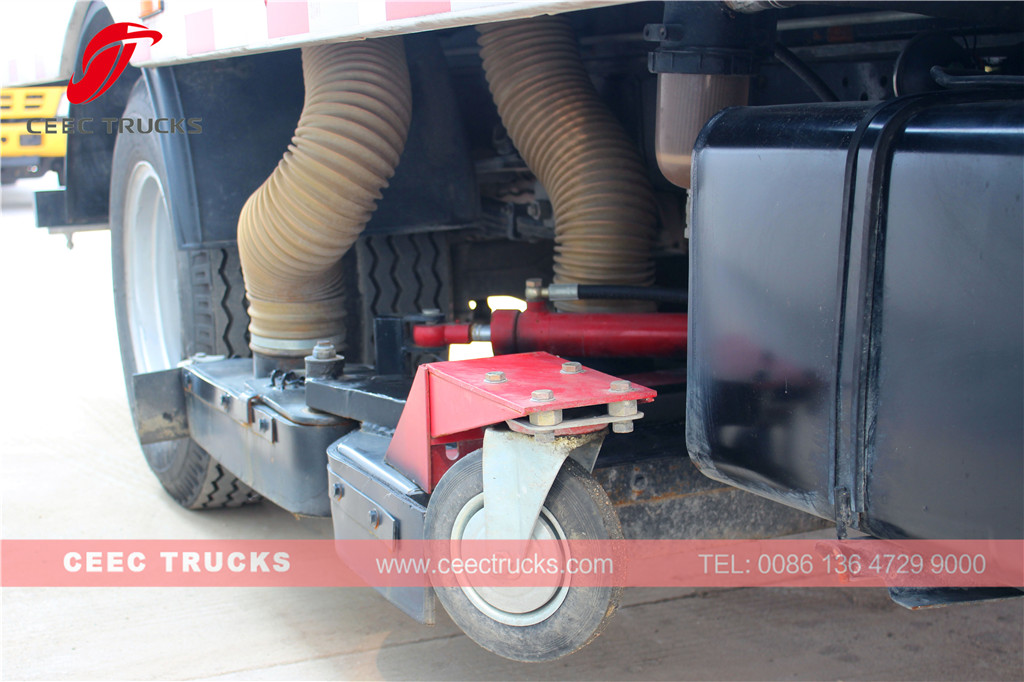

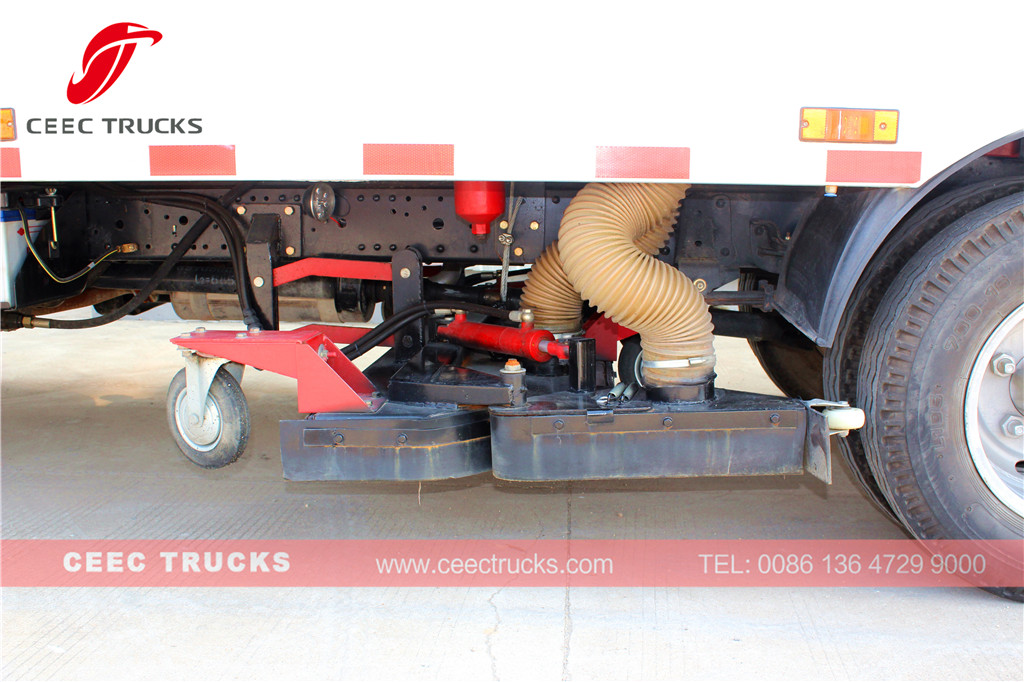

Brooms

2 set at each side, at diameter 800 mm

Auxiliary engine

ISUZU engine, 77HP (57kw), super powerful

JMC engine, 77HP (57kw), super powerful

All standard accessories: Warning lights, music alarm, basic tool kit, English manual...

Optional

** Back alarm and Camera can be equipped.

** Italy Brevini motor can be optional.

** Air blower can be of stainless steel



  ISUZU 5cbm road sweeper truck drawing
