Applications:
Sewage

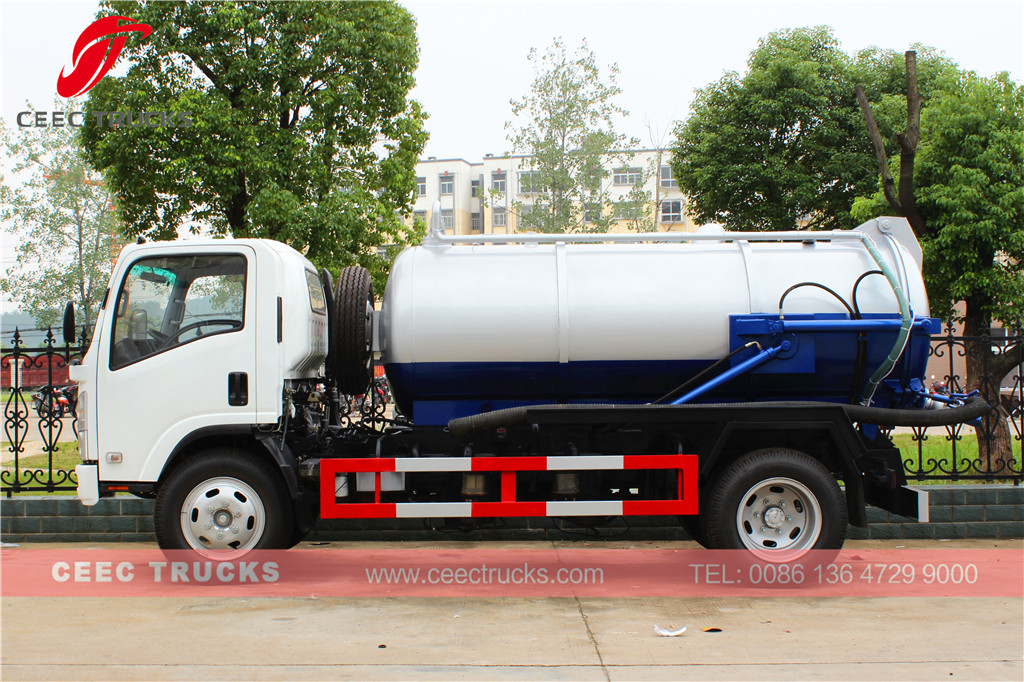

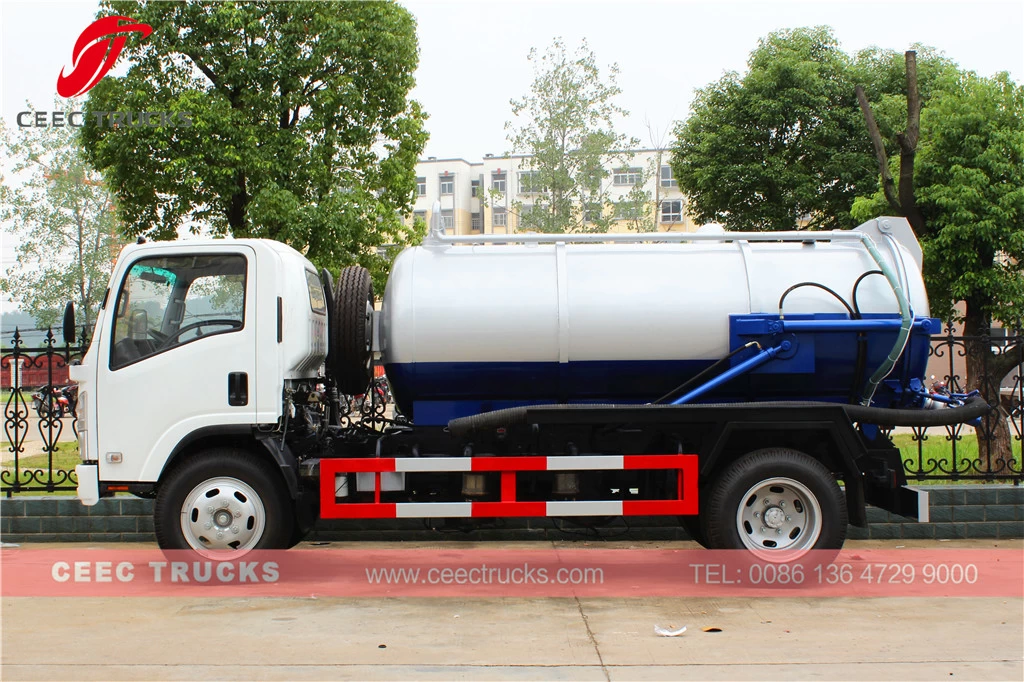

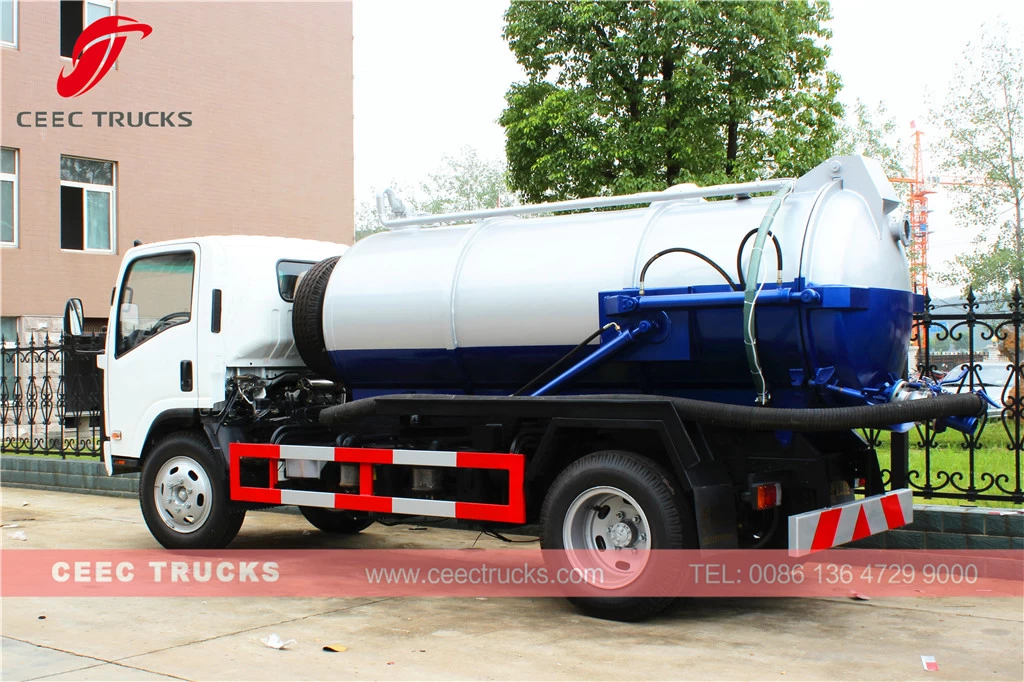

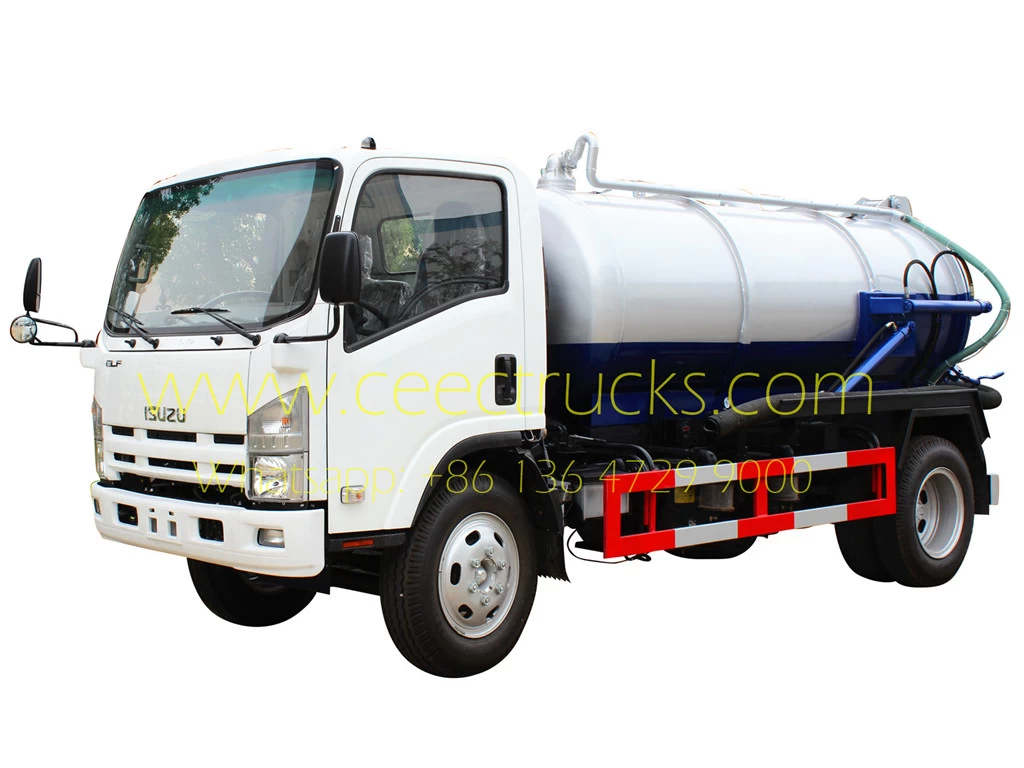

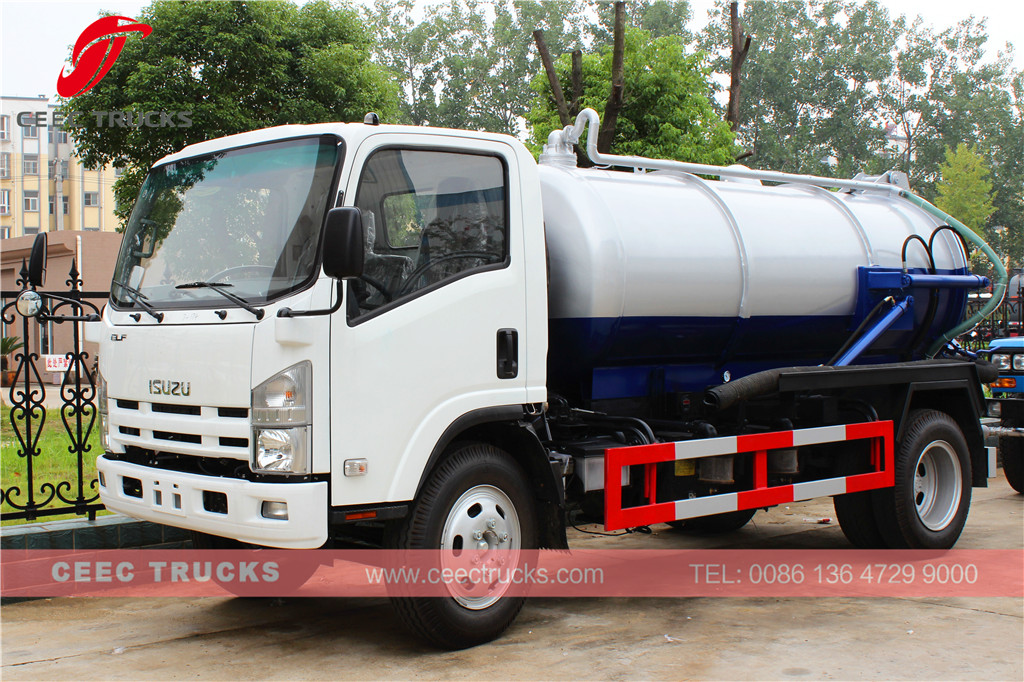

Vacuum Truck (also called sewer cleaning truck, sewage tanker, sewer
truck, cesspit emptier, gully emptier, vacuum truck, gully emptier,
waste vacuum tanker, vacuum tanker, sewage truck) is
used to collect, transport and discharge liquid such as dirty water,
sludge, septic, crude oil, and solid stuff such as small stones, bricks
as well. It is suitable for cleaning the sewer, cesspit, cesspool,
gully, etc. It is widely used in environment and sanitation field.

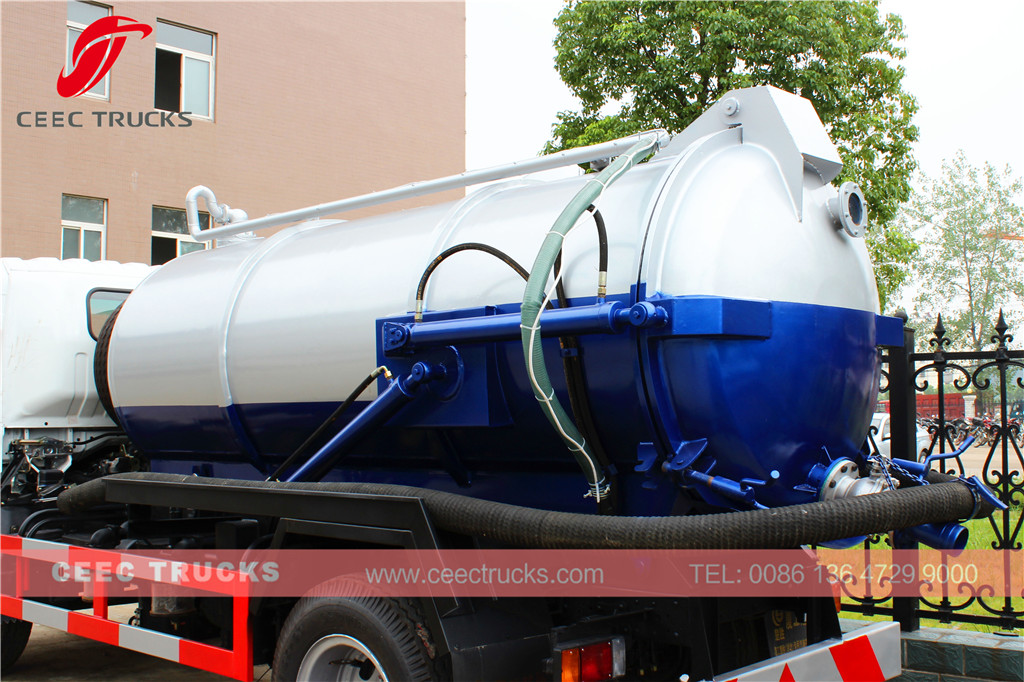

CEEC TRUCKS vacuum tank truck which use WEILONG or Italy BP vacuum pump, for 10CBM or more recommend Double Pump for efficiently working.

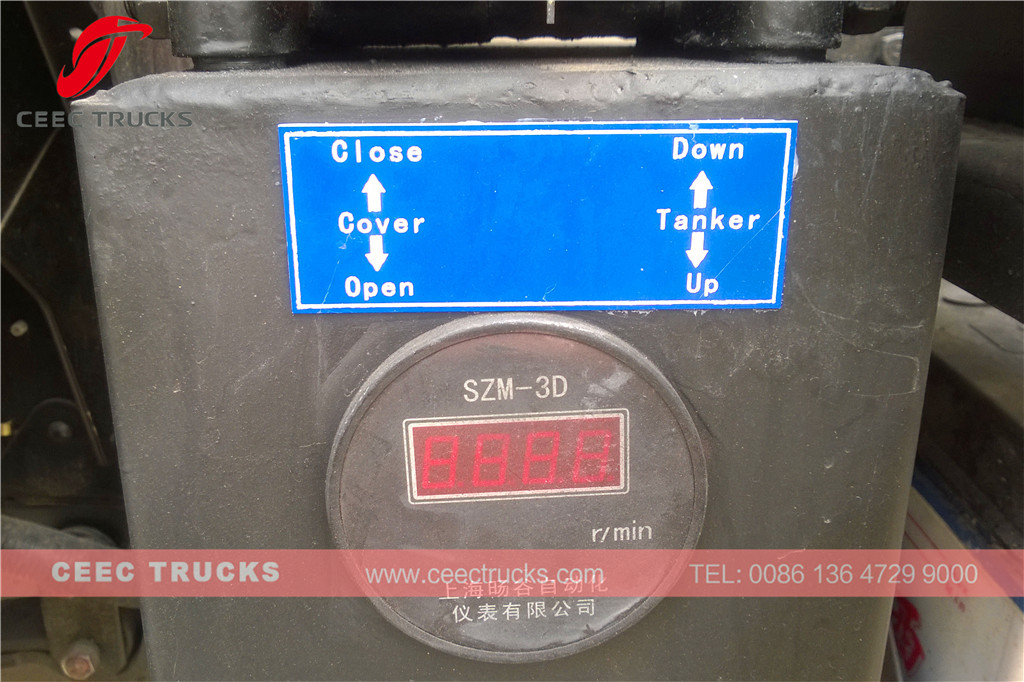

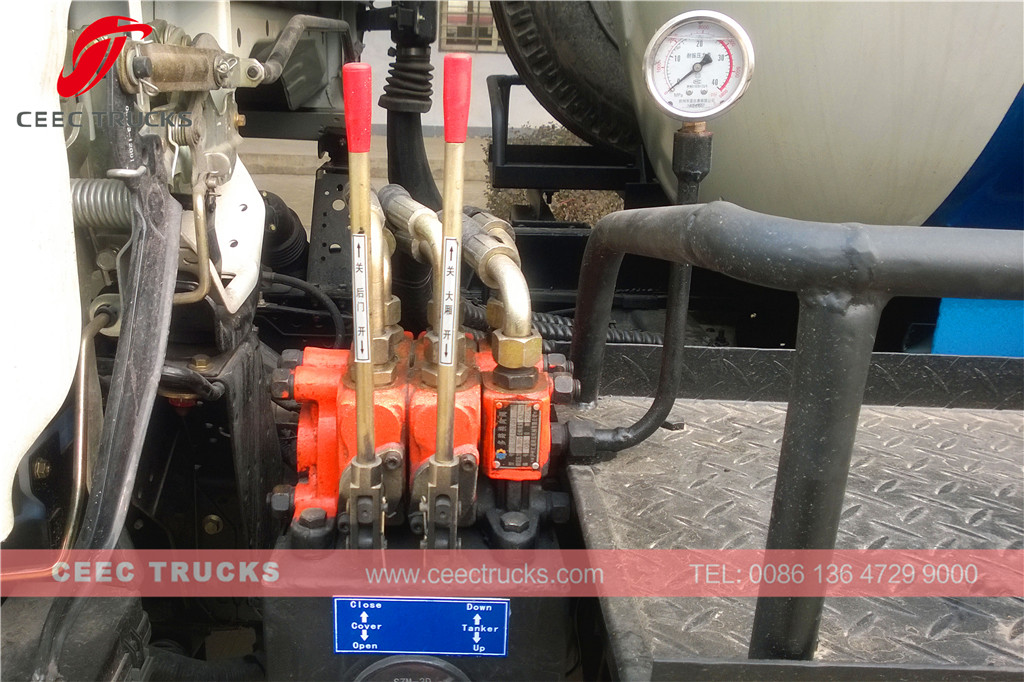

The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.
Key Features:

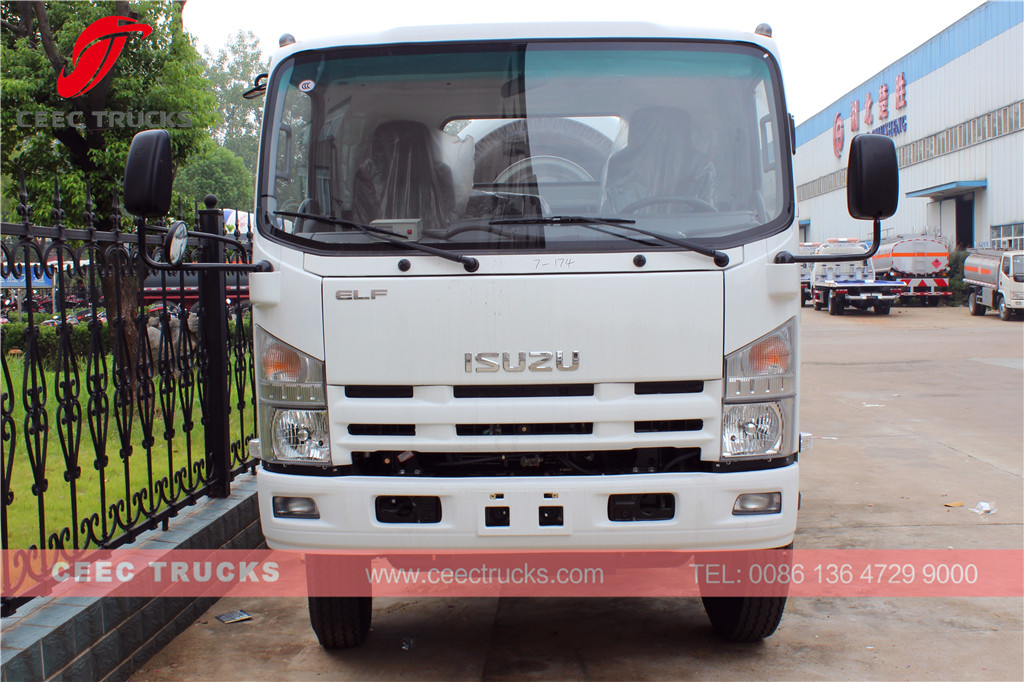

---- ISUZU chassis, perfect performance
---- ISUZU technology engine option, super powerful, no overhaul within 100,000 km.
---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:

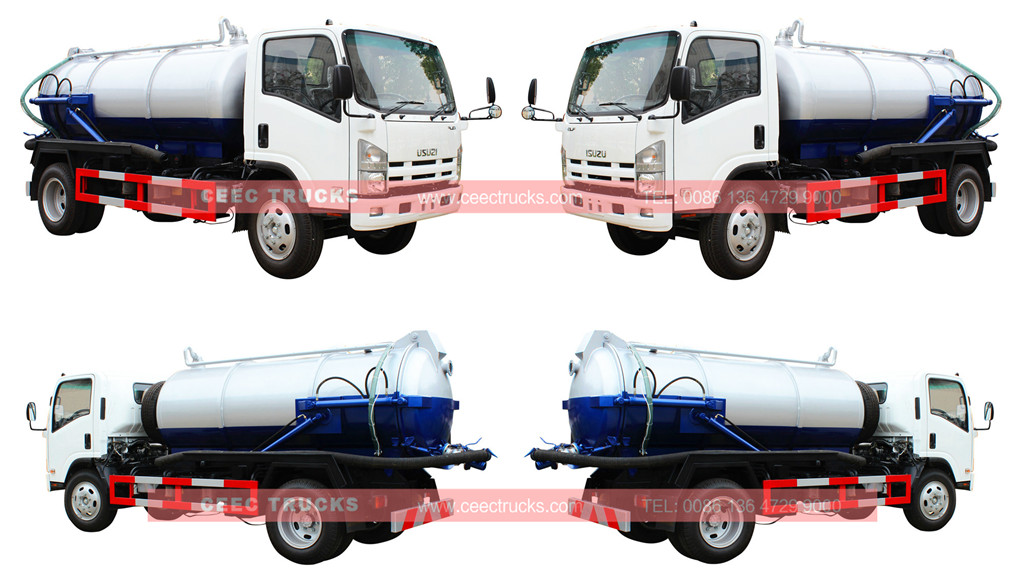

| Vacuum Sewage truck (8 cbm)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
ISUZU
|
| Overall Dimension
|
6900 * 2300 * 2890 mm
|
| GVW / Kerb Weight
|
11,400kg / 5,920kg
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
ISUZU 4HK1-TC
|
| Power
|
190 HP (140 KW)
|
| Displacement
|
5193 ml
|
| Emission Standard
|
Euro 4 or 5
|
| Chassis
|
Drive Type
|
4X2, (left hand drive)
|
| Transmission
|
Manual MLD 6 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
3815 mm / 2
|
| Tire Specification
|
8.25-16
|
| Tire Number
|
6 tires and 1 spare tire
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Body capacity
|
8 cbm
|

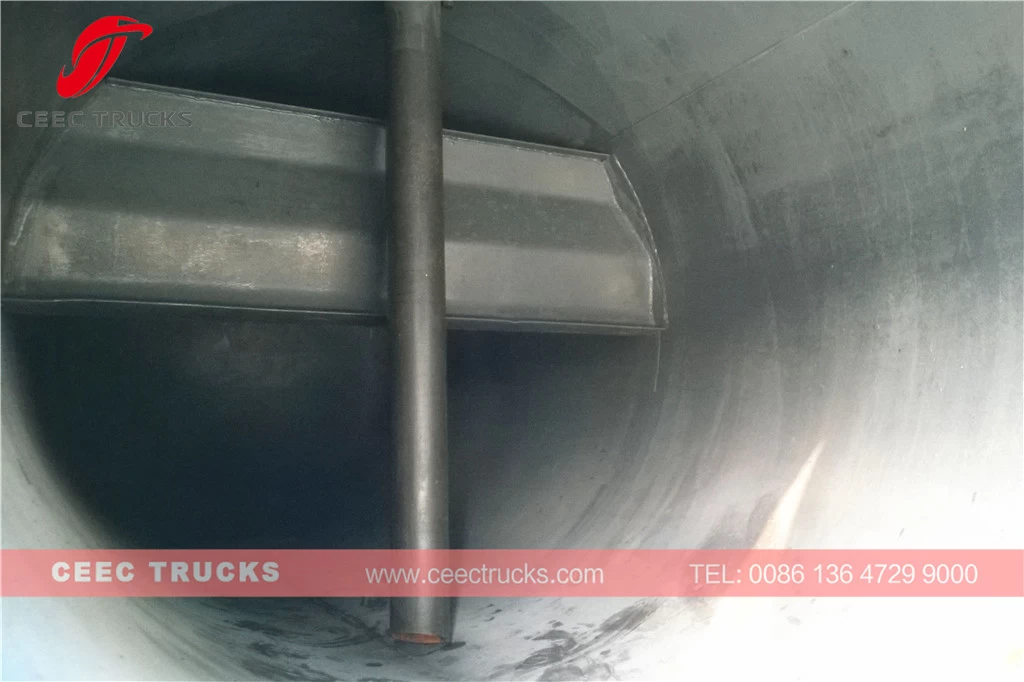

| Tanker Material
|
Carbon Steel
|
| Suction Head pipeline
|
7 m
|
| Vacuum Pump brand
|
WEILONG / Italy BP / Domestic Pump
|
| Vacuum Pump advantage
|
High efficient, vacuum rate 93%,
quick suction and discharge, suction lift 6m
|
| Hose
|
High quality, wire strengthened hose
|
| Control panel
|
English or Your language
|
| All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual……
|
| Optional
|
** Back alarm and Camera can be equipped.
** Standard carbon steel, stainless steel optional.
** Standard WEILONG vacuum pump, Italy vacuum pump optional
|
