Applications:
Refrigerator Truck ISUZU (also called Refrigerated van truck, Freezer cargo truck, Freezing truck, Refrigerator truck for food and meet, Mobile Freezer Van Vehicle) is a van or truck designed to carry perishable freight as specific temperatures.
Refrigerated trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration system powered by small displacement diesel engines, or utilize cabon dioxide as a coolling agent.
CEEC TRUCKS can supply freezer van trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU technology engine option, super powerful, no overhaul within 100,000 km.

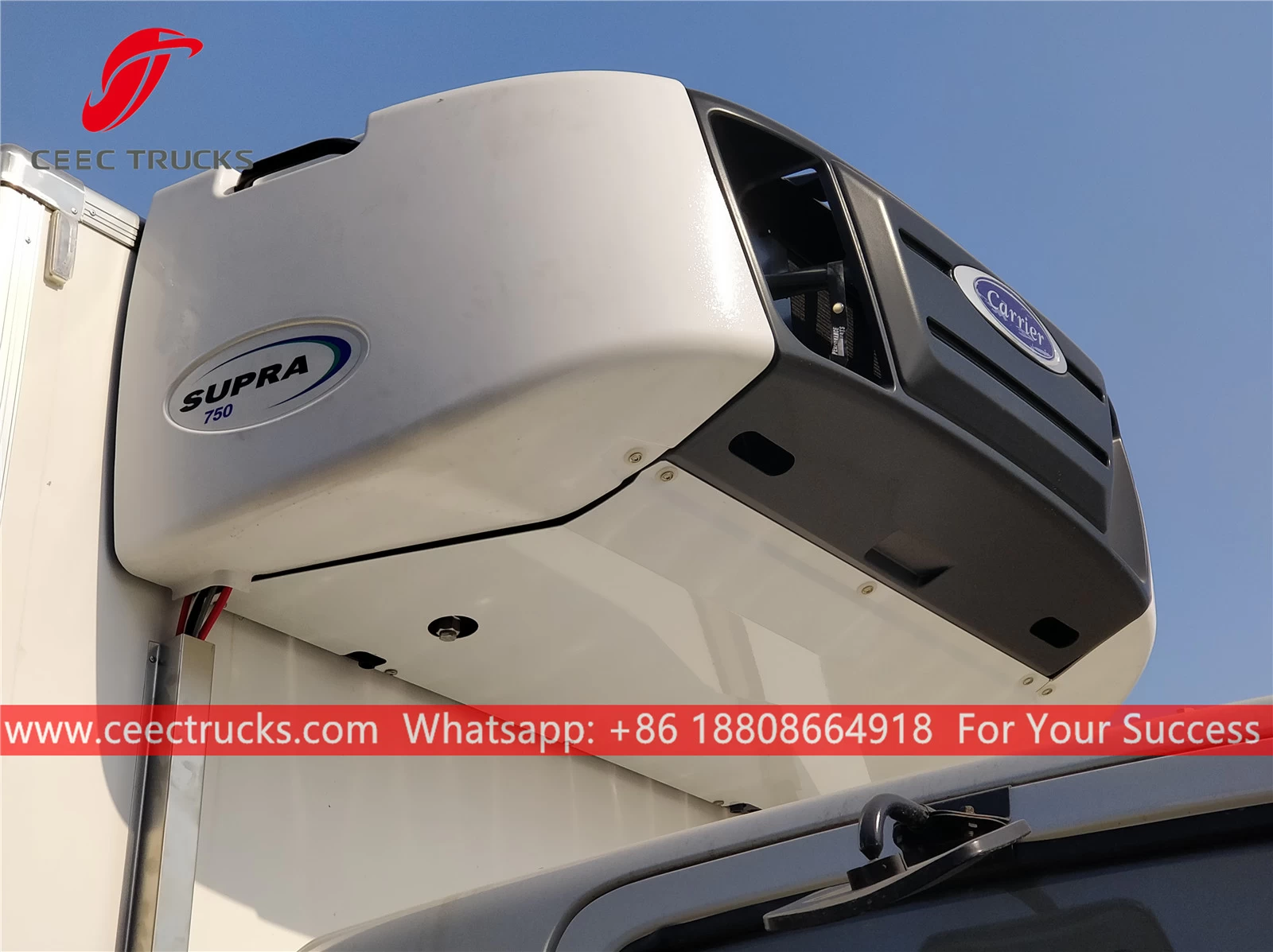

---- Refrigeration system brand can be optional.
---- Transportation temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C, -25°C.
Specifications:
|

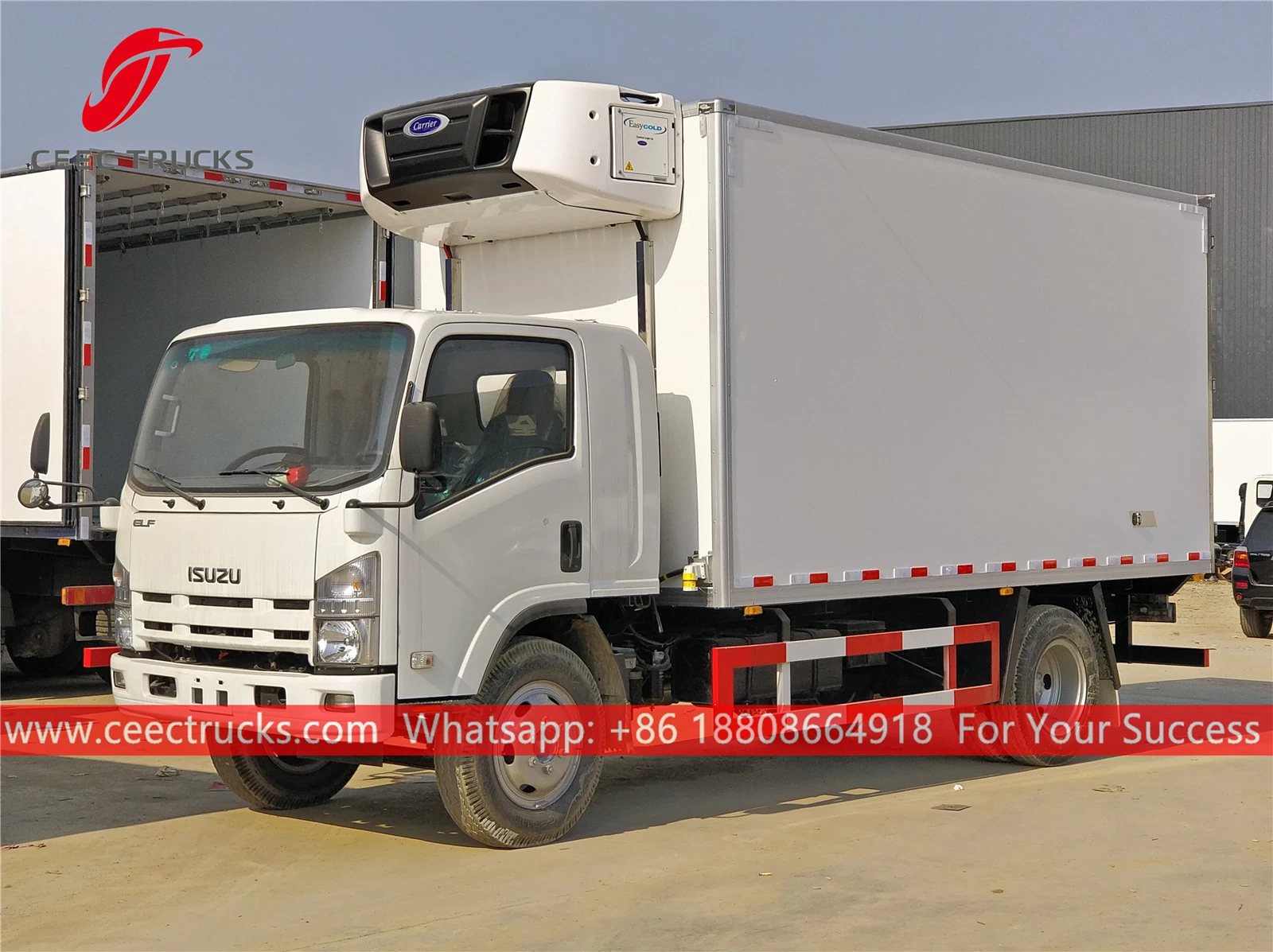

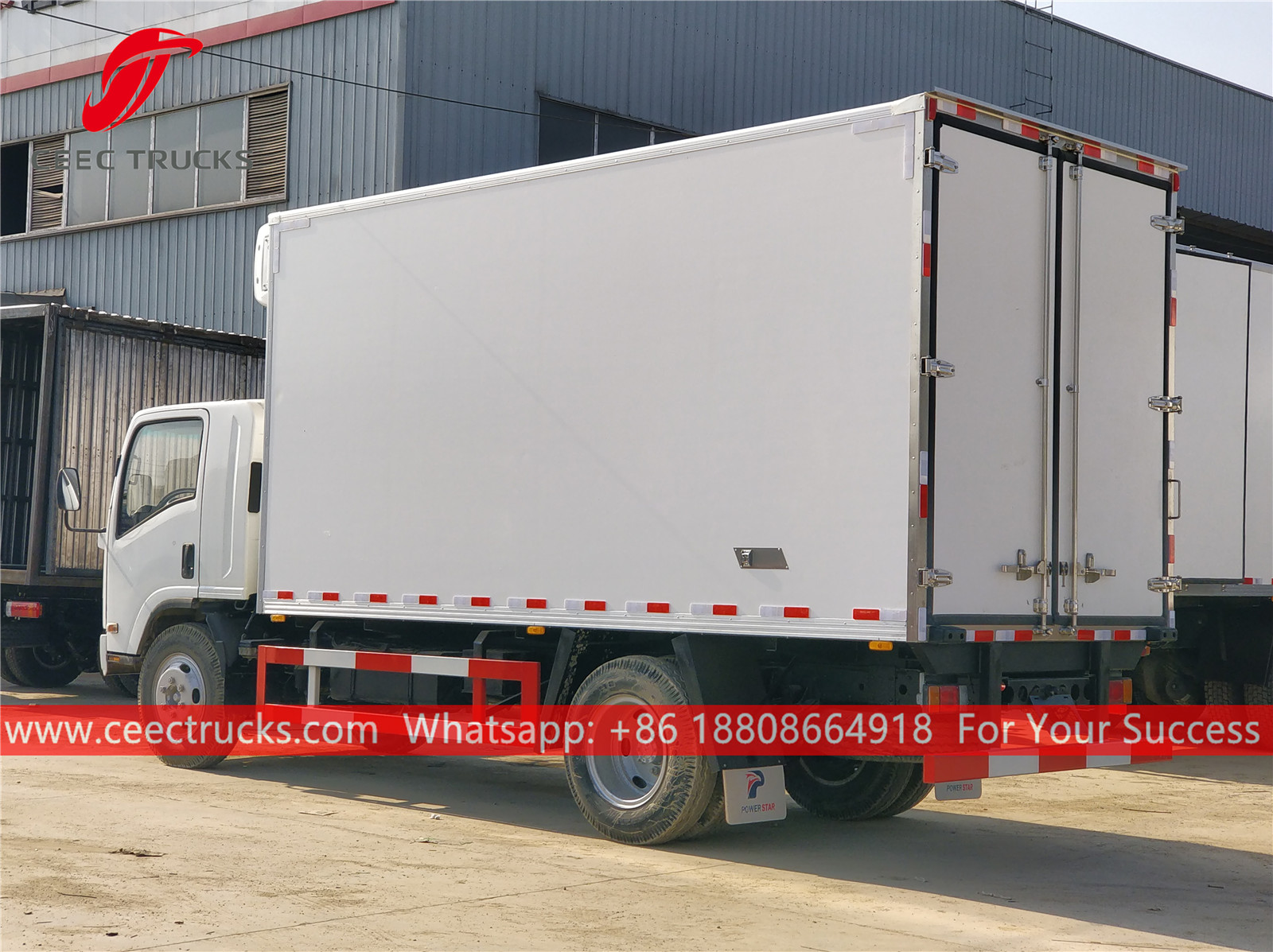

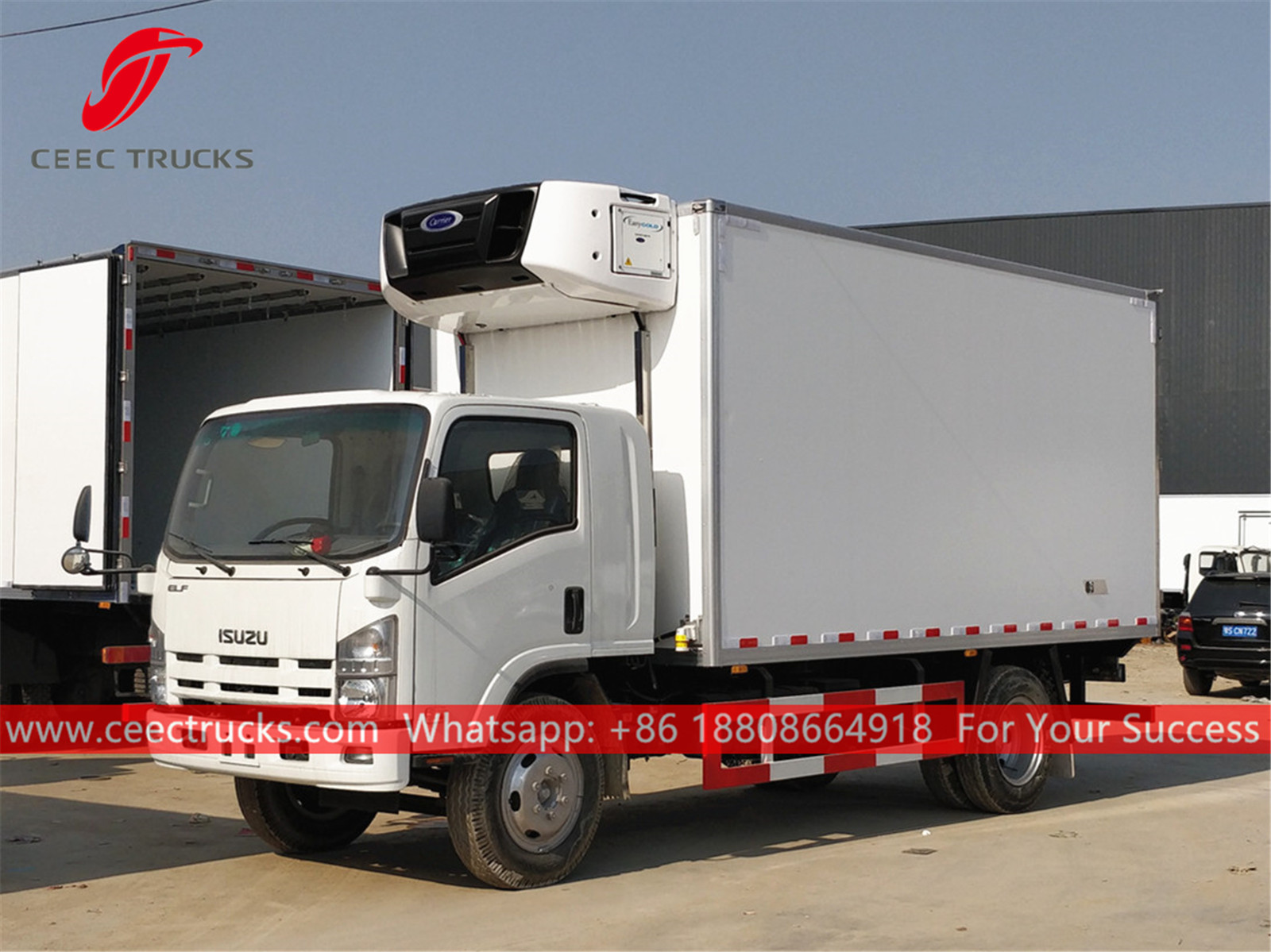

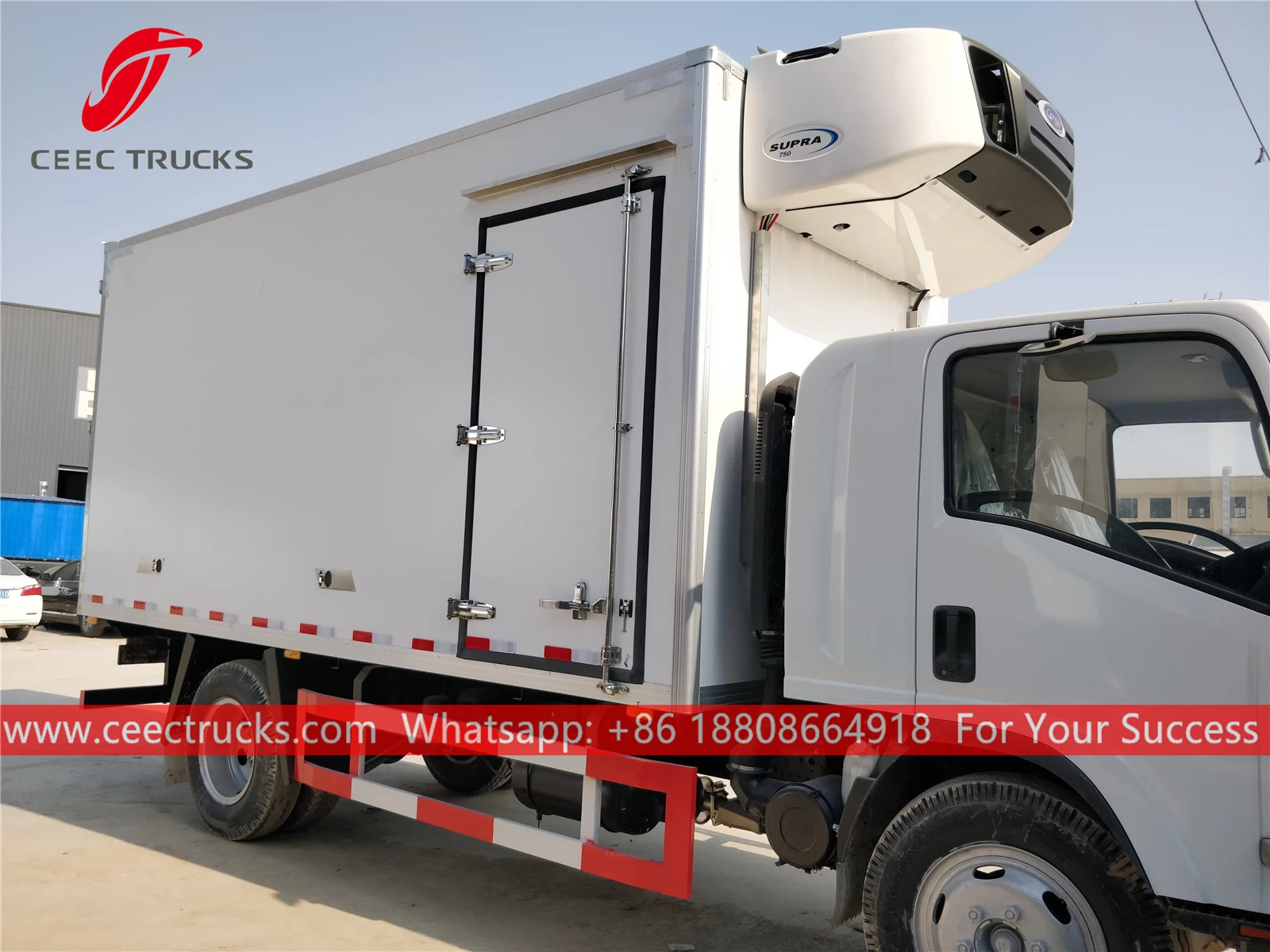

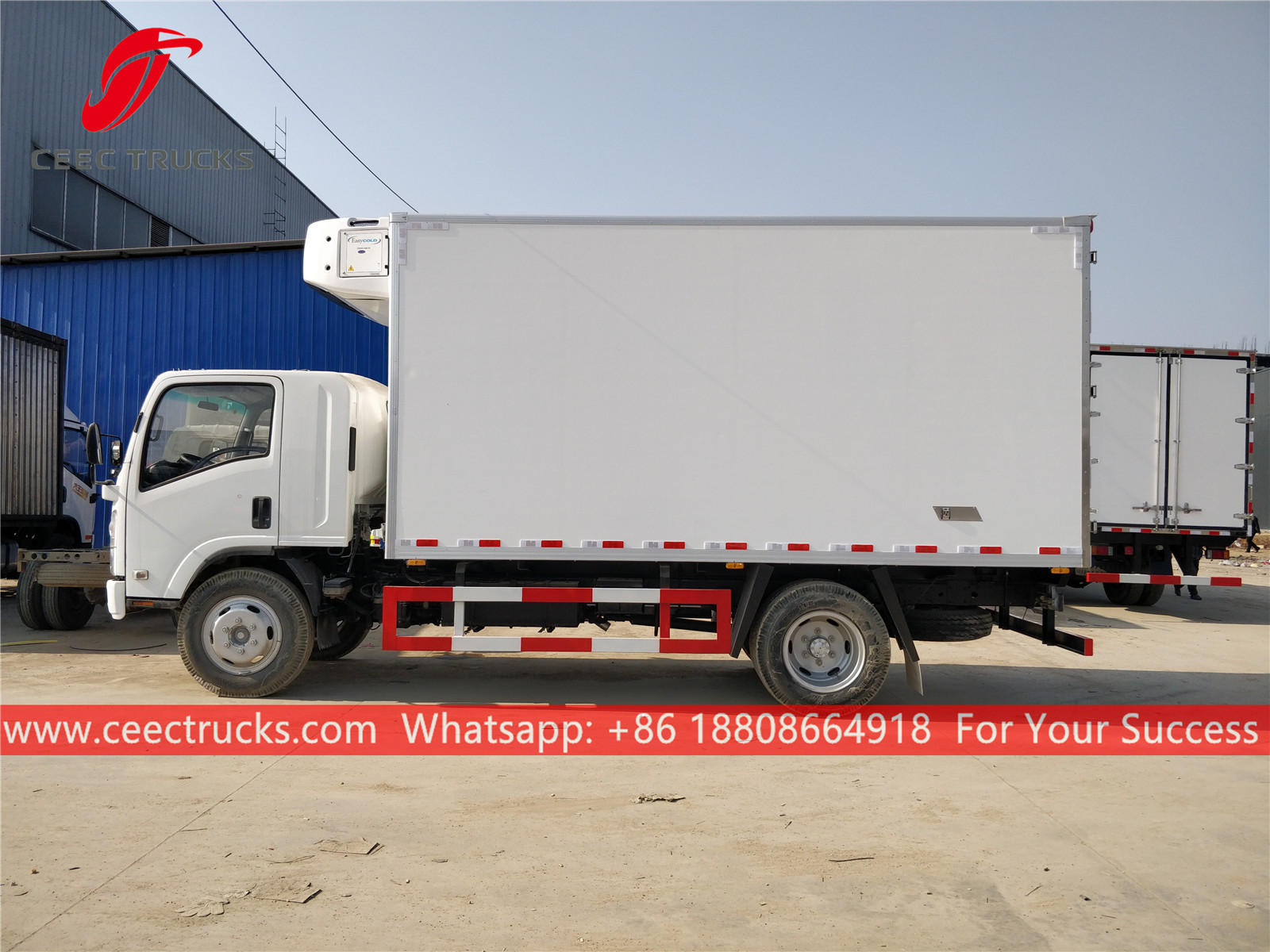

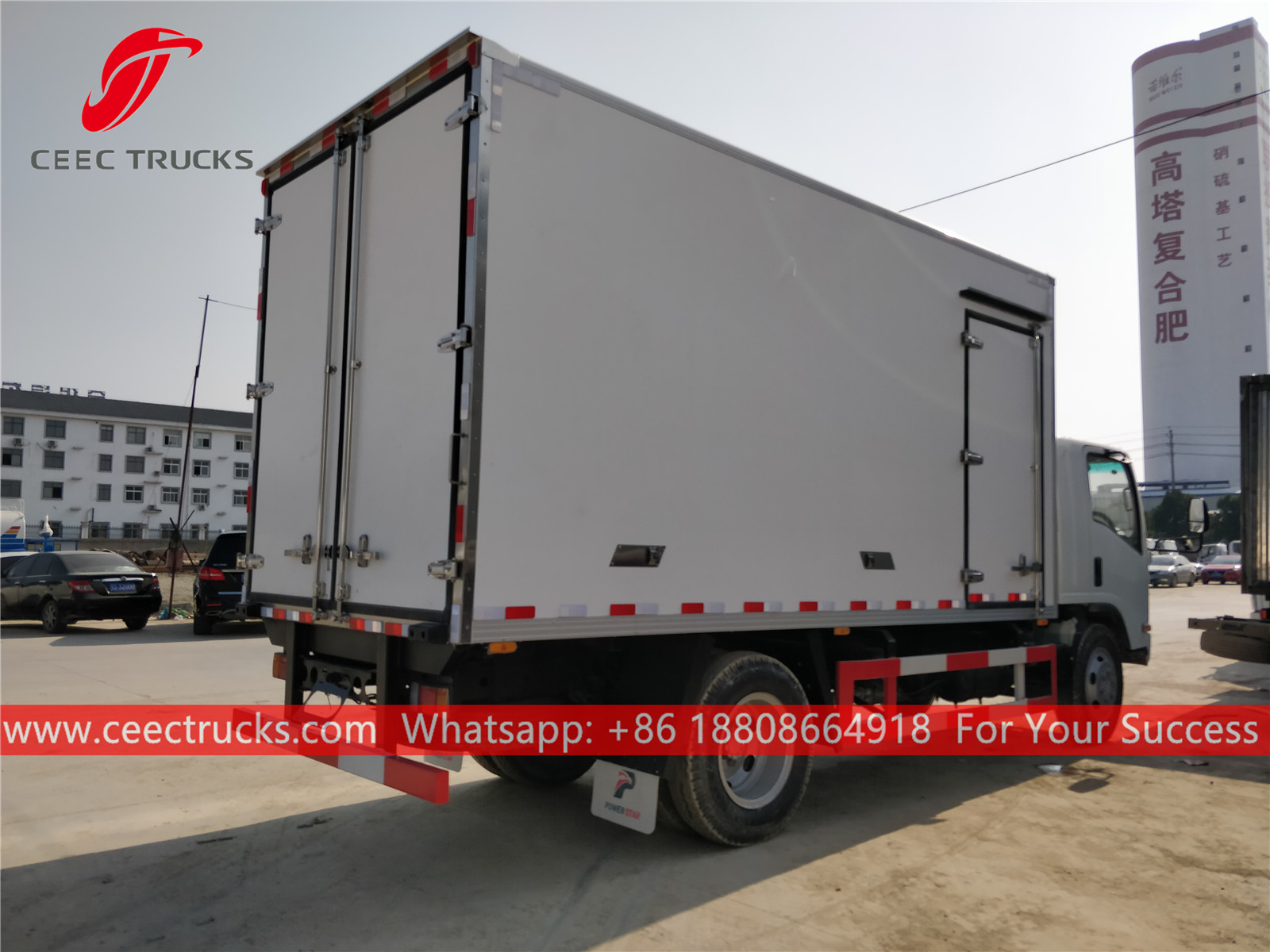

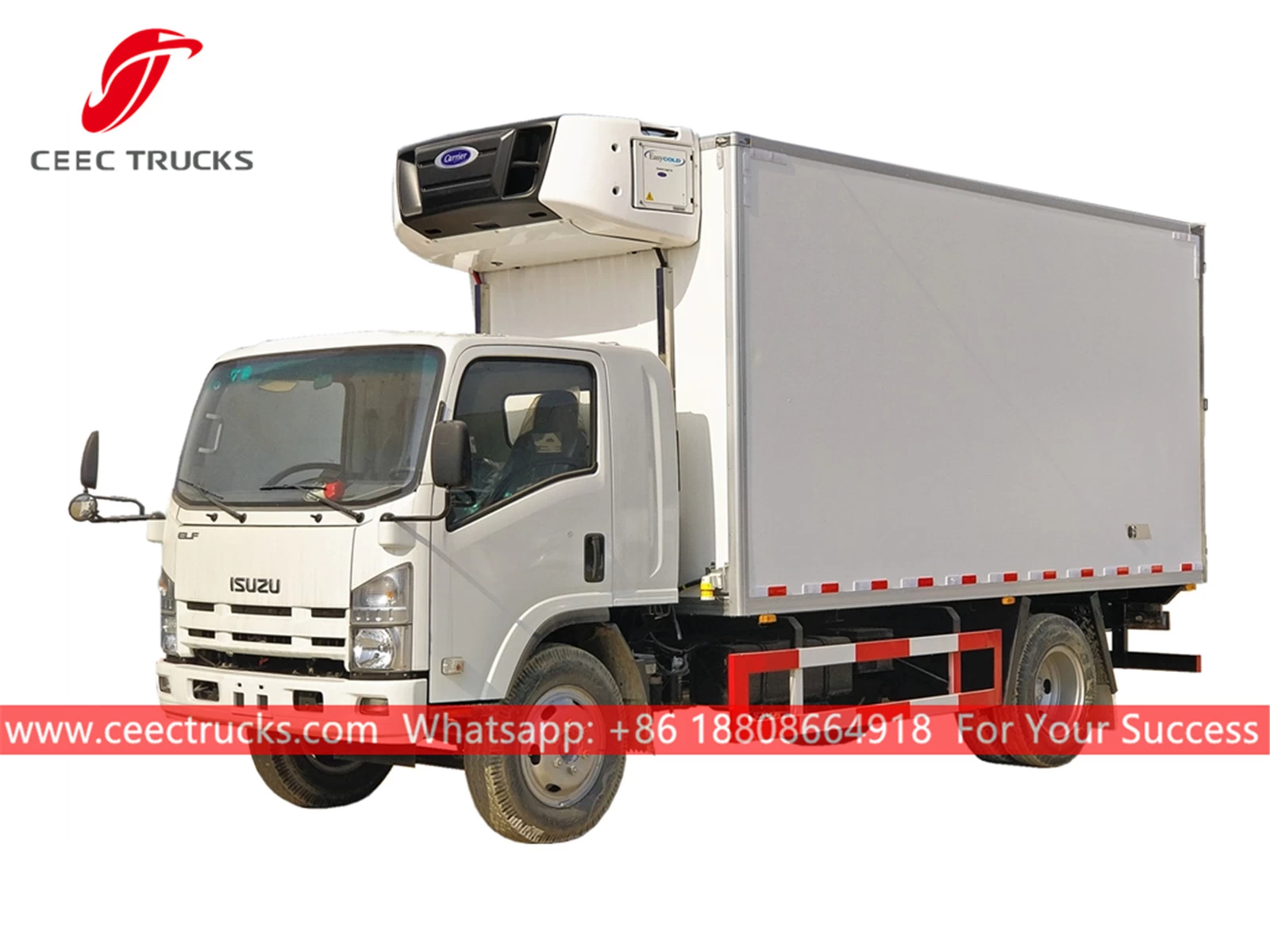

ISUZU Freezer Van Truck (8Ton)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
8045* 2245 * 3330 mm
|
|
GVW / Kerb Weight
|
9,975kg / 5,040kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
190 HP (140 KW)
|
|
Displacement
|
5193 ml
|
|
Emission Standard
|
Euro 4
|
|
Chassis
|
Drive Type
|
4X2 (left hand drive)
|
|
Transmission
|
MSB 5-shift speed levers with 1
reverse
|
|
Wheelbase/No. of axle
|
4475 mm / 2
|
|
Tire Specification
|
8.25R20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
110 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body size
|
5900×2035×1995(mm)
|
|
Load Capacity
|
8 Tons
|
|
Panel Structure
|
Fiber glass sandwich polyurethane
|
|
Front/Side/Rear panel
|
Panel Thickness: 85mm
|
|
Roof/Floor panel
|
Panel Thickness: 105mm
|
|
Lights & Switch
|
Led, Water-proof, 12V/24V convertible
|
|
Lowest temperature
|
-5°C or -25
|
|
Equipment
|
Standard: Aluminum alloy flooring,

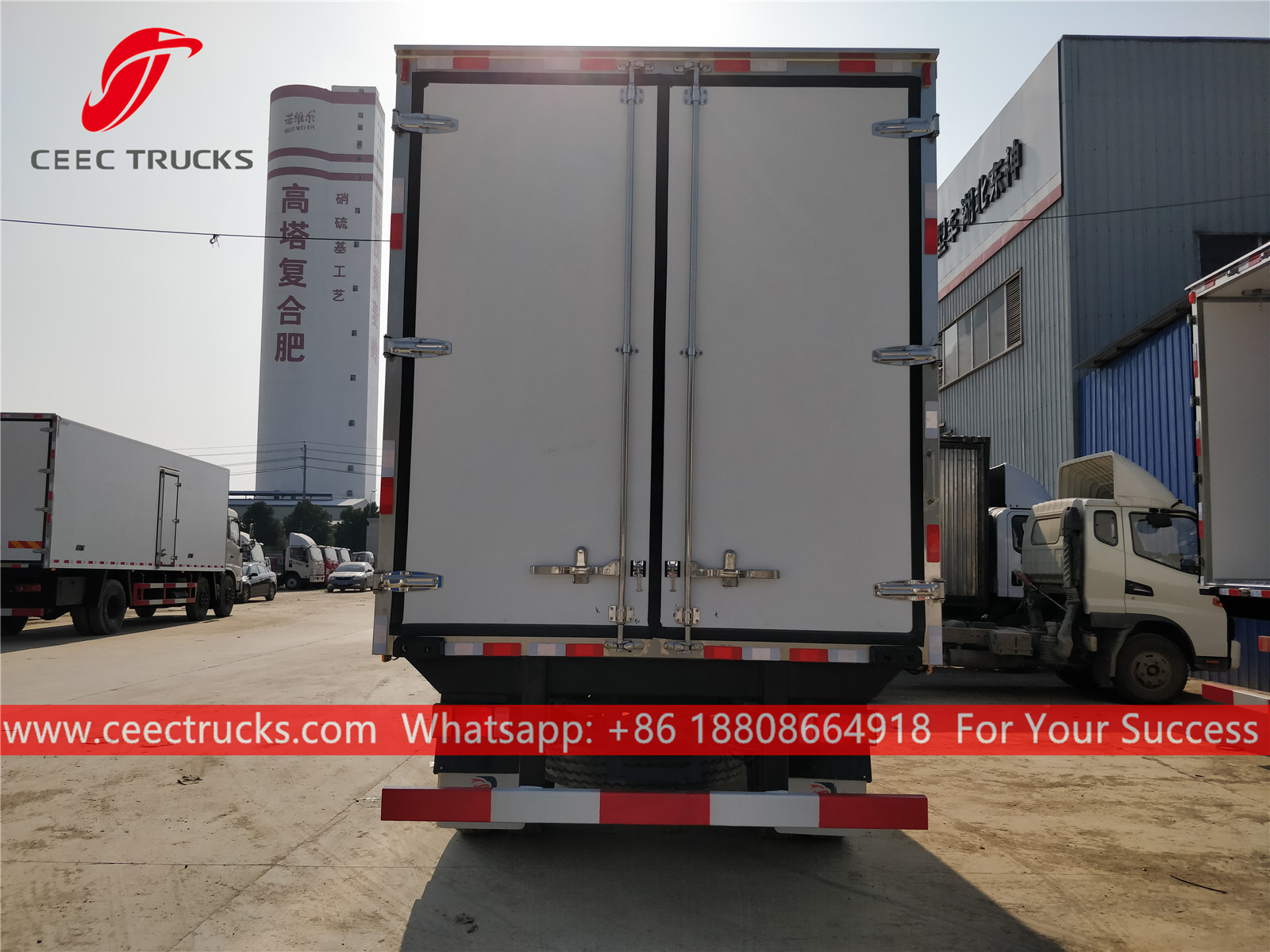

rear doors.
Optional: 1. Hydraulic Tailift and
Cargo Control System.
2. Side doors, side steps and ladders.
3. Different temperature area control.
4. Customized floor roller design for
convenient working.
|
