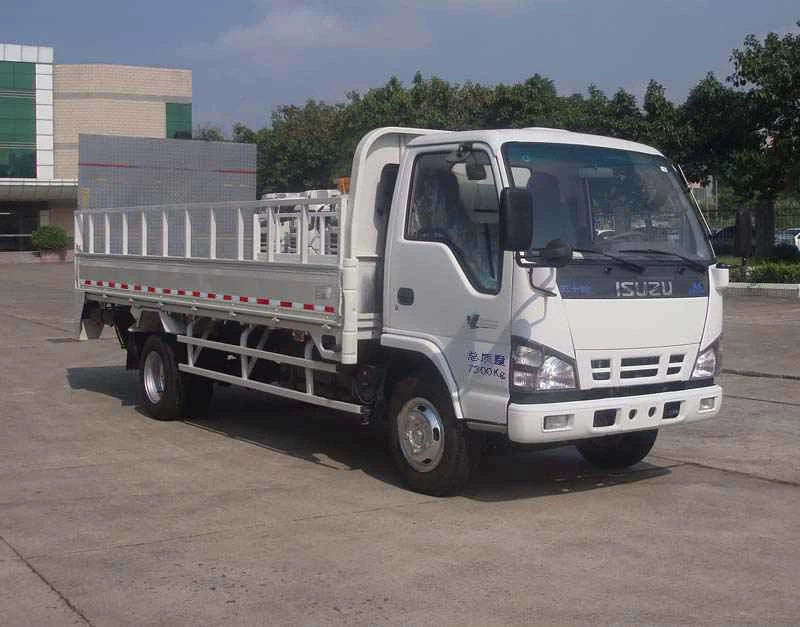

Isuzu barreled garbage truck waste transport vehicle
Top Quality ISUZU NKR mini Hanging barrels garbage truck
1.NKR77 ISUZU famous chassis Hanging barrels garbage truck
2.Good quality Hanging barrels garbage truck
3.Factory price Hanging barrels garbage truck
4.Fully passed 3C & ISO9000 Certification Hanging barrels garbage truck
5.5M3 dongfeng hydraulic garbage truck Hanging barrels garbage truck
Item
|
Parameter
|
Production name
|
garbage truck
|
vehicle model
|
PT5070ZZZ3
|
Engine
|
Engine model: 4KH1TC
|
Engine manufacturer: ISUZU
|
Exhaust: 2999ml
|
Power: 88kw
|
Chassis model
|
NKR77
|
Tire
|
Tire specification: 7.00-16
|
Number of tire: 6
|
Axle
|
Number of axles: 2
|
Axle-load: 2125/2370
|
Wheel base(mm):3300
|
Traction system
|
4*2
|
Tank fact cubage(cbm)
|
5
|
GVW(kg)
|
4495
|
Curb weight(kg)
|
3465
|
Overall dimensions(mm)
|
5850×2000×2300
|
Upper size(mm)
|
/
|
F / R track base(mm)
|
1506/1442
|
F/R overhang(mm)
|
1032/1518
|
Approach / departure angle(°)
|
19/15
|
Max speed(Km/h)
|
90
|
equipment
|
Equipped with hermetic dustbin, hydraulic system and operating system
Equipped with two advanced double acting hydraulic cylinders, cycling time<60s
The garbage can be dumped out from the rear of the box.
|
Product cycle
|
25-30 days
|
Warranty
|
12months, from the date of supply
|
