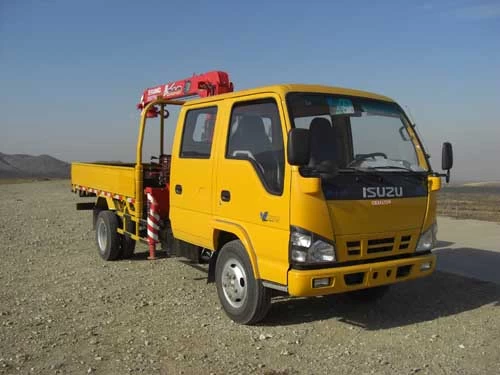

ISUZU brand 4T Telescopic Truck Loader Crane With 10 Meters Lifting

ISUZU brand 4T Telescopic Truck Loader Crane With 10 Meters Lifting

Durable NKR77 ISUZU 4T Telescopic Truck Loader Crane With 10 Meters Lifting

1. Name: articulating boom crane, Articulated Boom crane, Telescopic boom crane, Telescoping boom crane, Hydraulic truck crane
2. Max Lifting Capacity: 4 ton
3. Max Lifting Moment: 8.40/10 t.m
4. Max Oil Flow of Hydraulic System: 25 L/min
5. Max.Lifting height: 10meters
6. Brand: XCMG
7. Crane Weight: 1271 kg
8. Oil Tank Capacity: 60 L
9. Feature: Safety transportion, driven by hydraulic, move fast, The raise and down are driven by wire rope, telescopic boom coupling technology
10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.

Description:

ISUZU Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

ISUZU Telescopic boom crane SQ4SK2Q is lifting capacity is 4tons, moment is 8.4T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Specifications:

Optional parts:

1, Moment limited device

2, Remote control equipment

3, Anti-overwind magnet valve

4, High seat on column

5, Work light

6, Assistant stabilizer leg
