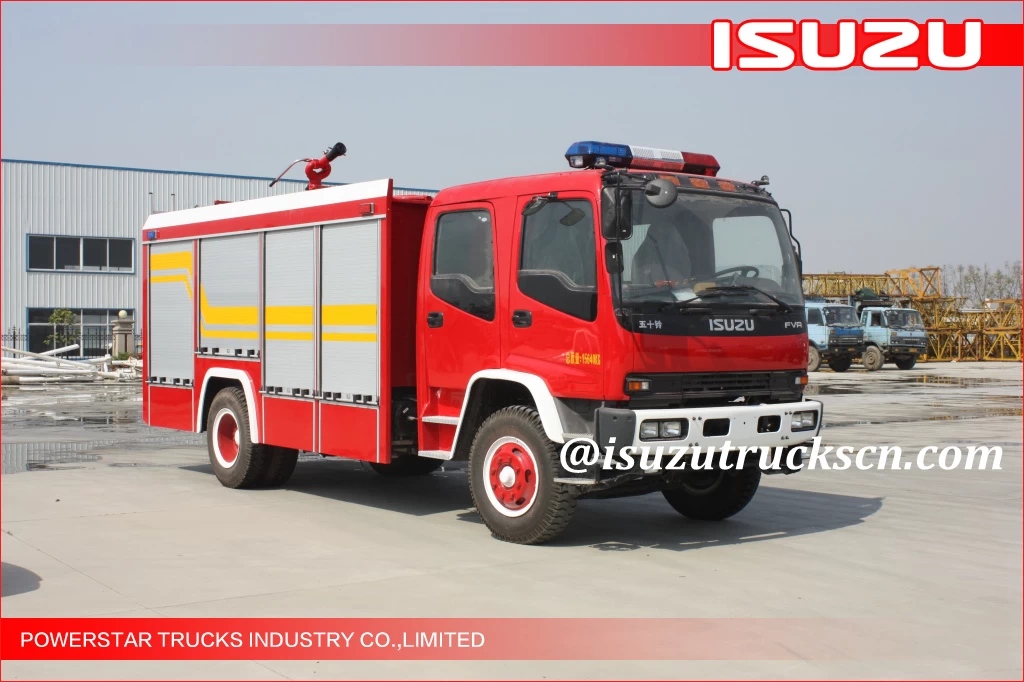

Isuzu Brand MEDIUM-SIZED EMERGENCY RESCUE FIRE VEHICLE

Item

Parameter

Emergency rescue fire vehicle

PT5120TXF

Chassis

FVR34J2

Dimensions (length×width×height) (mm)

8105×2450×3500

Cab seating capacity

6

Engine model

6HK1-TC  (EURO III)

Engine power(kW)

191/2100r/min

Wheel base(mm)

4500

Max. speed(km/h)

90

Generator powder(KVA)

10

Main lamp power(kW)

6

Max. terrain clearance of lifter(m)

8

Rotation angle of main lamp

360

Mobile lamp power(W)

2×400

Truck crane

Max. whole lifting weight(kg)

5000

Max. lifting height(m)

12.7

Outrigger span(mm)

5.12

Max. working range(m)

8.2

Electric winch

Wire rope tension(kgf)

4536

Wire rope working length(m)

28
