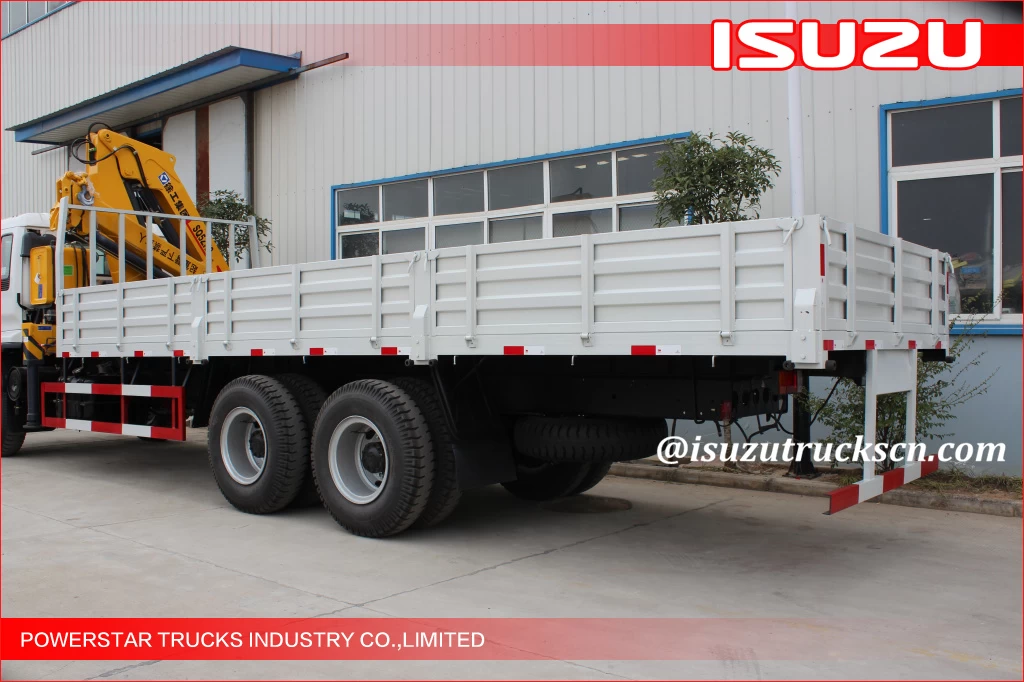

Isuzu chassis Hydraulic 12 ton Cargo Lorry-Mounted Crane With Telescopic Boom
SQ12SK3Q Isuzu Hydraulic 12 ton Cargo Lorry-Mounted Crane With Telescopic Boom
- Name: Isuzu Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
- Max Lifting Capacity: 12 ton
- Max Lifting Moment: 30 T.M
- Max Oil Flow of Hydraulic System: 63 L/min
- Max.Lifting Height: 14.5meters
- Brand: XCMG
- Crane Weight: 4200 kg
- Oil Tank Capacity: 160 L
- Feature: safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
- Application: used in commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.
Description:
Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.
Isuzu Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Telescopic boom crane SQ12SK3Q is lifting capacity is 12tons moment is 30 T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model
|
SQ12SK3Q
|
Unit
|
Max Lifting Capacity
|
12000
|
kg
|
Max Lifting Moment
|
30
|
T.M
|
Recommend Power
|
30
|
kw
|
Max Oil Flow of Hydraulic System
|
63
|
L/min
|
Max Pressure of Hydraulic System
|
26
|
MPa
|
Oil Tank Capacity
|
160
|
L
|
Rotation Angle
|
All Rotation
|
Crane Weight
|
4200
|
kg
|
Installation Space
|
1300
|
mm
|
Choice of Chassis
|
DFL1250A9 ;
DFL1311A3 ;
CA1240PK2L7T4EA81 ;
EQ5201GFJ6 ;
BJ1317VNPJJ-S5 ;
BJ5253ZKPJJ ;
DFL1253AX ;
|
SQ12SK3Q Lifting capability diagram
|
Working radius (m)
|
2.5
|
4.8
|
7
|
9
|
12.5
|
Lifting capacity (kg)
|
12000
|
6000
|
3500
|
2700
|
1800
|
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg
|
Spread
|
Fixed
|
2179mm
|
Single extension
|
2256-3556mm
|
Double extension
|
2212-4752mm
|
