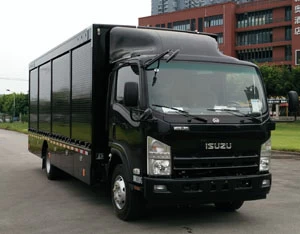

ISUZU ELF 10000KGS 12000kgs 15000KGS blast equipment truck
Products Technical Specification
|
Type
|
ELF/NQR 4*2 Blasting Equipment Truck
|
Brand
|
ISUZU
|
Cab
|
Single row
|
Vehicle Description
|
Overall dimensions(mm)
|
6400*1900*2800
|
Carriage dimensions(mm)
|
4500*1850*1800
|
G.V.W (kg)
|
5795
|
Curb weight(vehicle) (kg)
|
3360
|
Loading capacity(kg)
|
2400
|
Max speed (Km/h)
|
80
|
Engine Description
|
Engine model
|
4HK1-TC
|
Maximum power
|
139kw/190hp
|
Displacement (lit)
|
5999
|
Emission standard
|
Euro 4
|
Cylinders
|
4
|
Aspiration
|
Turbocharge & Intercooled
|
Rated power speed(rpm)
|
3800
|
Chassis Description
|
Chassis Model
|
ELF
|
Wheel base(mm)
|
3815
|
Type of fuel
|
Diesel
|
F/R suspension(mm)
|
1015/1525
|
F/R track(mm)
|
1385/1425
|
Brake system
|
Air braking
|
Operation control system
|
Power steering wheel
|
Electric system
|
24V
|
Tires&Tire quantity
|
8.25-16 & 6+1
|
