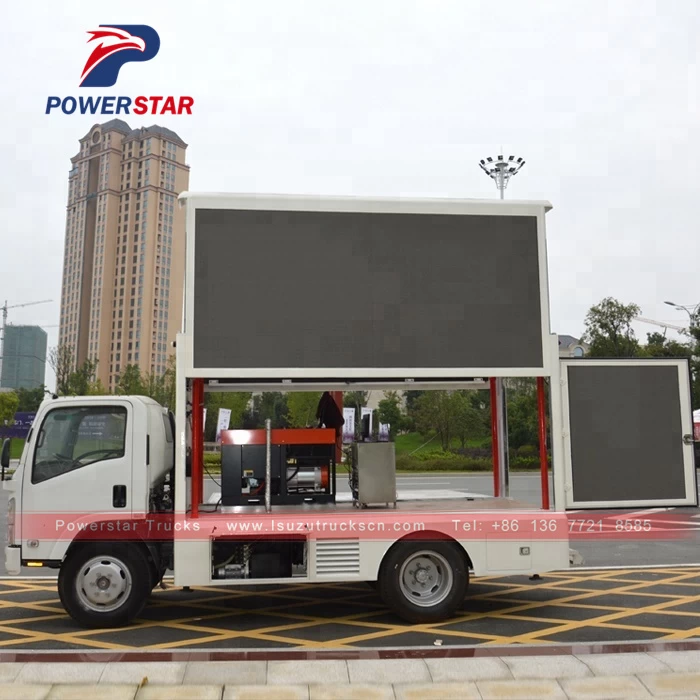

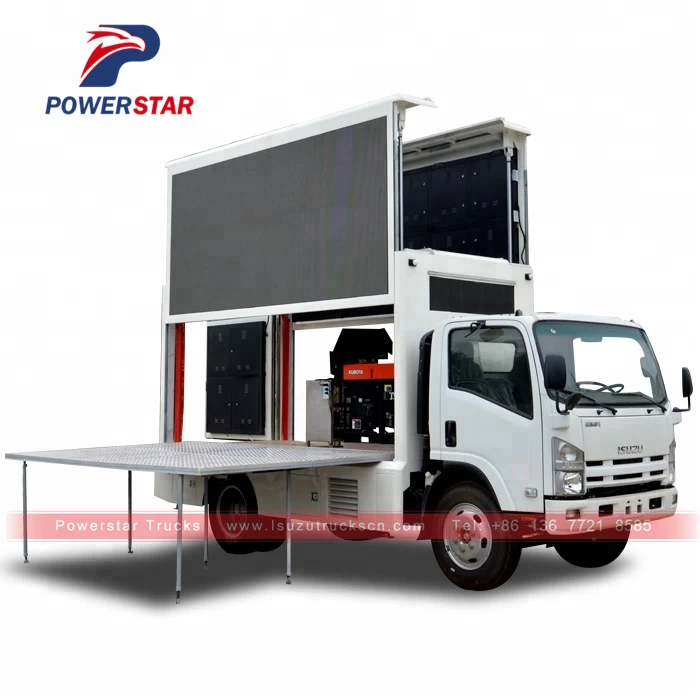

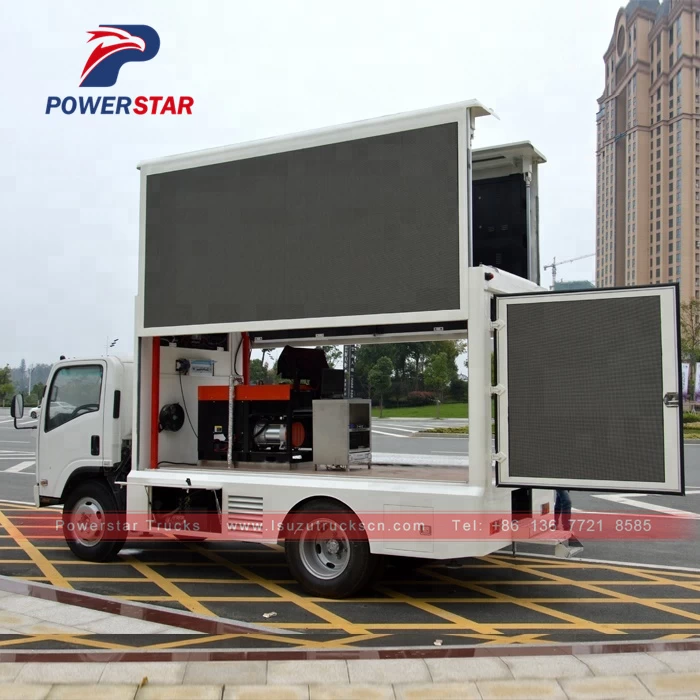

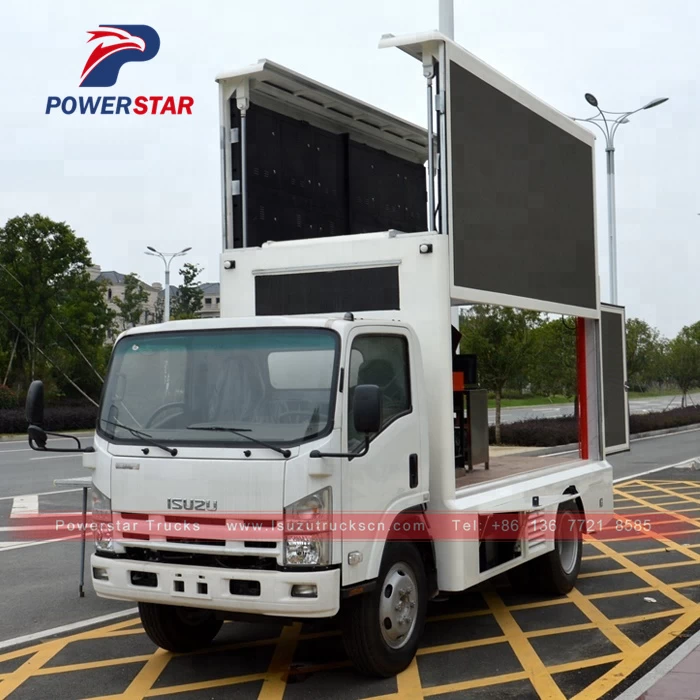

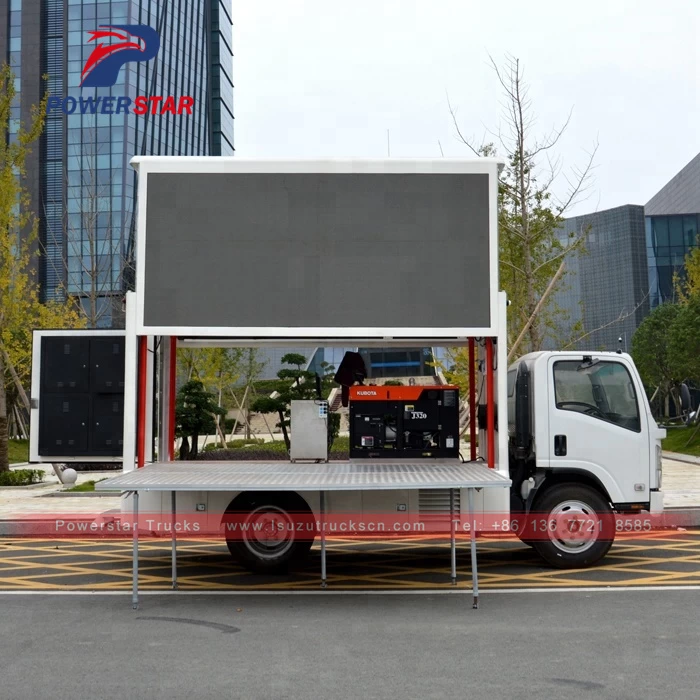

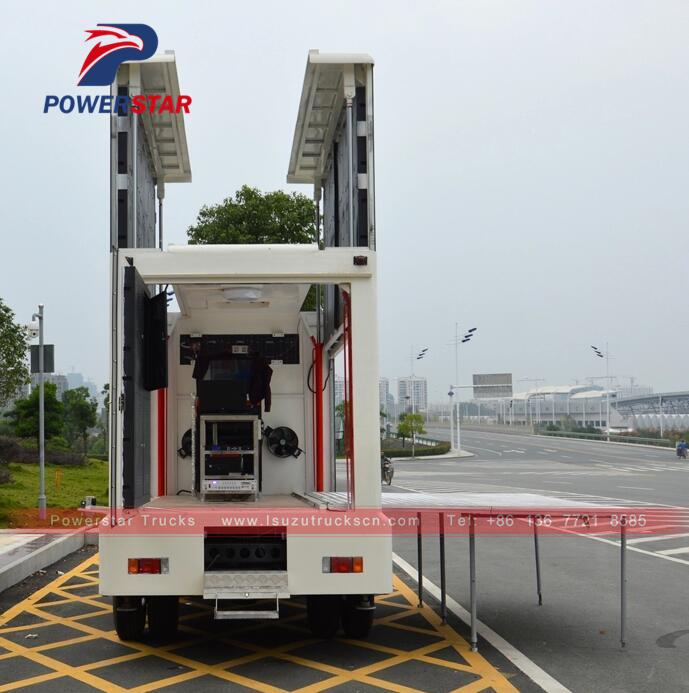

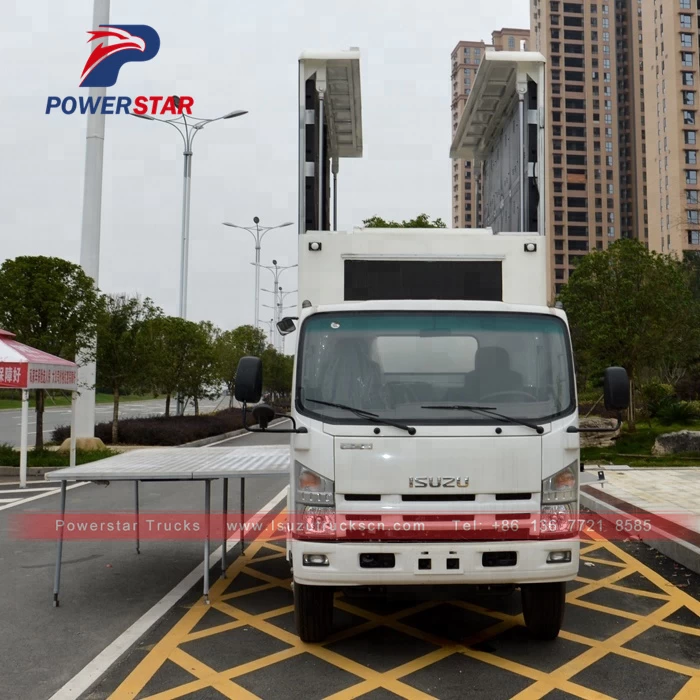

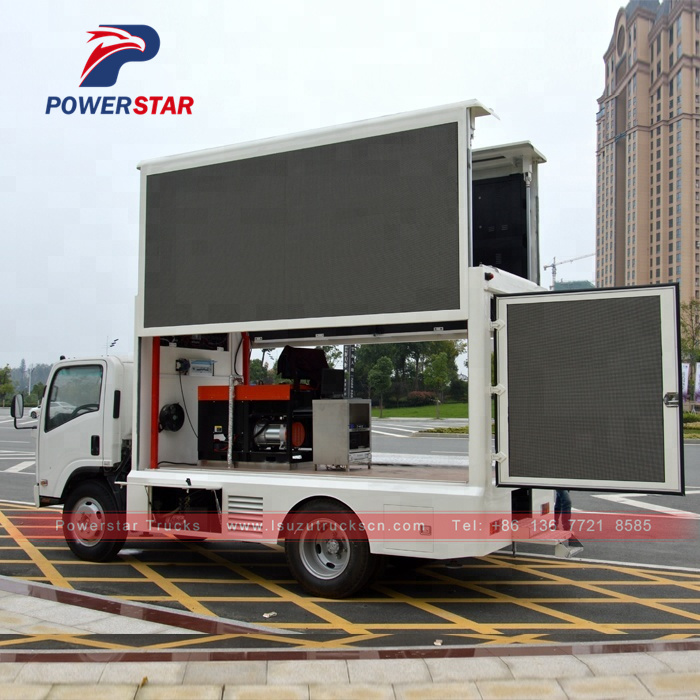

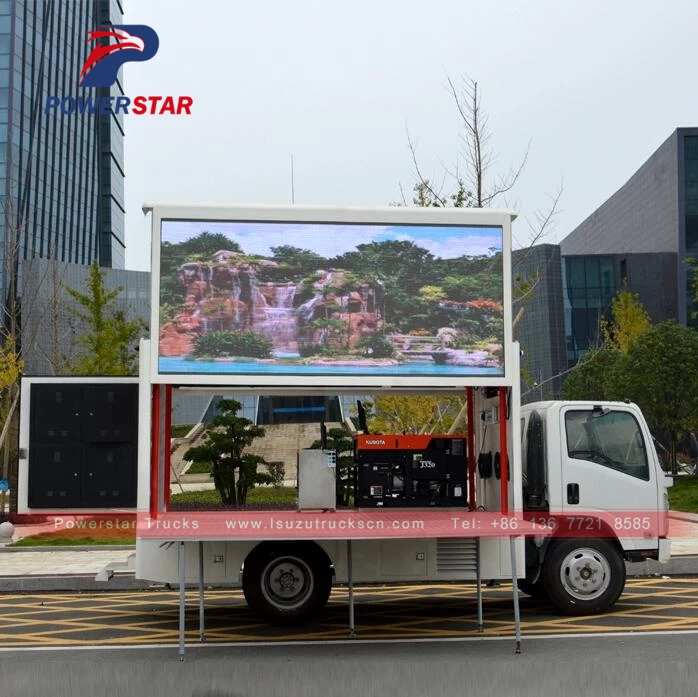

Japan ISUZU Outdoor Full Color LED Screen Trucks for sale
Function:
Mobile LED Video Wall Screen trucks ISUZU (also called Mobile stage truck, Mobile LED Advertising truck, LED Billboard truck, Outdoor Advertisement P4 P5 P6 LED Display truck etc.) is a special vehicle for advertising, generally used for the product promotion, brand promotion, draft activities , live shows sales, sporting events, vocal concerts, concerts and so on!
Powerstar ISUZU Brand Mobile LED panel truck can be showing at any time, communication, interaction, publicity coverage extensively. And meanwhile effectively get the best of advertising effect.
Features:
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- LED Screen size can be optional.
---- Huge auxiliary equipment can be optional;
---- High-performance hydraulic multi-valve and cylinder employeed;
Specification:
Main
specifications:
Vehicles Parameters
|
Dimensions
|
Product Model:
|
PST5100XXC
|
Overall dimensions(mm)
|
7100 X 2020 X 3615
|
GVW(kg)
|
11000
|
Wheelbase/mm
|
3360/3815
|
Approach/Departure Angle/°
|
21/13
|
Front/Rear Overhang/mm
|
1110/2395
|
Cab
|
Cab Capacity
|
Single row, left steering wheel
|
Air Conditioner
|
Yes
|
Chassis
|
Chassis model
|
QL11009HARY
|
Brand
|
ISUZU brand with 700P series
|
Driven Mode
|
4x2, LHD
|
Emission standard
|
Euro IV
|
Front/ Rear track base(mm)
|
1680/1650
|
Tyre
|
8.25-20
|
Fuel Type
|
Diesel
|
Gear Box
|
MLD 6 gear transmission, air conditioning drive, oil brake vacuum pump, the bridge can open the frame section
|
Taxi driver
|
MLD 6 gear transmission, air conditioning drive, oil brake vacuum pump, the bridge can open the frame section
|
Max Speed/ km/h
|
110
|
Engine
|
Engine model
|
4HK1-TCG40
|
Horsepower/HP
|
189
|
Displacement/ml
|
5193
|
Max Torque
|
510N.m
|
Speed at Max Torque
|
2600 rpm
|
Detail Mobile LED truck
|
LED screen size
(x length high) (mm)
|
5120 * 2240 (Left and right side)
|
Height Screen Lift (m)
|
1.5 (left and right side)
|
Pixel of LED screen pitch (mm)
|
P8/P6/P5/P4
|
Rear P6 Full-color LED Screen size (Width × Width) (mm)
|
1280 × 16000 (P6 Screen)
|
Generator - Kubota brand
|
16 Kw
|
Control System of LED Screen
|
LINSN
|
Comment
|
Equipped with Silent generator, wooden floor, light, fan fan, skylights, computer, stereo, amplifiers and other bodybuilding facilities, and 220V external power connector outside the body.
|
