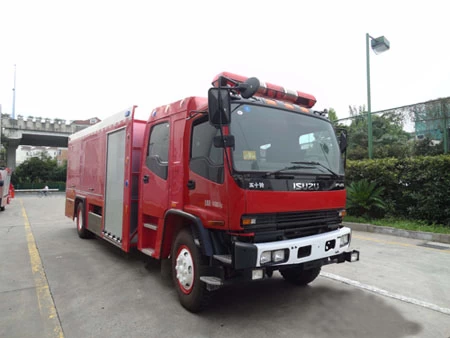

Isuzu fire truck with Rosenbauer NH30 high and normal pressure fire pump
| Name |
Foam Fire Vehicle |
Water Tank Fire Vehicle |
| Model |
PM40W |
SG40W |
| Chassis Model |
Isuzu FVR34J2 |
| Engine Type and Power |
6HK1-TC, 191KW |
| Max. Speed(km/h) |
90km/h |
| Overall Size(mm) |
8050×2500×3470 |
| Number Of Seats |
Original cab 2; independent crew compartment 7 |
| Max Weight(kg) |
≤ 15000 |
Fire-extinguishing
Agents |
Total Weight(kg) |
4000 |
| Water(kg) |
2000 |
4000 |
| Foam(L) |
2000 |
| Fire Pump |
Model |
Rosenbauer NH30 high and normal pressure fire pump |
| Pressure:Low voltage/High |
1.0/4.0 |
| Flow Rate:Low voltage/High |
3000/400 |
| Fire Monitor |
Type |
PL24-48(adjustable foam-water cannon) |
| Rate(L/s) |
48L/S |
| Throw Range(m) |
Water≥55，Foam≥50 |
