Applications:

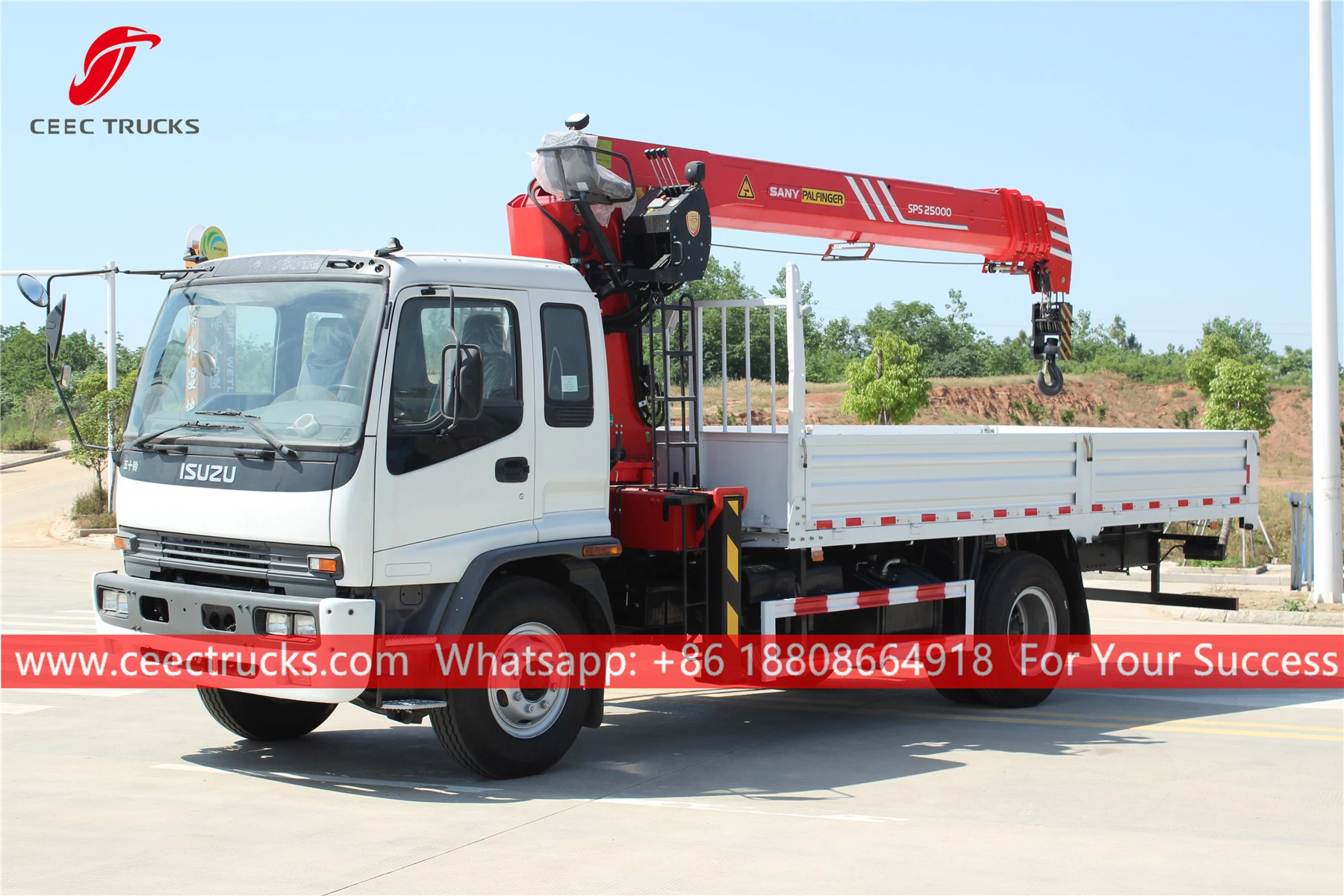

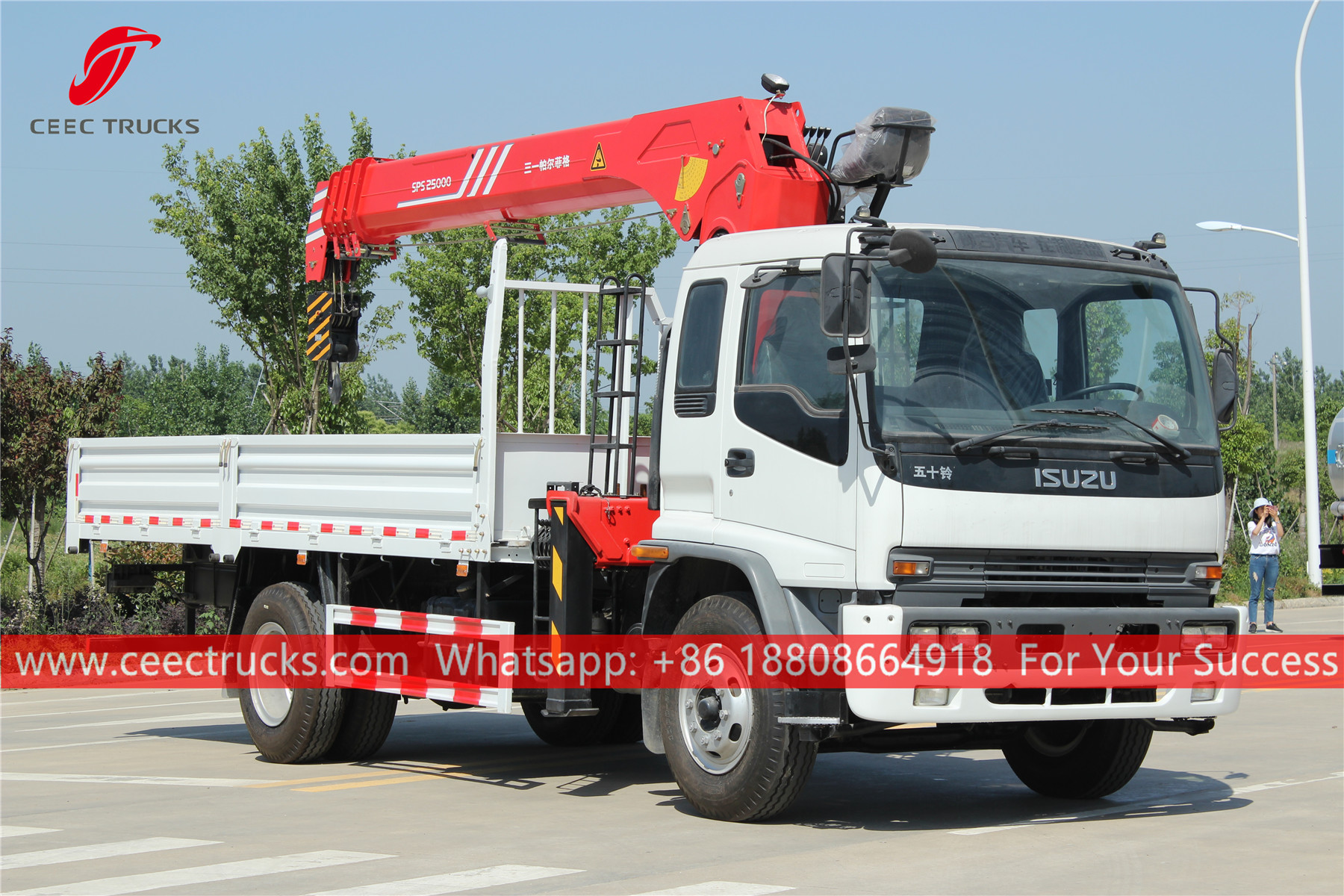

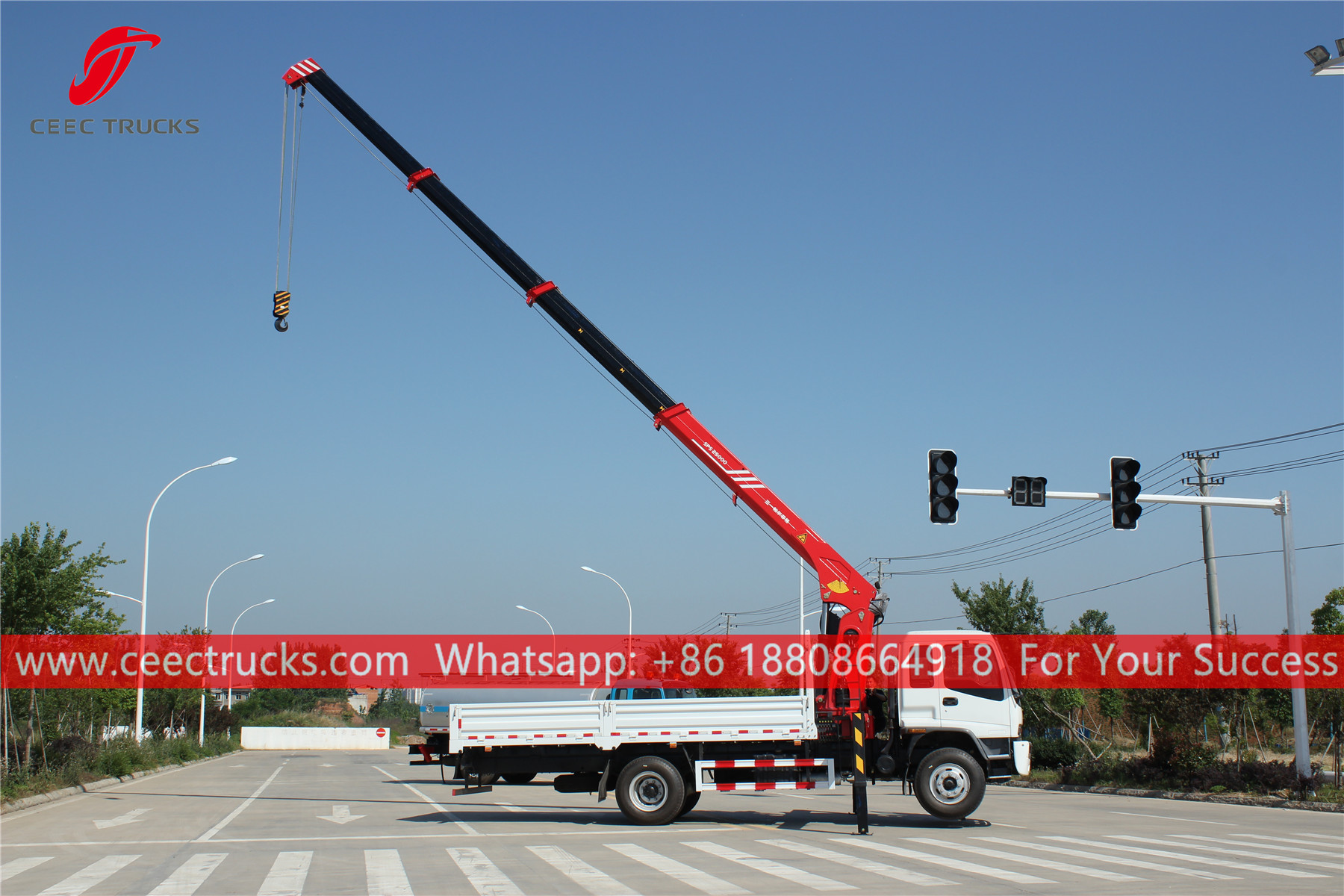

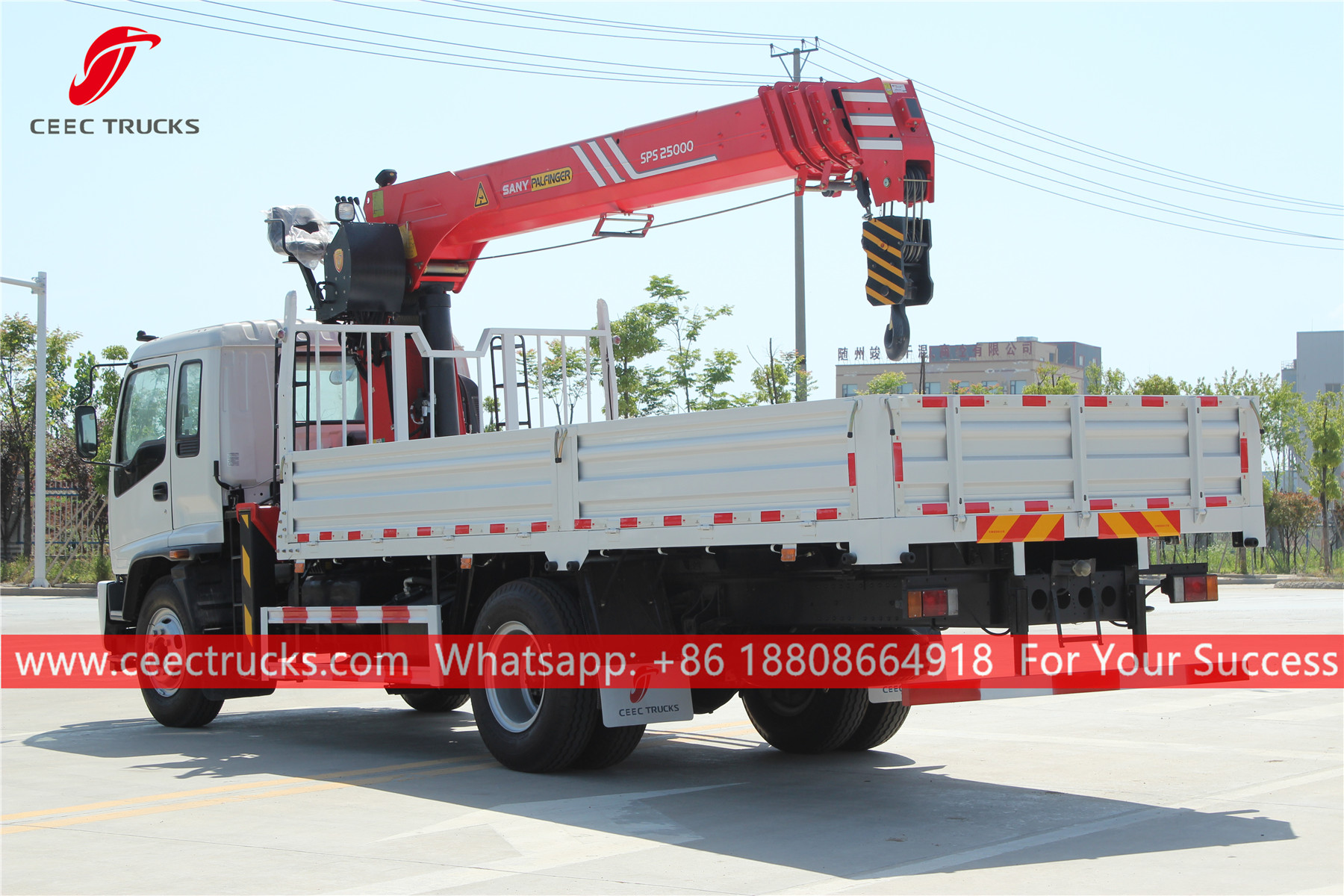

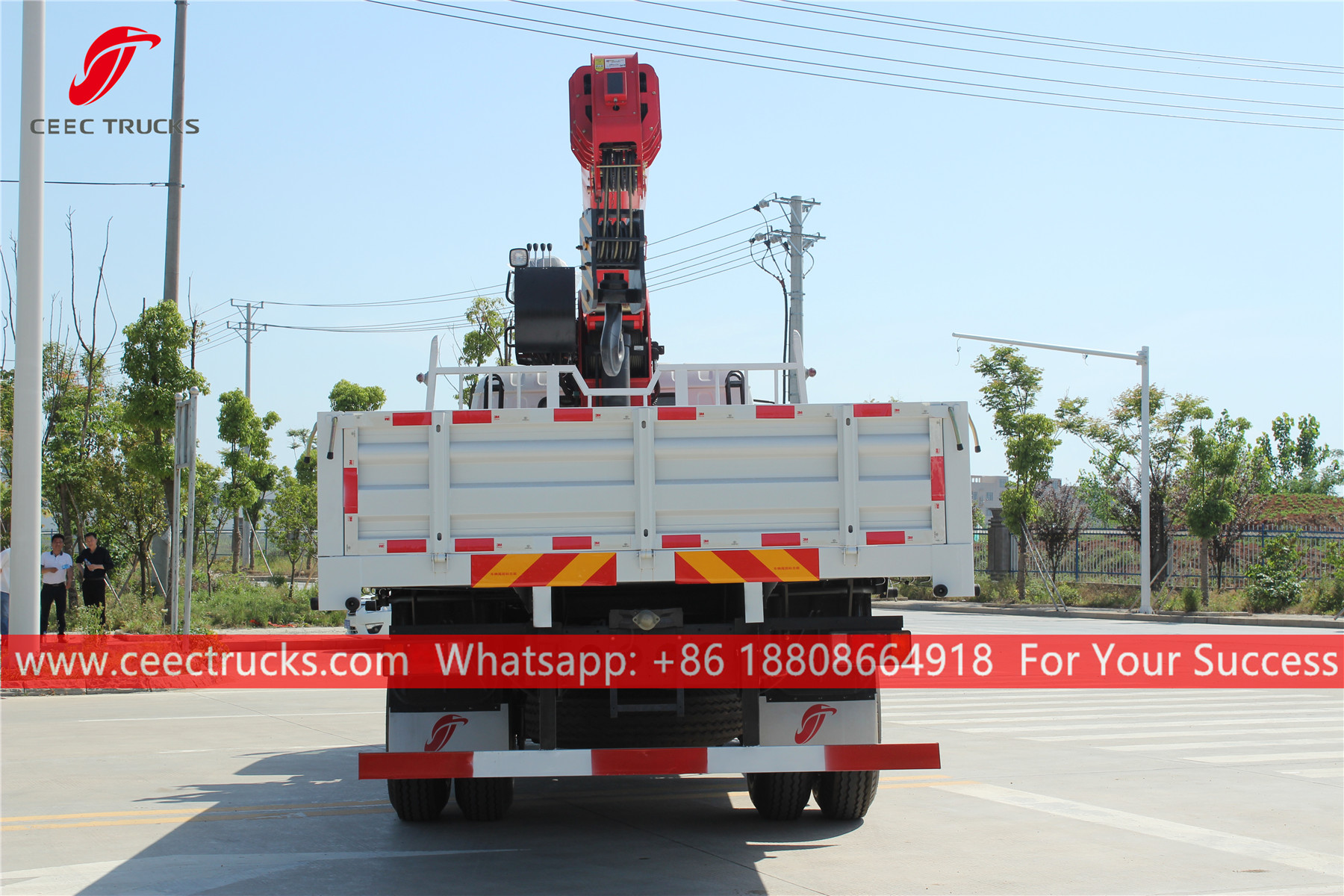

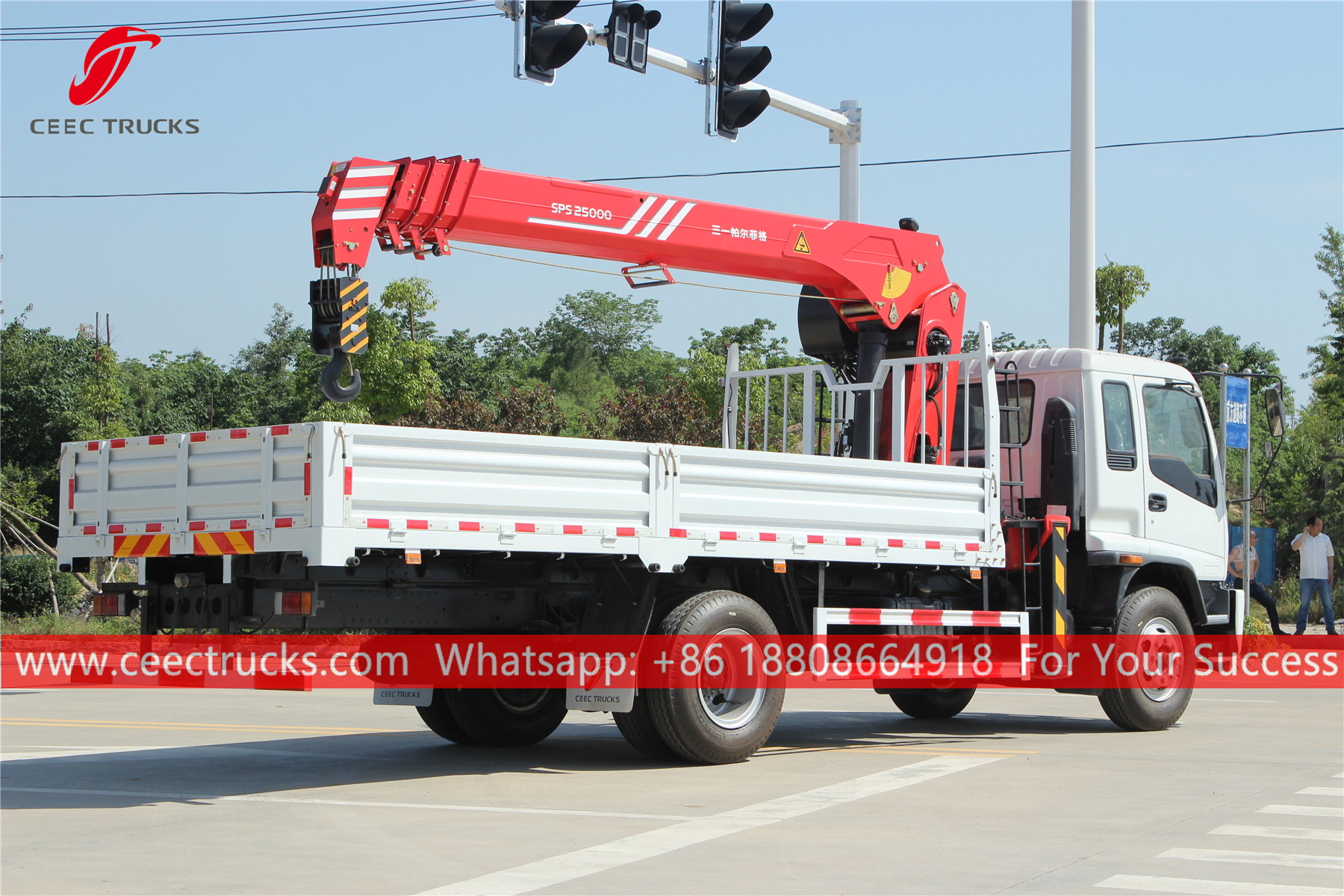

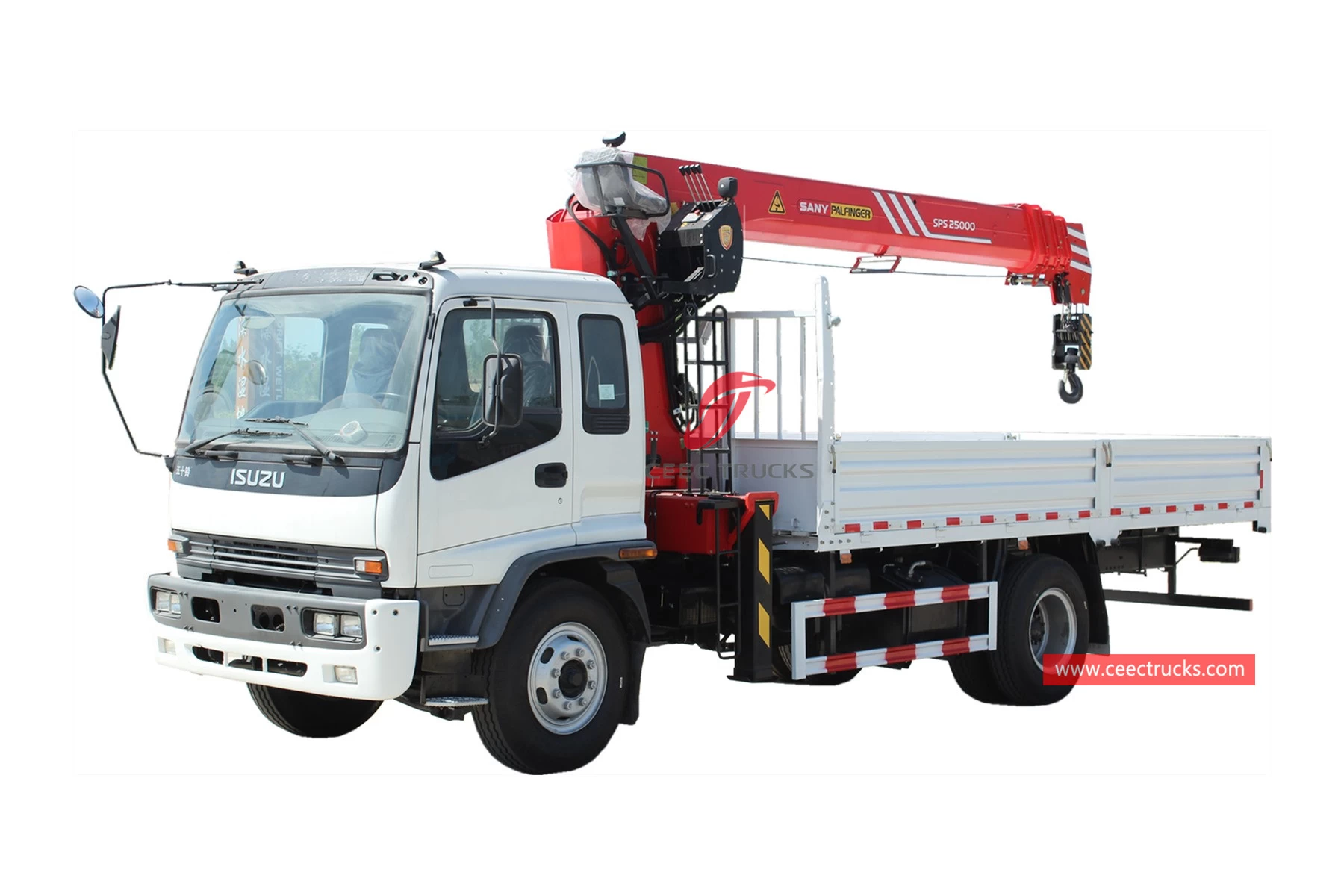

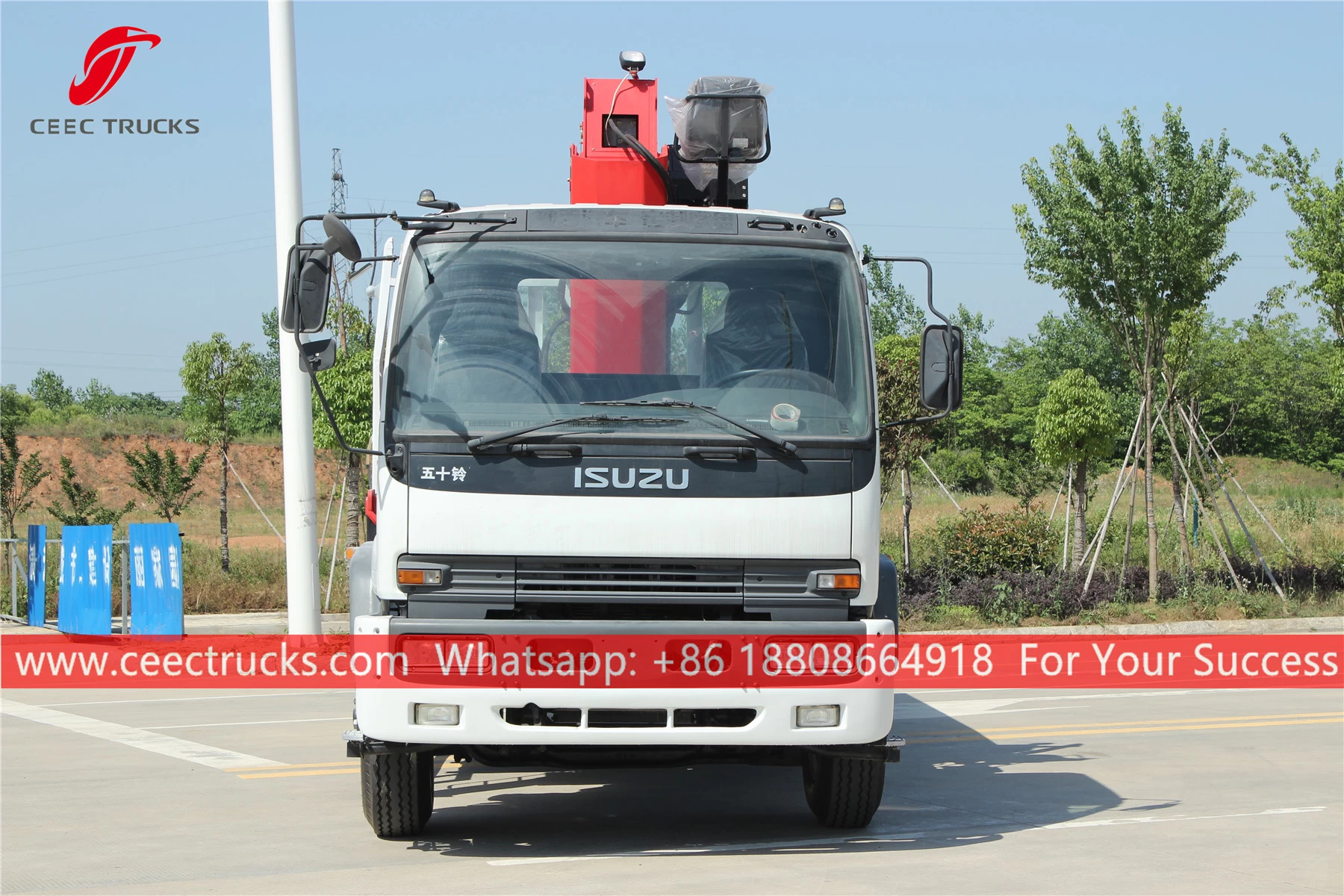

ISUZU FTR Truck Mounted Crane (also called Palfinger crane, boom crane, ISUZU crane truck, truck mounted mobile crane, Telescoping Boom for sale,
truck cargo with loader, boom crane on truck chassis, ISUZU FTR truck with crane, boom crane vehicle) is used to lift the cargo, load, transport and unload heavy stuff.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T
CEEC TRUCKS Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.
Key Features:
---- ISUZU chassis ensures perfect performance on driving
---- ISUZU engine, super powerful, no overhaul within 100,000 km.
---- High strength cargo body, nice shape and rational structure.
---- Easy operation and easy maintenance.
---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.
Crane Features:
---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
---- Advanced development means make sure that the design is very reliable.
---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
---- Compact hinge point design take up smaller space
---- The work is more safety after fitted over-winds alarm equipment.
---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
---- Anti-slewing impulse equipment that make vehicle running safely
Specifications:
|

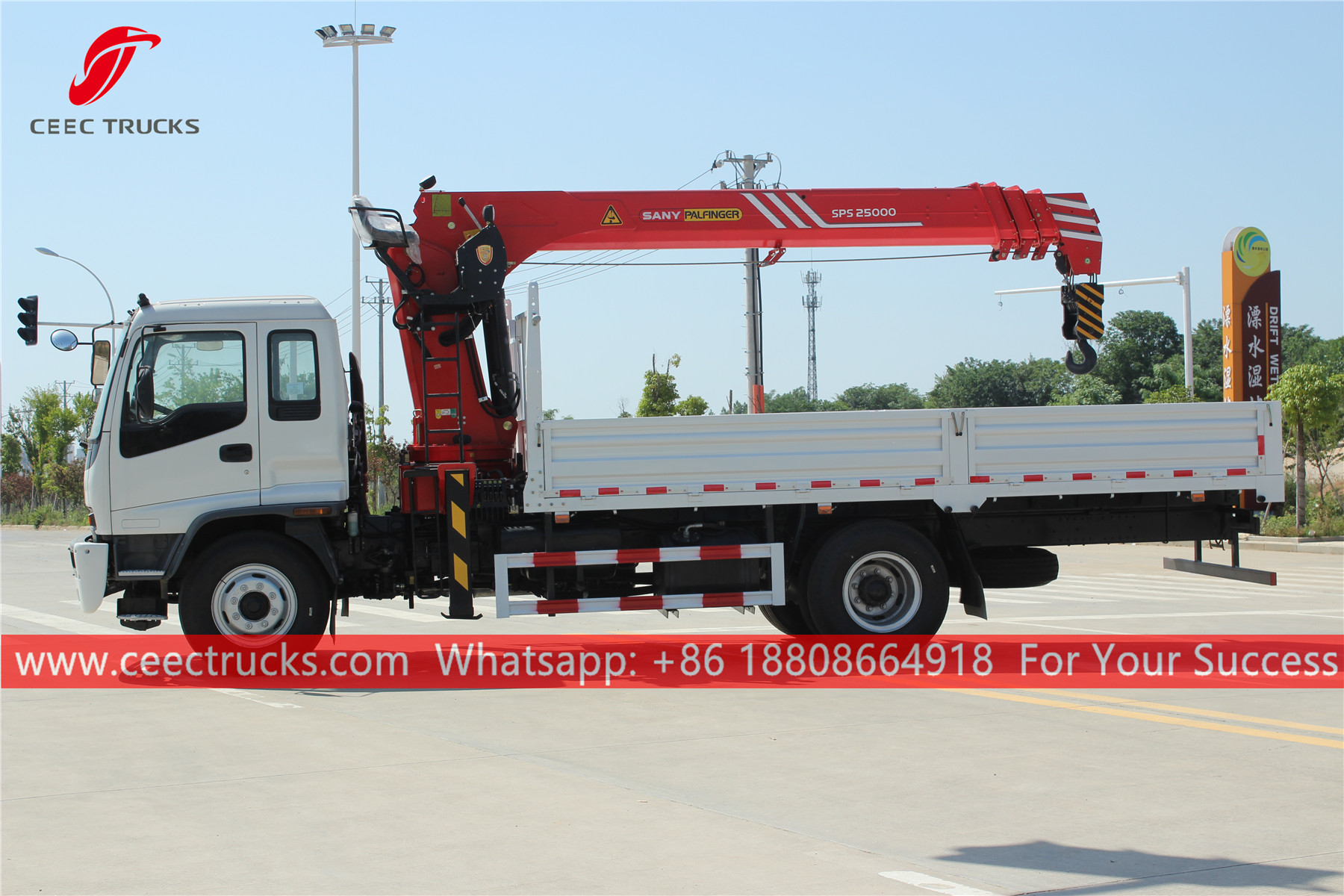

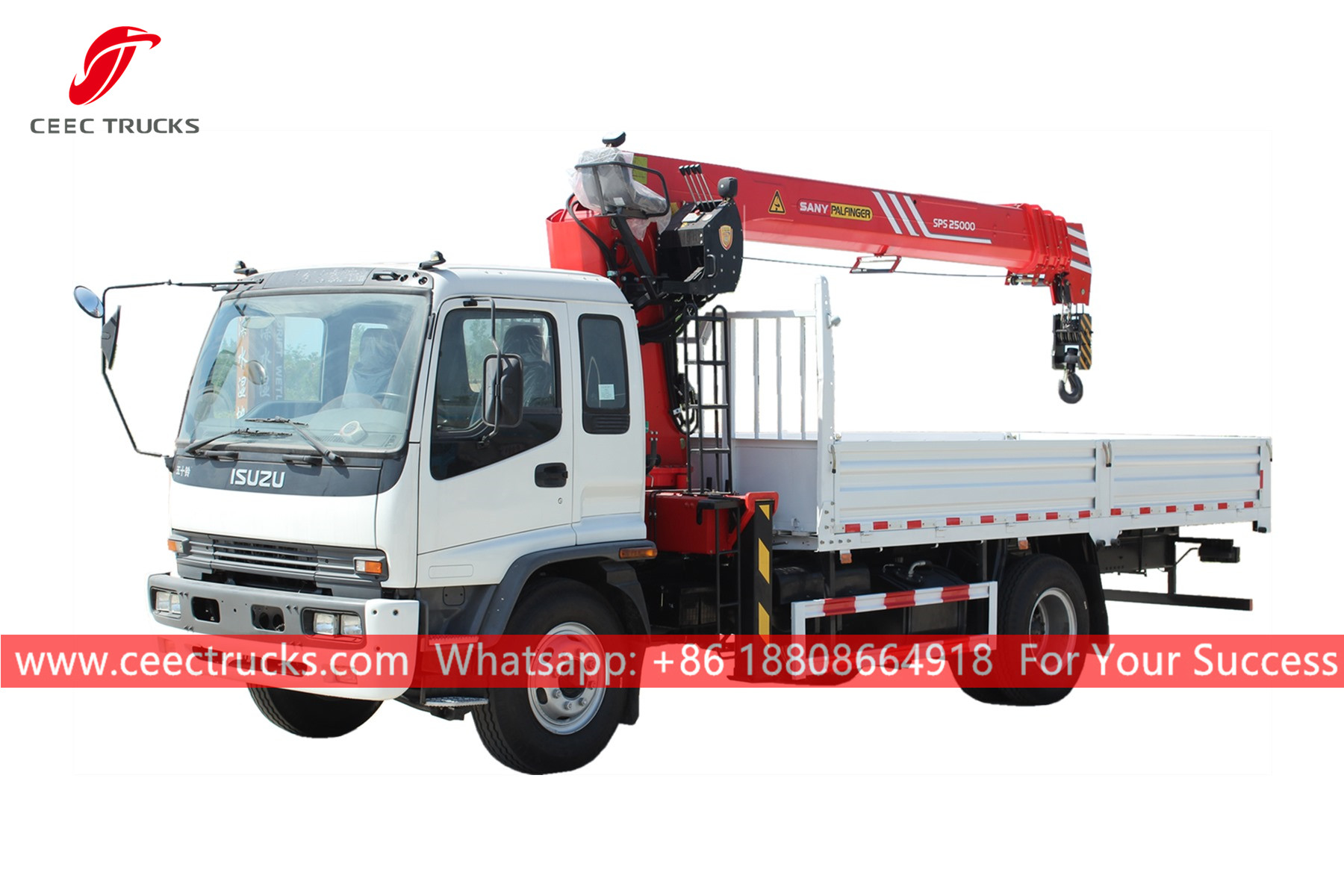

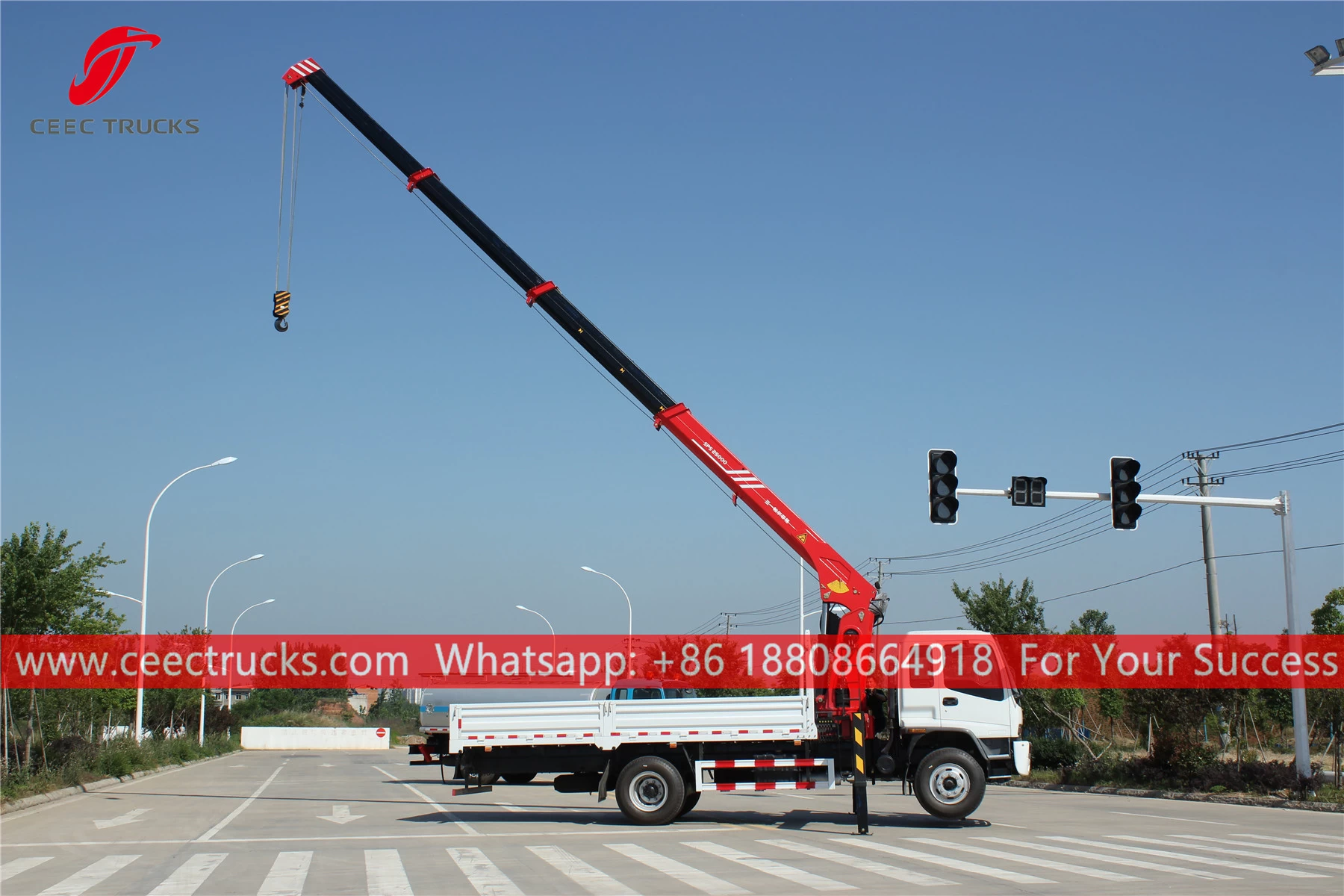

ISUZU FTR boom crane truck (10Ton boom
crane Palfinger)
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
8990 * 2510 * 3550 mm
|
|
GVW / Kerb Weight
|
18,000kg / 10,550kg
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
240 HP (177 KW)
|
|
Displacement
|
7790 ml
|
|
Emission Standard
|
Euro 3 or 4
|
|
Chassis
|
Drive Type
|
4X2
|
|
Transmission
|
MLD 6 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
5800 mm / 2
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
90 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Rated lifting moment
|
25mt
|
|
Rated lifting capacity
|
10000kg(2.5m)
|
|
Max.outreach
|
17.7m
|
|
Max.lines of hook
|
6
|
|
Slewing angle(continuous)
|
continuous
|
|
Boom raising angle
|
0~75°
|
|
Max.lifting height(the measurement from
the ground after the outriggers fully extended)
|
20.1m
|
|
Length of the basic boom
|
5.3m
|
|
Length of fully extended boom
|
18.1m
|
|
Boom sections
|
5
|
|
Outrigger span (fully extended)
|
5.6m
|
|
Recommended volum for the system
|
70L/min
|
|
Operating pressure
|
27/34Mpa
|
|
Oil tank capacity
|
200L
|
|
Crane moment (dynamic)
|
433.7kNm (44.2mt)
|
|
Torsional moment (dynamic)
|
26.3kNm (2.7mt)
|
|
All standard accessories: Basic tool
kit, English manual……
|
|
Optional
|
** Knuckle boom crane.
** Hydraulic tipper box.
** Box thickness according to
requirement.
** Box height could be nominated
** Remote
Control Box optional
|
