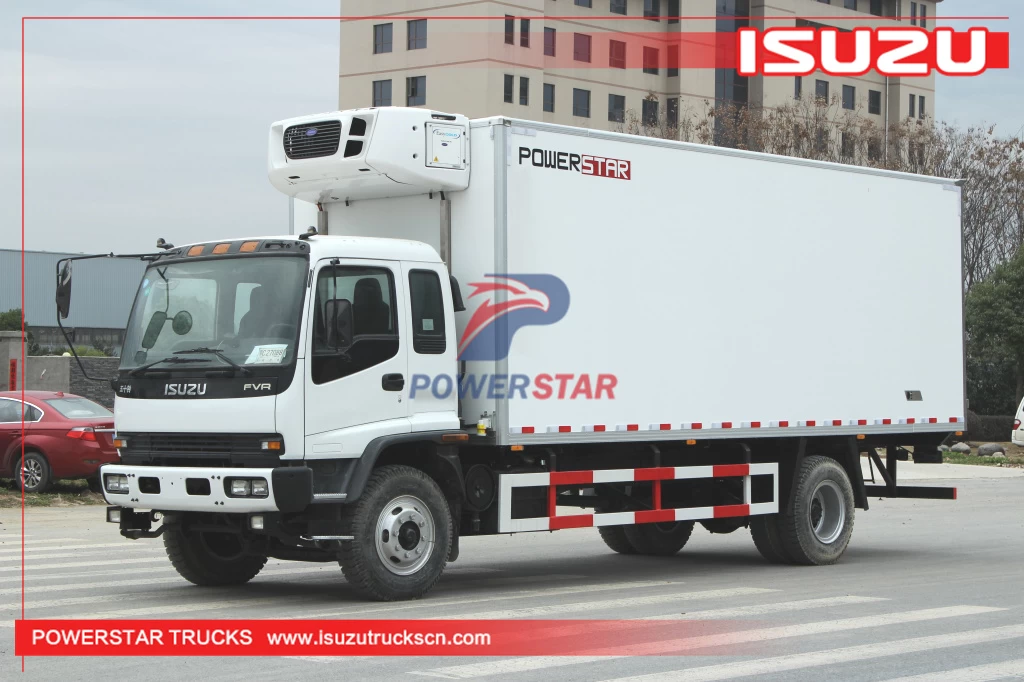

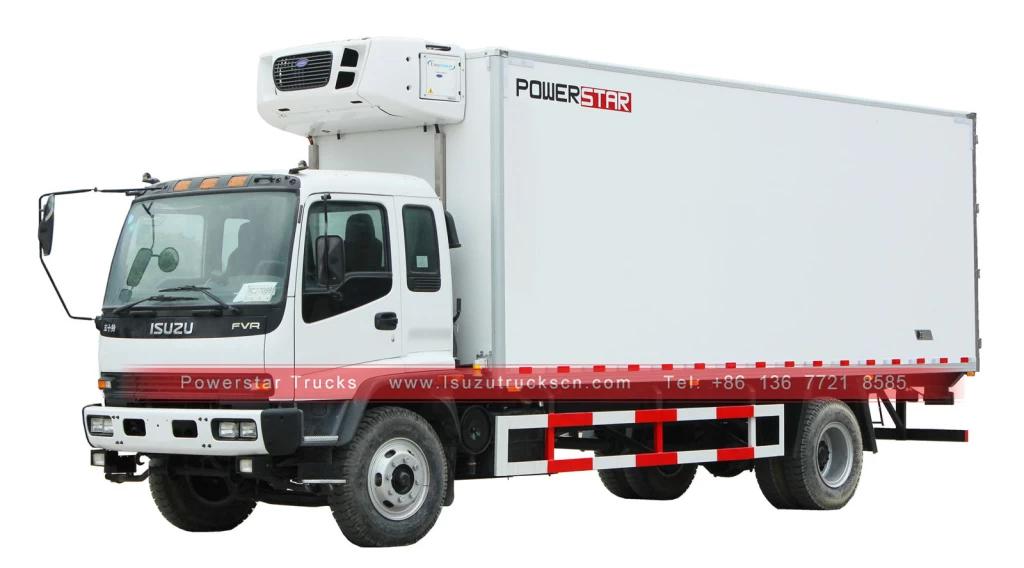

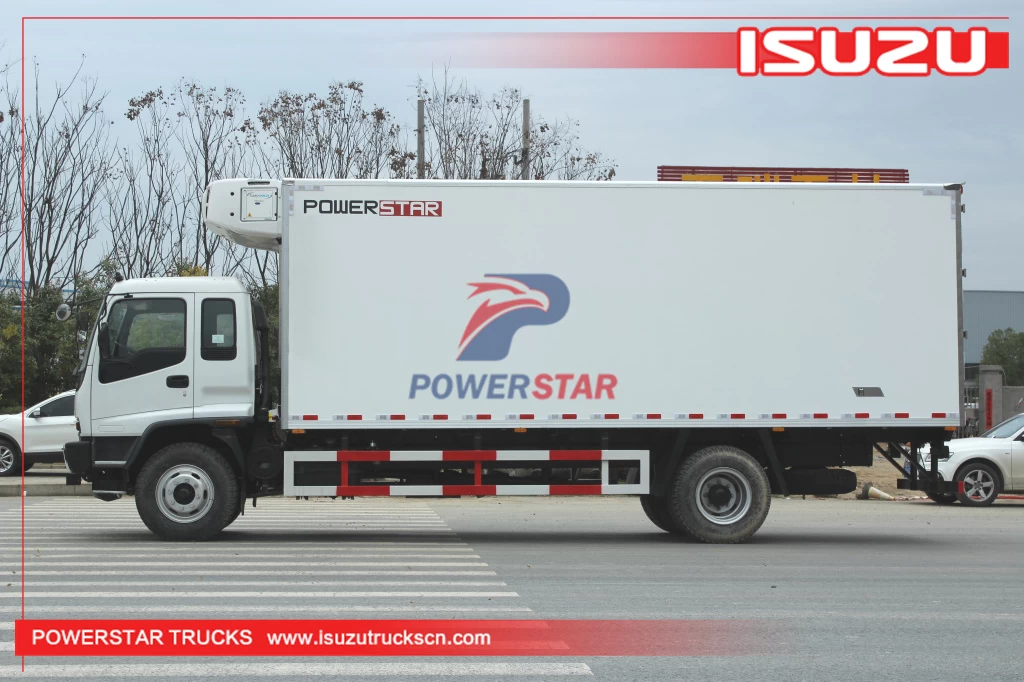

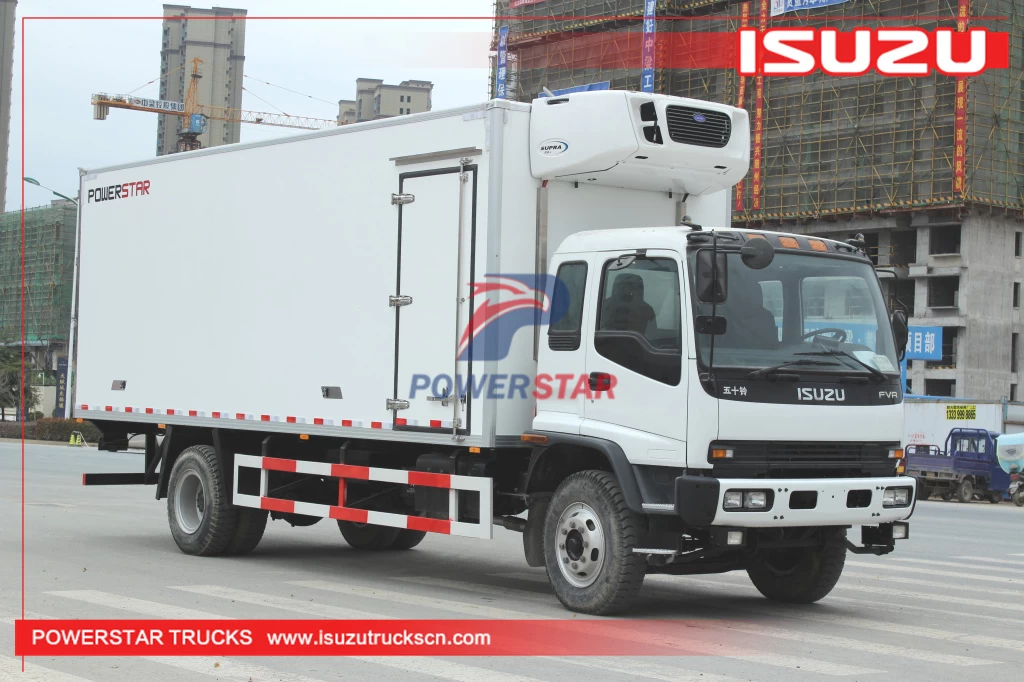

Japan ISUZU Freezer Box Refrigerated Truck
Introduction
ISUZU Refrigerator Cold Freezer Truck (also called Isuzu frozen fish meat truck, Isuzu Refrigerated truck ) suitable used
for the transportation of frozen food (refrigerated vehicle ), dairy
products (milk transport vehicle), vegetables and fruits (fresh goods
transport vehicle), vaccine drugs.
Advantages
|
|
100% custom-made
|
|
|
3 cbm to 40 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
Main Parameters
|
Manufacturer
|
PowerStar Trucks Industry Co., Limited
|
|
Product Name
|
ISUZU 15Ton Freezer food box truck
|
|
Vehicle Brand Series
|
ISUZU
|
|
Vehicle Model
|
PST5160LC
|
|
Production Time
|
25 days
|
|
Chassis parameters
|
Overall dimensions
|
mm
|
9260*2500*3560
|
|
Gross weight
|
kg
|
16,000
|
|
Kerb weight
|
6,500
|
|
Wheelbase
|
mm
|
4,475
|
|
Driving type
|
4*2
|
|
Chassis model
|
ISUZU FVR
|
|
Tire size
|
10.00-20
|
|
Number of Tires
|
6+1
|
|
Passengers in cab
|
3
|
|
Engine
|
Engine model
|
6HK1-TCG40
|
|
Type of fuel
|
Diesel
|
|
Power
|
240HP
|
|
Max speed
|
Km/h
|
95
|
|
Emission standard
|
EURO 4,5,6
|
|
Cooling performance
|
Cargo Body Size
|
7200*2200*2000 mm
|
|
Panel Material
|
FRP + PU Foam + FRP 105mm
|
|
Panel Structure
|
All Closed Sandwich
|
|

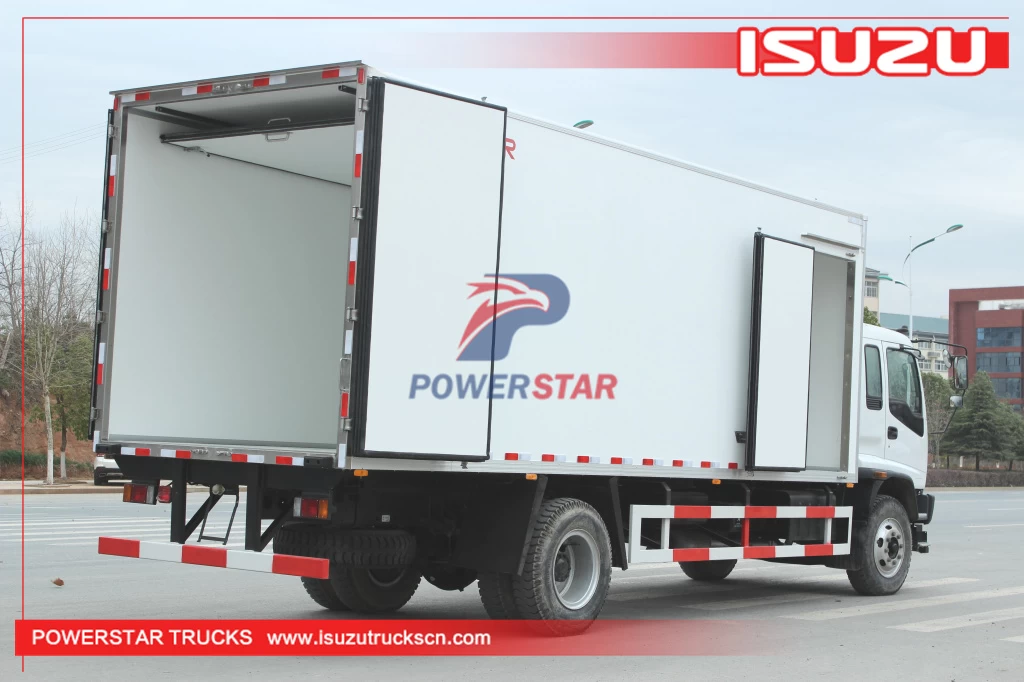

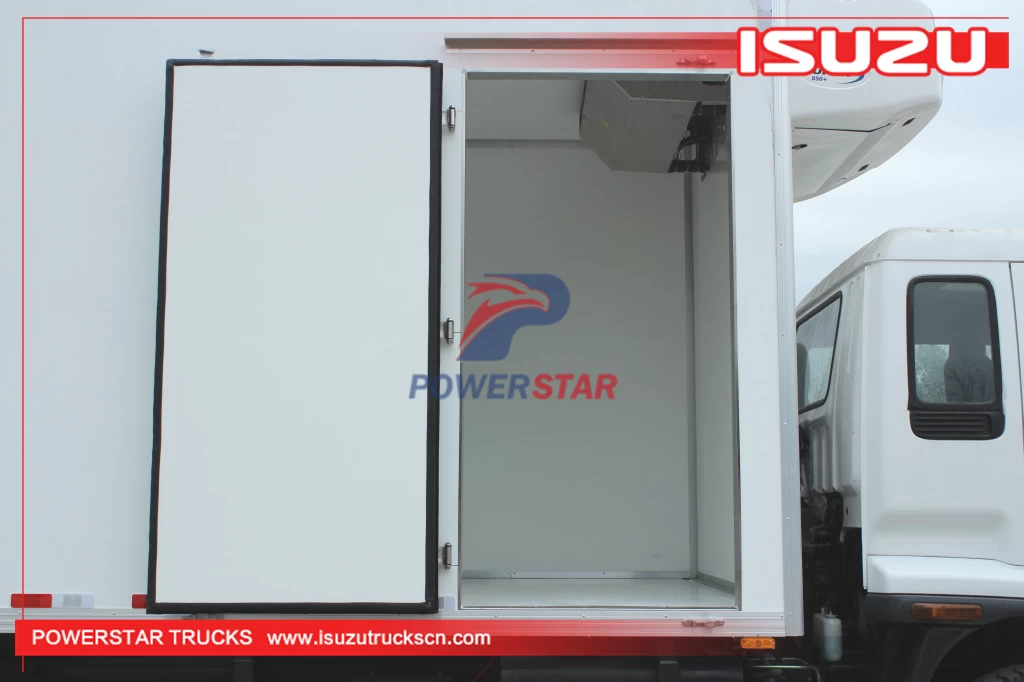

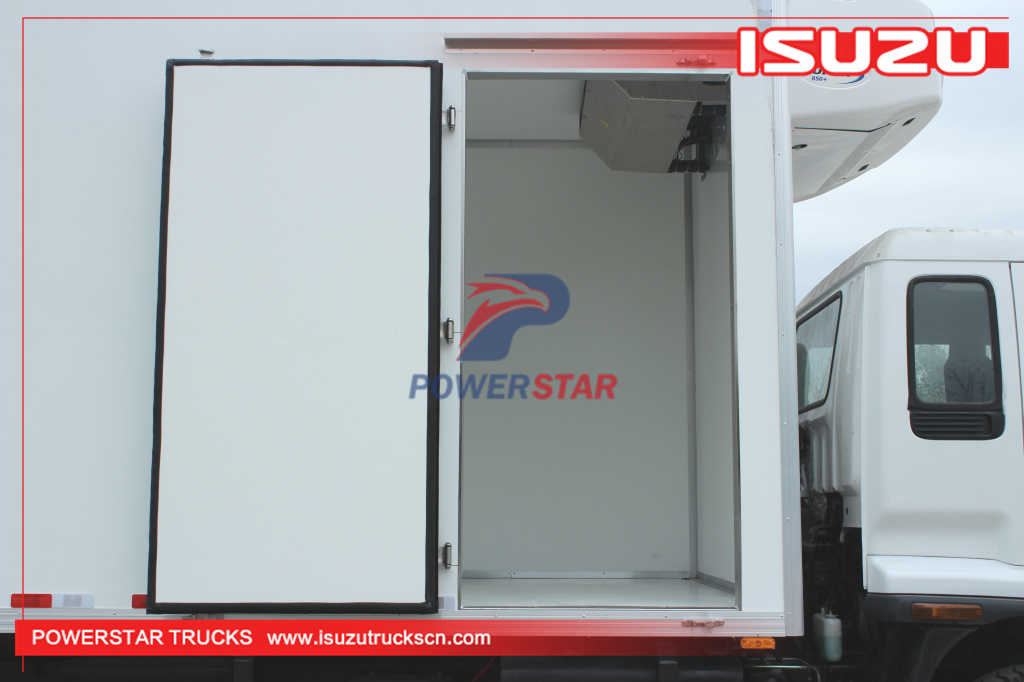

Side Door Type
|
On Right side wall
|
|
Single Opening
|
|

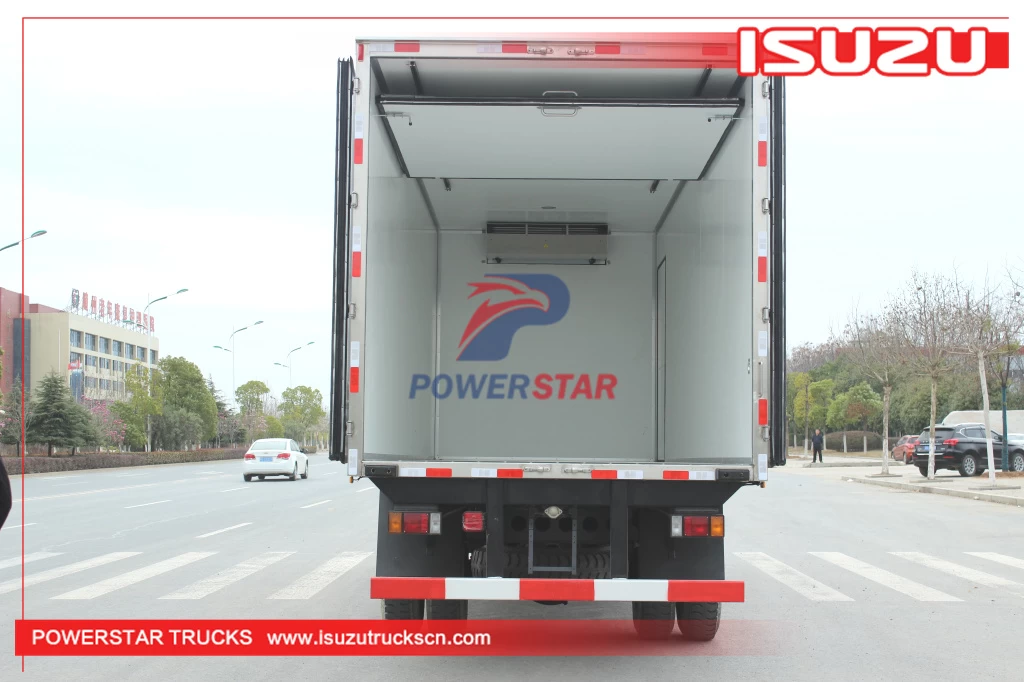

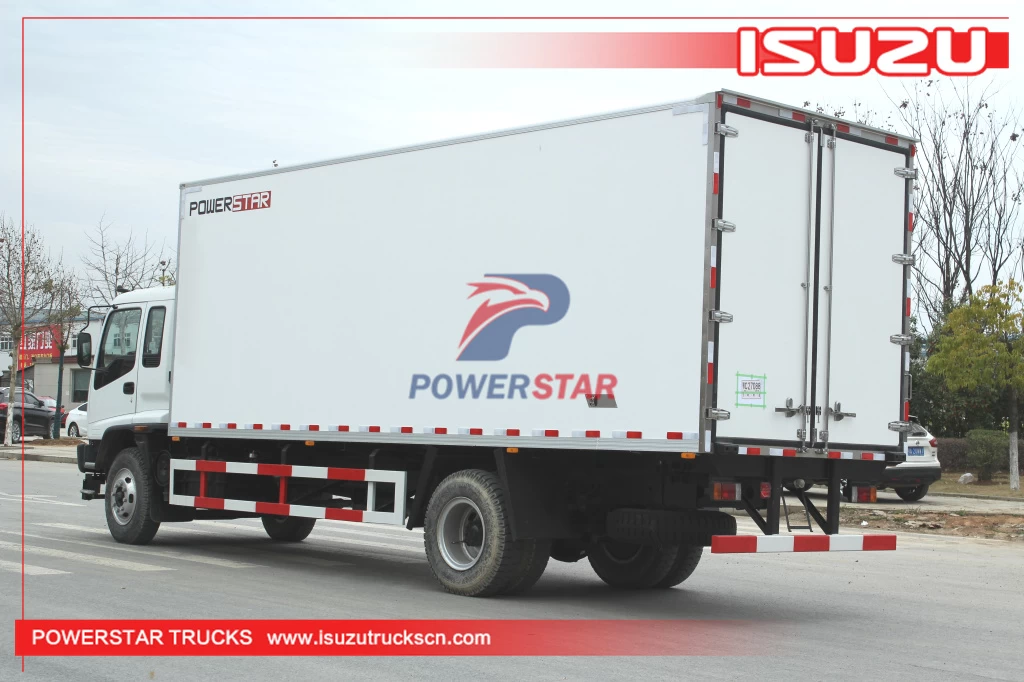

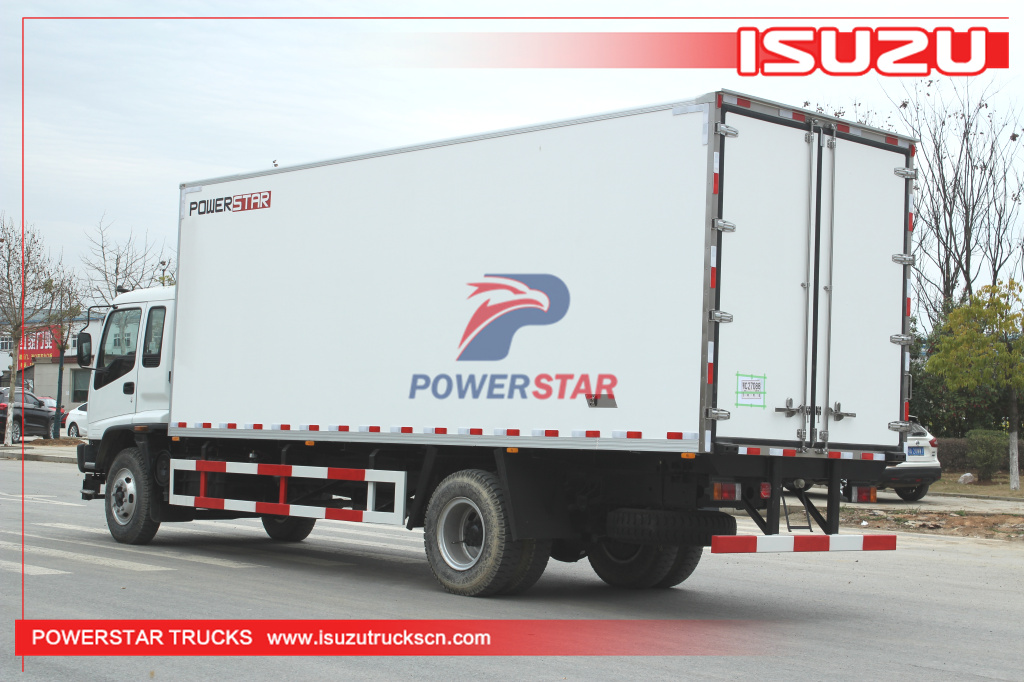

Rear Door Type
|
Full Size Double Opening Rear Door
|
|
Flooring
|
Antiskid and abrasion resistant
|
|

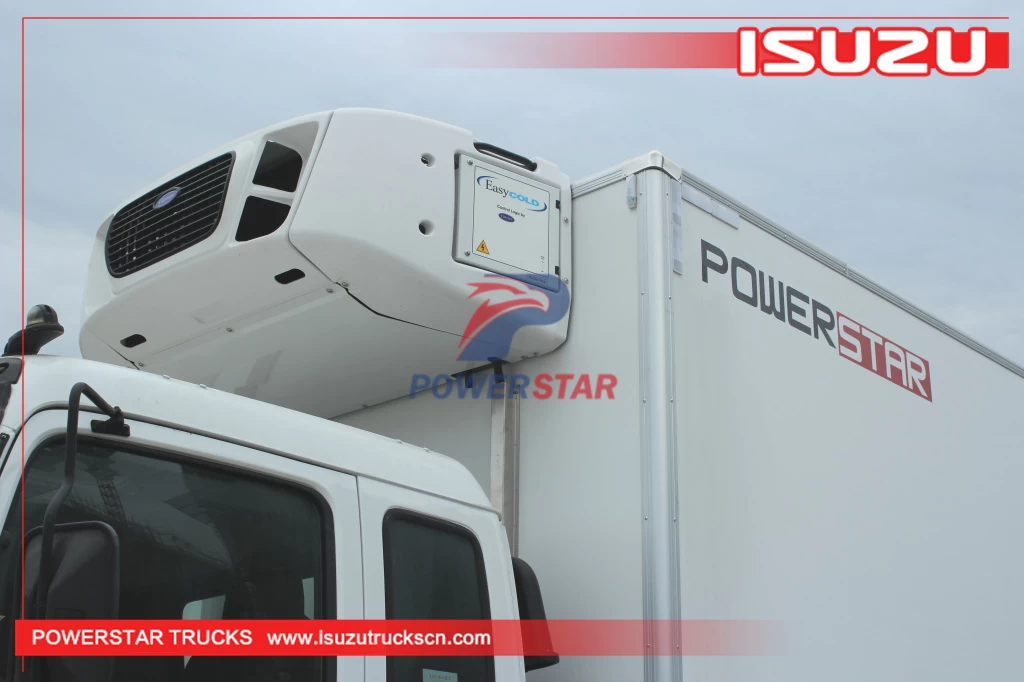

Refrigeration Unit
|
Carrier SUPRA 750
|
|
Body Space Temp
|
-15 degree~ +20 degree
|
|
Marker Light
|
2 sets white on front,
2 sets Red on rear
|
|
Celling Light
|
2 sets of 12/24V LED
|
|
Control Panel
|
English
|
|
Painting
|
Two primers, and one final paint coating
|
|
Color & LOGO
|
According to wish
|
|
Factory standard
|
āUā shape
Sub Frame, Safety protection, Rotating Lamp,
Working Lamp, Hand holds, Mudguards and rubber flaps...
|
|
Documents
|
English
operation manual, Spare parts list, and all necessary export docs.
|
|
Optional equipment
|
1, Refrigeration brand: Carrier, Thermoking, DAIKIN (with any brand)
2, Rear
vision camera

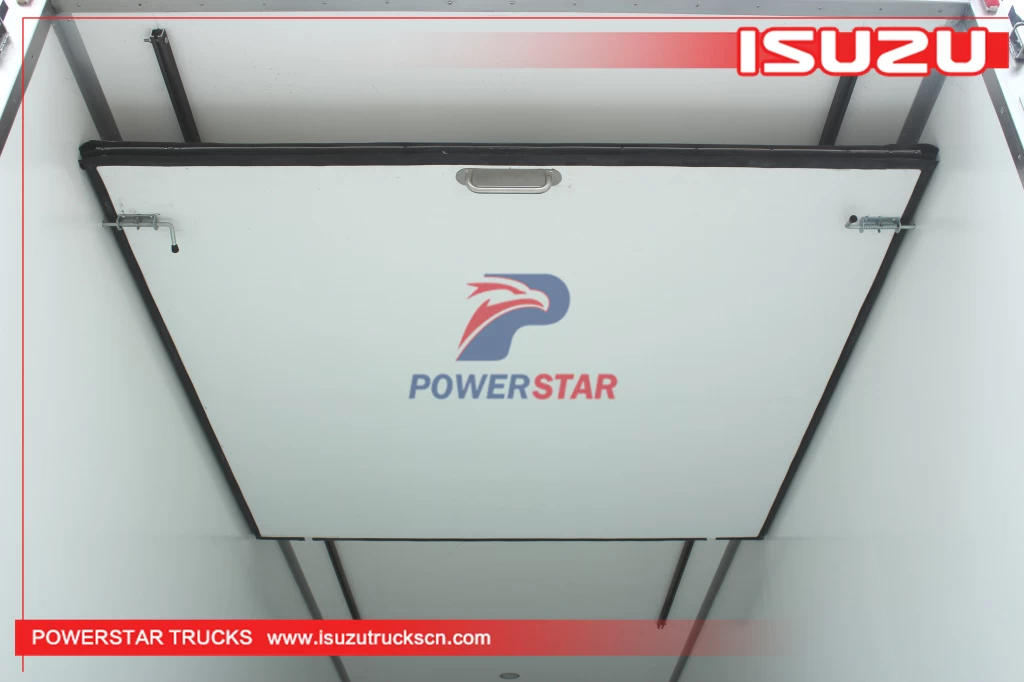

3, Aluminium flooring, Hanging system
4, Optional Dual temperature, multi compartment
|
