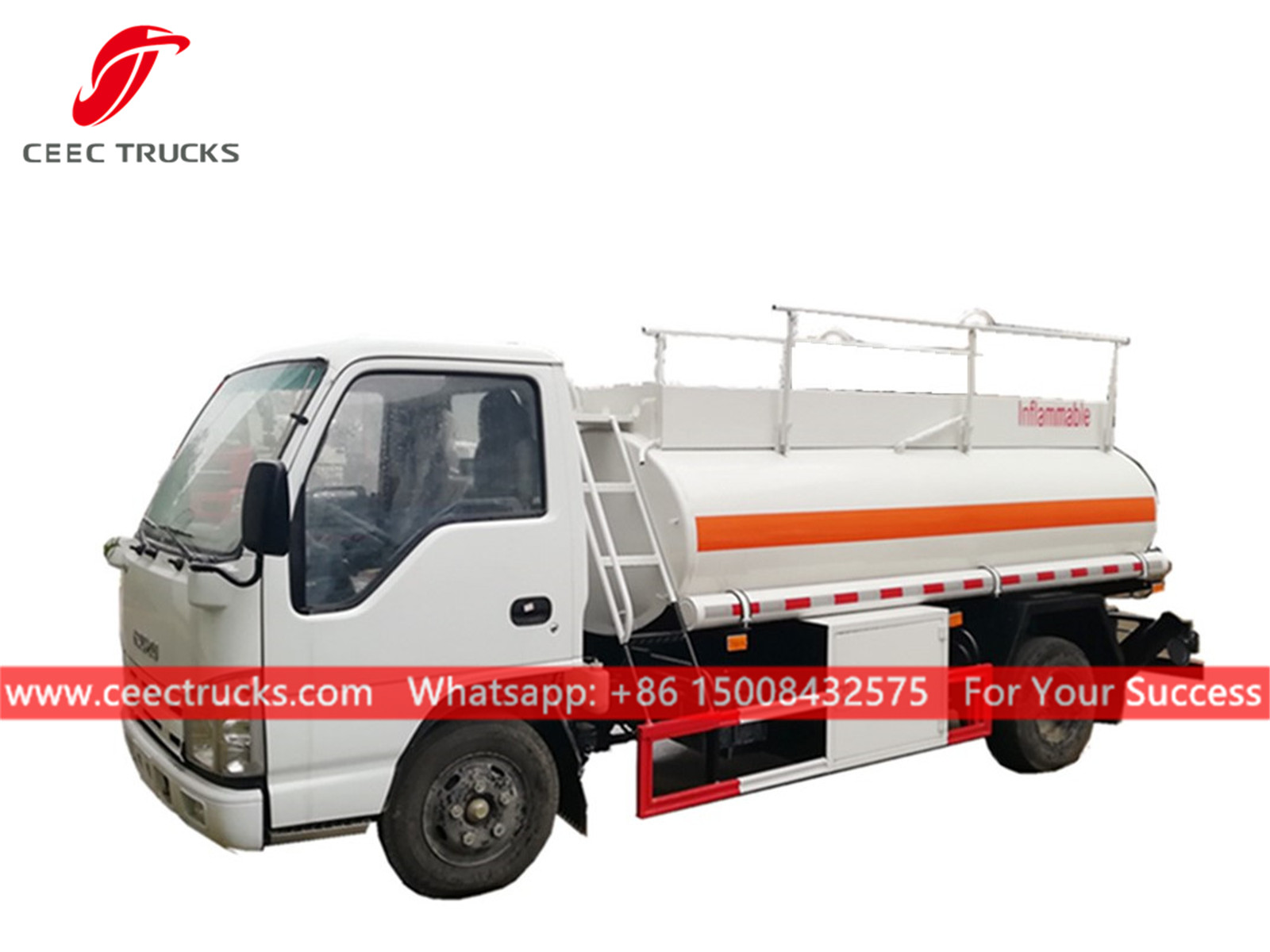

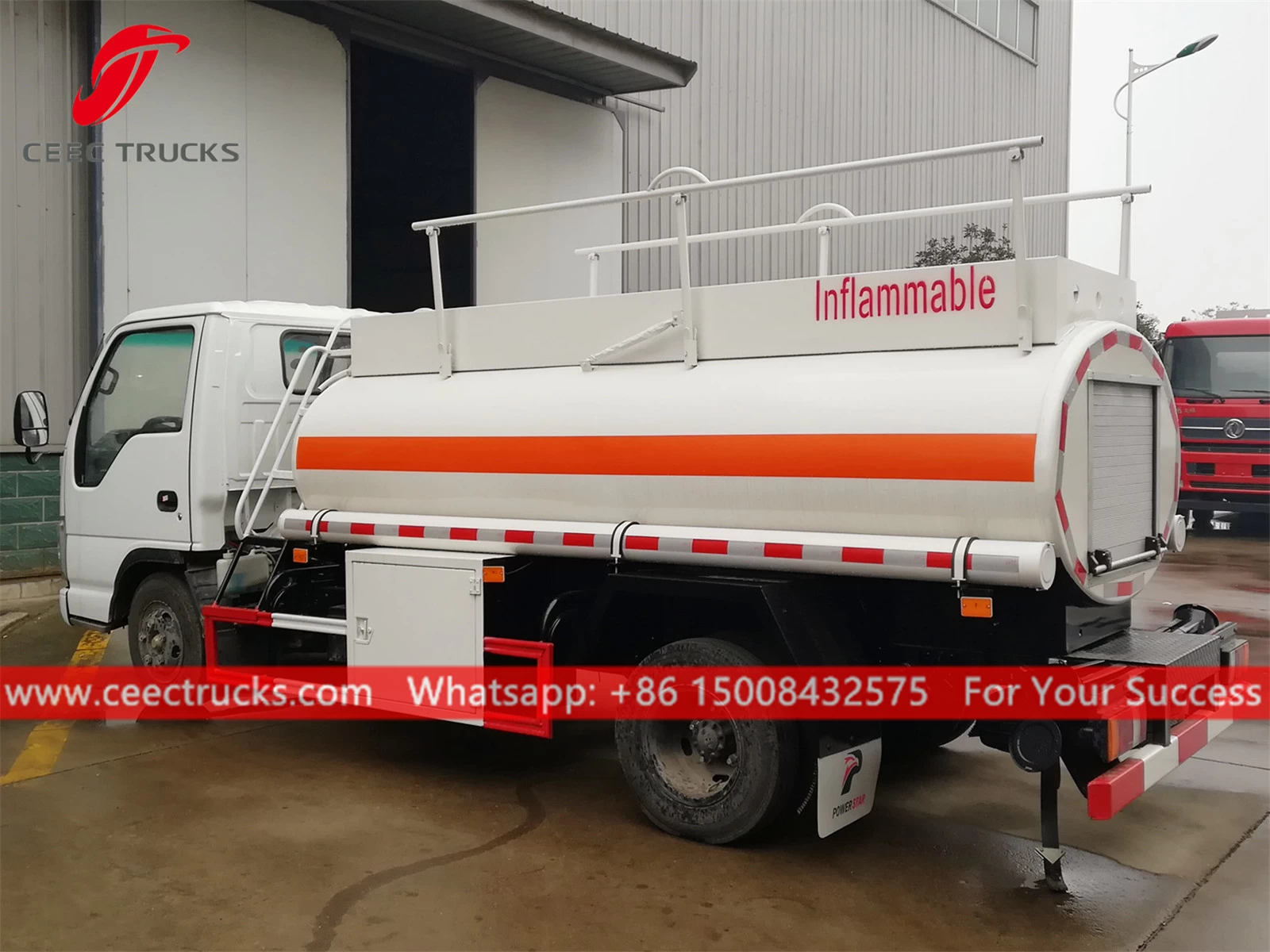

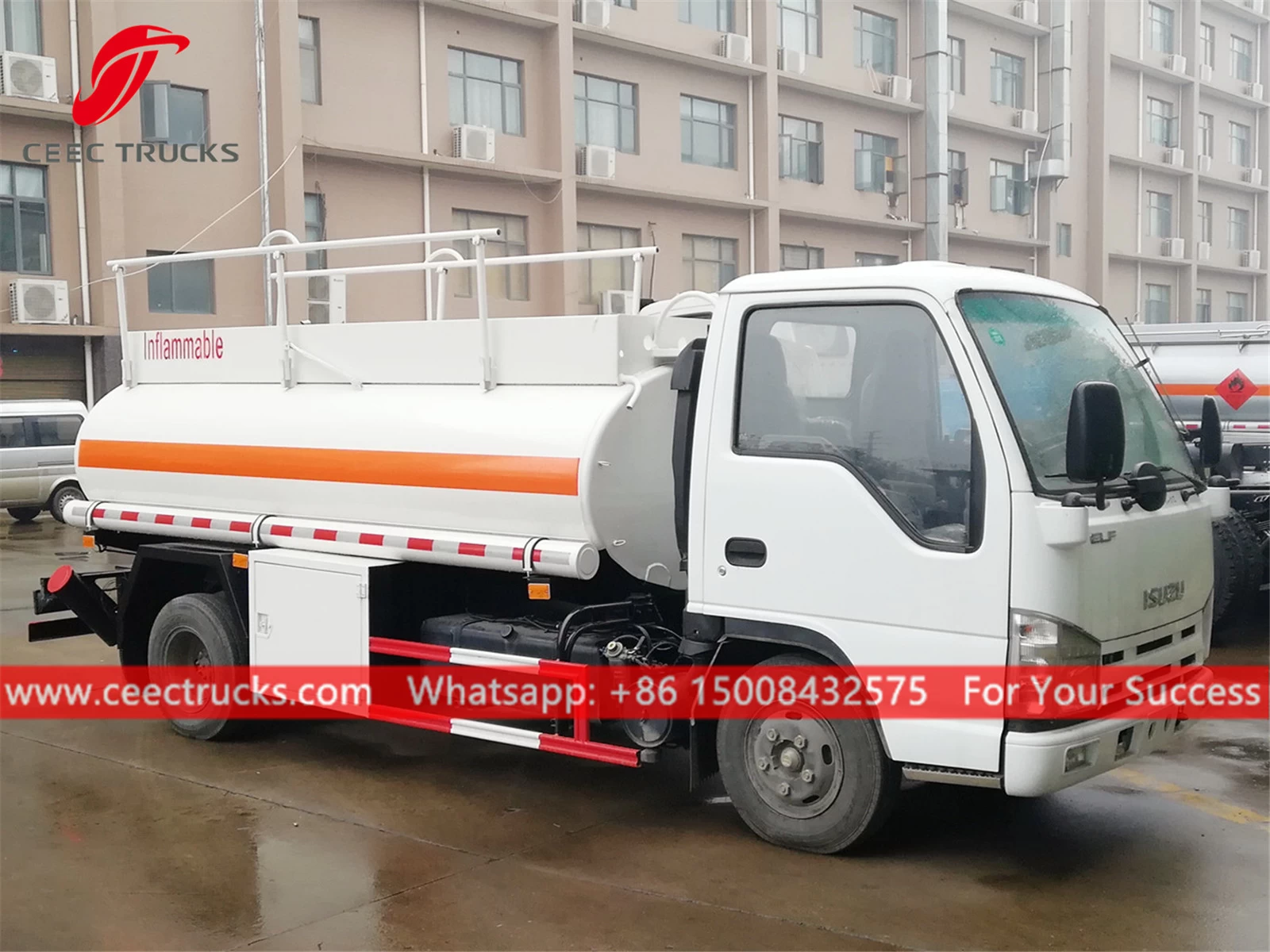

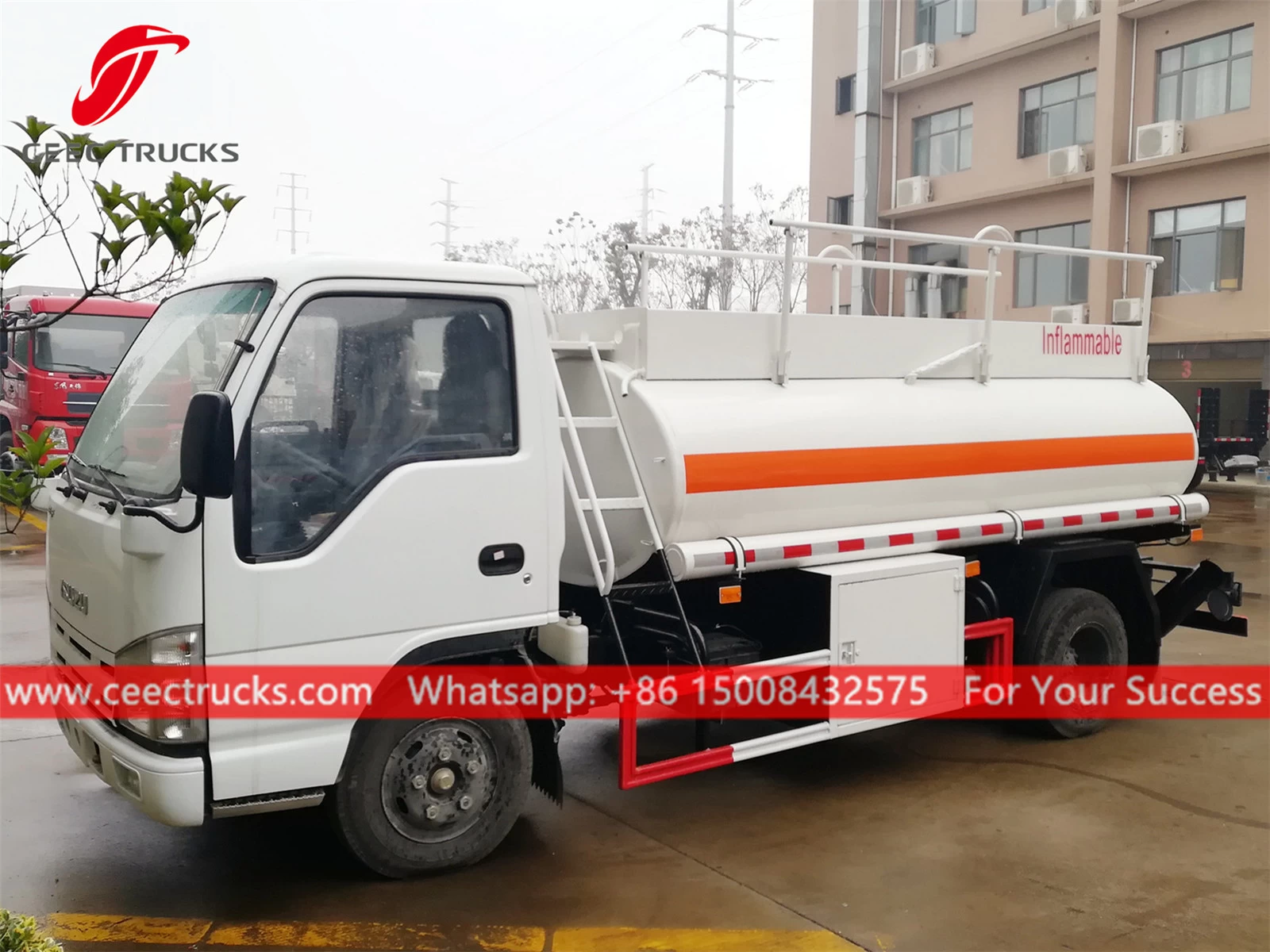

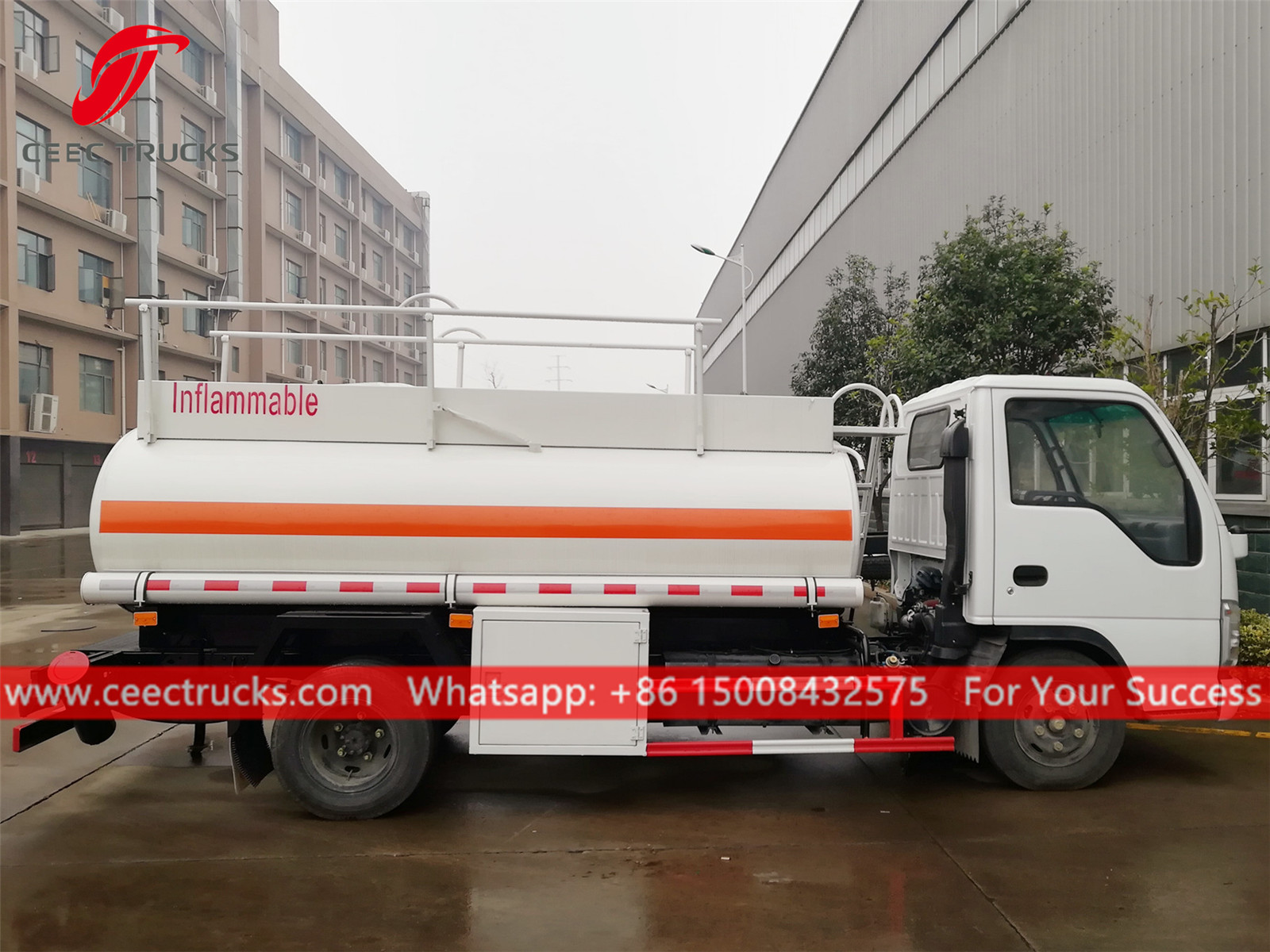

ISUZU Fuel tank truck

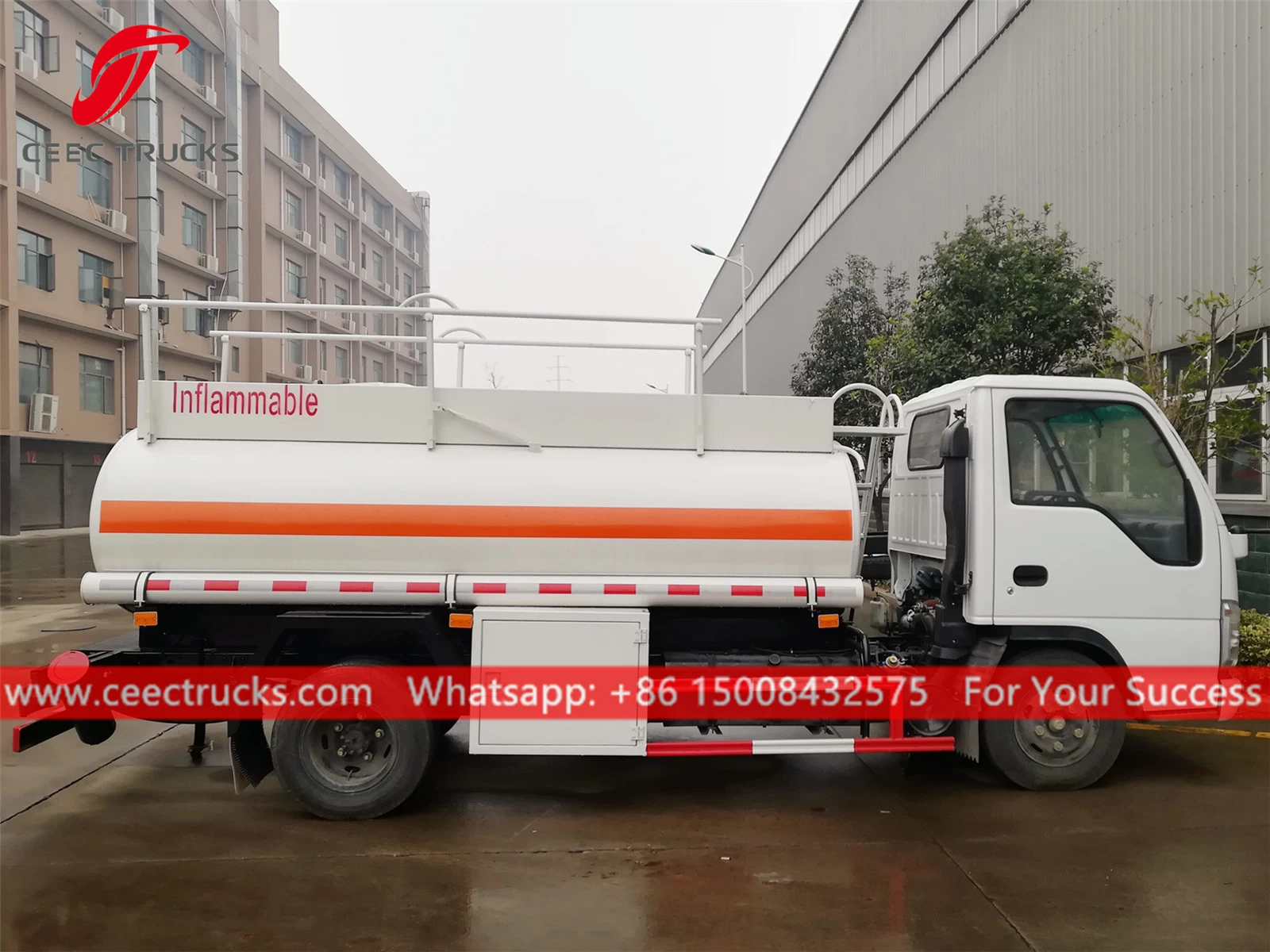

Fuel tank truck ISUZU (3,000 L)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

5800 * 1900 * 2100 mm

GVW / Kerb Weight

9,400kg / 4,800kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU 4HK1-TC

Power

190 HP (140 KW)

Displacement

5193 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

3815 mm / 2

Tire Specification

7.50-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

3,000 Litres

Tanker Material

Carbon Steel

Pump

Fuel pump equipped for overhead delivery

Suction head

6 m

Hose

High quality, wire strengthened hose,

with cooper wire, anti-static

Refueling Machine

Equipped based on customer requirement

Control panel

English or Your language

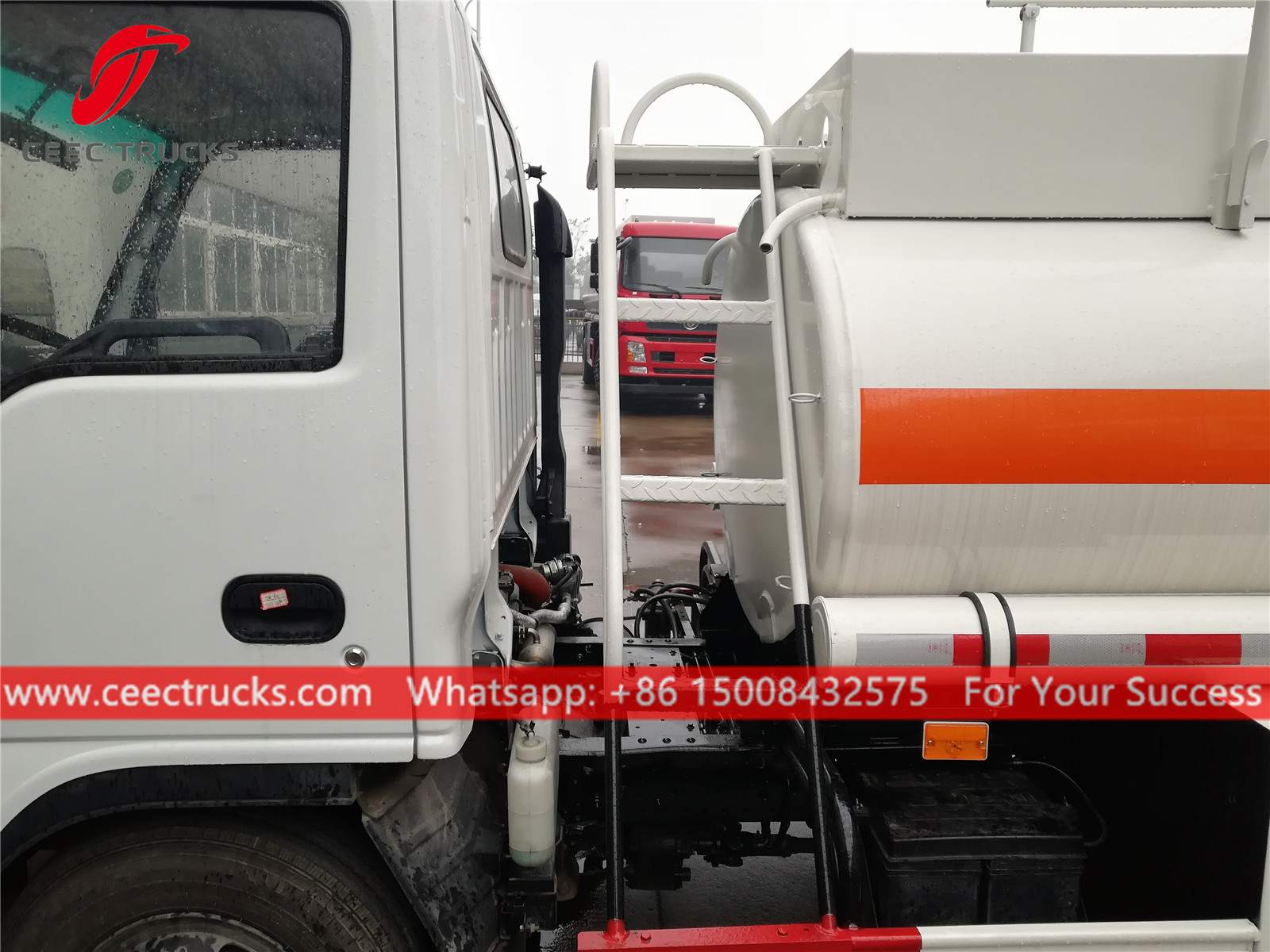

All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers...

Optional

** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).

** It can be divided into many compartments.

** Imported American pump as optional.

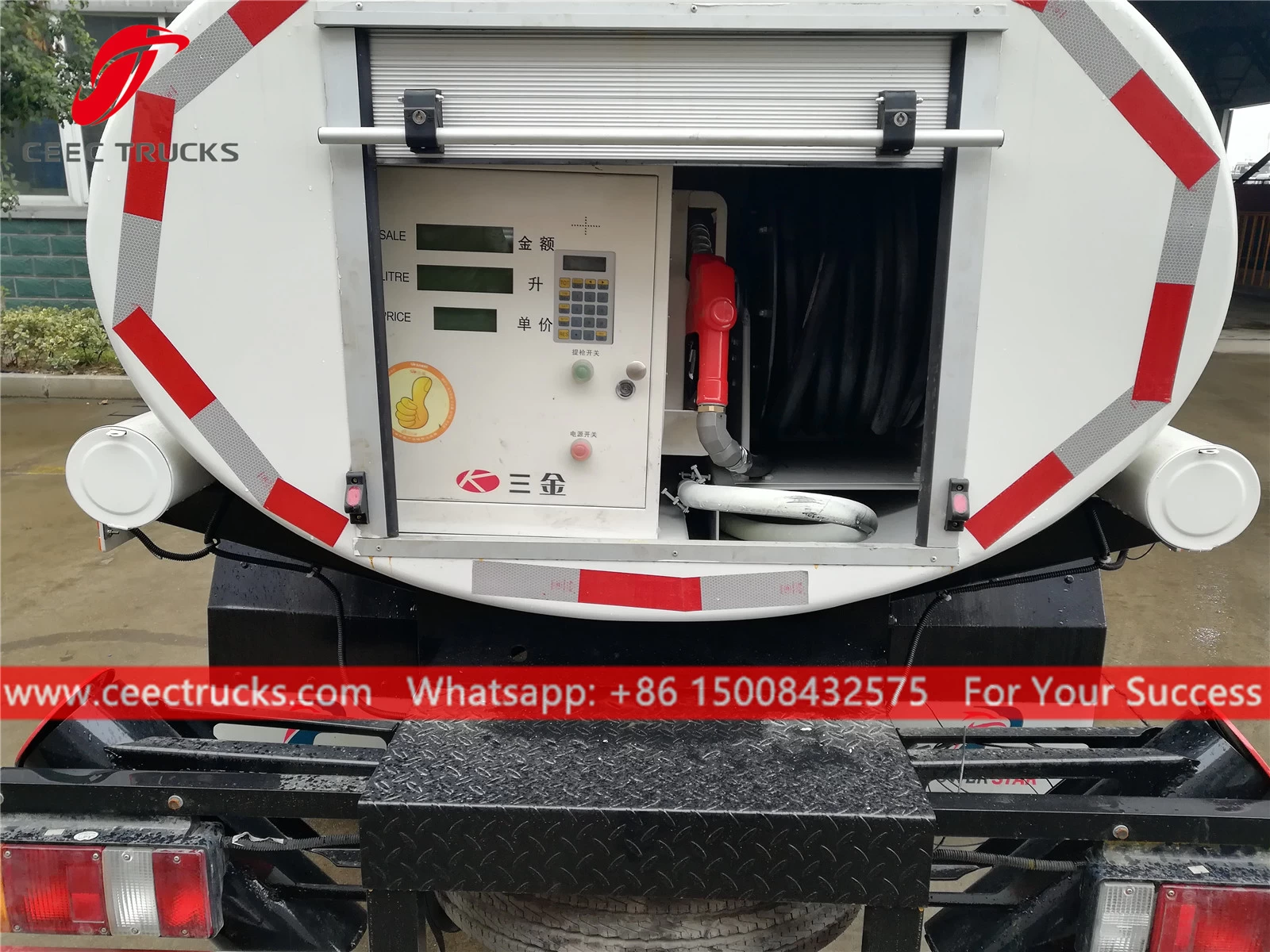

** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc

** Heat preservation & heating system could be added.

** Bottom loading system can be equipped.
