Applications:

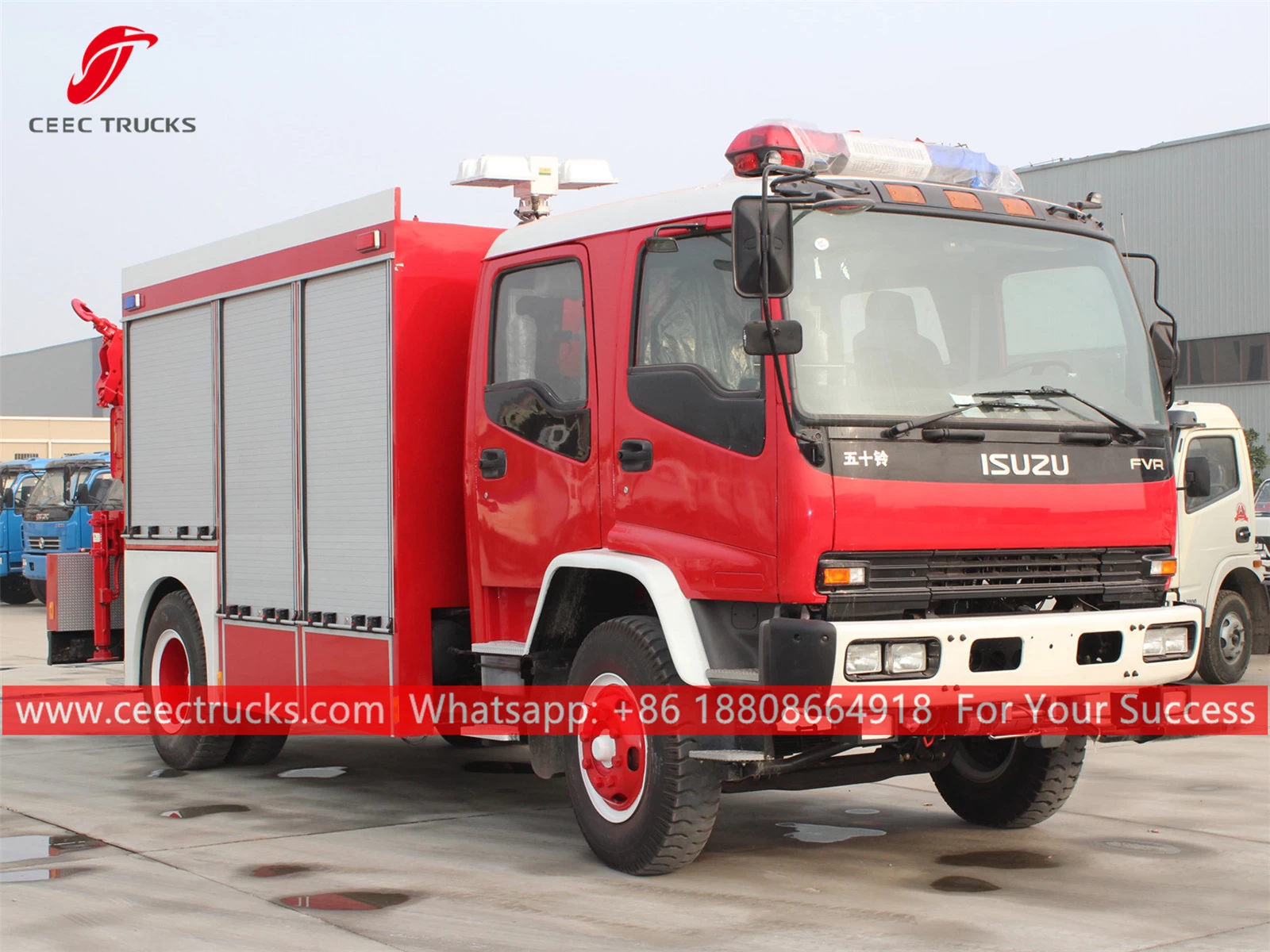

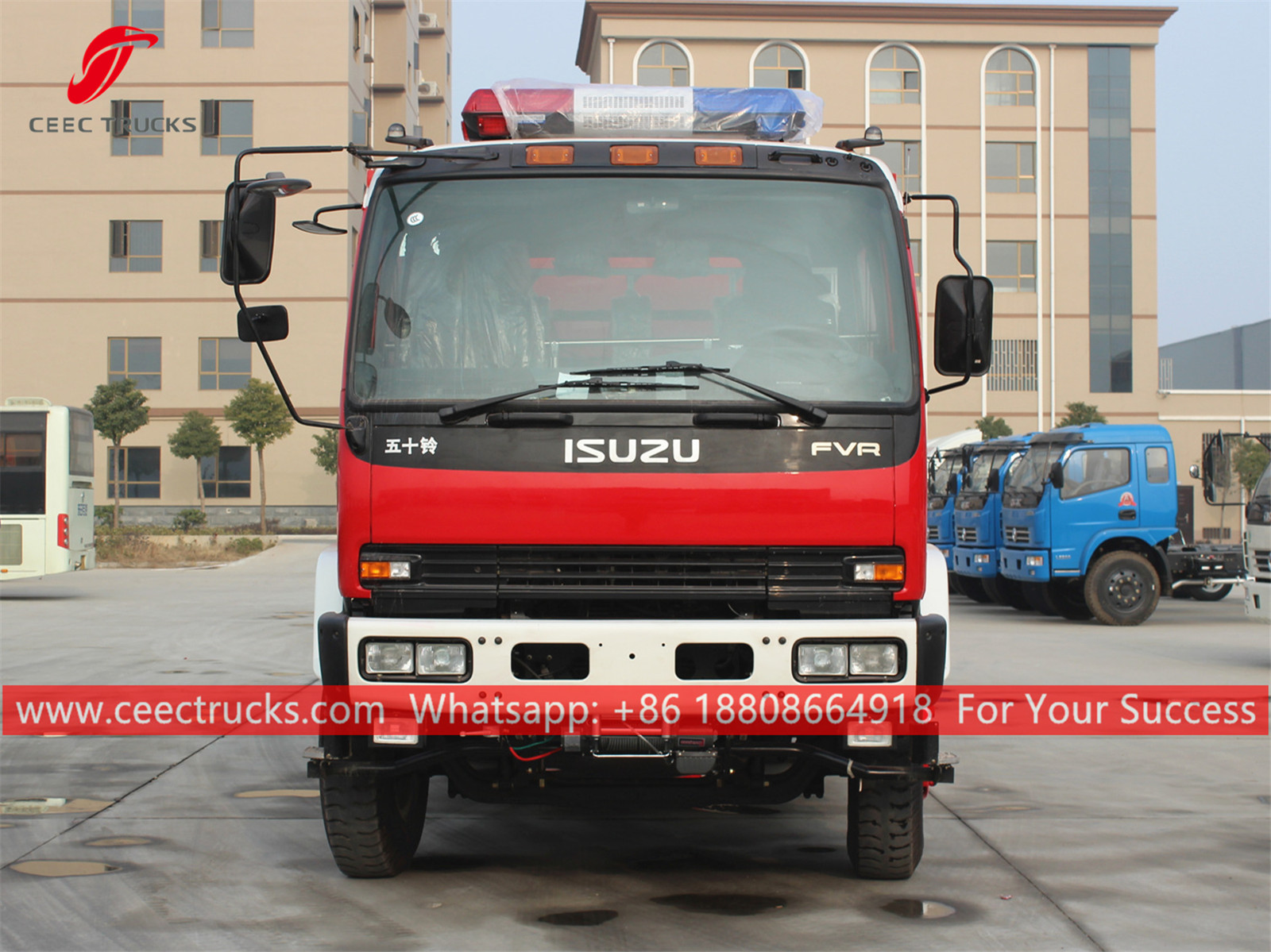

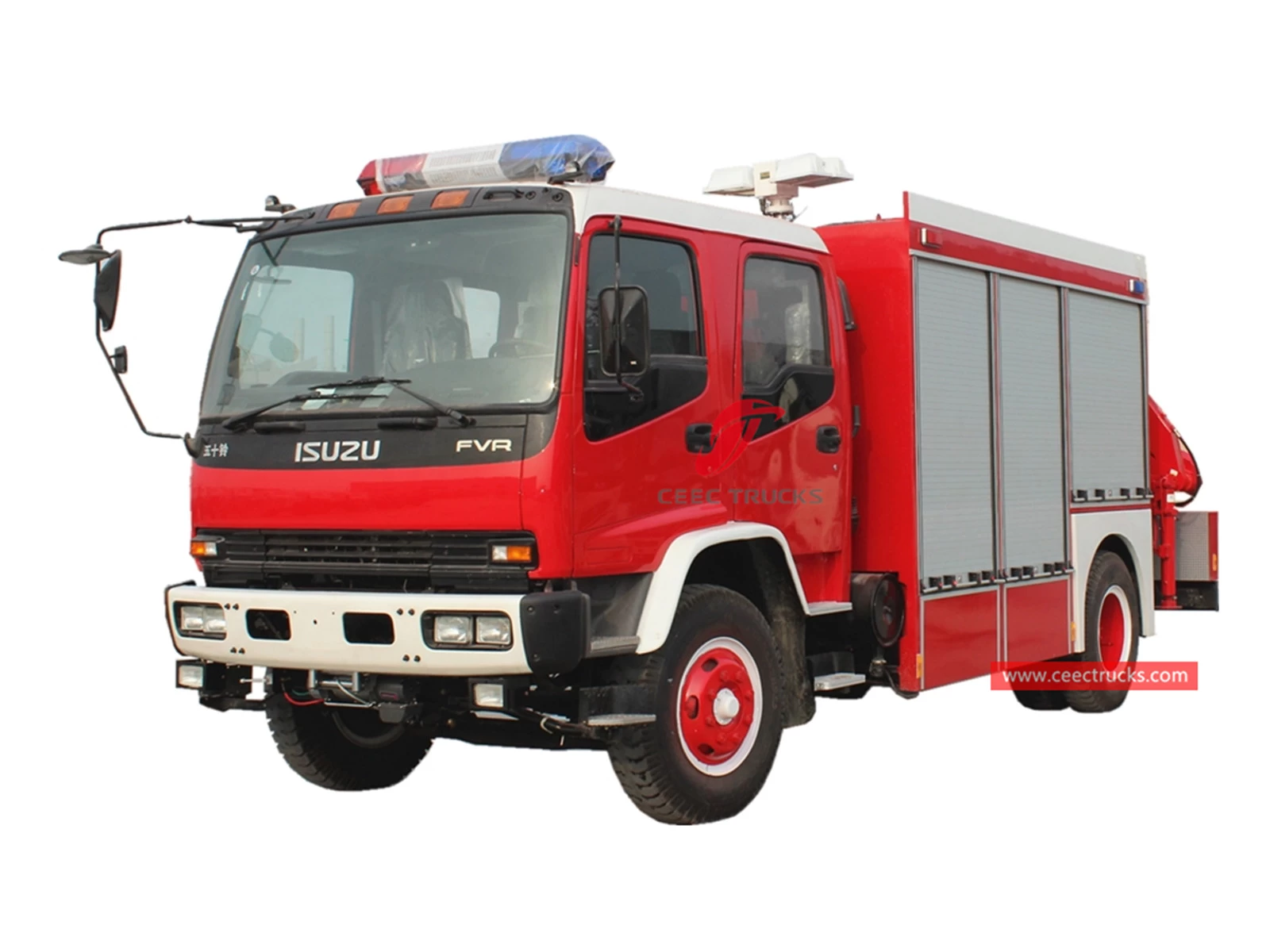

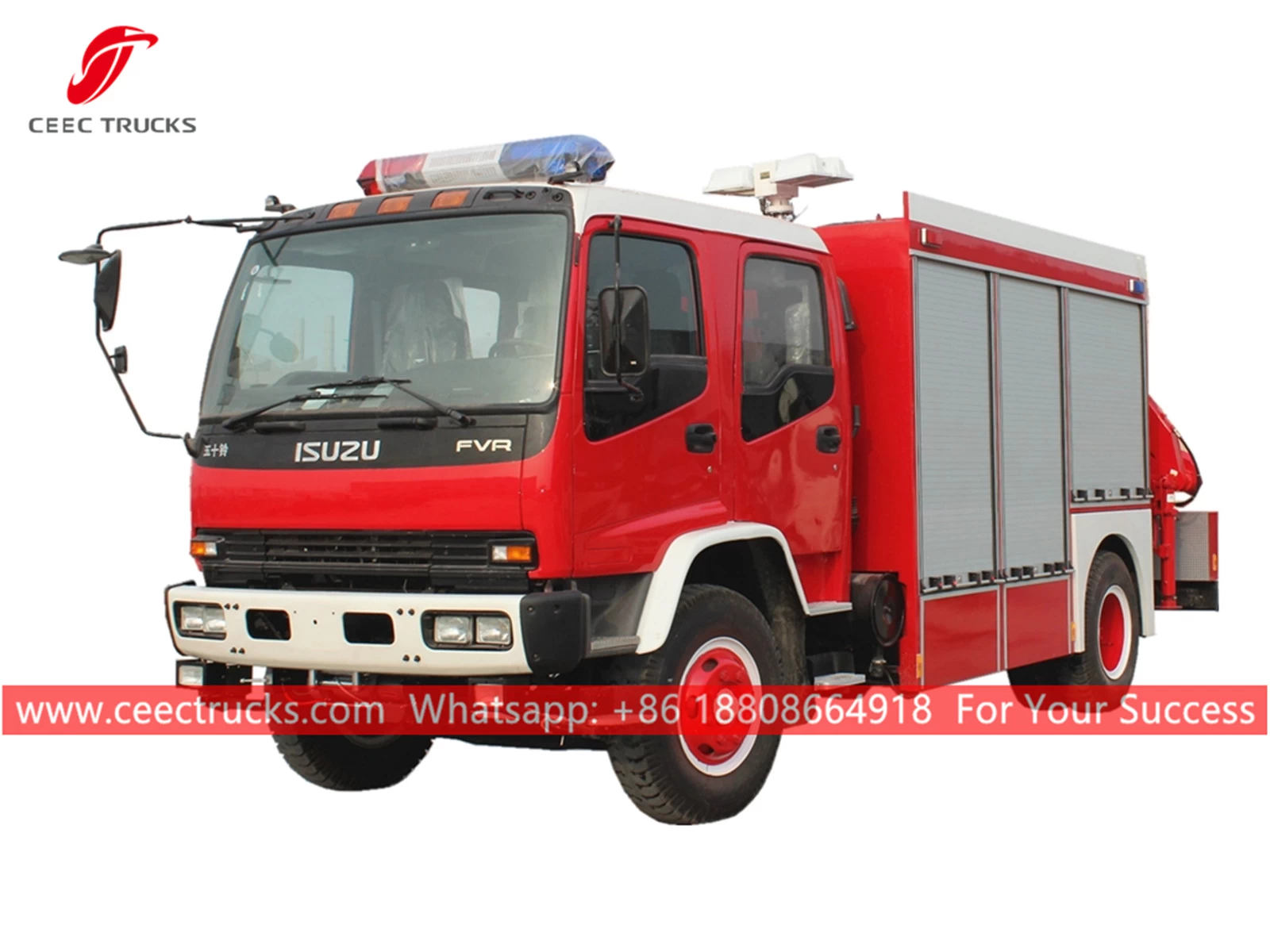

ISUZU FVR Emergency rescue fire truck (also called ISUZU Firefighting truck with crane, Emergency Fire Rescue Vehicles ISUZU, ISUZU firefight truck with lighting system and crane, ISUZU FVR Fire Trucks with Crane, best quality fire truck with lighting system and crane) is apply
for fire brigade of large and medium city, petrochemical enterprises,
airports and harbors and so on, to put our large area fire of oil and
other substance.
CEEC TRUCKS can supply water fire truck, foam fire truck, Foam and powder fire
vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle,
CAFS fire trucks and so on.
All of our fire trucks are equipped with complete fire protection equipment and you can extinguish the fire immediately.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Water tank and Foam tank capacity can be optional.
---- Easy operation and easy maintenance.
---- Various types of fire equipment are available.
Specifications:
|

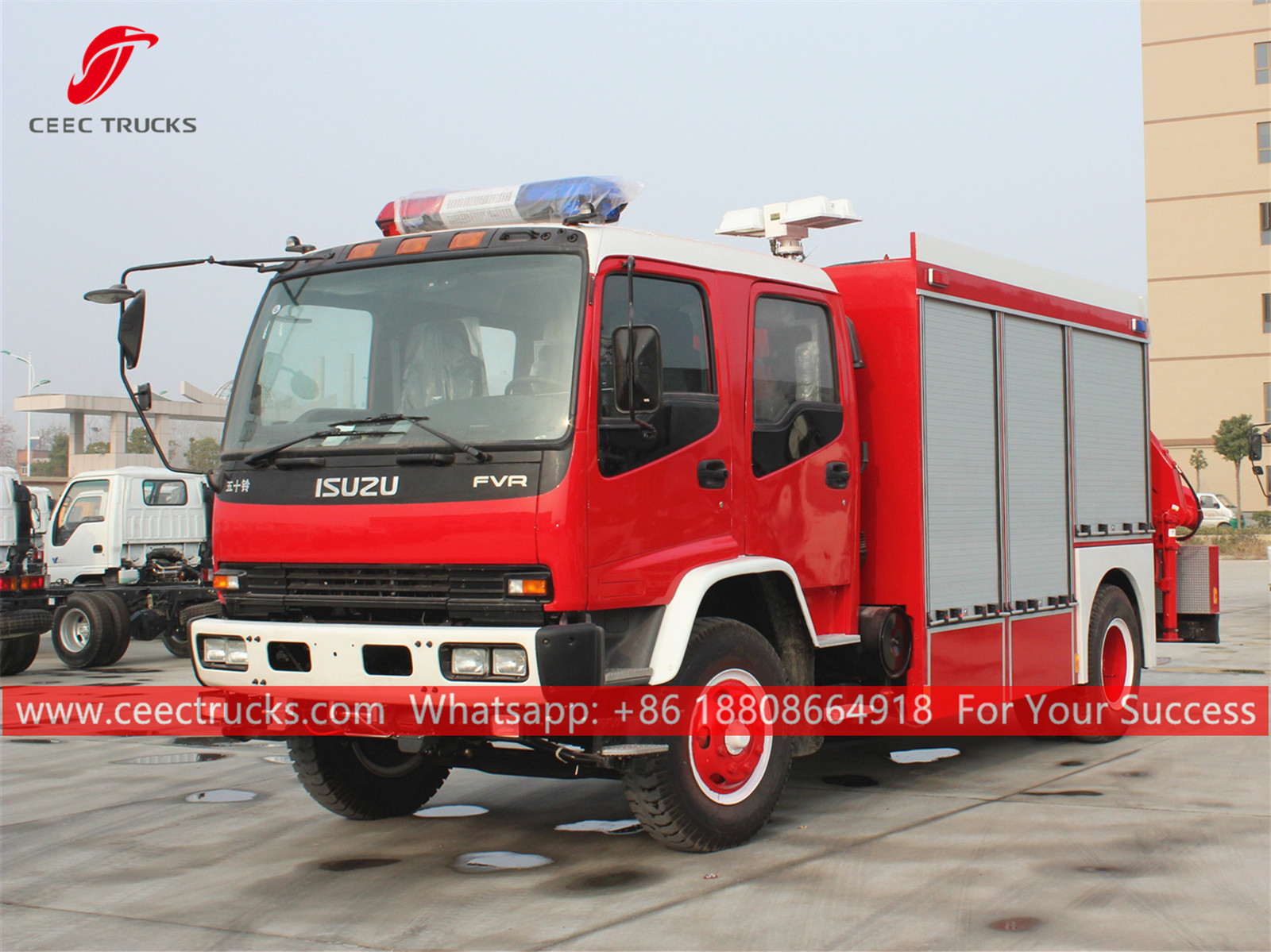

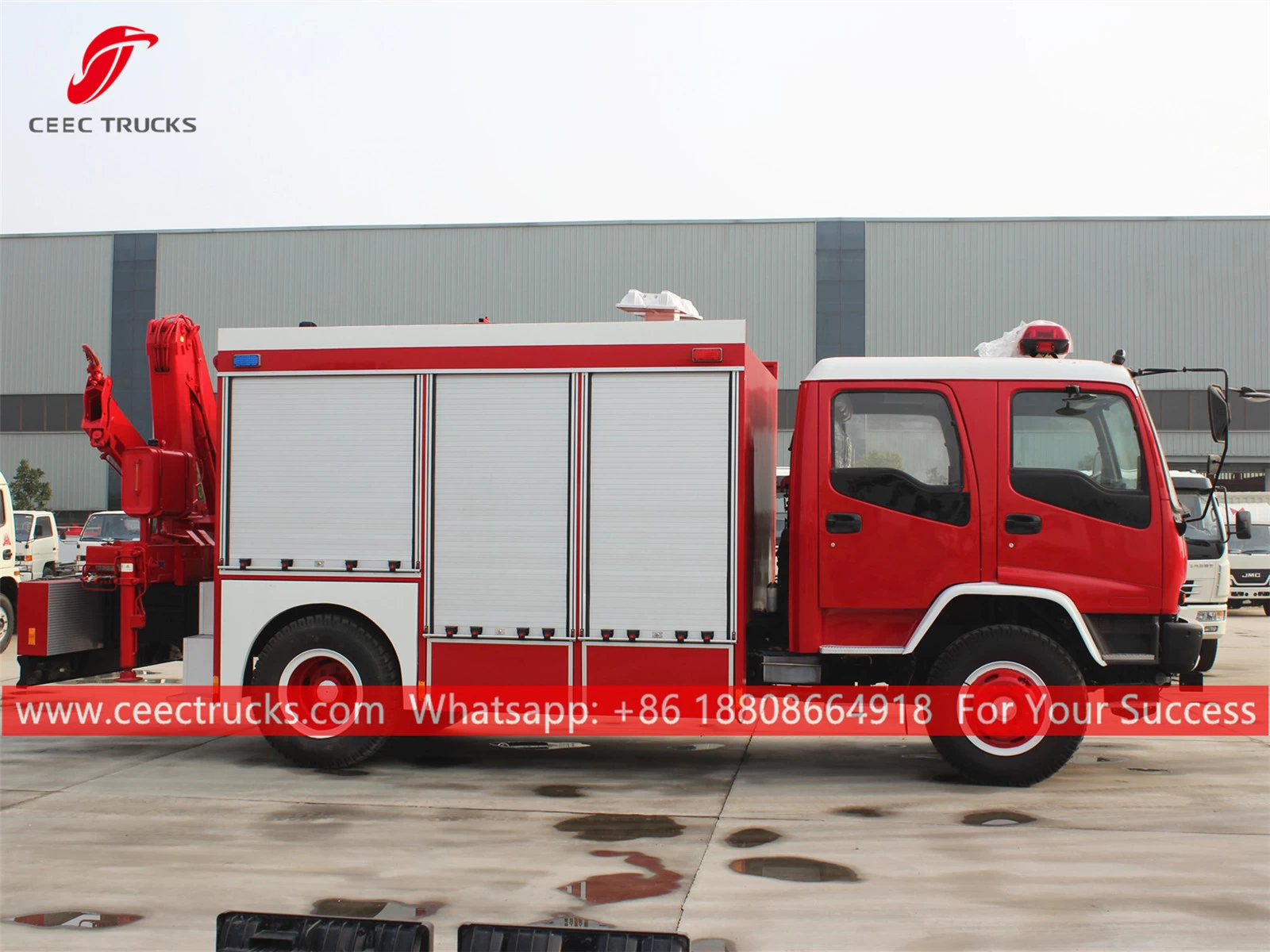

ISUZU FVR Fire truck with crane
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
8490* 2500 * 3615 mm
|
|
GVW / Kerb Weight
|
12,400kg / 11,950kg
|
|
Cab
|
Cab Capacity
|
5 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
240 HP (177 KW)
|
|
Displacement
|
7790 ml
|
|
Emission Standard
|
Euro 4 / 5
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
Manual 6-shift speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
4500 mm / 2
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
90 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|

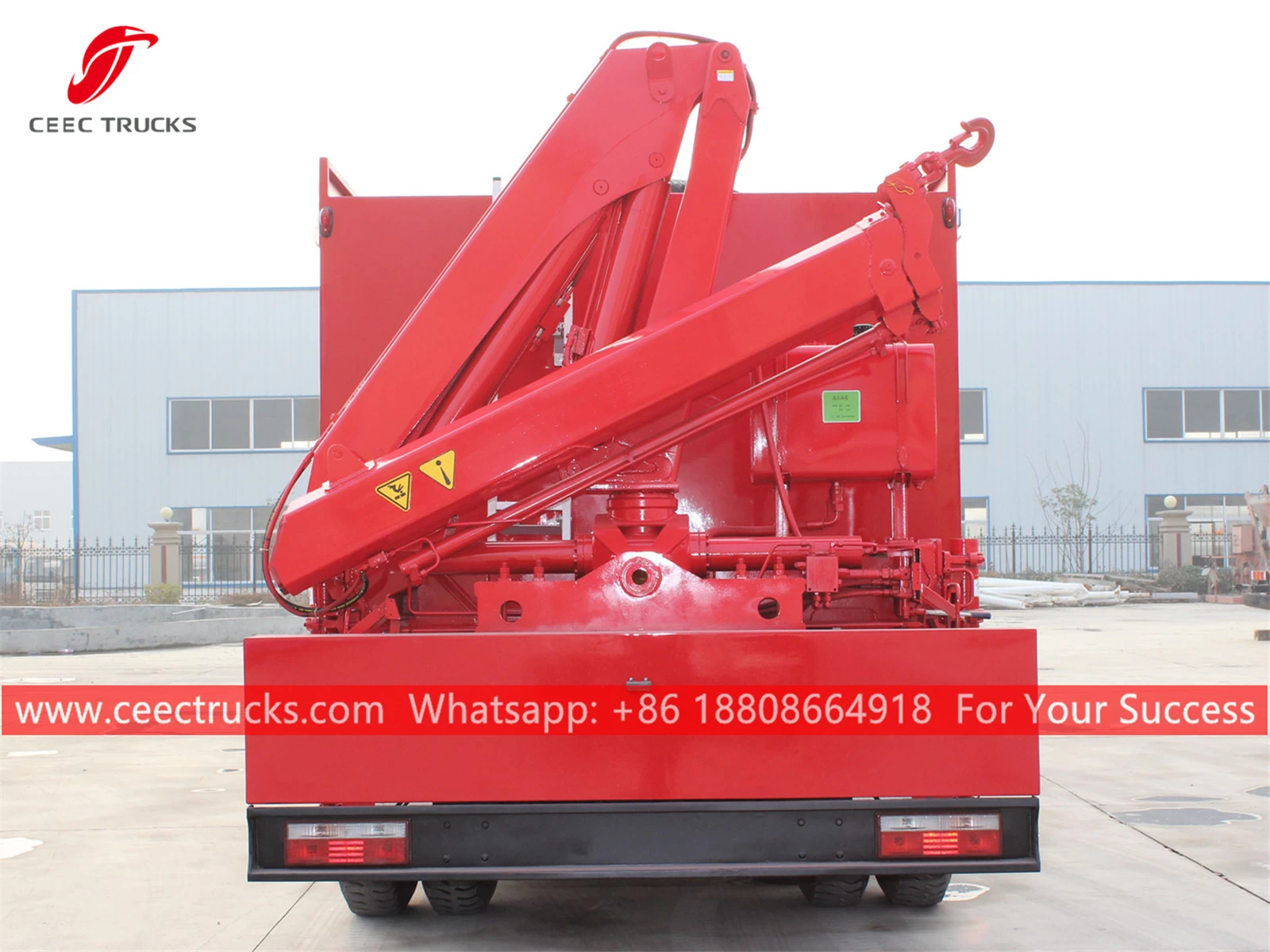

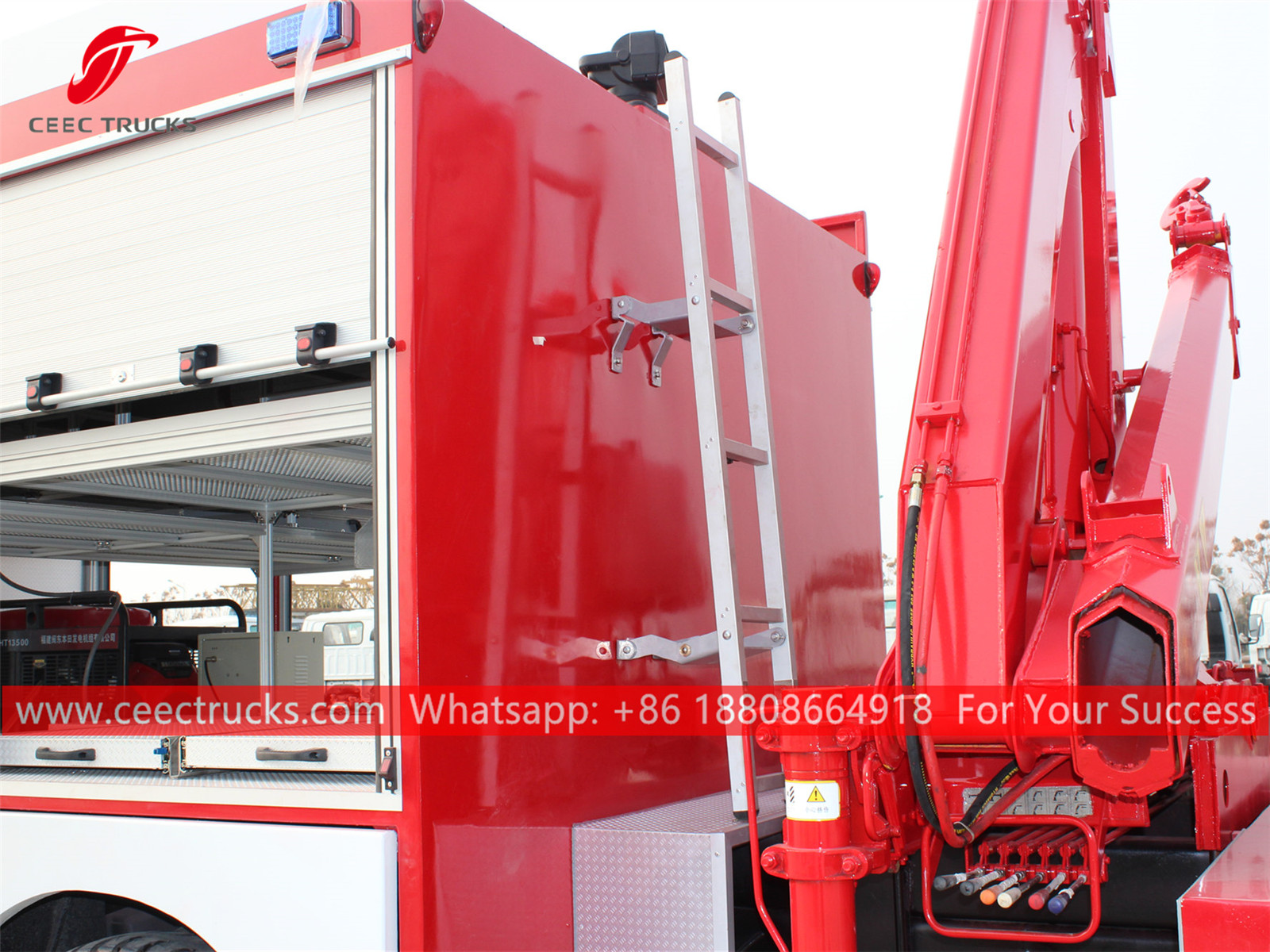

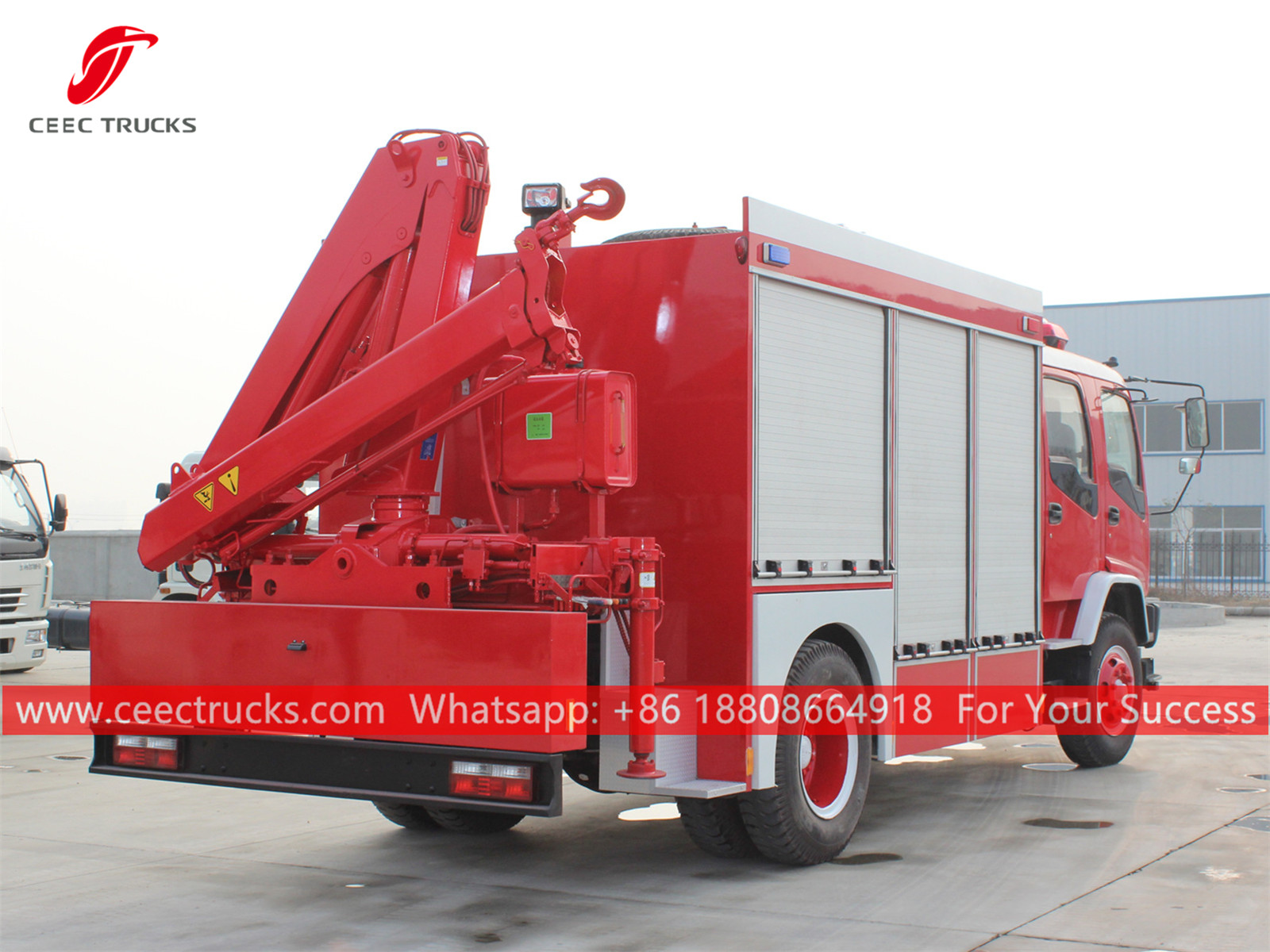

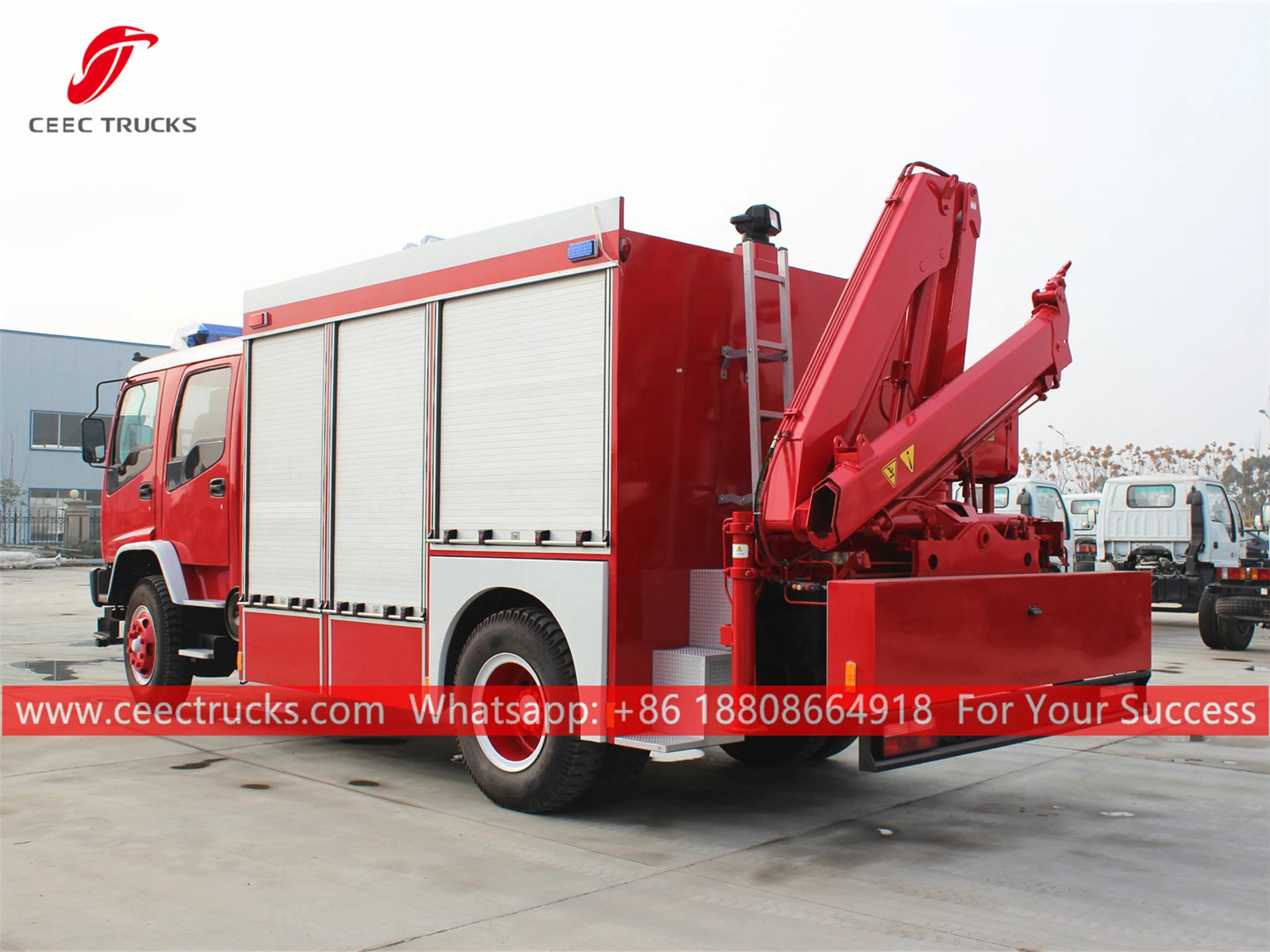

Crane
|
6.3Tons
|
|
The generator
|
SHT115000
|
|
Lifting lamp
|
YZ1004
|
|
Traction winch
|
N1200
|
|
PTO
|
SQ50
|
|
Electronic alarm
|
1.2 m long
|
|
Control panel
|
English or Your language
|
|

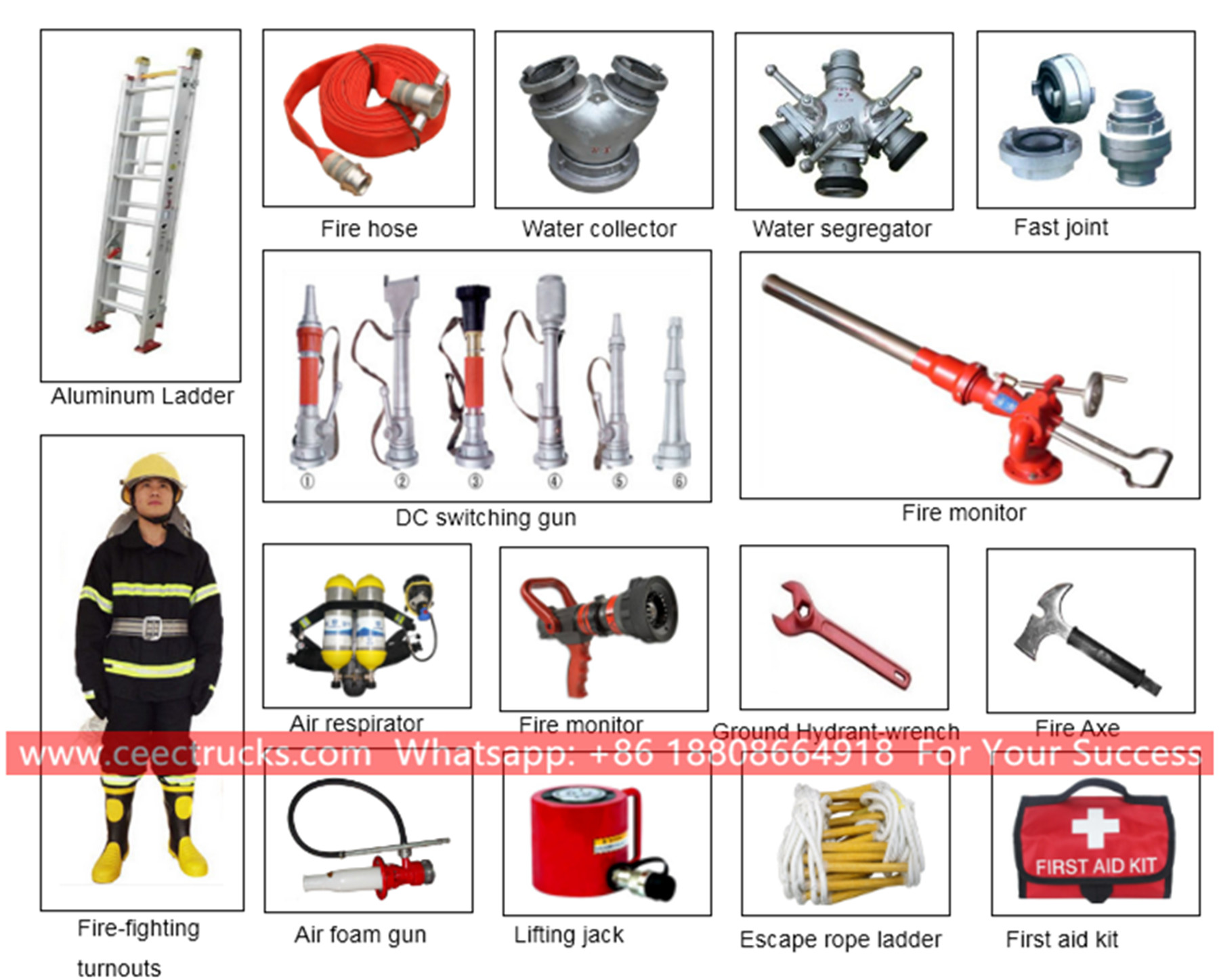

All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Standard carbon steel, stainless steel optional.
** USA or Germany fire pump can be optional
|
