Applications:
ISUZU FVZ Water and Foam Fire truck (also called low price ISUZU Foam Fire truck, City Fire Rescue Vehicle ISUZU, 10,000Litres firefight truck, ISUZU FVZ Fire Trucks manufacturer, best quality fire protection vehicle) is apply
for fire brigade of large and medium city, petrochemical enterprises,
airports and harbors and so on, to put our large area fire of oil and
other substance.
CEEC TRUCKS can supply water fire truck, foam fire truck, Foam and powder fire
vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle,
CAFS fire trucks and so on.
All of our fire trucks are equipped with complete fire protection equipment and you can extinguish the fire immediately.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Water tank and Foam tank capacity can be optional.
---- Easy operation and easy maintenance.
---- Various types of fire equipment are available.
Specifications:
|

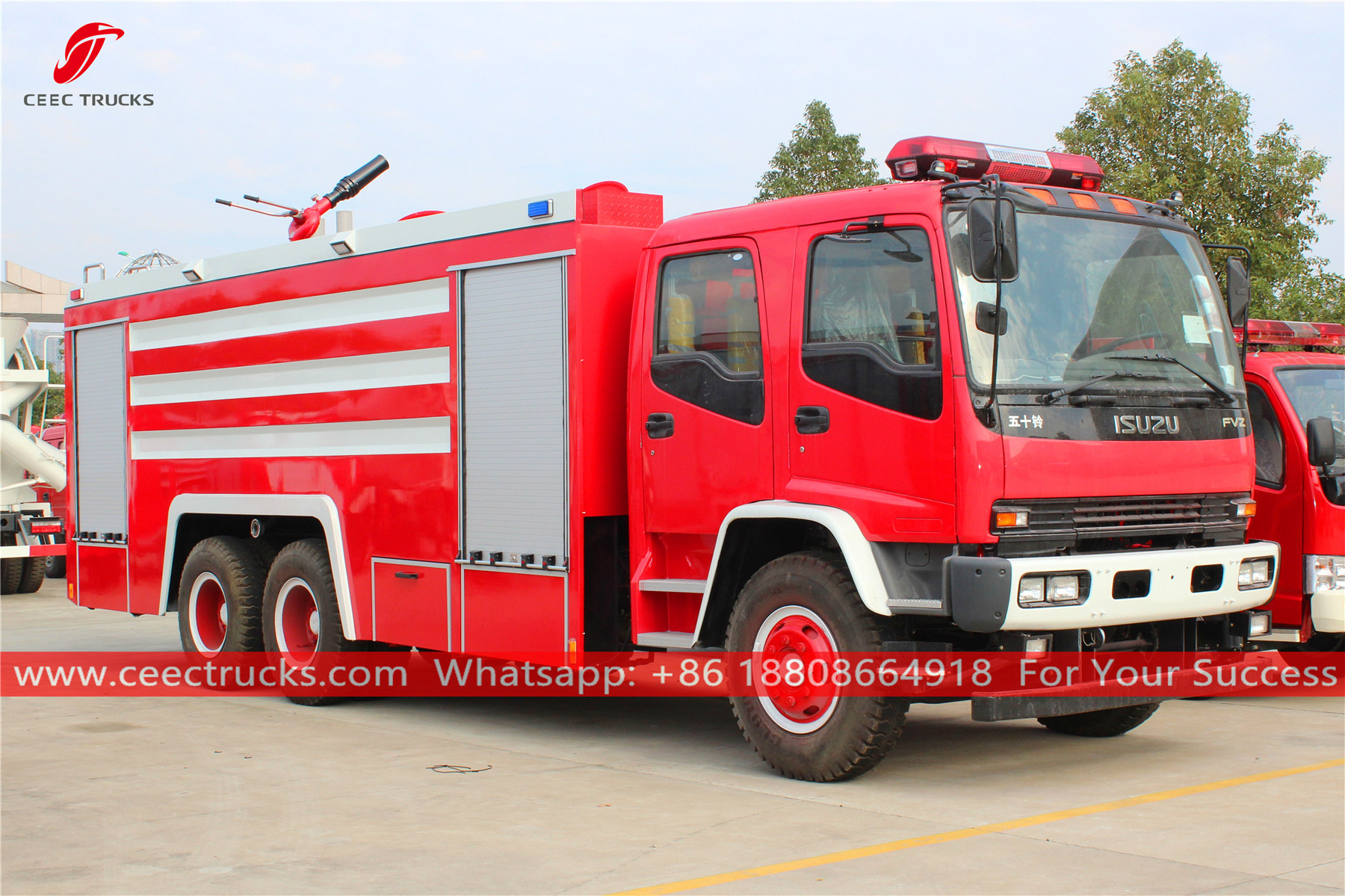

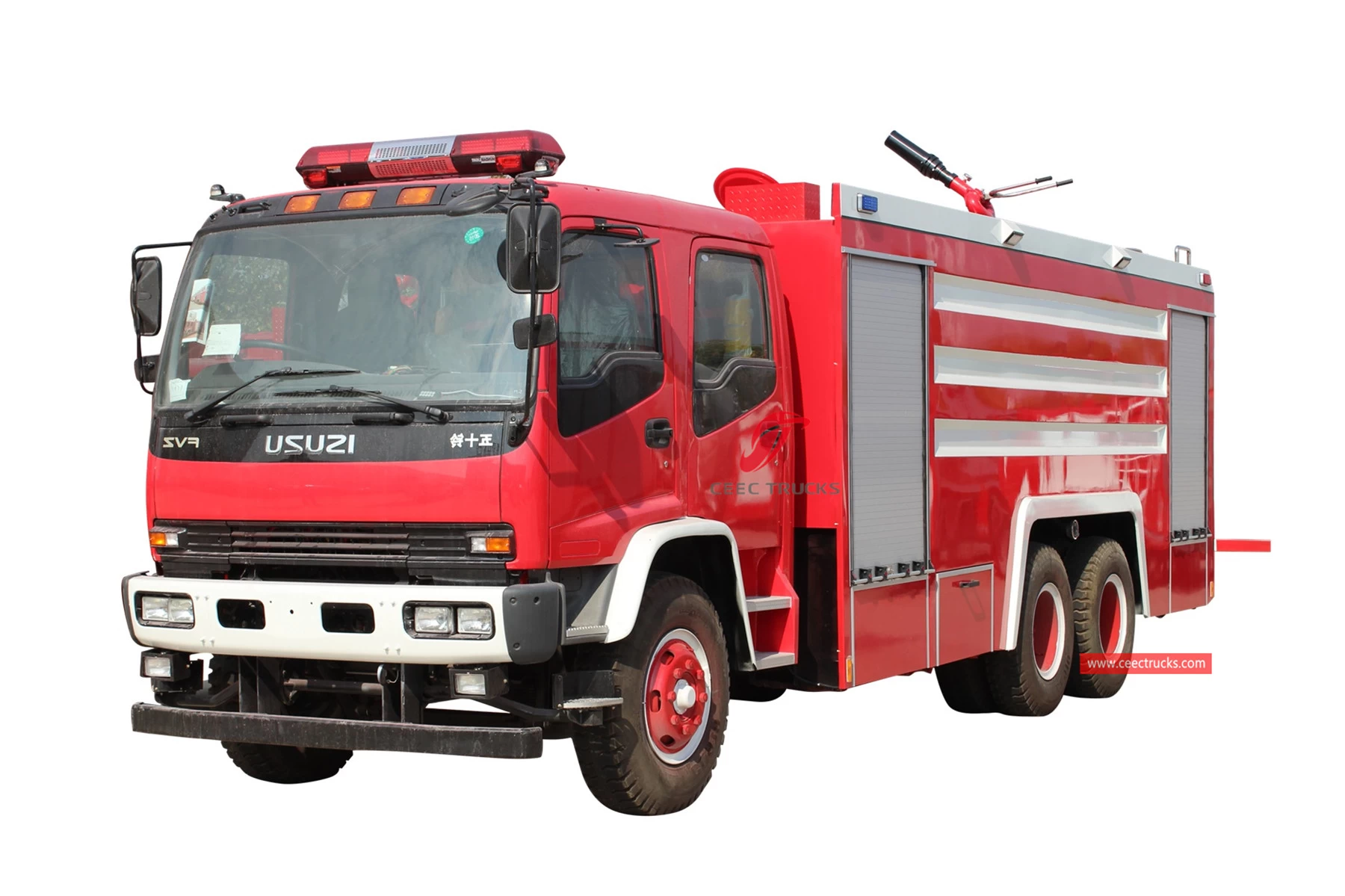

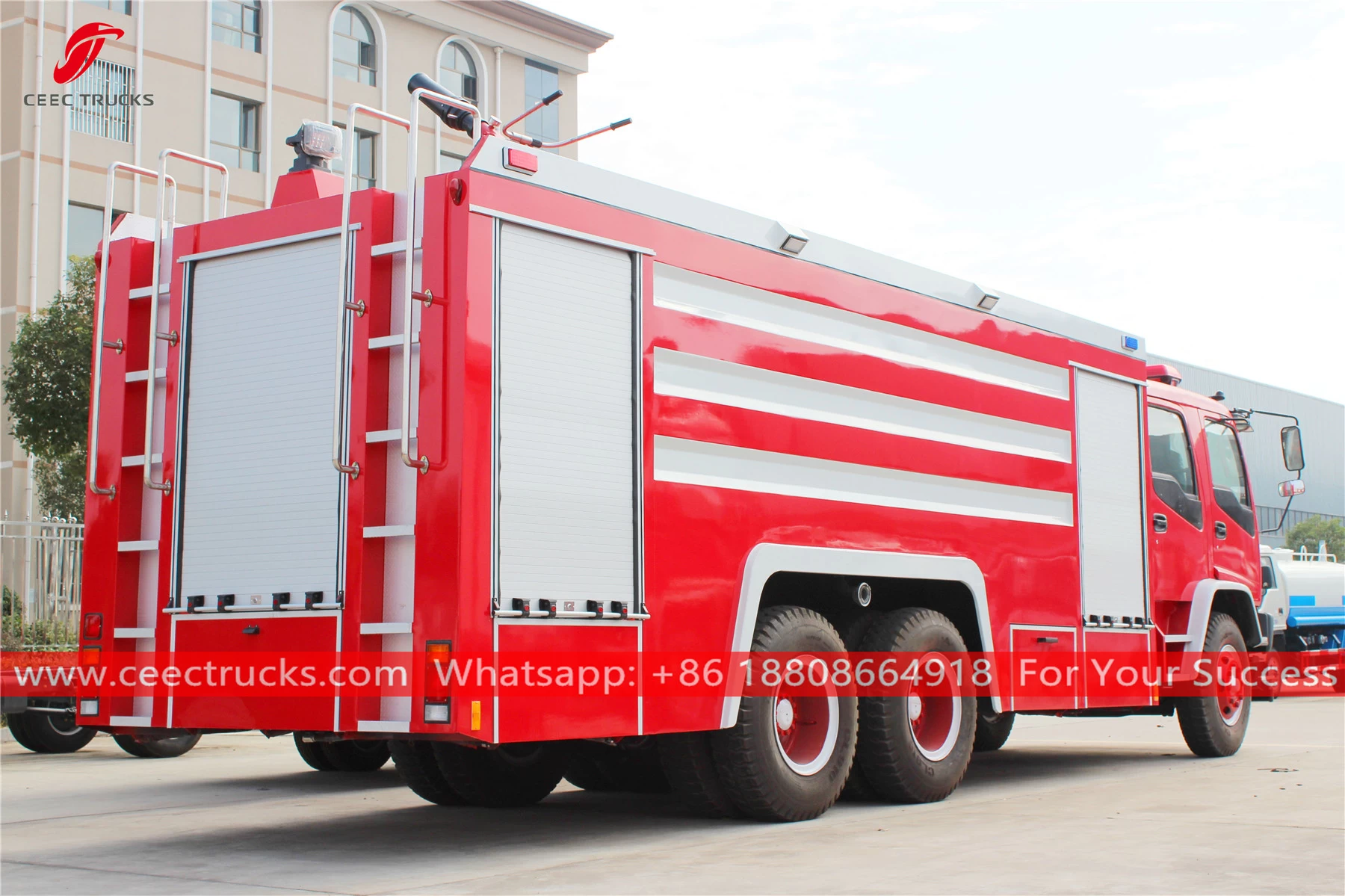

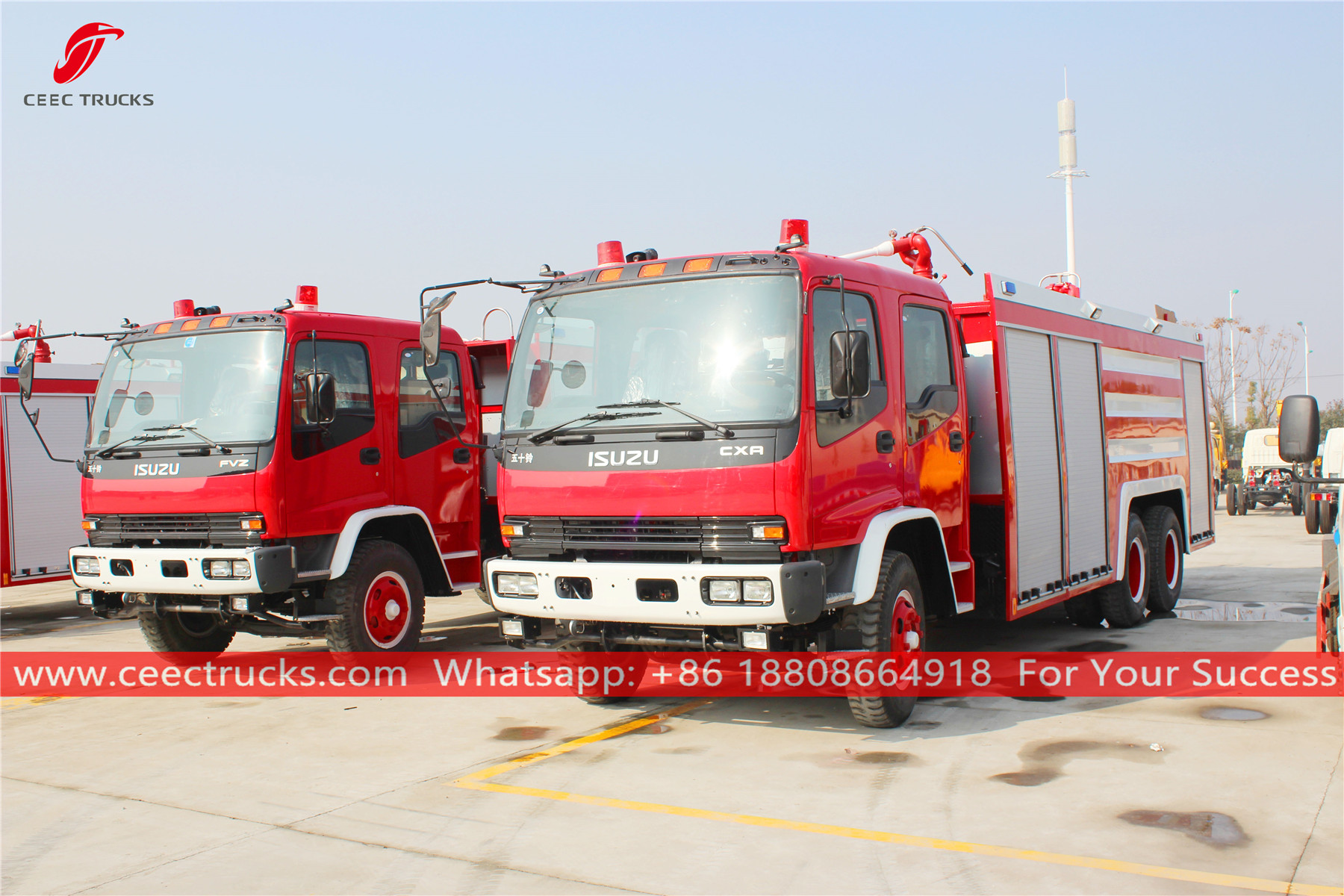

ISUZU FVZ Water and Foam Fire truck (10,000L)
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
11300* 2500 * 3400 mm
|
|
GVW / Kerb Weight
|
25,000kg / 10,200kg
|
|
Cab
|
Cab Capacity
|
5 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
280 HP (220 KW)
|
|
Displacement
|
7900 ml
|
|
Emission Standard
|
Euro 4 / 5
|
|
Chassis
|
Drive Type
|
6X4, (left hand drive)
|
|
Transmission
|
Manual 9-shift speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
5100+1300 mm / 3
|
|
Tire Specification
|
11.00-20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
90 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Water tank capacity
Foam tank capacity
|
8,000L water
2,000L foam
|
|
Tanker Material
|
Carbon Steel
|
|
Fire pump
|
CB10/60, 60L/S
|
|
Fire pump location
|
Center or rear
|
|

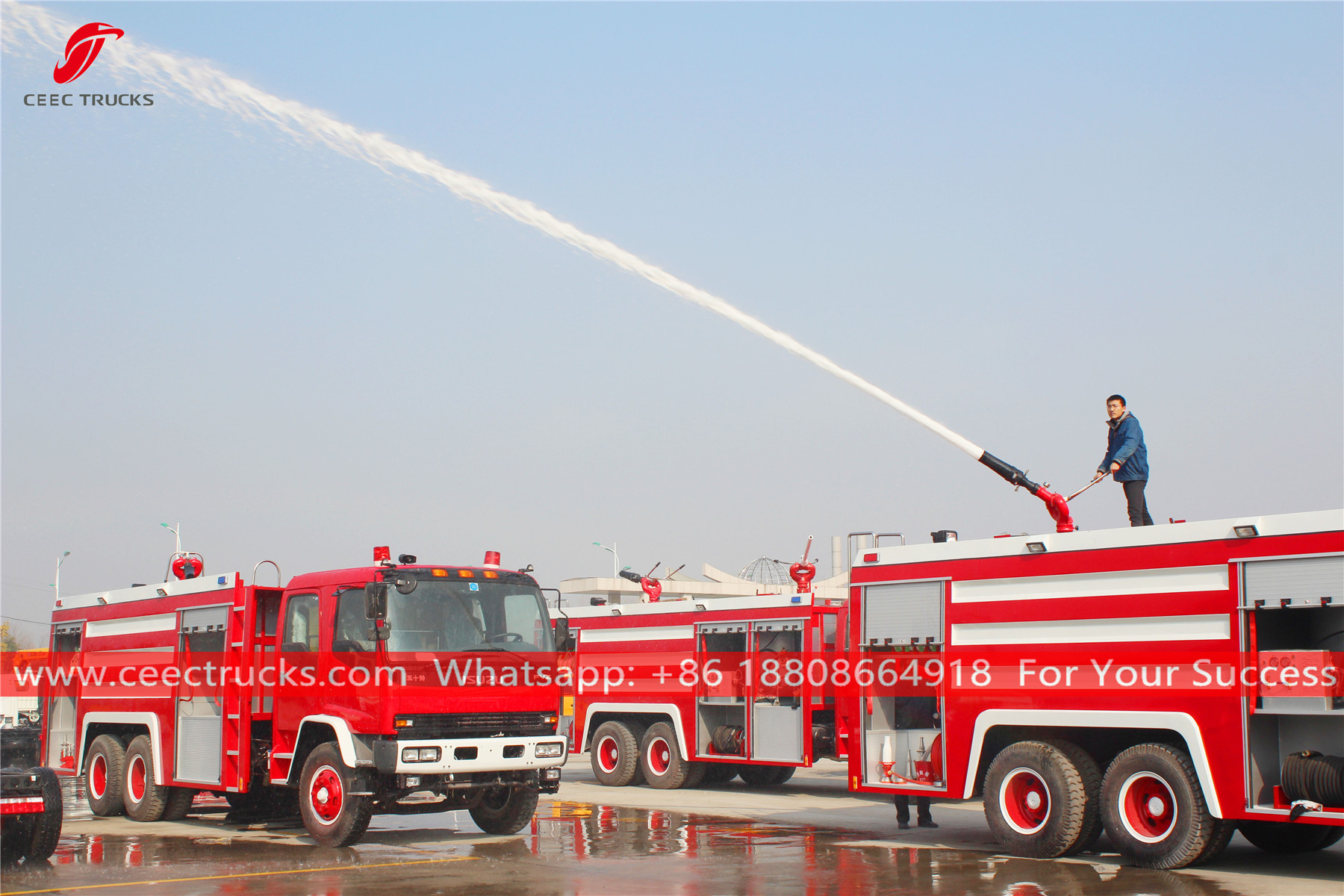

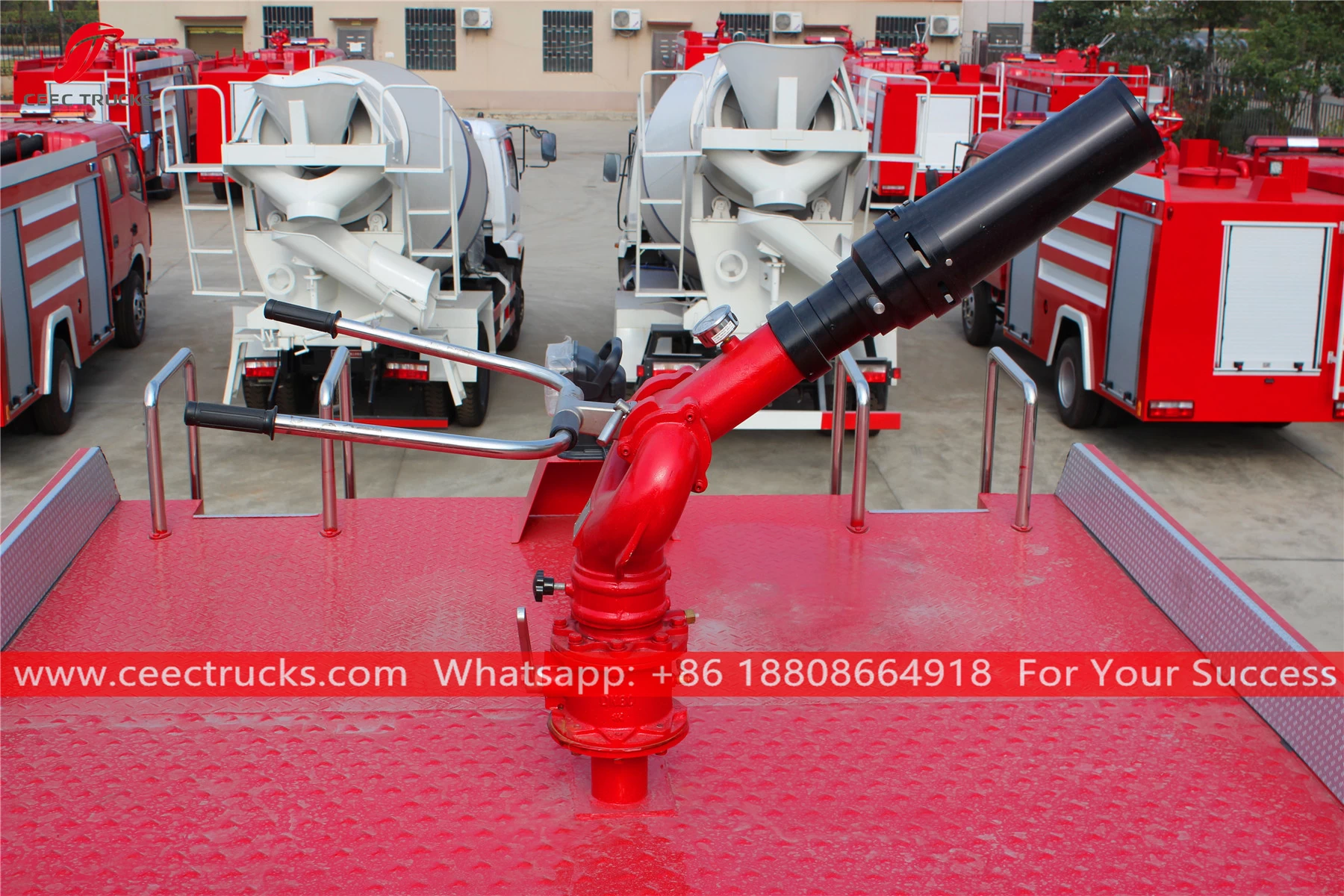

Fire monitor
|
Water jet distance: ≥45m
Foam jet distance: ≥40m
|
|
Electronic alarm
|
1.2 m long
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Standard carbon steel, stainless steel optional.
** USA or Germany fire pump can be optional
|
