Applications:
ISUZU GIGA Transit Mixer truck (also called transit mixer vehicle, concrete delivery truck, ISUZU GIGA transit mixing vehicle, cement mixer truck manufacturer, concrete
mixing truck, cement transportation truck, concrete truck for sale ) is designed
for both overseas and domestic high end heavy truck markets. In order
to prevail over its rivals in the global competition, key components of
the tipper truck are designed in close collaboration with top suppliers
in the world.
CEEC TRUCKS mixer truck is manufactured using the cutting-edge technology and components
in the world such as EATON, Rexroth, PMP, etc.
Key Features:
---- ISUZU heavy duty chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Pay loading from 3CBM to 18CBM.
---- Easy operation and easy maintenance.
---- Various types of Hydraulic main parts are available.
Specifications:
|

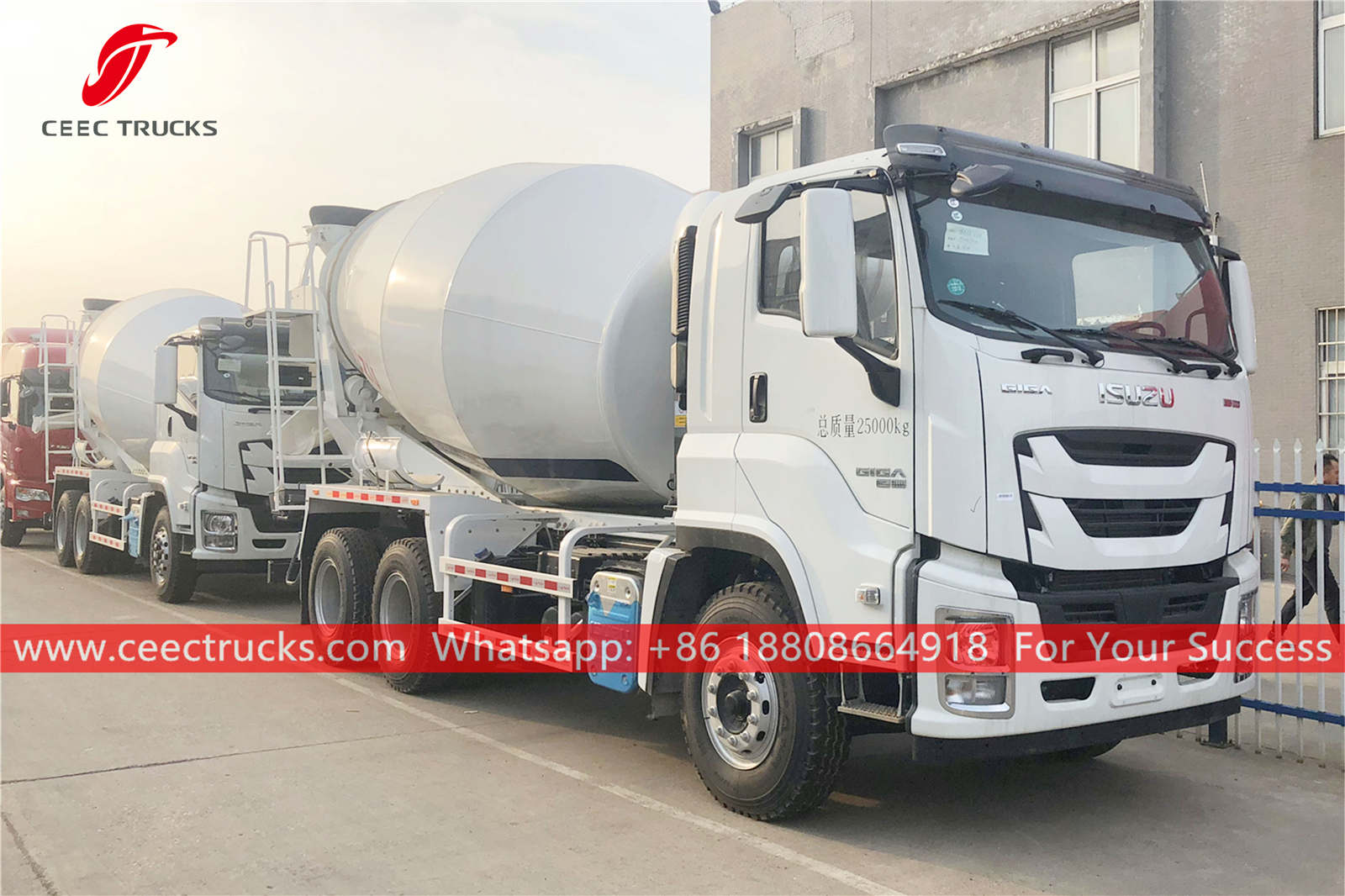

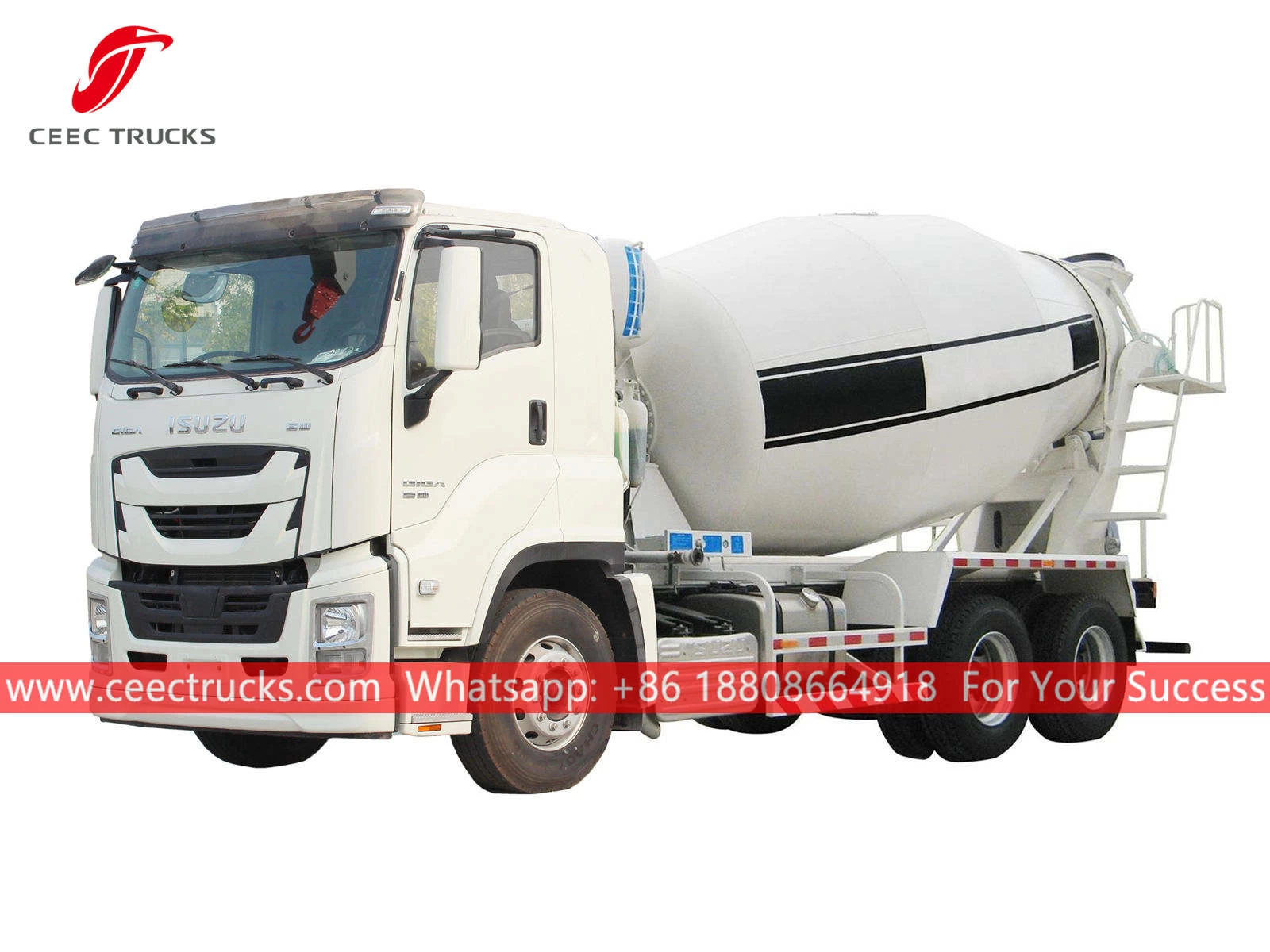

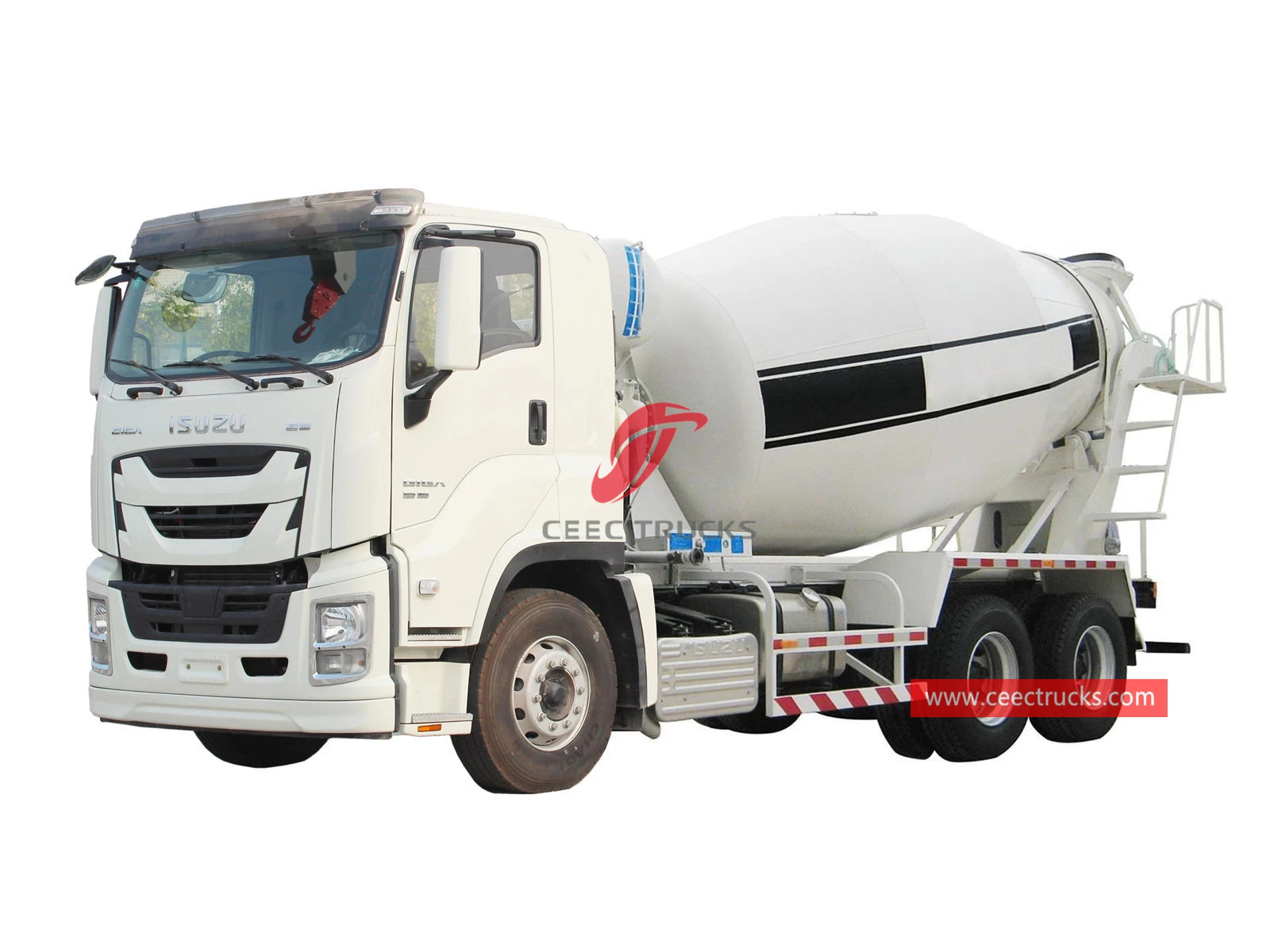

Cement Mixer Truck ISUZU GIGA (10 cbm)
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
8200 * 2500 * 3570 mm
|
|
GVW / Kerb Weight
|
25,000kg / 11,100kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
380 HP (280 KW)
|
|
Displacement
|
9839 ml
|
|
Emission Standard
|
Euro 5
|
|
Chassis
|
Drive Type
|
6X4 (left hand drive)
|
|
Transmission
|
ZF 16 speed levers with 1
reverse
|
|
Wheelbase/No. of axle
|
4565+1370 mm / 4
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|

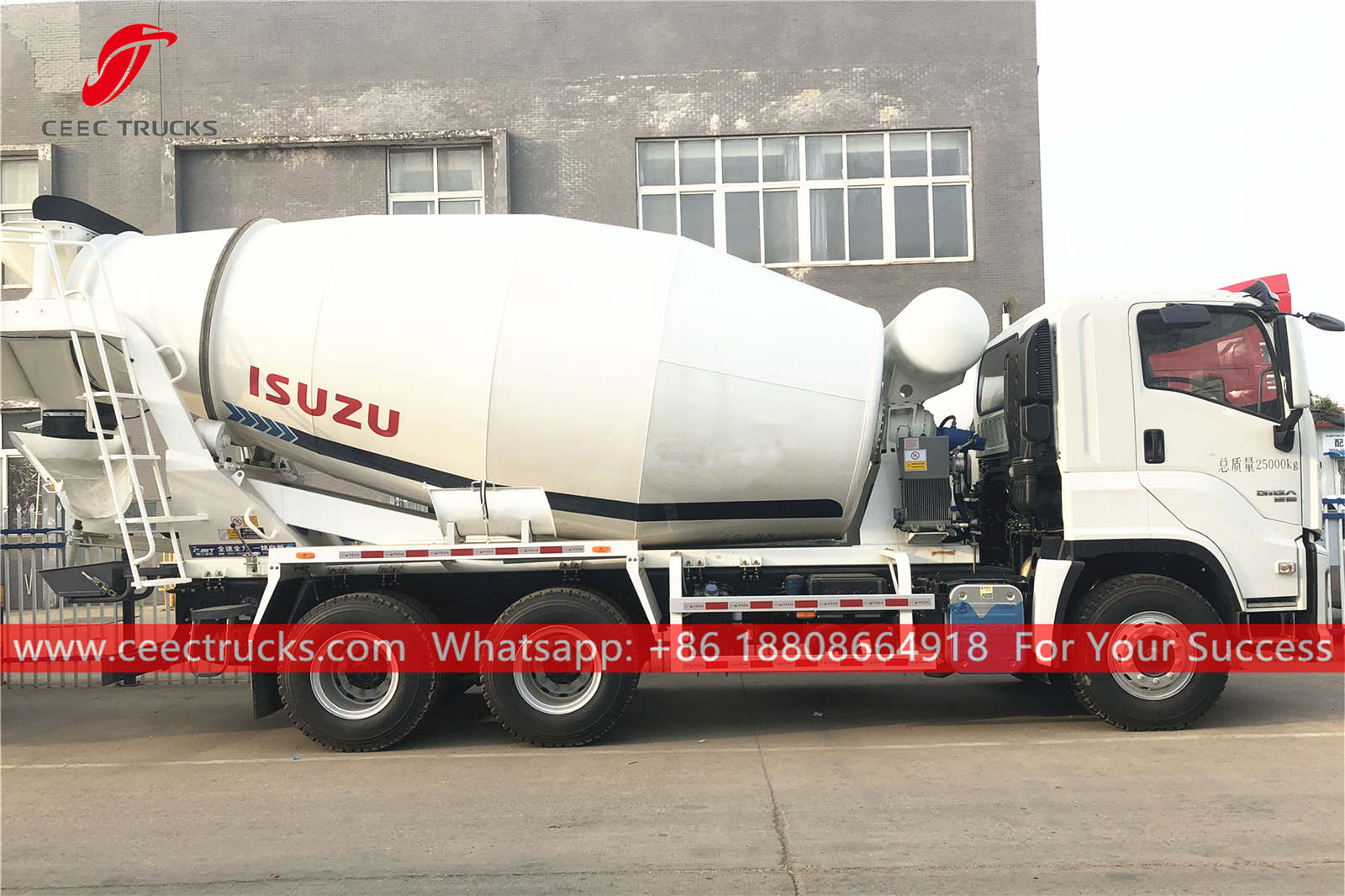

Superstructure
|
Mixer tank volume
|
10 cubic meter
|
|
Barrel wall Thickness
|
5 mm
|
|
Barrel wall material
|
T520JJ
|
|
Loading speed
|
≥ 1.2
|
|
Discharging speed
|
≥ 2.7
|
|
Rest rate
|
≤ 1
|
|

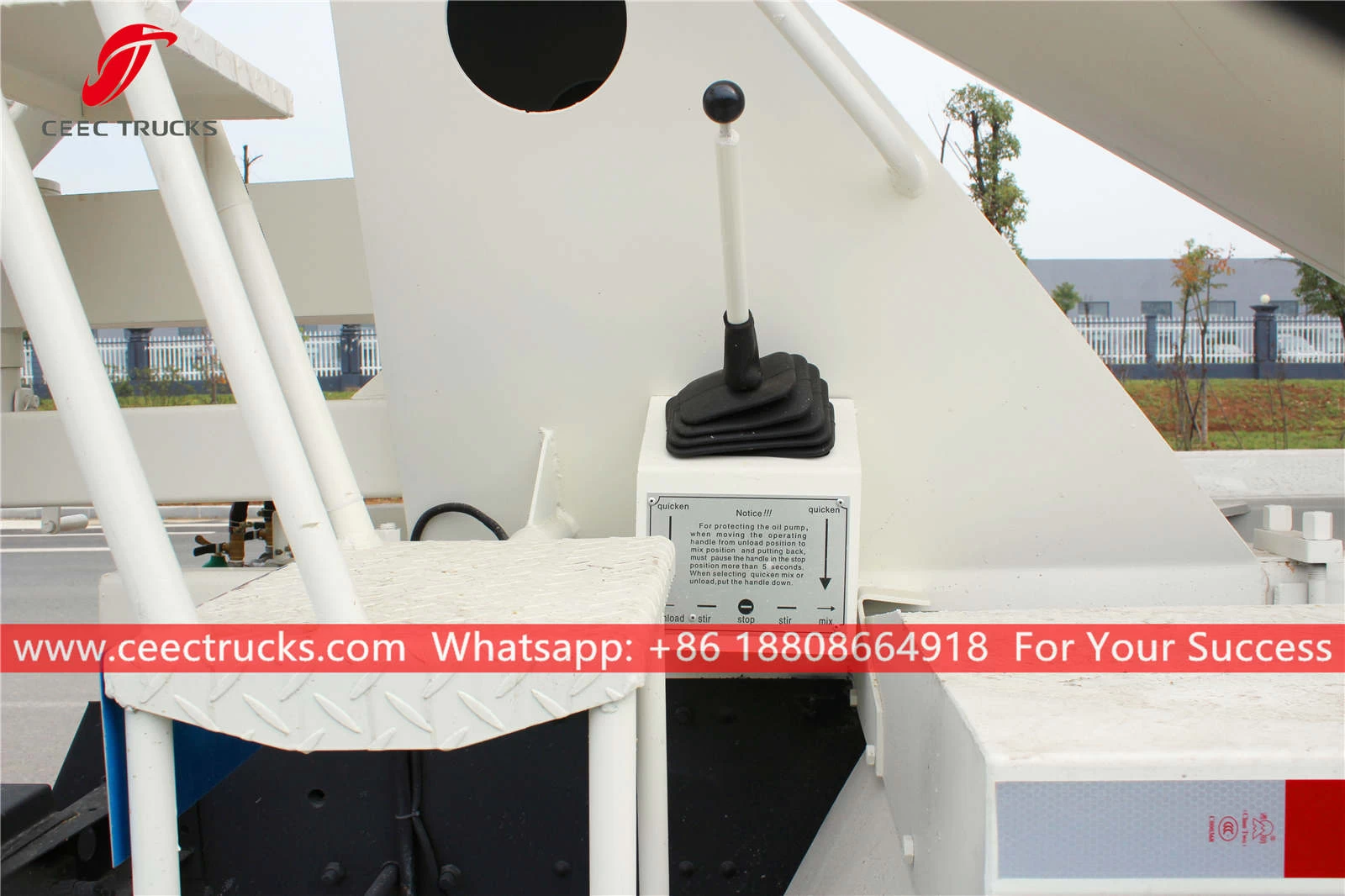

Control
|
Both side with hydraulic control
|
|

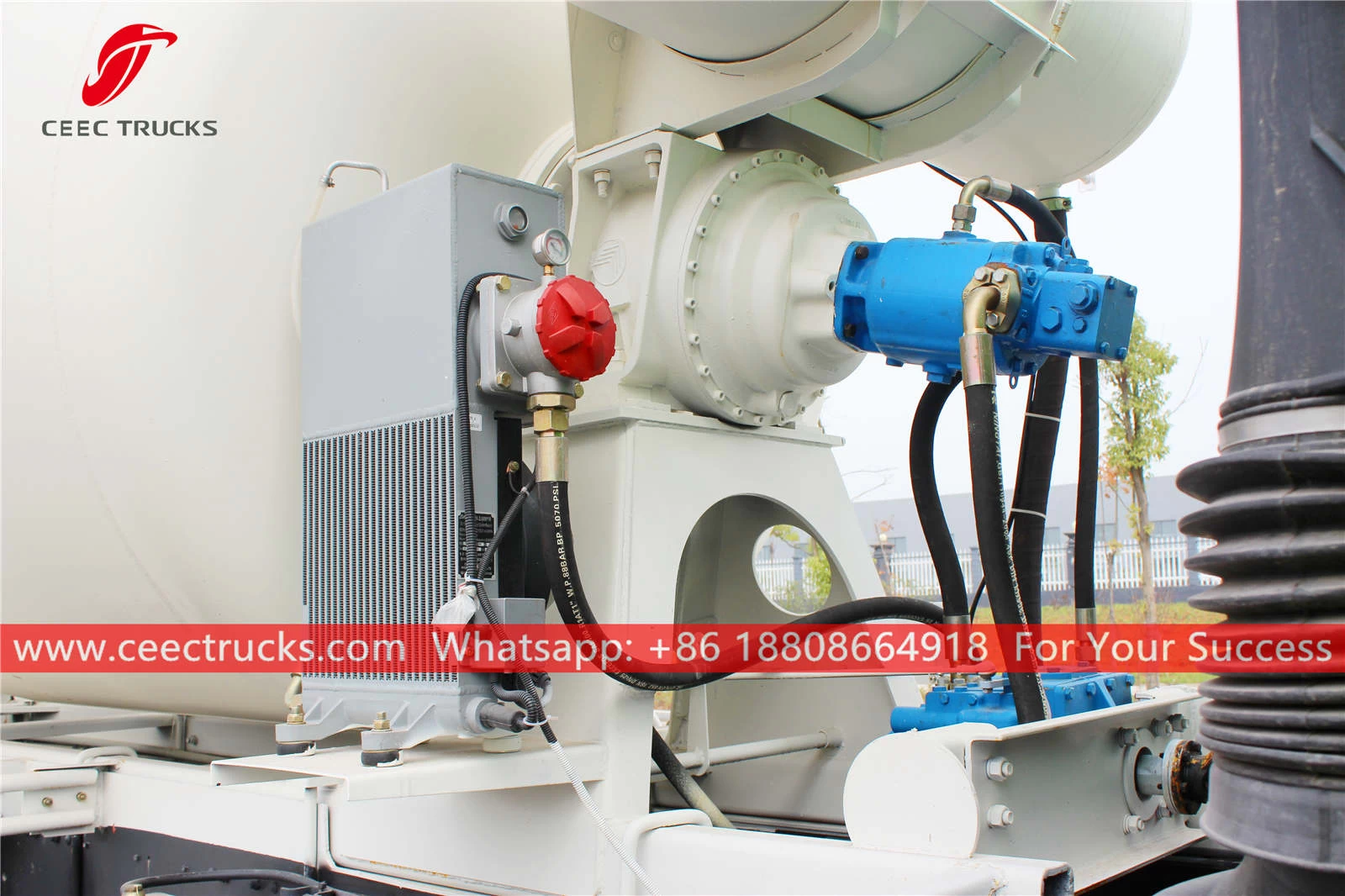

Pump
|
Import Brand
|
|
Motor
|
Import Brand
|
|
Reducer
|
Import Brand
|
|
Color & LOGO
|
According to wish
|
|
All standard accessories: All tools. .
Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Other body capacity can be choose.
** Other material and plate thickness can be choose.
|

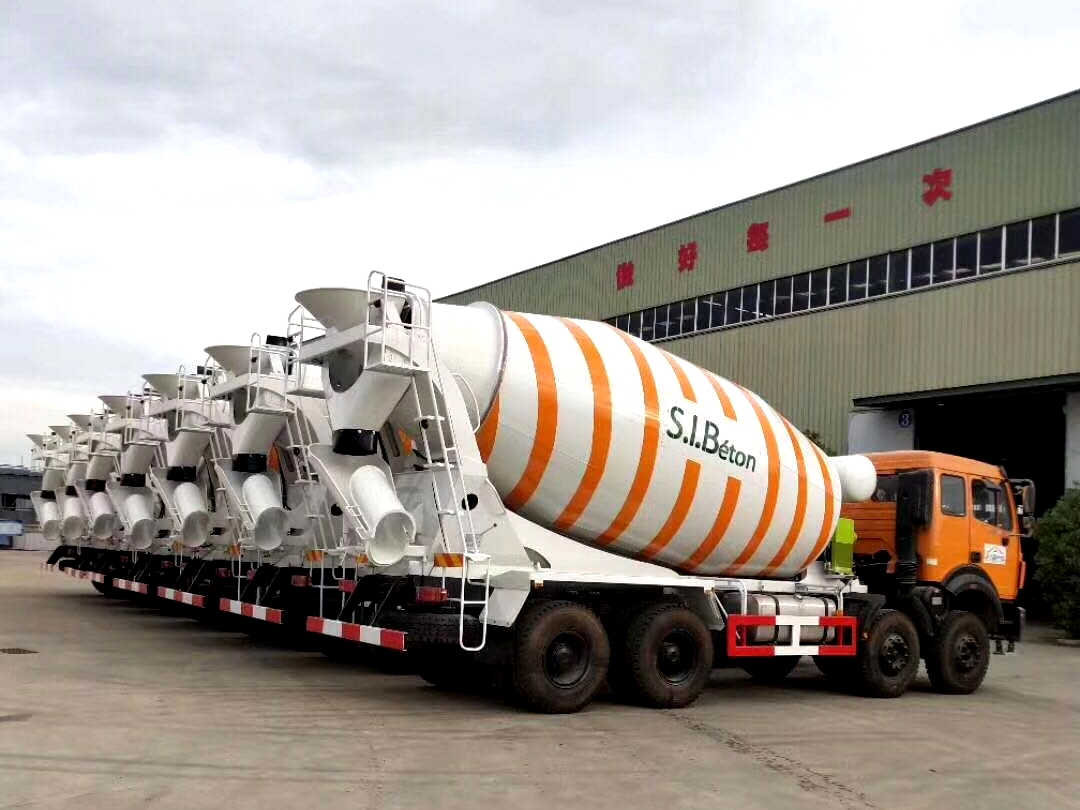

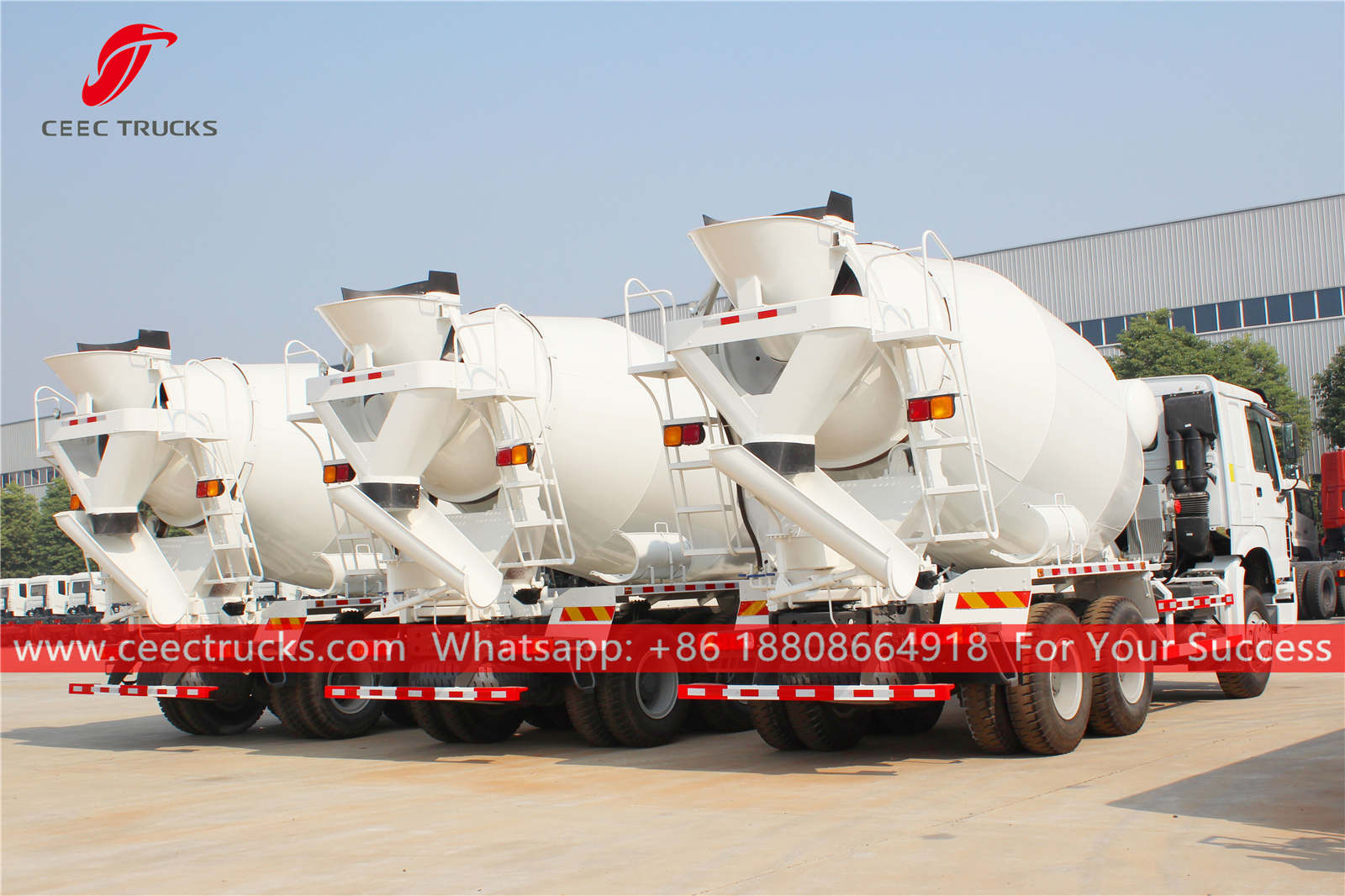

（8 units concrete mixers were exported to Mongolia)
