Applications:

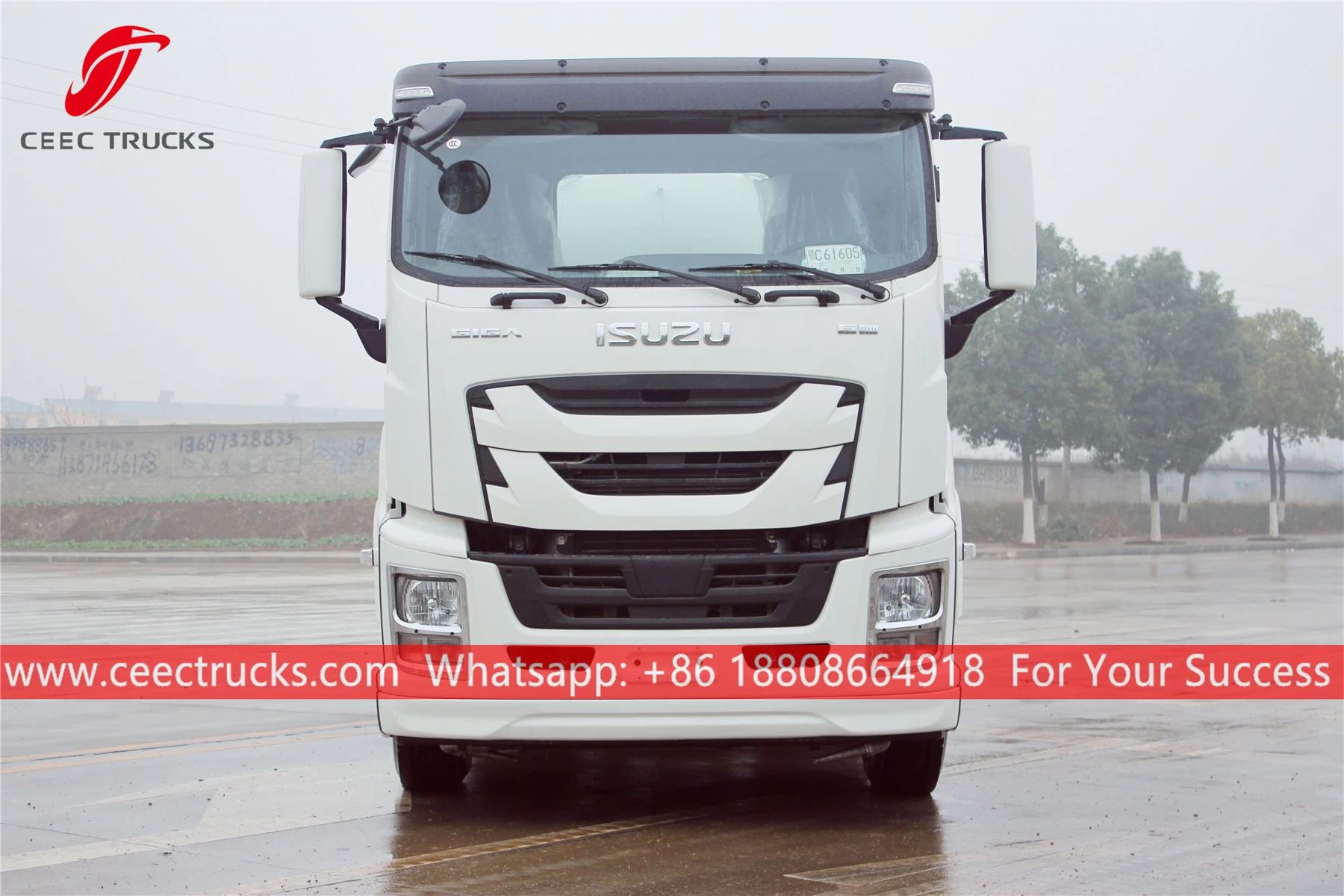

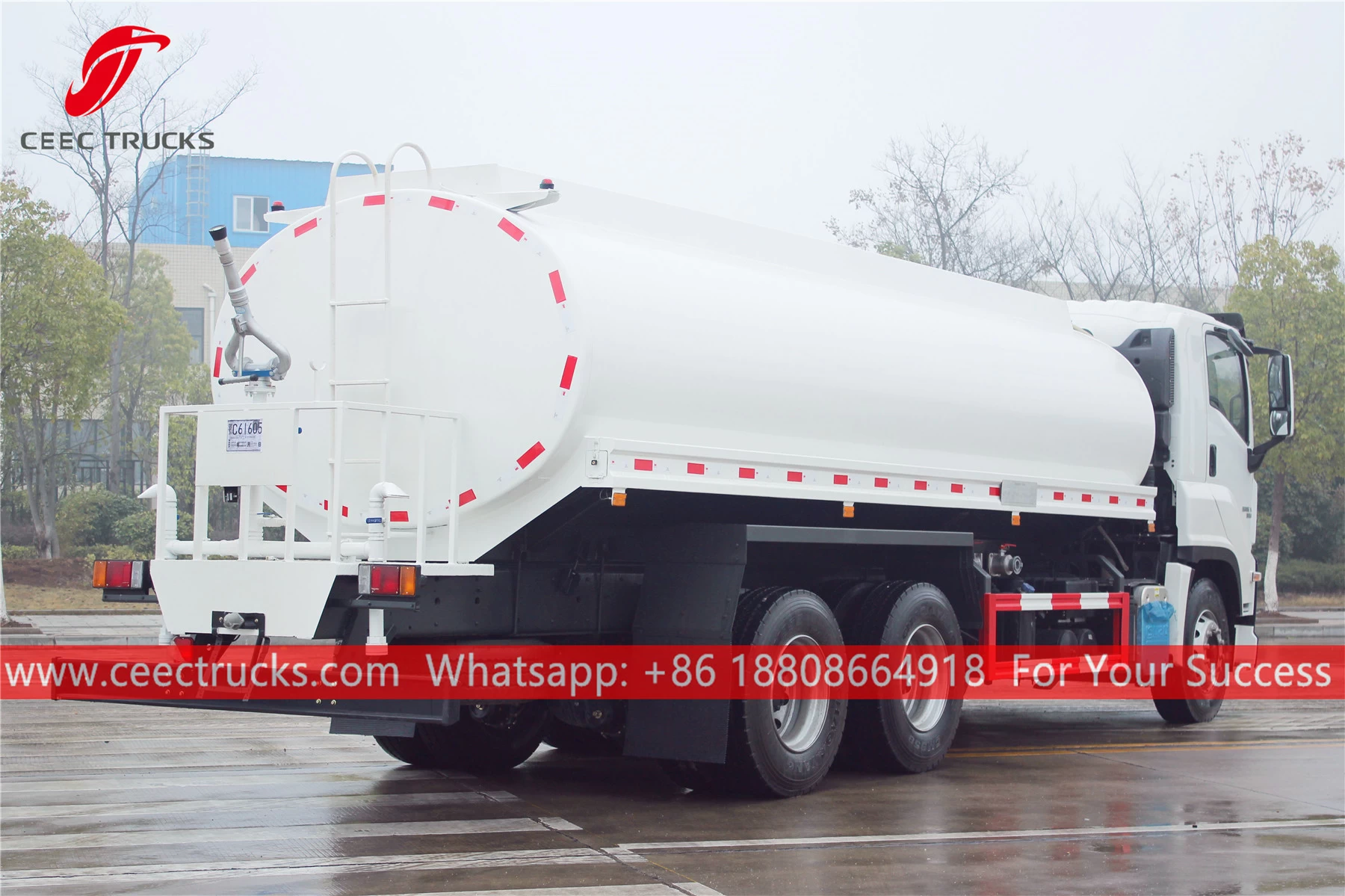

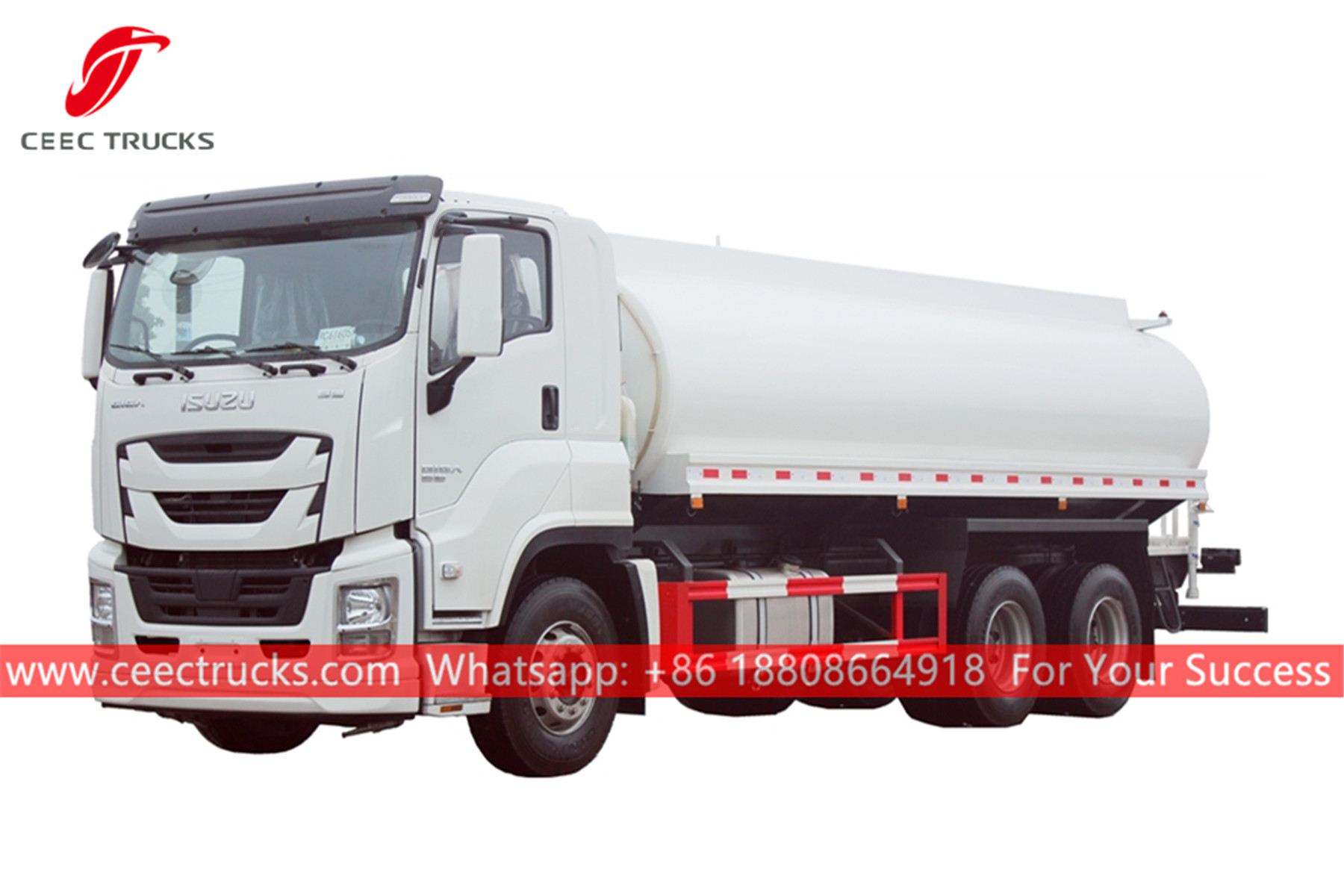

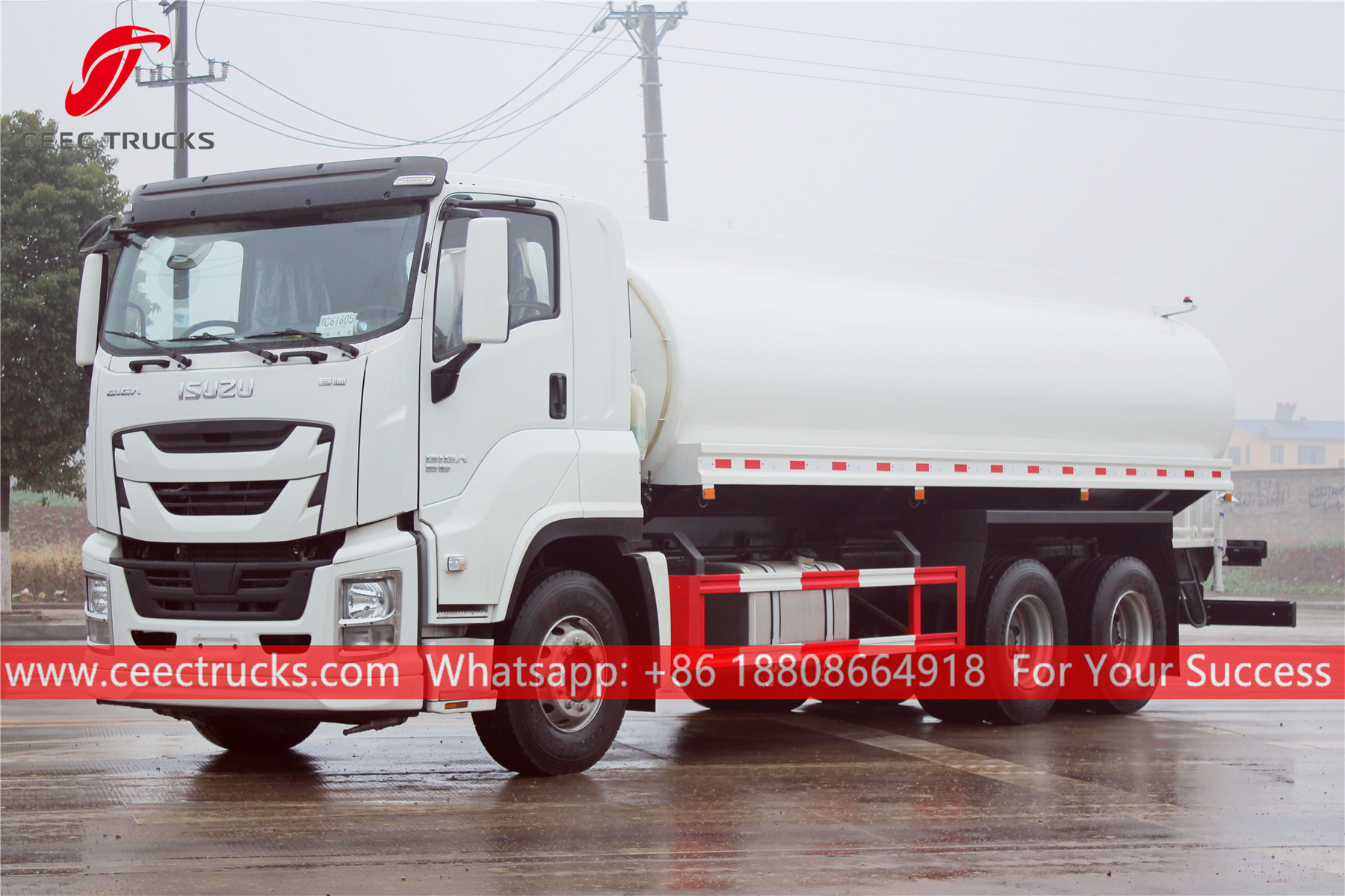

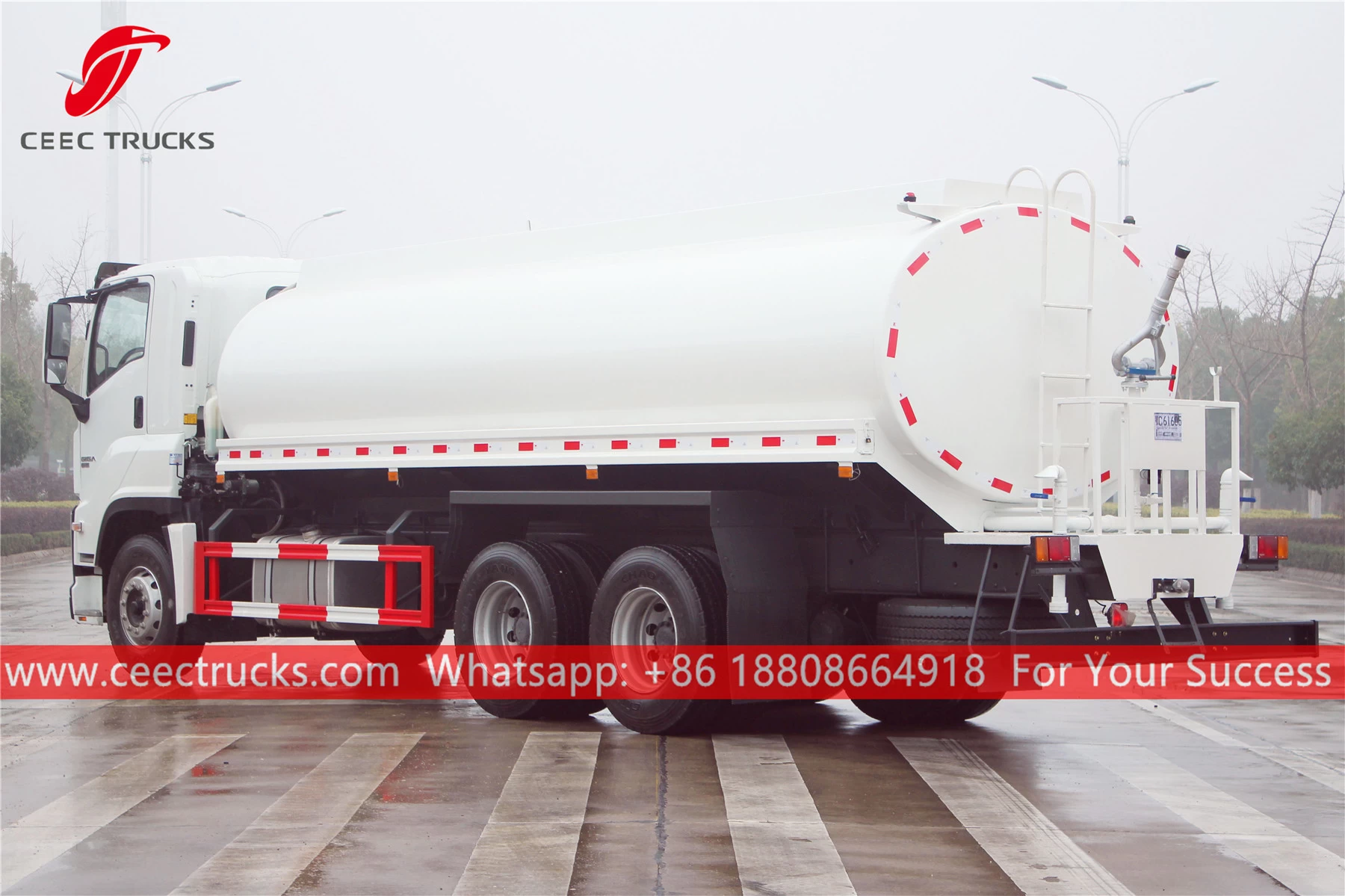

ISUZU GIGA 20CBM Water spray truck (also called ISUZU GIGA Water Tanker, Hot sale Water spraying truck ISUZU GIGA, ISUZU GIGA Water Spraying Truck, ISUZU 10-wheel water transportation truck, ISUZU GIGA water tank lorry) is used for the road flushing, tree and lawn greening, high building
cleaning, construction of road and factories. It has the functions of
flushing, watering, transporting water and fire fighting.
CEEC TRUCKS water truck is mainly composed of chassis, tanks, pumps, valves, and
the water pipe, sprinkler and other parts. Water truck is made of high
quality carbon steel sheet.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
Specifications:
|

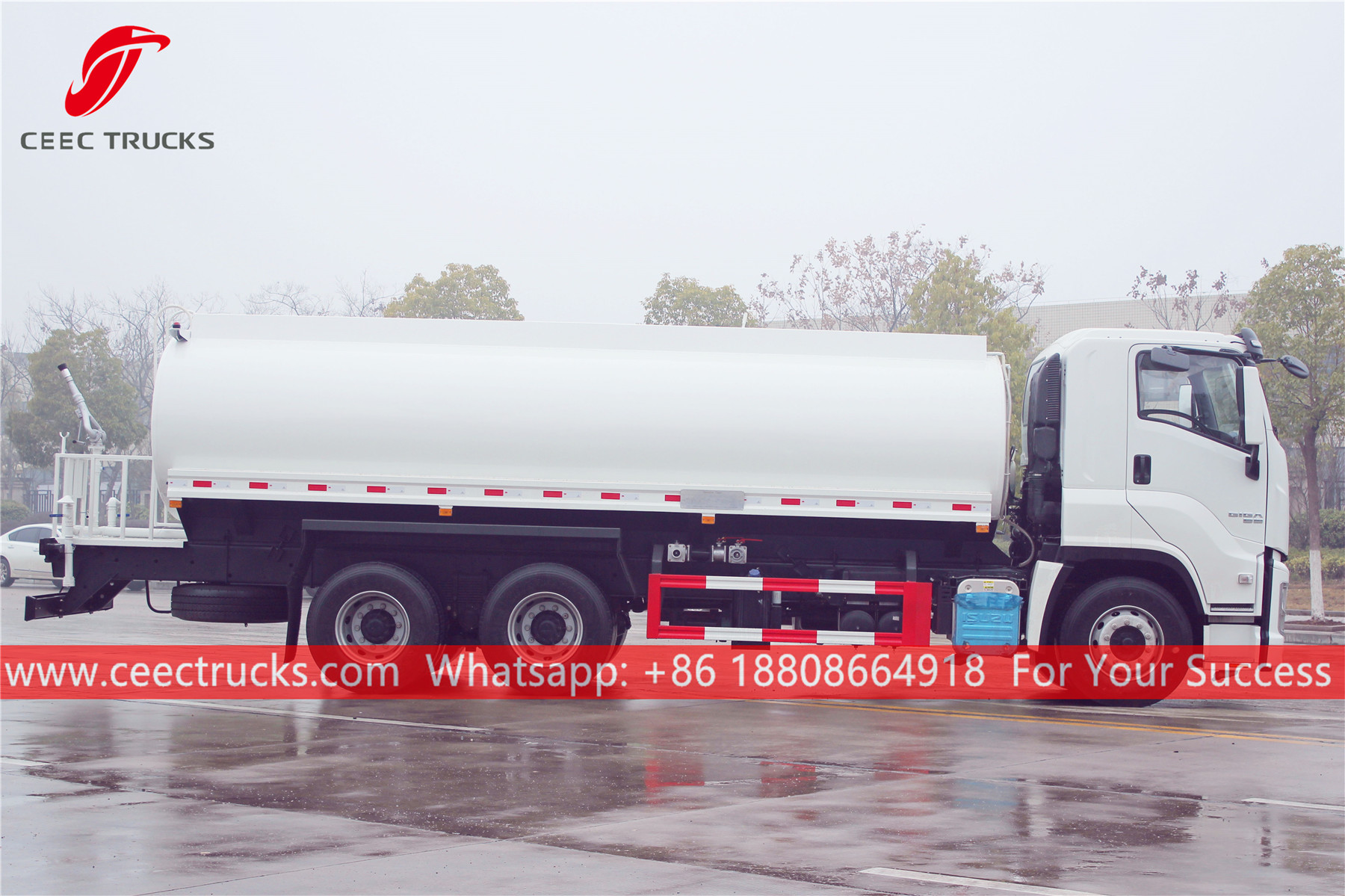

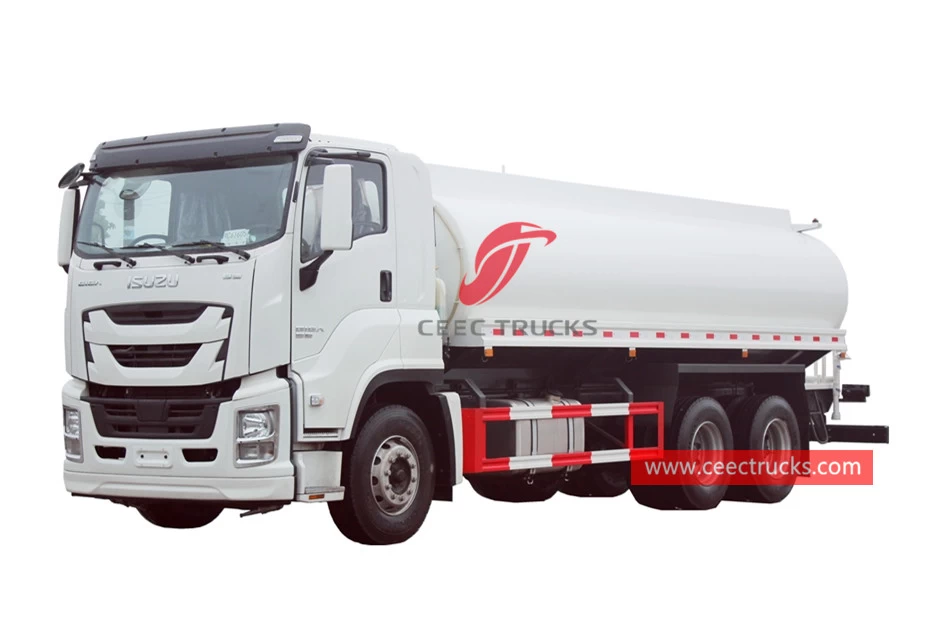

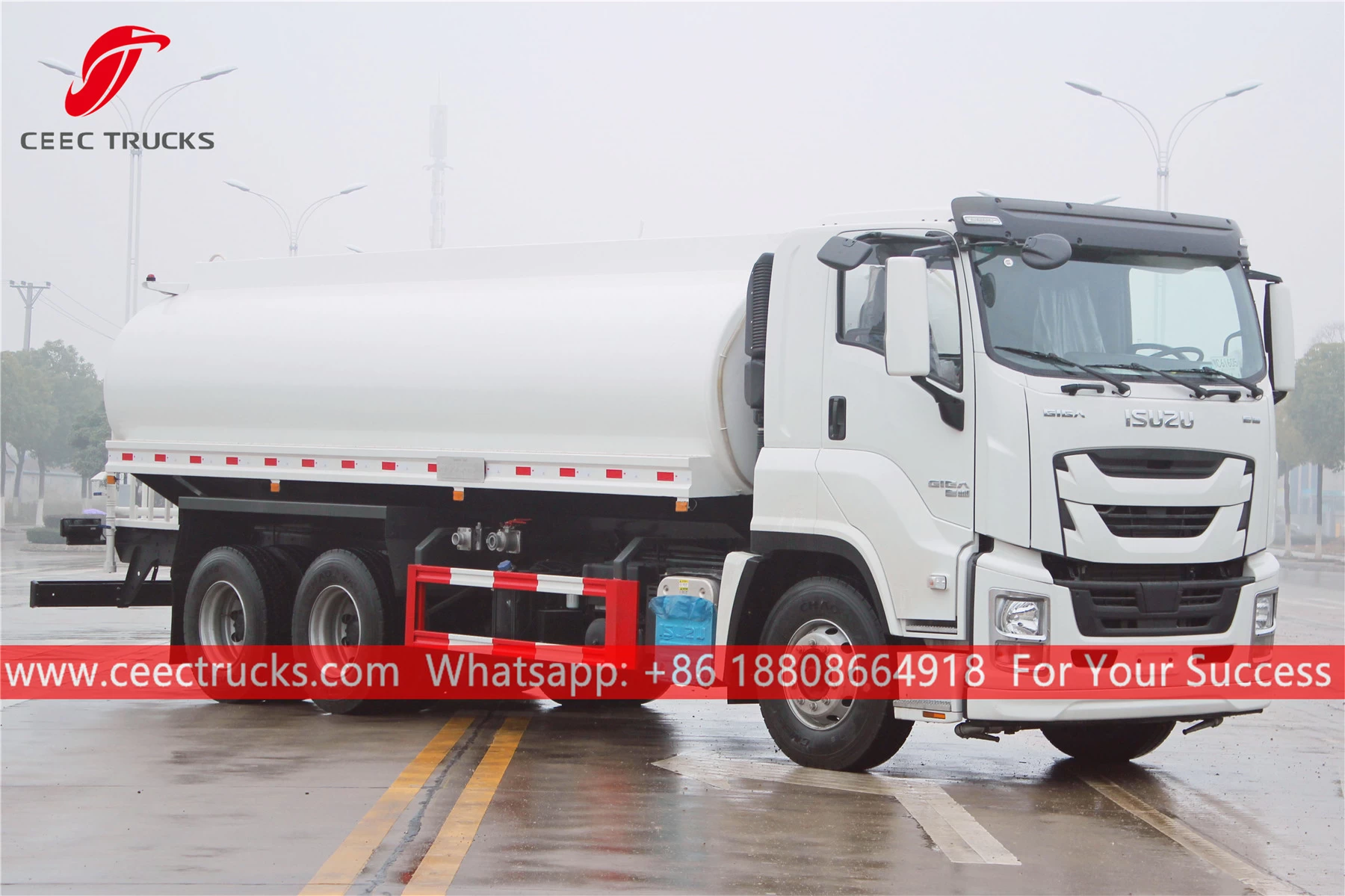

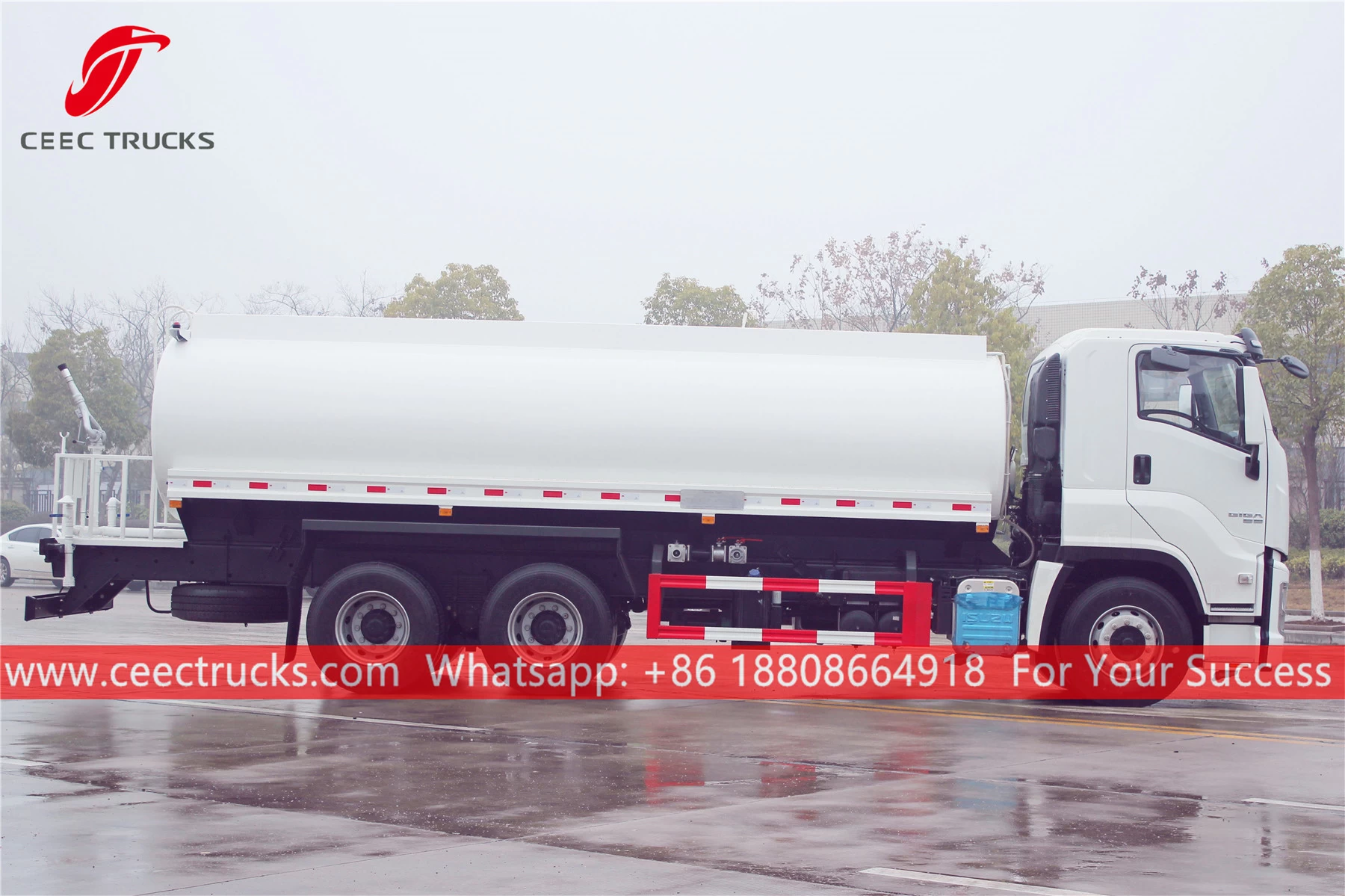

ISUZU GIGA Water Spraying Truck(20,000L)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
10100 * 2500 * 3050 mm
|
|
GVW / Kerb Weight
|
25,000kg / 11,800kg
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
380 HP (279 KW)
|
|
Displacement
|
9839 ml
|
|
Emission Standard
|
Euro 4
|
|
Chassis
|
Drive Type
|
6X4 (left hand drive)
|
|
Transmission
|
16 speed levers with 2 reverse
|
|
Wheelbase/No. of axle
|
4350+1300 mm / 3
|
|
Tire Specification
|
11.00-20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Tank Capacity
|
20,000 Liters
|
|
Tank shape
|
Ellipse
|
|
Material
|
Carbon steel, 4mm
|
|
Body Material
|
Whether resisting steel
|
|

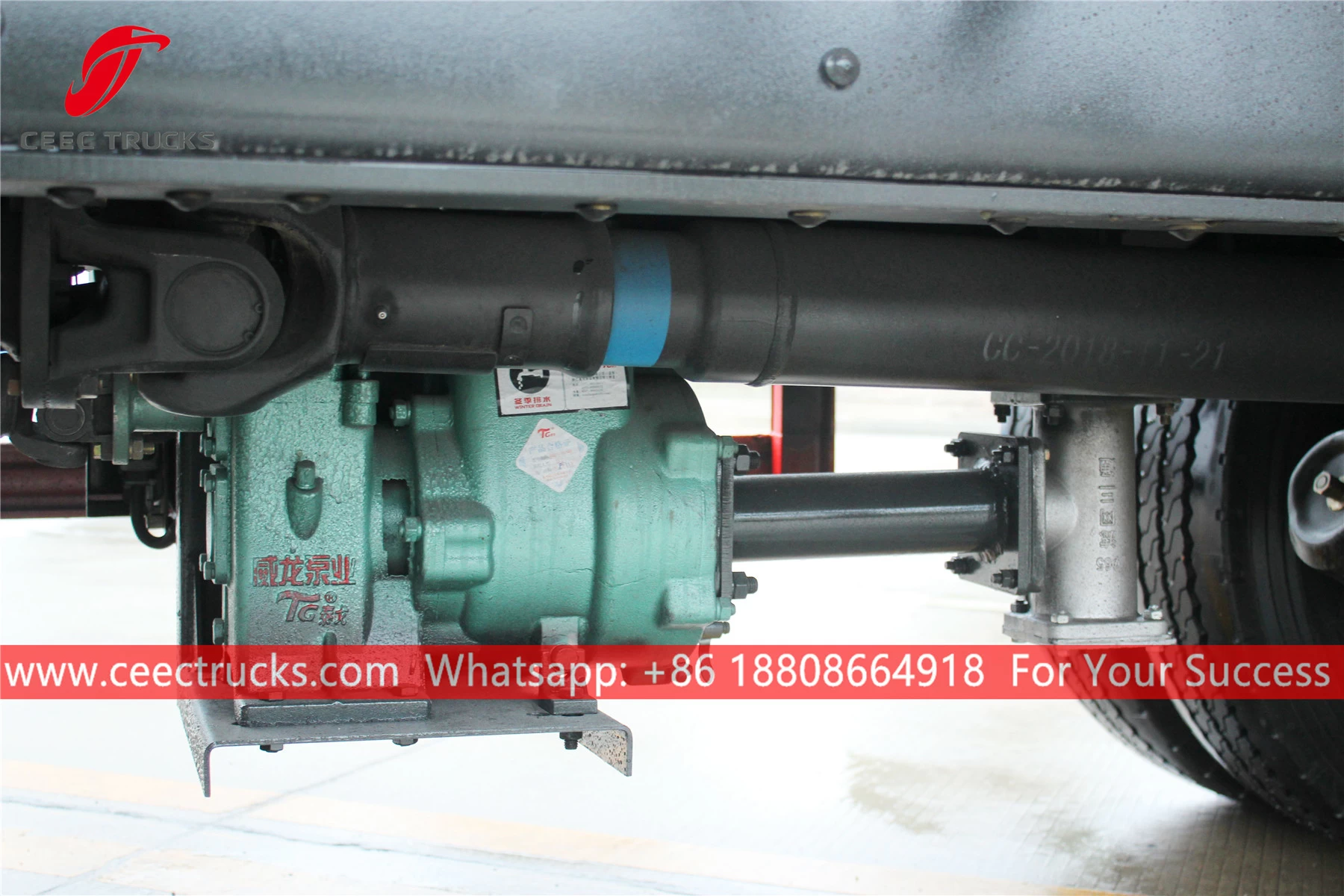

Water pump
|
China famous brand
|
|
Loading type
|
Self loading
|
|
Front spray bar
|
YES
|
|

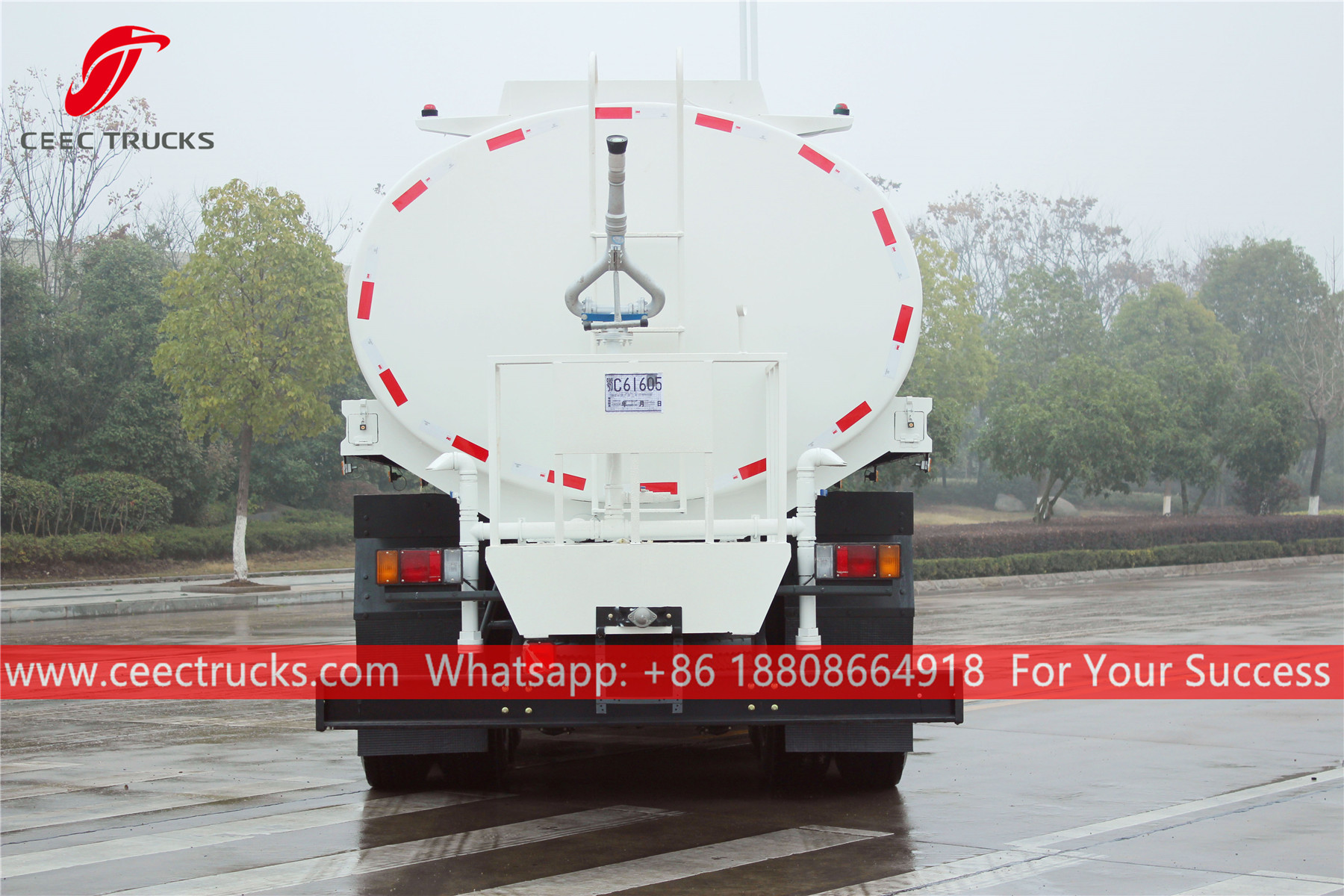

Rear spray bar
|
YES
|
|
Water Canon
|
28 meters
|
|
Fire coupling
|
Standard
|
|
Control
|
Manual (Optional air operated)
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|

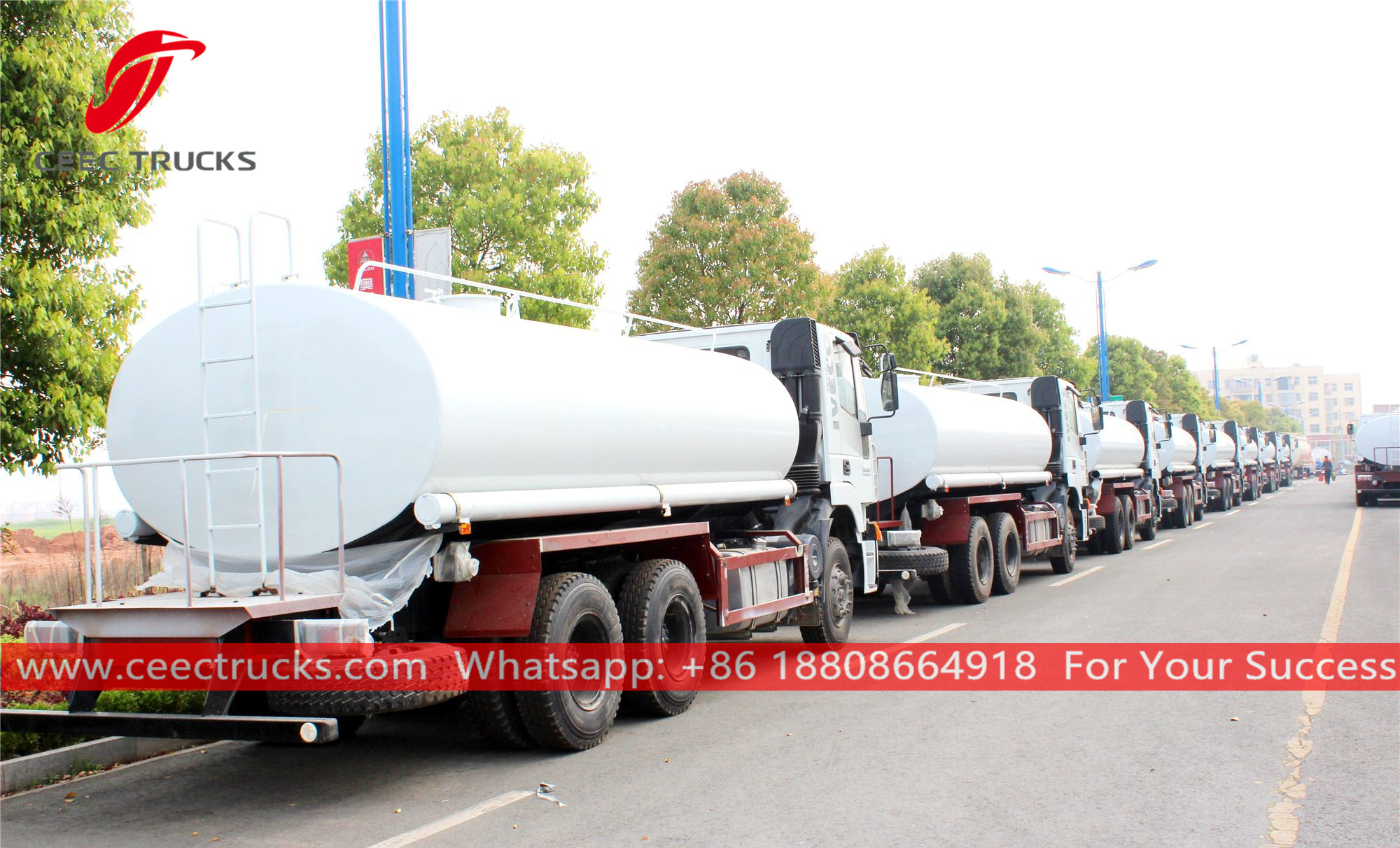

(27 units water bowser trucks were delivered to client)
