ISUZU GIGA Manlifter Aerial Platform Truck

Isuzu GIGA Aerial work platforms play a significant role at worksite, particularly for the construction of electrical and telecommunication infrastructures, that are essential for daily life

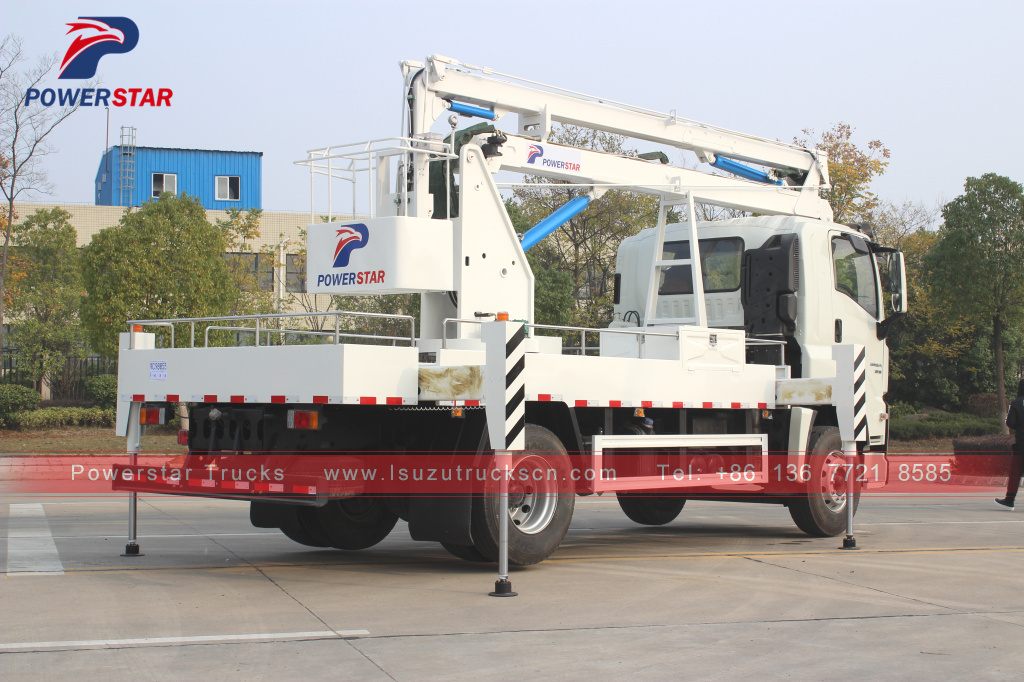

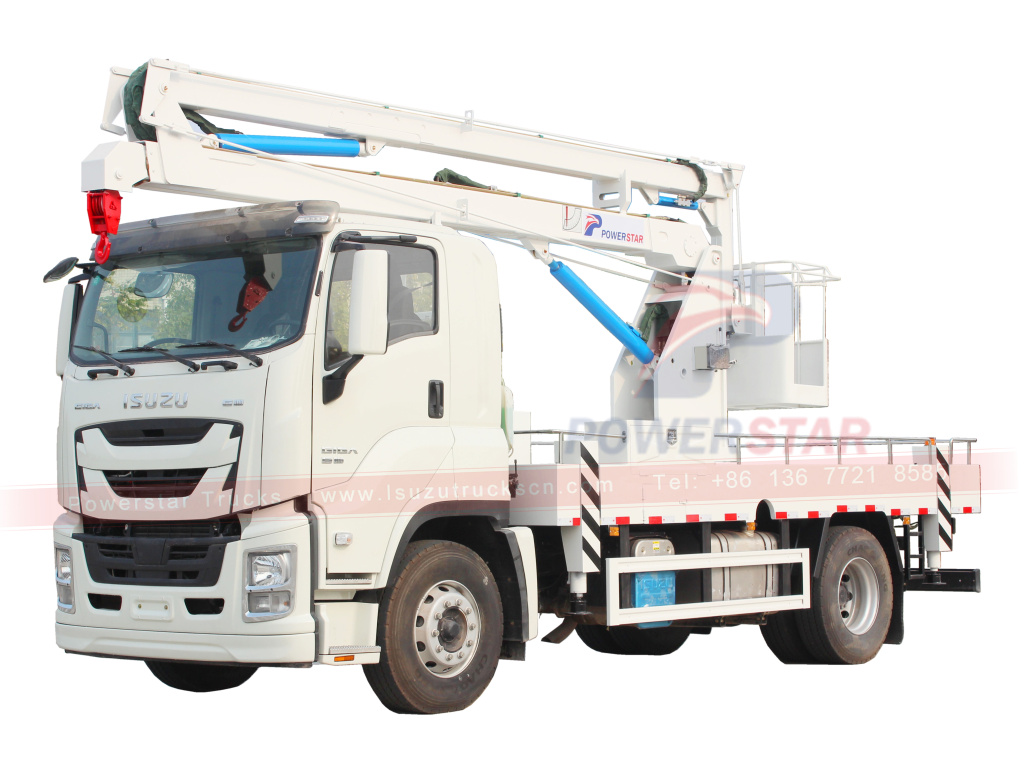

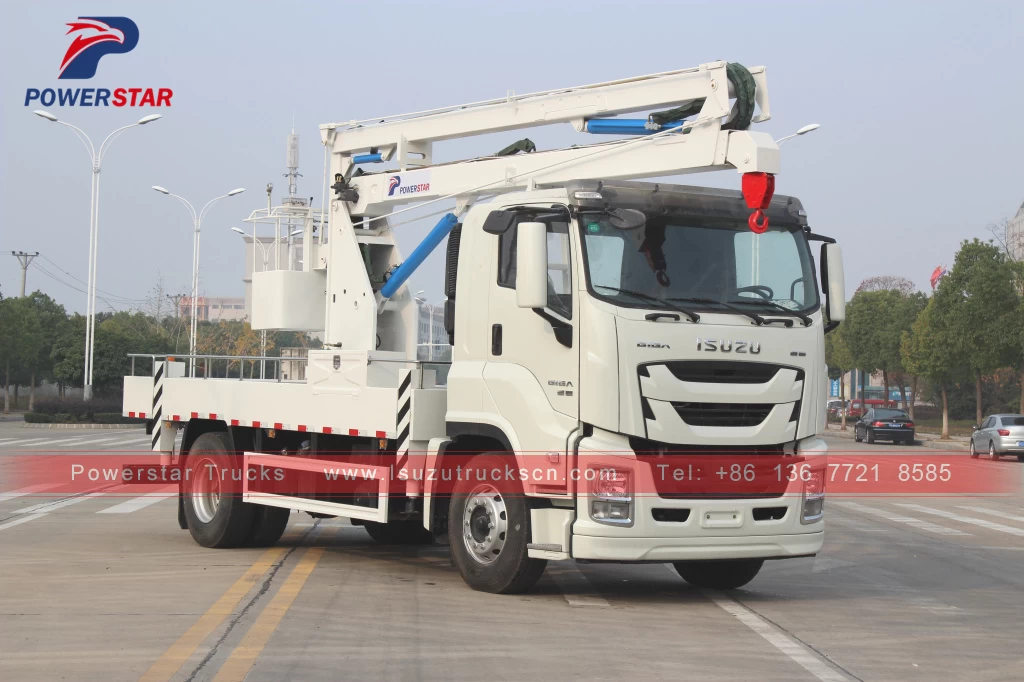

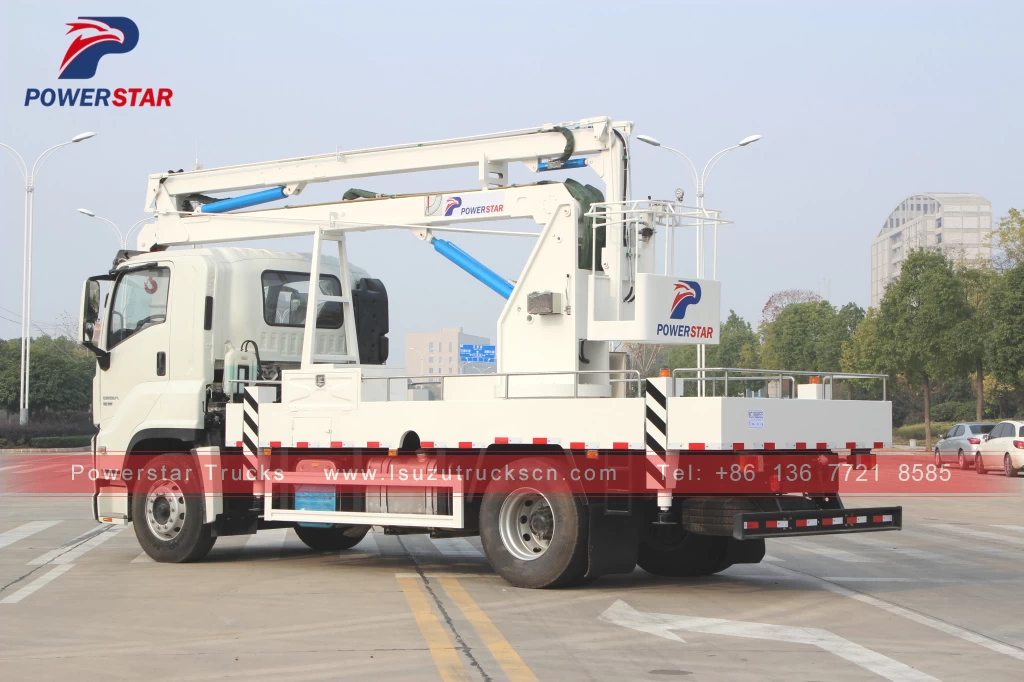

ISUZU GIGA Manlifter Truck with Basket Crane

ISUZU GIGA Manlifter Truck with Basket Crane




Function:

GIGA Sky Manlifter Truck ISUZU (also called Isuzu basket crane truck, Aerial lift trucks, Telescopic boom aerial platform truck etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.



Features:

---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;

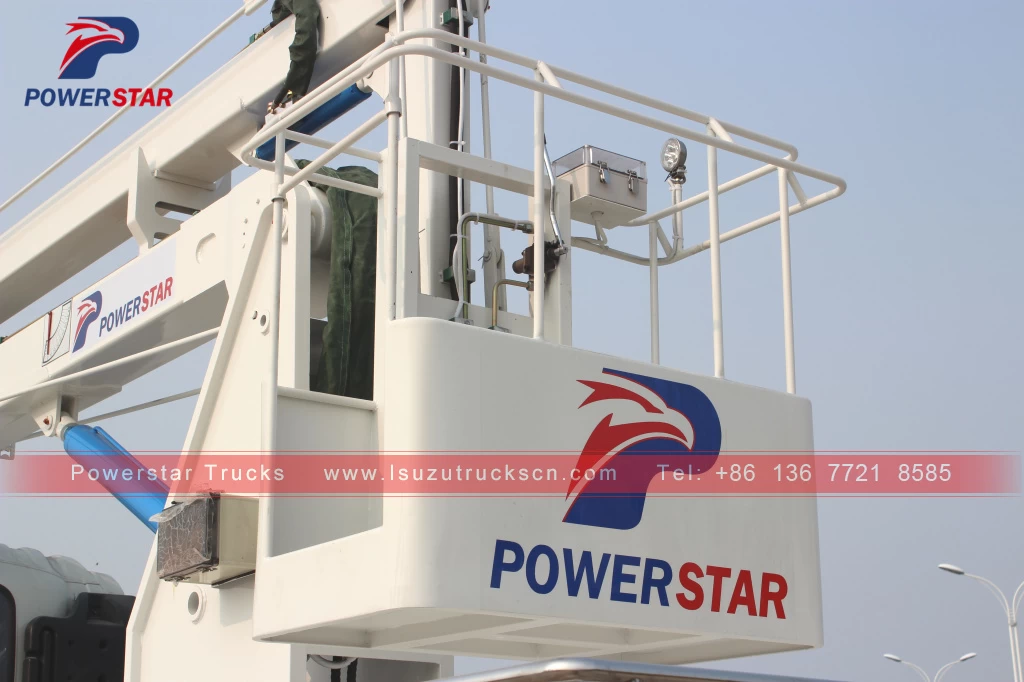

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;

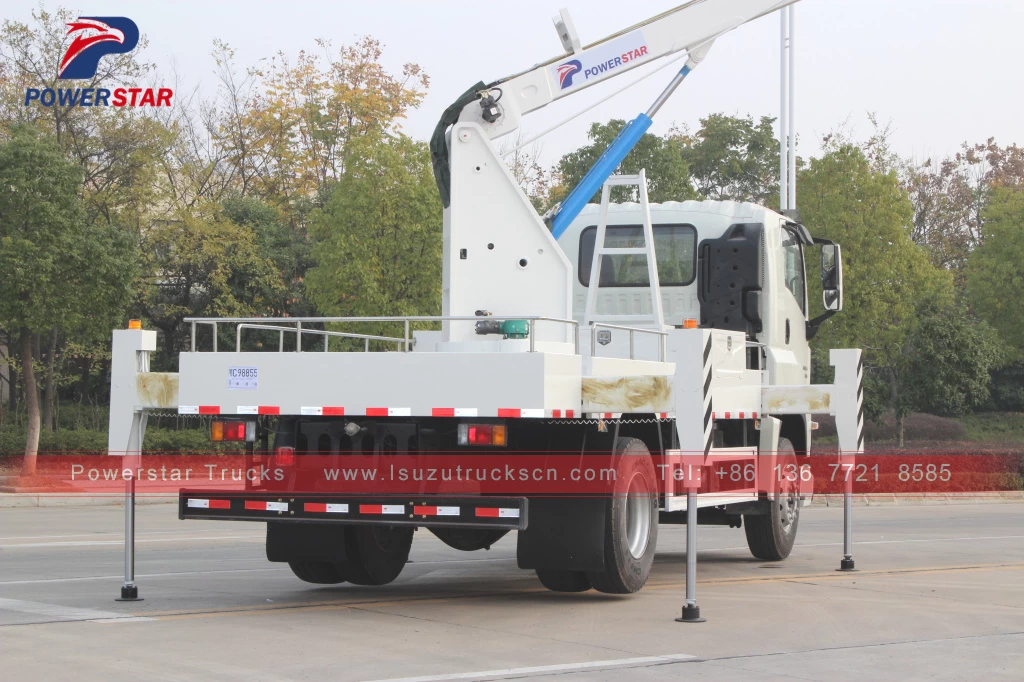

---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Similar Key Words:  Aerial ladder platform truck, High-altitude operation truck, Hydraulic man lift  truck, Aerial bucket crane truck,


 ISUZU GIGA Overhead Working Truck (20M)
General Vehicle Brand POWERSTAR
Chassis Brand ISUZU GIGA
Overall Dimension 9500 x 2500 x 3500 mm
GVW / Kerb Weight 34,000 kg / 10,300 kg

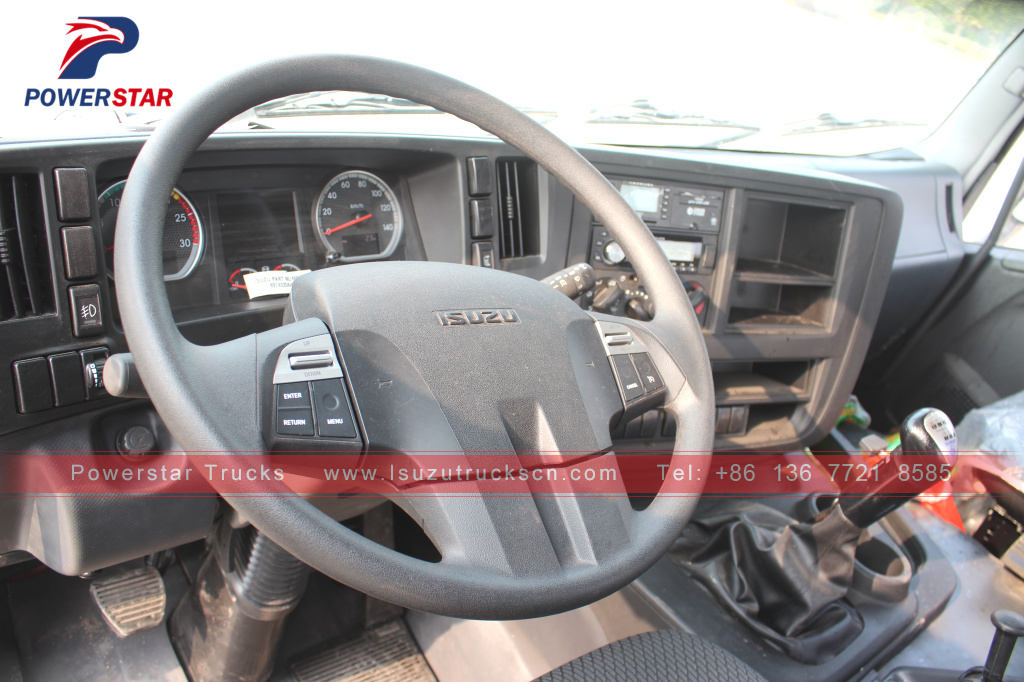

Cab Cab Capacity 2 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 6UZ1-TCG50
Power 380Ps (280KW)
Displacement 9839 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left hand drive
Transmission 12- transmission, 6-forward gears & 1 reverse, no overhaul within 500,000km
Wheelbase/No. of axle 4500 mm / 2
Tyre Specification 12.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 20 m

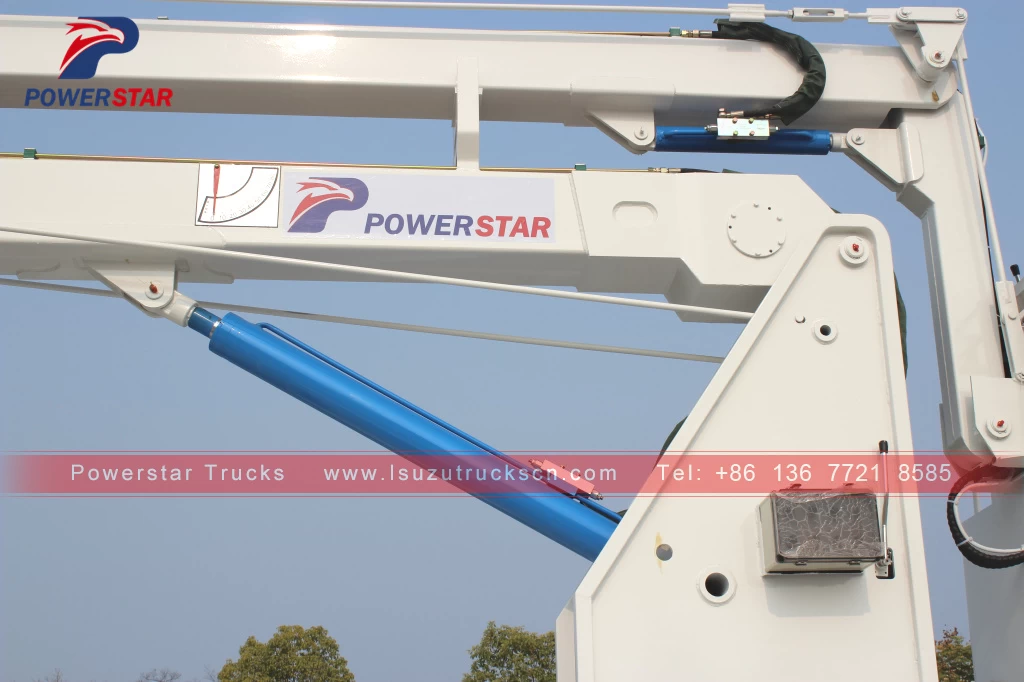

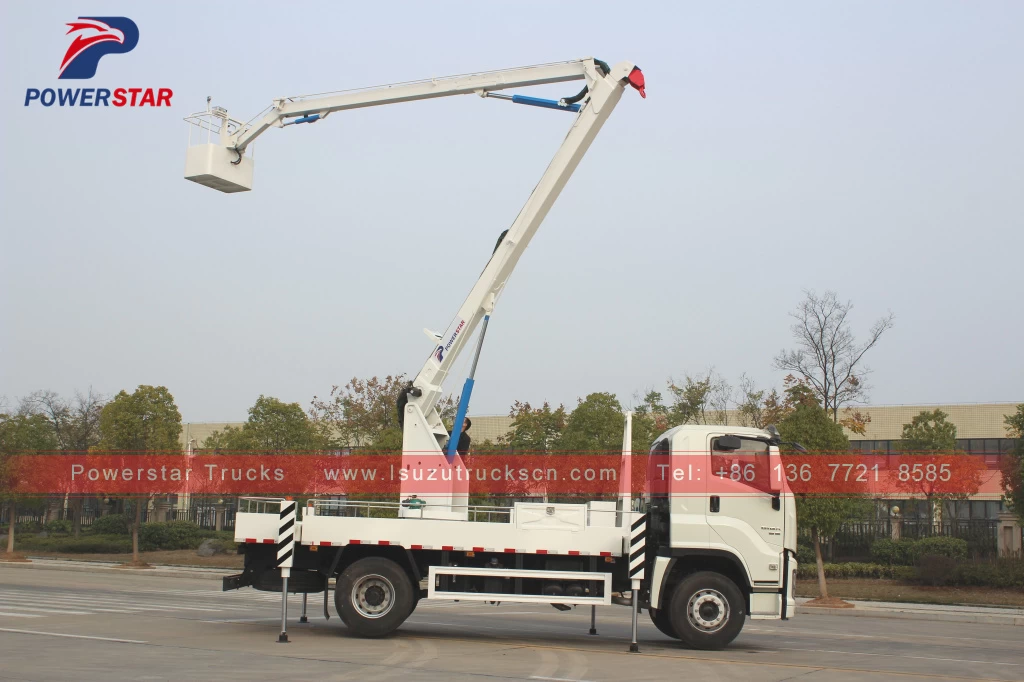

Beam The beam is articulated & telescopic extension type, hydraulic actuated and controlled
Slewing Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.

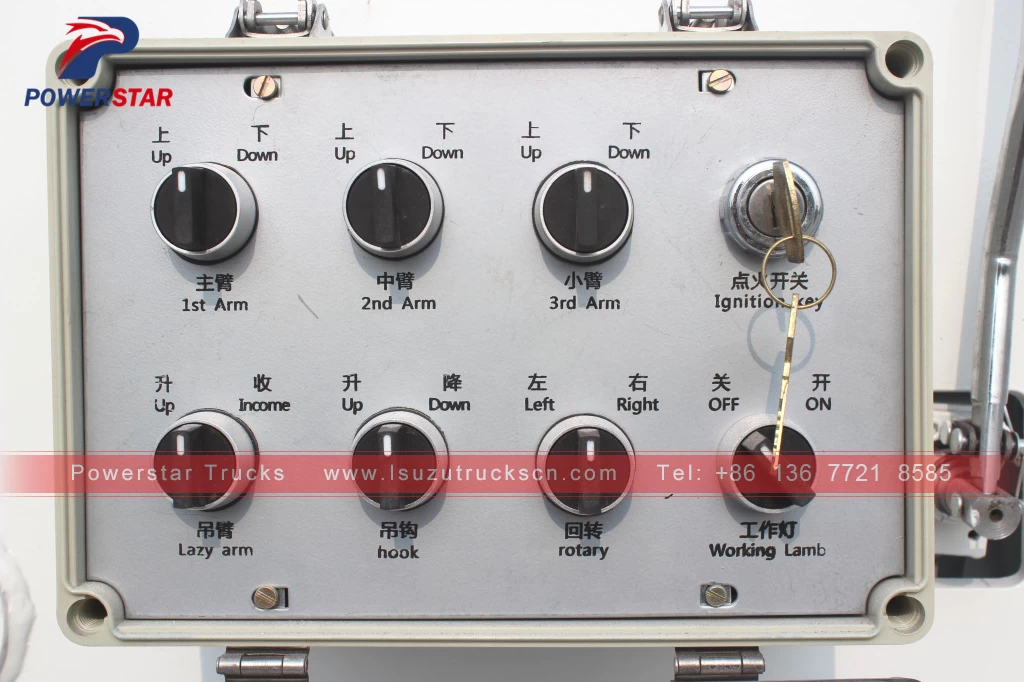

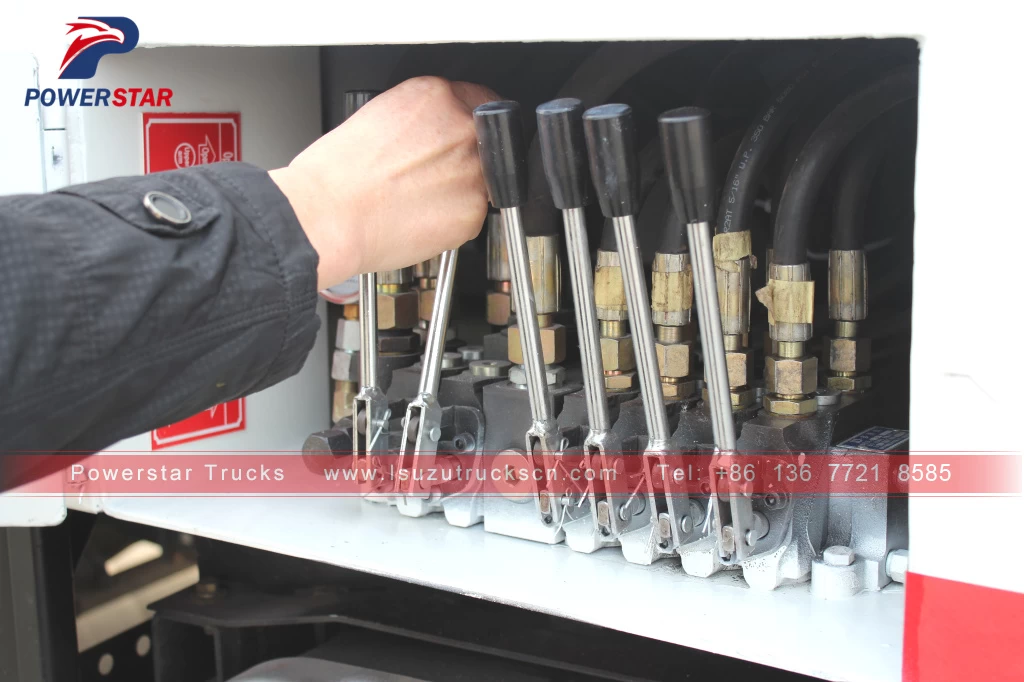

Control Control both on the ground and remote control in cage
Safety Device Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
Leveling System Hydraulic stabilizer to level the vehicle on uneven ground
Optional Insulated cage; Wireless remote control system

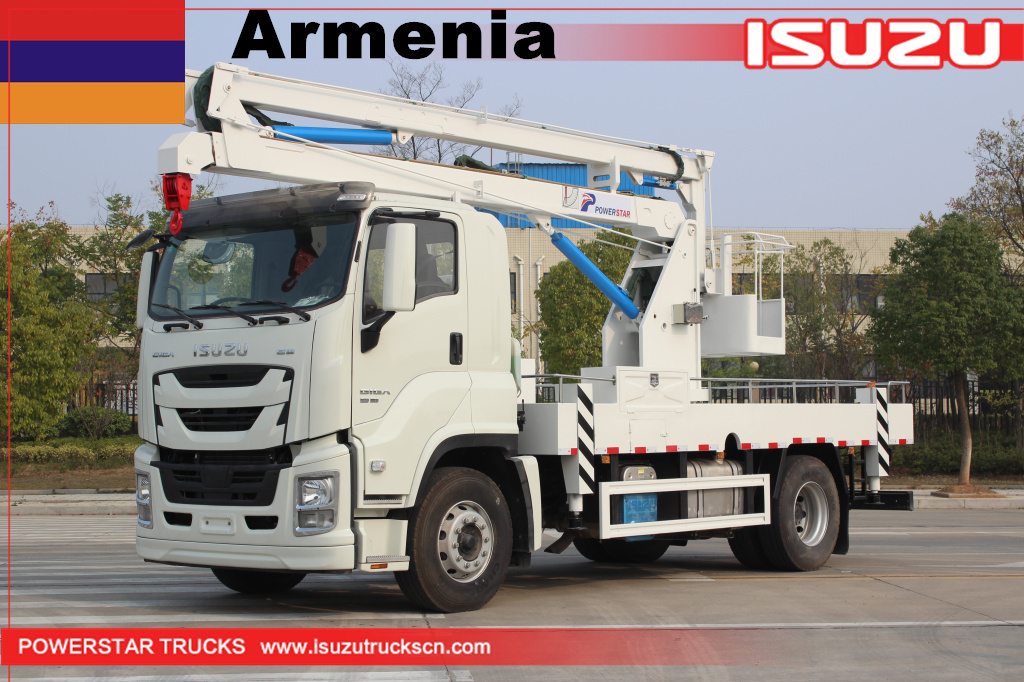

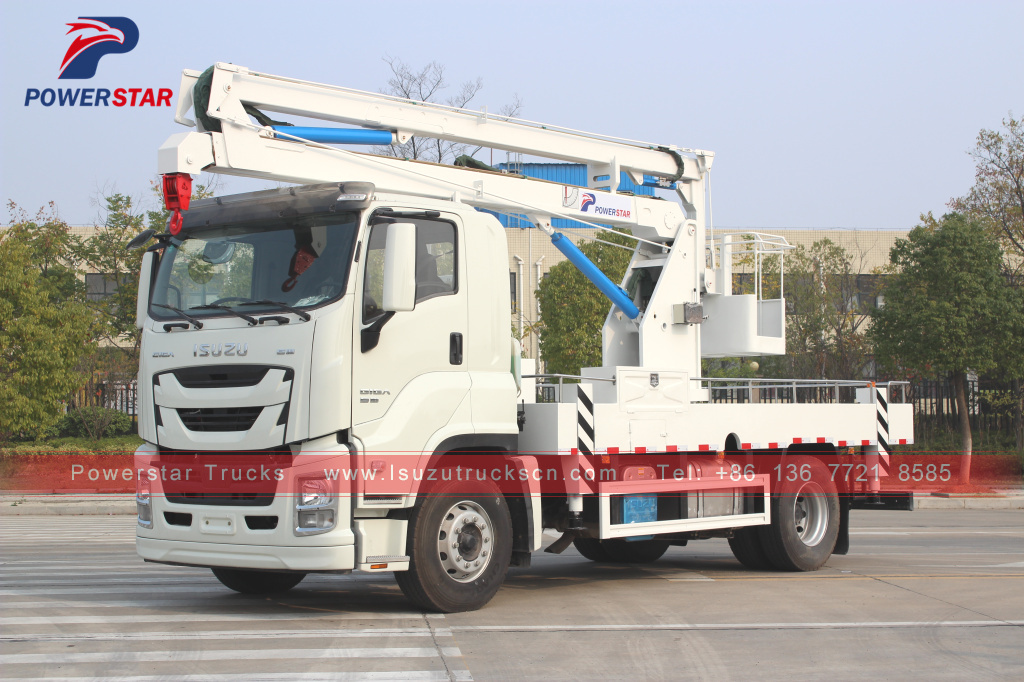

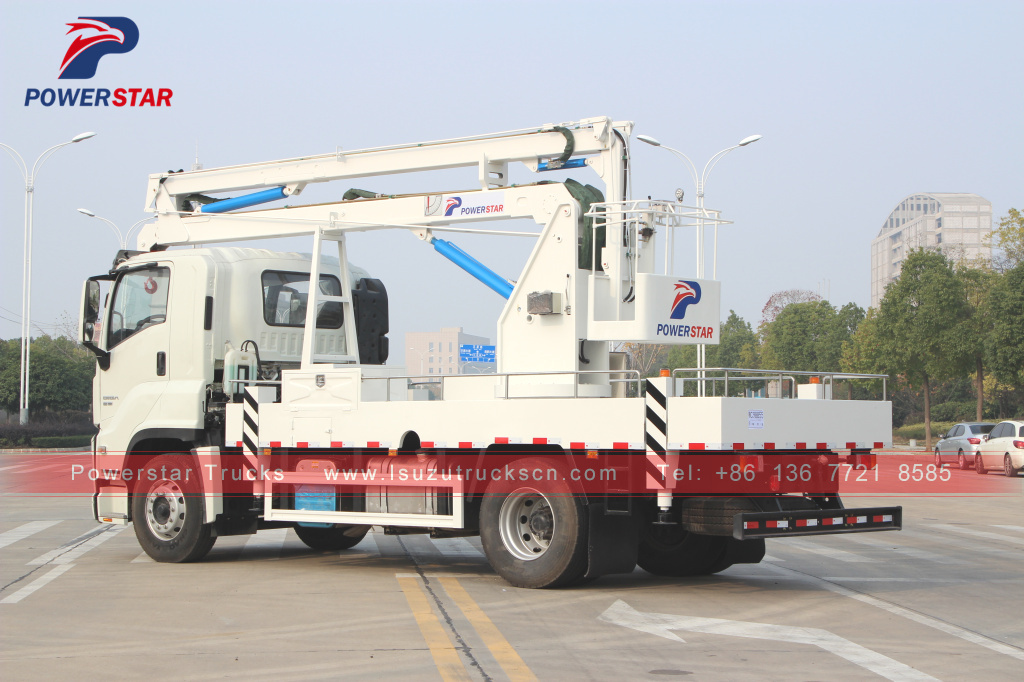

Japan ISUZU GIGA 16m 18m 20m Aerial Manlift Work Platform Trucks for sale
