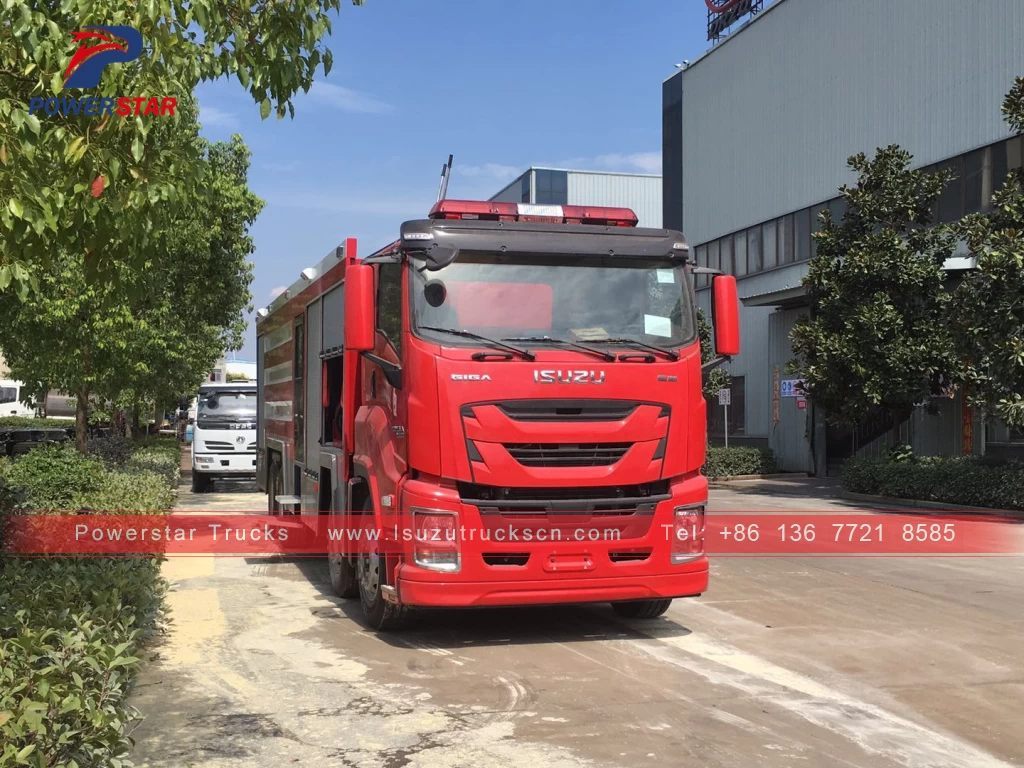

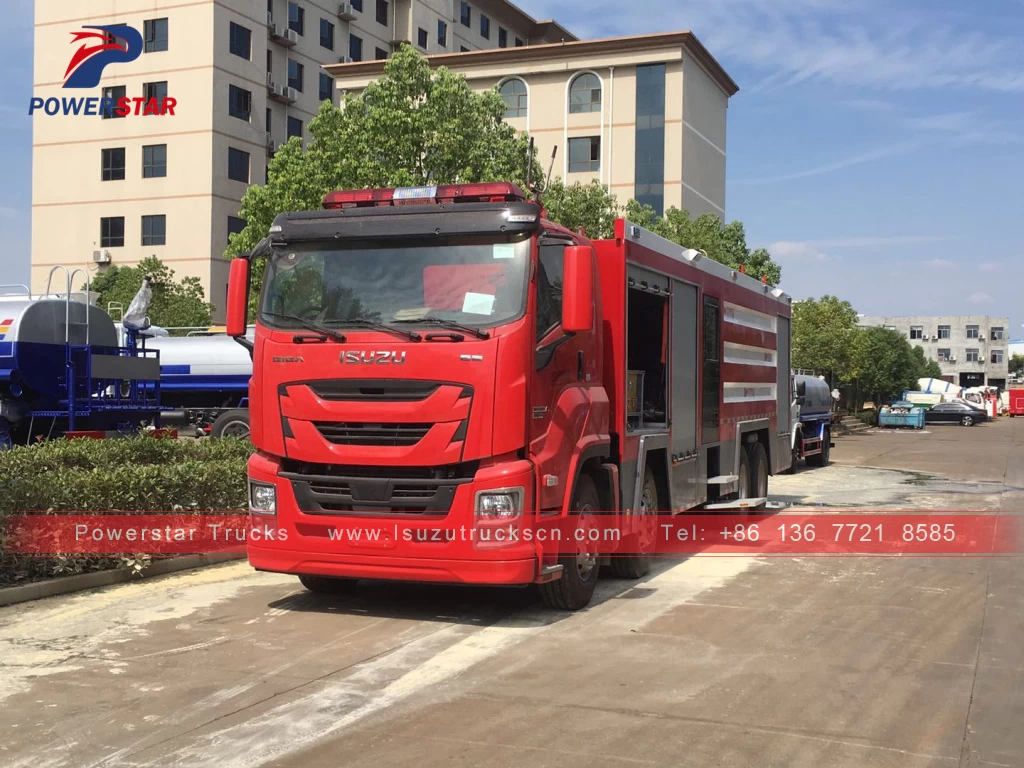

Brand new Customer made ISUZU GIGA Water/foam/dry powder Fire Engine Trucks
Description:
GIGA ISUZU Foam water dry powder fire engine (also called as ISUZU GIGA Dry powder fire extinguisher, GIGA foam fire pumper, Isuzu combined dry powder foam fire truck, Dry powder rescue fire trucks ISUZU Giga brand ) This Isuzu Fire fighting trucks are designed with stand the prevailing humen conditutions, much as ambient temperature, maximum relative humidity, the sand, the dust and the influence of high salinity condtions.
Fire fighting trucks types: Water fire truck, Foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other dapartments.
Features:
ISUZU GIGA heavy duty Chassis, Durable & Performance.
High performance fire pump and fire cannon
Tanker material: Carbon steel or Stainless steel
A complete set of fire fighting Accessories & Equipments, your can put work immediately.
FREE training in our factory if customers need.
Specifications
Manufacturer
|
POWERSTAR TRUCKS INDUSTRY CO., LIMITED
|
Product Name
|
Dry powder water foam Fire Truck ISUZU
(10,000 L water+2,000L foam+2,000L dry powder)
|
Vehicle Brand Series
|
ISUZU
|
Vehicle Model
|
PT5350GXFPM60
|
Chassis parameters
|
Overall dimensions
|
mm
|
13500*2500*3460
|
Gross weight
|
kg
|
35000
|
Curb weight
|
12630
|
Wheel base
|
mm
|
1850+4575+1370
|
Driving type
|
8X4
|
Number of axles
|
4
|
Tire specification
|
12.00-20
|
Number of Tires
|
10+1
|
Passengers in cab
|
2+4
|
Engine
|
Engine model
|
6UZ1-TCG50
|
Type of fuel
|
Diesel
|
Power/Displacement
|
ml
|
380HP /9839
|
Max speed
|
Km/h
|
110
|
Emission standard(TAS)
|
EURO 5
|
Fire performance
|
Tank capacity
|
Water tank capacity: 10000 L
|
Foam tank capacity: 2000 L
Dry powder tank capacity:2,000L
|
Fire pump
|
Model: CB10/60
|
Pressure (Mpa): 1.0
|
Rate (L/S): 60
|
Fire monitor
|
Model:Ps60
|
Flow:60L/S
|
Water jet distance:≥65m
|
Foam jet distance: ≥60m
|
Electronic alarm
|
LY CJB-100-C24
|
Alarm lamp
|
LY TBD-XF-168LED
|

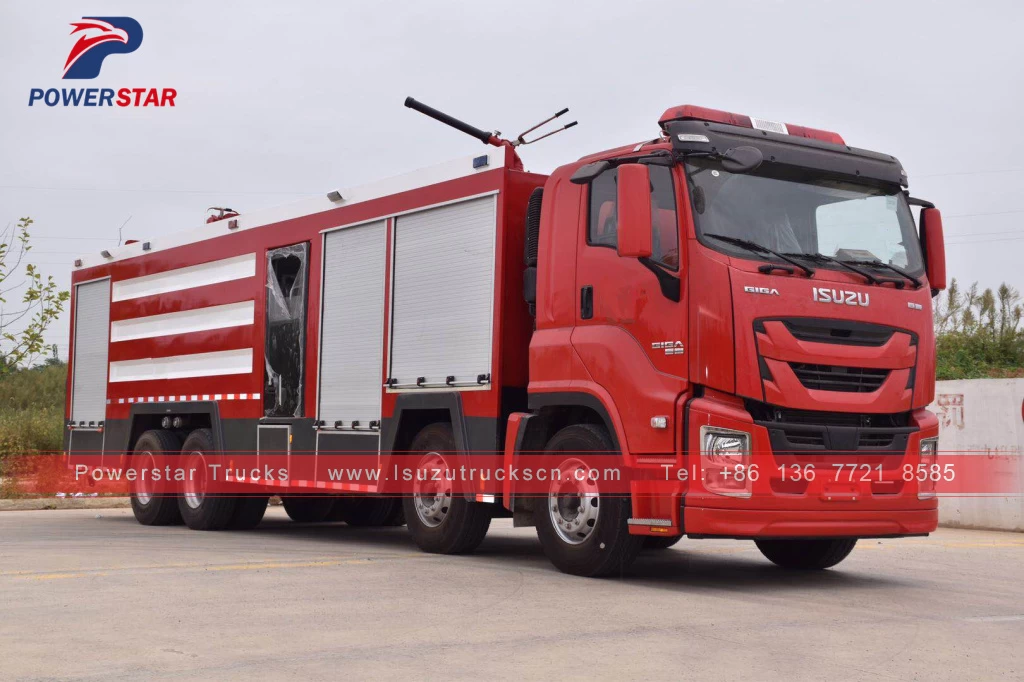

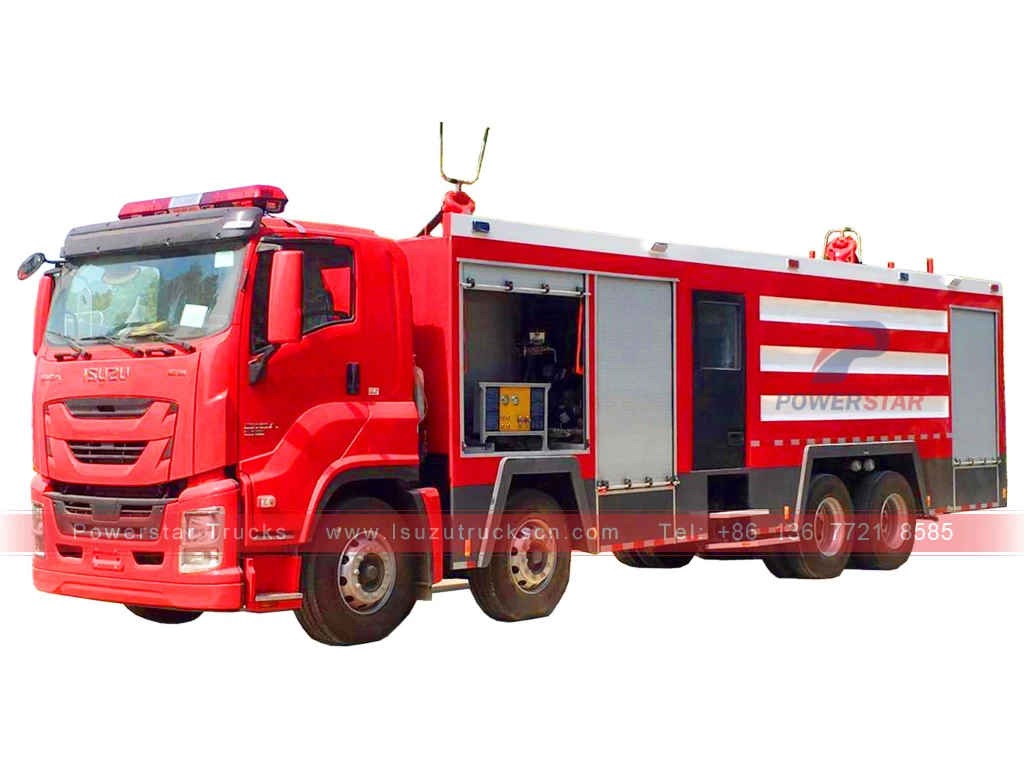

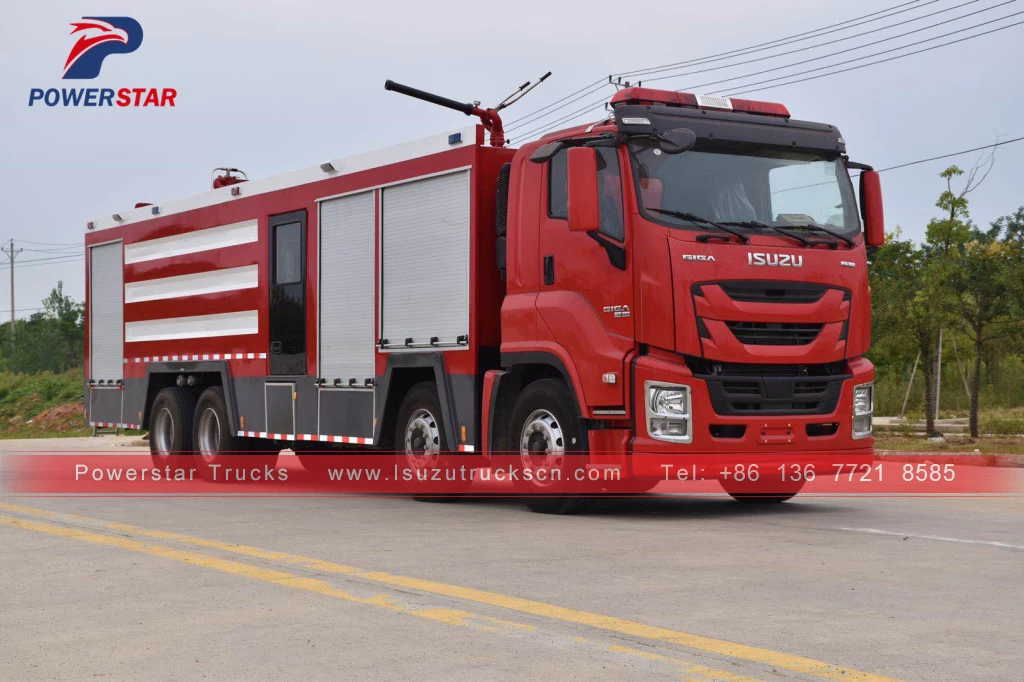

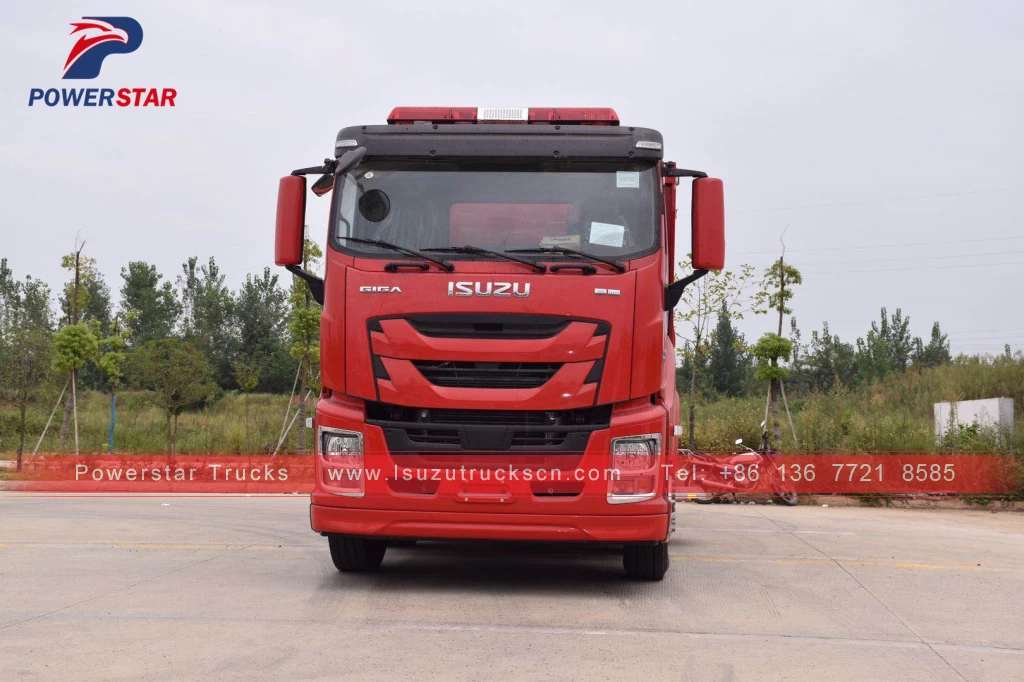

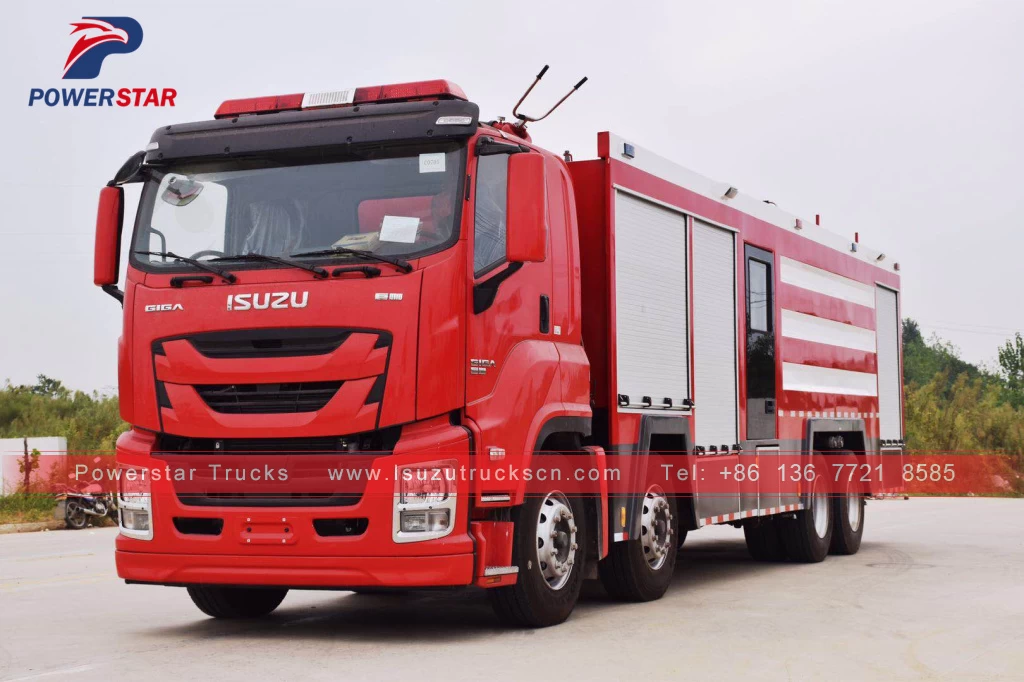

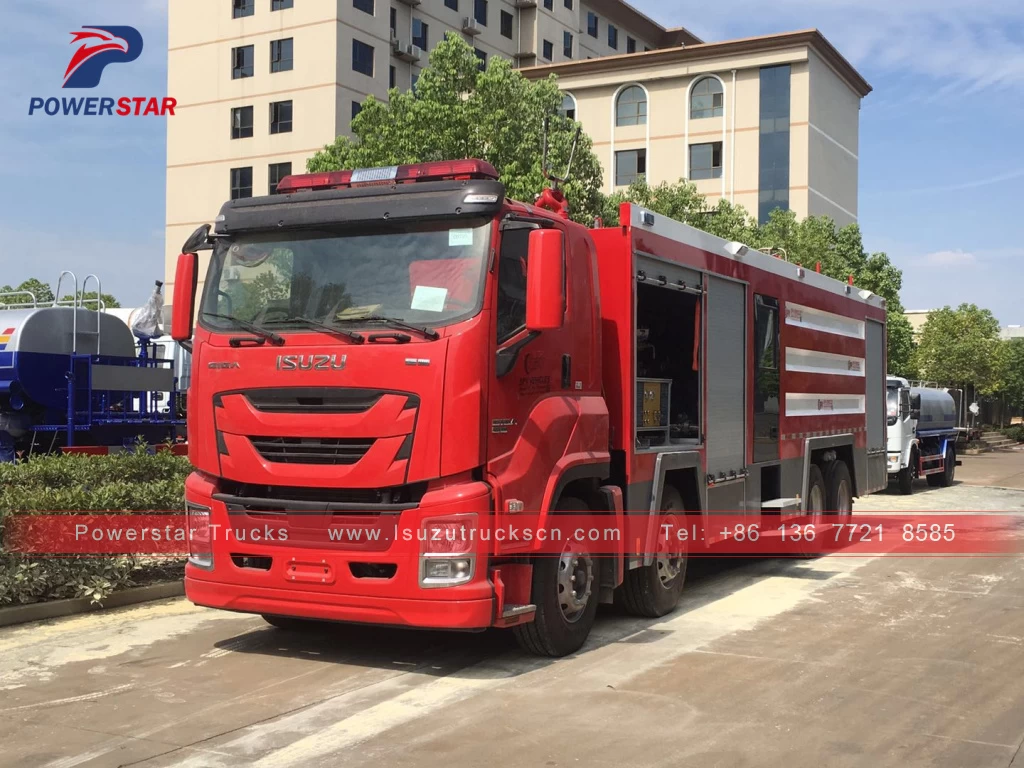

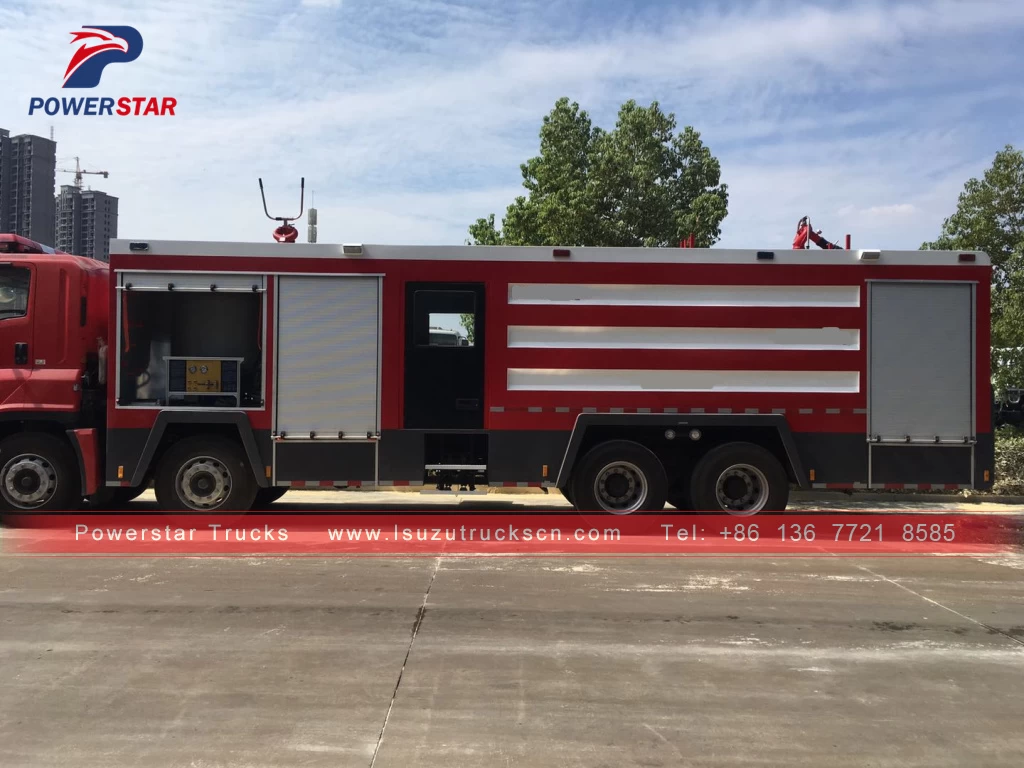

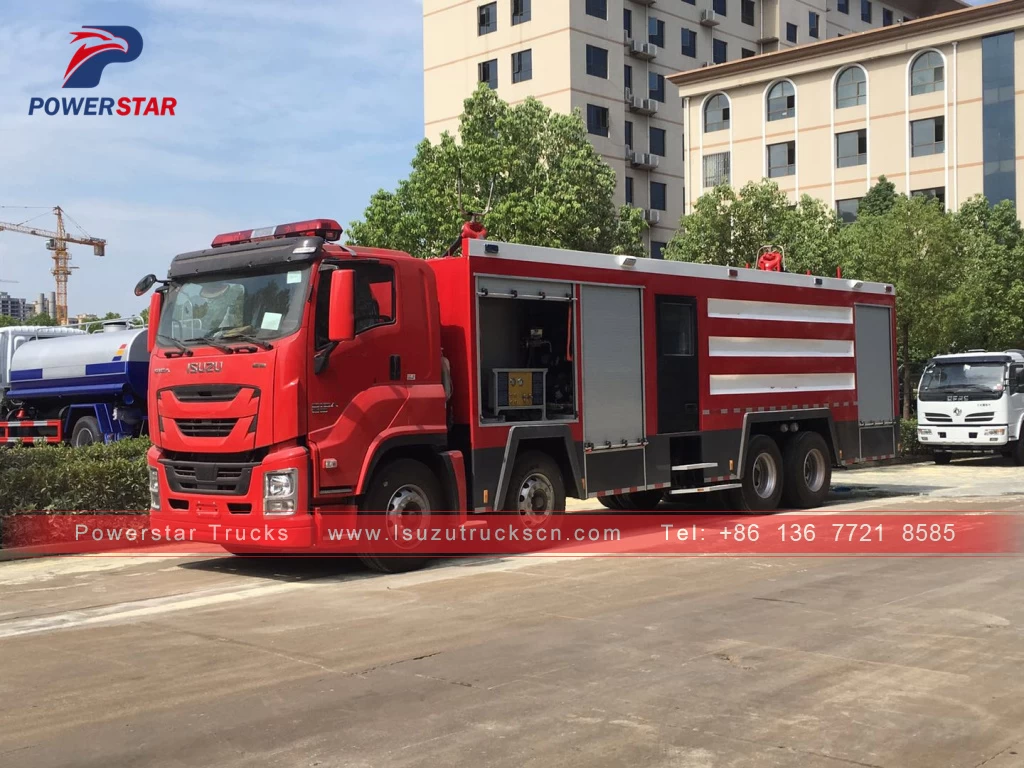

Detail Images
Fire Equipments:
Performance Testing:
