Isuzu loader crane truck, Isuzu Telescopic Boom Truck Mounted Crane

Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane,Isuzu loader crane truck, Isuzu Telescopic Boom Truck Mounted Crane

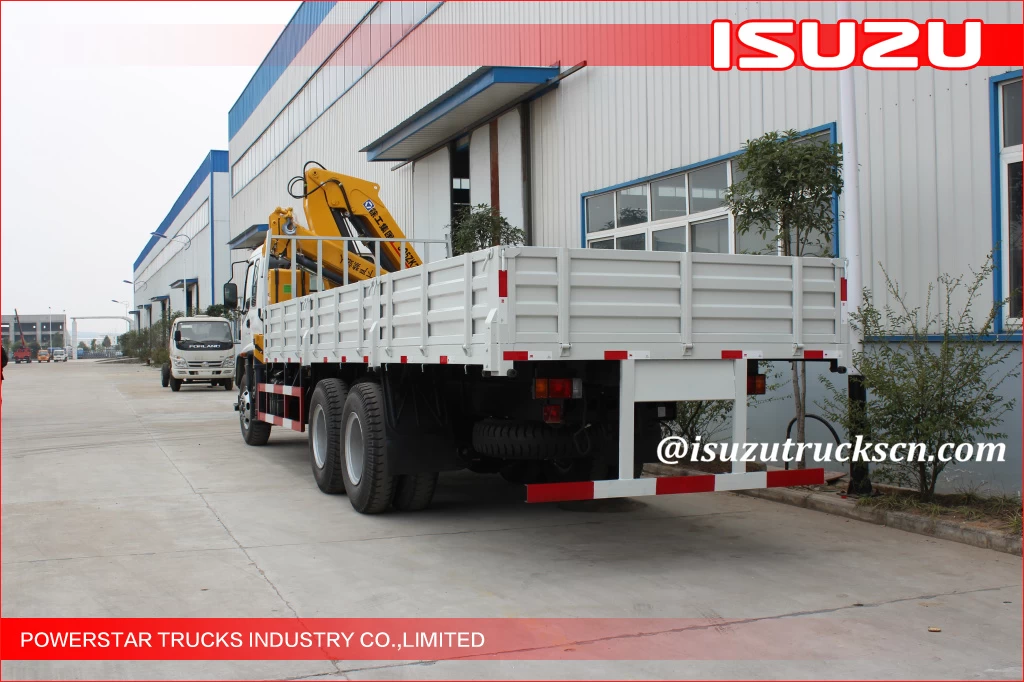

8tons Isuzu loader crane truck, Isuzu Telescopic Boom Truck Mounted Crane

Isuzu loader crane truck, Isuzu Telescopic Boom Truck Mounted Crane



ISUZU Telescopic Boom Truck Mounted Crane , 8T Boom Truck Crane





  1. Name: ISUZU Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
  2. Max. Lifting Capacity: 8000 kg
  3. Max. Lifting Moment: 20 T.M
  4. Max. Oil Flow of Hydraulic System: 55+55 L/min
  5. Max. Lifting Height:12.5meters
  6. Brand: XCMG
  7. Crane Weight: 3370 kg
  8. Oil Tank Capacity: 200 L
  9. Feature: safety transportations, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

Powerstar is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Telescoping Boom Crane is an overbuilt, yet very compact, lifting device that can tackle heavy loads without taking up a lot of valuable cargo space. Adjustable boom elevation and reach means you can set the lifting point right where you need it.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.

Telescopic boom crane SQS200 IV is lifting capacity is 8tons, moment is 20T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Specifications:



Model

SQS200 IV

Unit

Max Lifting Capacity

8000

kg

Max Lifting Moment

20

T.M

Recommend Power

30

kw

Max Oil Flow of Hydraulic System

55+55

L/min

Max Pressure of Hydraulic System

25

MPa

Oil Tank Capacity

200

L

Rotation Angle

360°All Rotation

Crane Weight

3370

kg

Installation Space

1300

mm

Choice of Chassis

ISUZU, HINO, HOWO, UD





SQS200 IV Lifting capability diagram

Working radius (m)

2.5

4.6

7.3

8.9

10.7

12.3

Lifting capacity (kg)

8000

4400

2500

2050

1600

1300



Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
