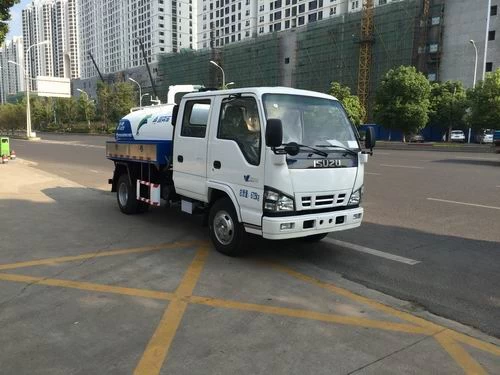

Isuzu NKR Fecal suction truck Sewage suction trucks
Isuzu fecal suction truck Warranty period: 12 months(calculating from the date the vehicle arrives at the destination port) or 30,000 kilometers, whichever comes first.
| Drive mode |
4×2 |
| Chassis |
NKR double cabin
|
| Engine |
Model |
4KH1 |
| Type |
4cylinder in line, water cooling, |
| Power/Displacement(Kw/ml) |
88kw/120hp/2999 |
| Type of fuel |
Diesel |
| Tyre |
Size |
7.50-16 |
| Air conditioner |
A/C |
| Dimensions |
Overall dimension (mm) |
6890×2220×2510 |
| Wheel base (mm) |
3815 |
| Front/Rear tread(mm) |
1380/1458 |
| Performance |
Max. speed(Km/h) |
90 |
| Max. gradability (%) |
23 |
| Fuel consumption 100(Km/L) |
9 |
| Min.turning diameter(m) |
13 |
| Min.ground clearance(mm) |
180 |
| Mass |
Payload (Kg) |
2850 |
| Curb weight(Kg) |
3700 |
| G.V.W (Kg) |
6500 |
| Specifications |
Tank volume (m³) |
3 |
| Model of vacuum pump |
XD-30 |
| Suitable turning speed(r/m) |
500-600 |
| Suitable revolution(min/rpm) |
1400 |
| Max.vacuum degree(kPa) |
5 |
| Effictive suction length(m) |
≥7-20 |
| Time of pumping(min) |
≤3 |
| Advantages |
1. Enough sewage volume degree.
2. Protecting device to prevent the sewage from seeping into the pump body.
3. Volume pump is driven by hand, easy to operate.
4. Hydraulic pump is working synchronously with the volume pump ,very reliable.
5. Discharging by hydraulic system.
6. Beautiful appearance, easy operation and good performance. |
