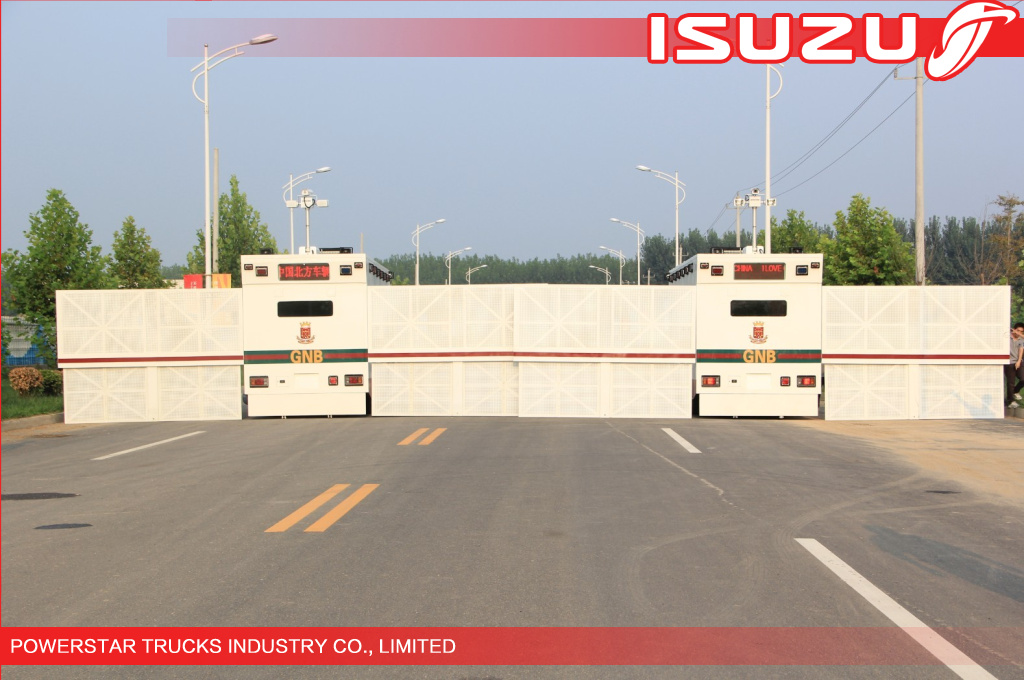

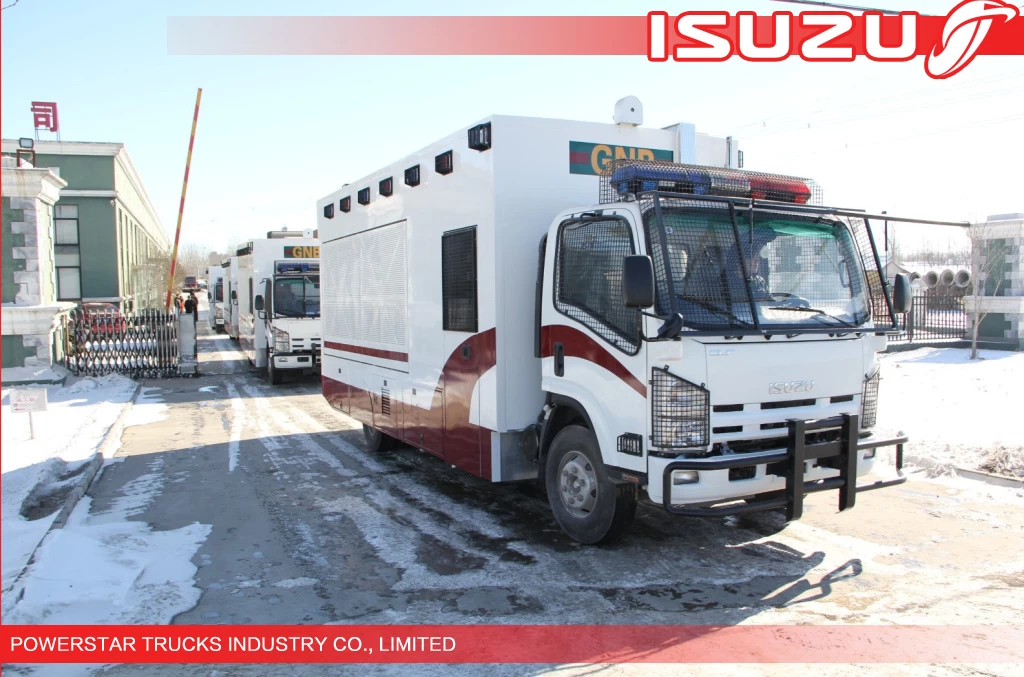

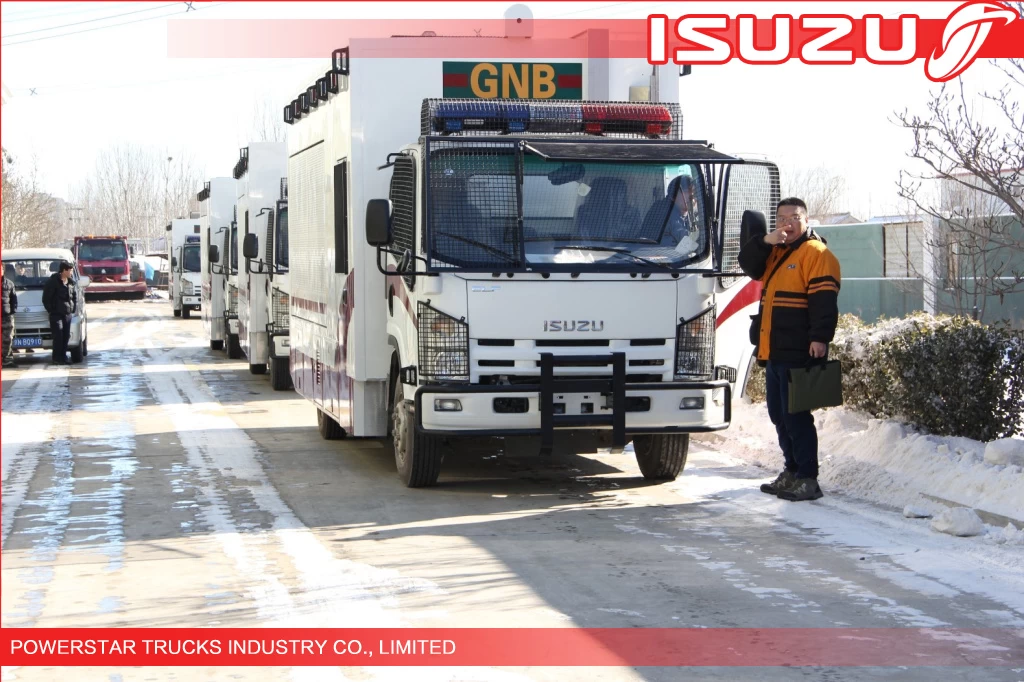

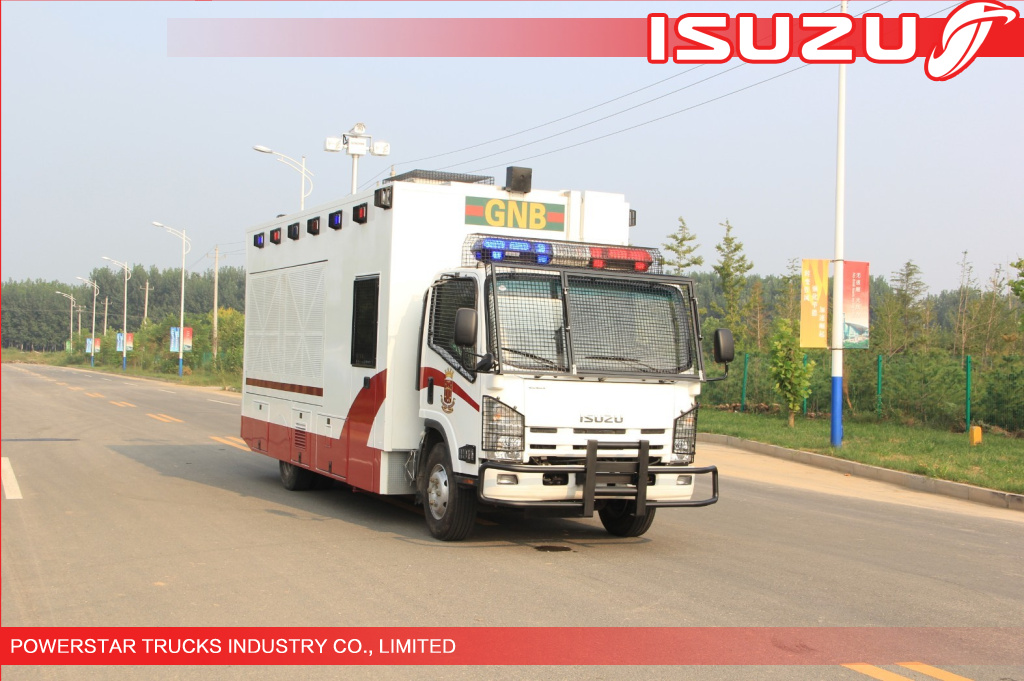

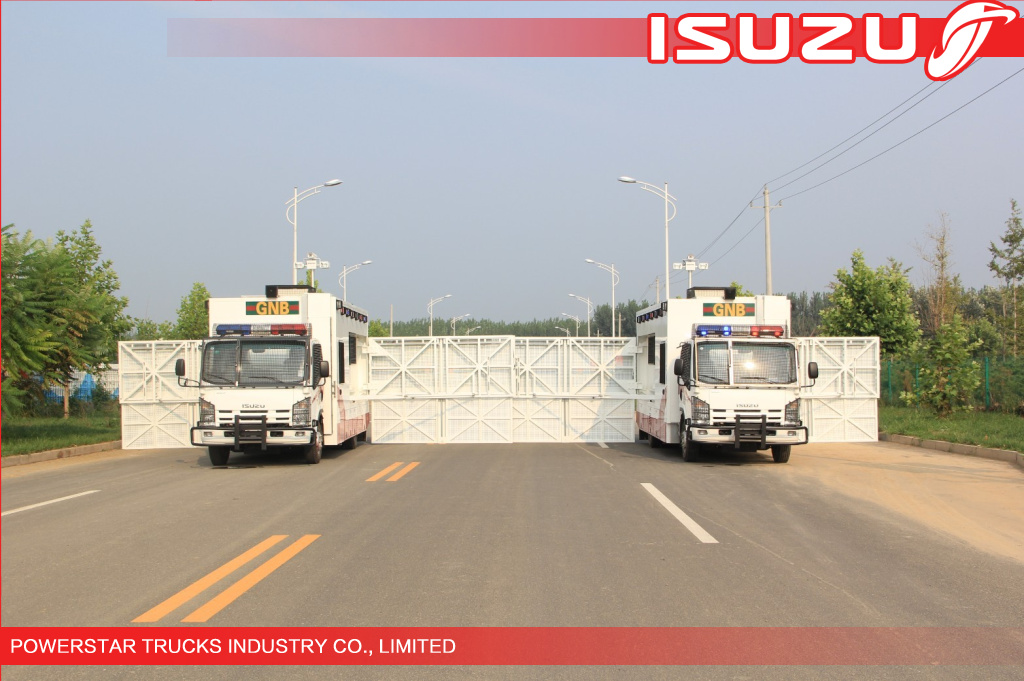

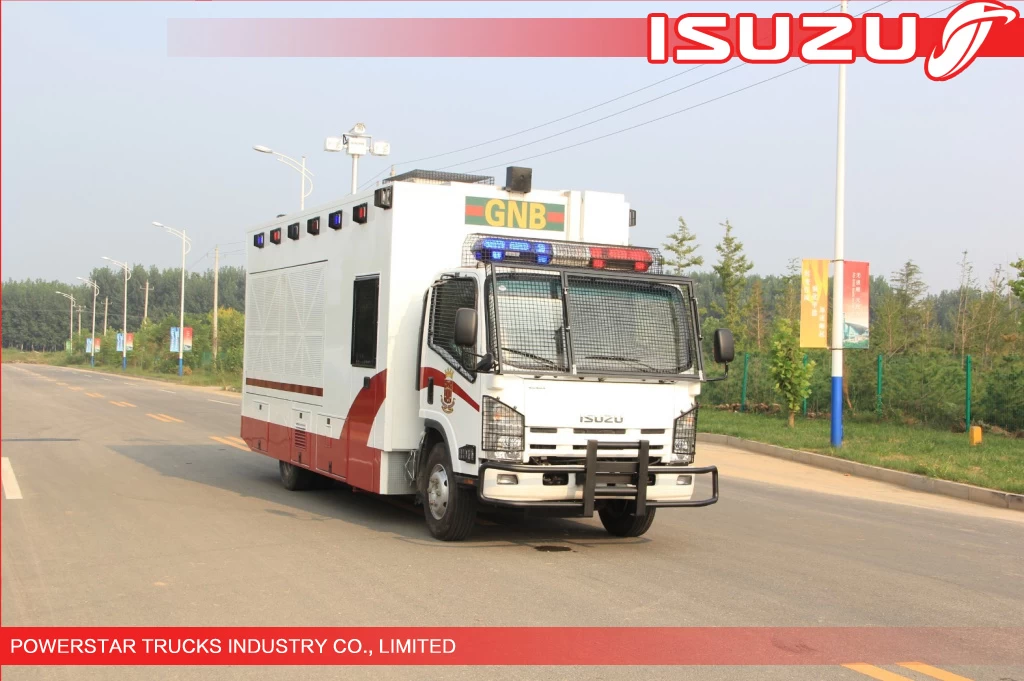

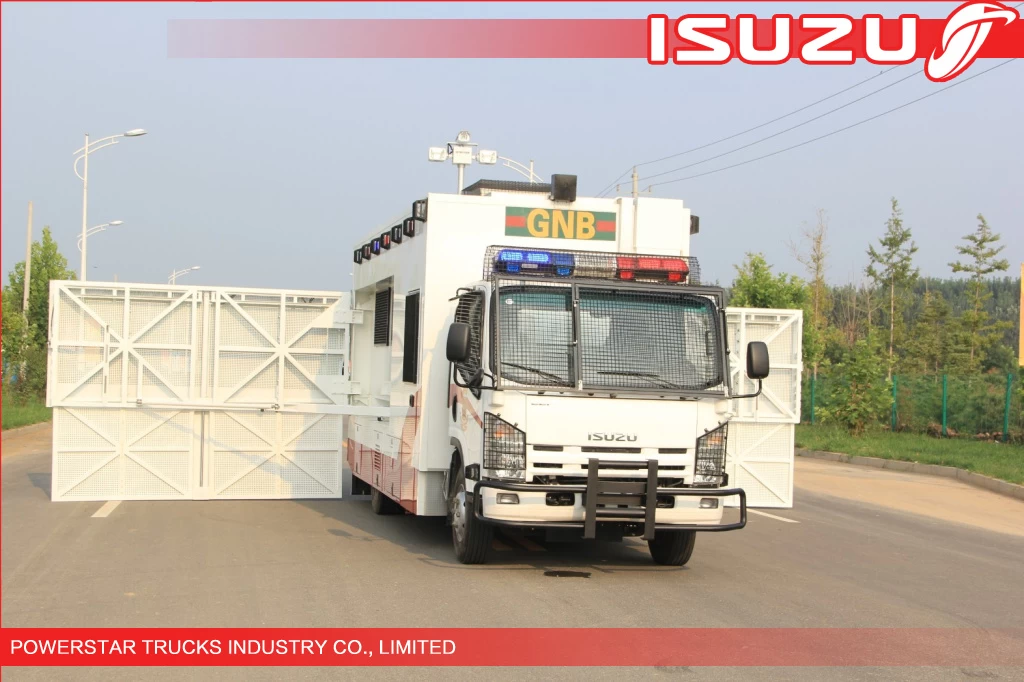

Isuzu Police
Workshop Truck with guard for Emergency
Mobile

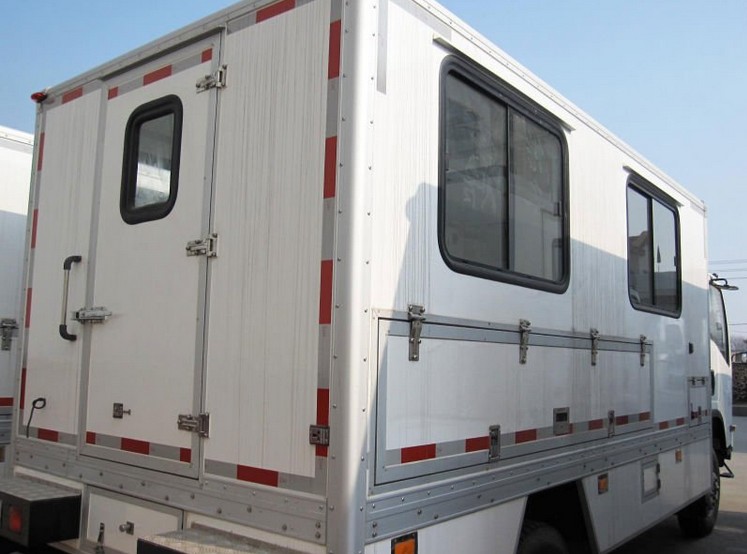

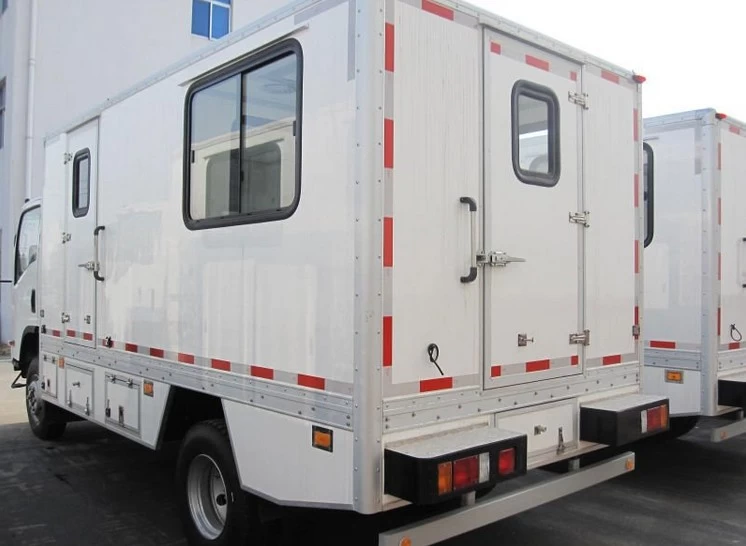

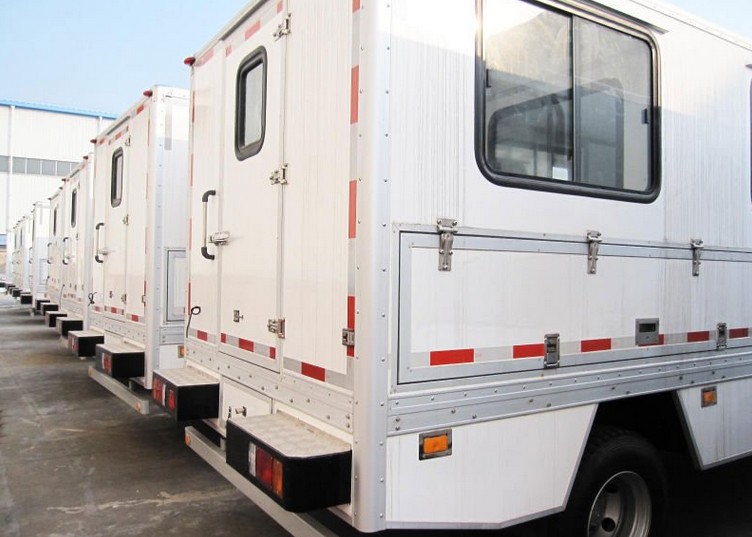

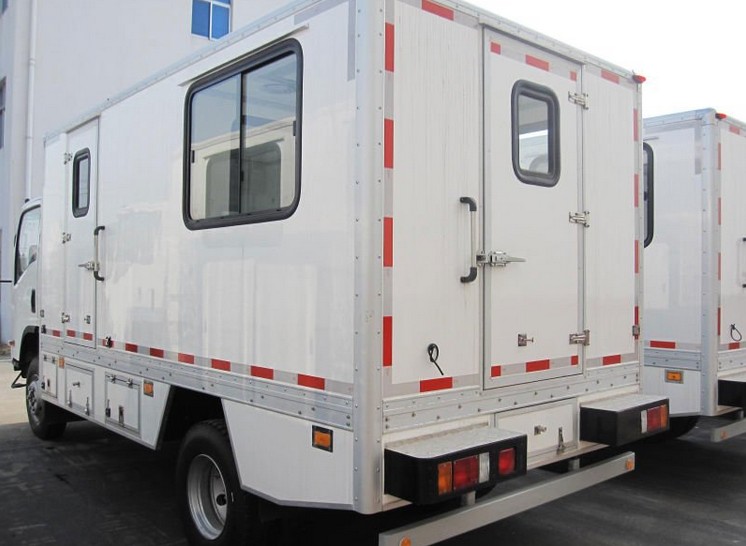

Workshop Trucks
Mobile Workshops
Trucks is special for Heavy equipment repair and maintenance, Field Living,
Field Operating, Oil Field, Mineral Exploration purpose, equipped with complete
repair tools and accessories, independent power support system, steel tools
storage cabinet, steel working tables.
Up on request, we
can offer countless Mobile Workshop Unit equipment variations to suit your
individual requirements, providing optimal solutions to your specific disposal
operations.
Detail
Specifications:
|
Equipment for Mobile Workshop
|
|
Item
|
Description
|
Technical Data
|
Measurement
|
Weight
|
Qty.
|
|
1
|
Chassis
|
As Option （ISUZU,HINO,IVECO）
|
|
|
|
|
2
|
Drive type
|
4x2, 6x4, 4x4, 6x6
|
|
|
|
|
3
|
Power Set
(Generator)
|
As Option
|
2030x650x1255(mm)
|
1030kg
|
1
|
|
Rated Power: 40KW
|
|
Rated Voltage:
400/230V
|
|
Rated Frequency: 50Hz
|
|
Rated Current: 72.2A
|
|
Output: 3-phase,
4-line
|
|
Diesel Engine: R4100ZD
|
|
Generator Model:
TZH-40
|
|
4
|
Welding Set
|
As Option
|
406x530x840(mm)
|
160kg
|
1
|
|
Voltage: 380V
|
|
Phase: 3
|
|
Frequency: 50/60Hz
|
|
Initial Current: 29.6A
|
|
Range: 25-250A
|
|
Input: 19.2KVA
|
|
Working Ambient:
-10--+40oC
|
|
5
|
Air Compressor
|
As Option
|
1180x410x850(mm)
|
130kg
|
1
|
|
Voltage: 380V
|
|
Frequency: 50Hz
|
|
Power: 3KW
|
|
Pressure: 0.7MPa
|
|
Capacity: 0.36M3/mm
|
|
6
|
Drilling Machine
|
As Option
|
760x490x260(mm)
|
57kg
|
1
|
|
Bore Range: 3--16mm
|
|
Power: 700W
|
|
7
|
Vice
|
Size: 150mm
|
|
|
|
|
8
|
Grinding Machine
|
Model: MQ3225
|
|
|
1
|
|
Size: 250mm
|
|
Power: 700W
|
|
9
|
Oxygen Cylinder
|
Volume: 40L
|
|
|
1
|
|
10
|
Acetylene Cylinder
|
|
|
|
1
|
|
11
|
Gas Welding Set
|
|
|
|
1
|
|
12
|
Working Bench
|
Steel Panel
|
2300x550x780(mm)
|
|
1
|
|
13
|
Hand Tools
|
M6--16 drilling set;
Hack Saw;
|
|
|
|
|
Hammer; Portable Oil
Pump;
|
|
3--16mm Thread Tapper;
|
|
Spanner sets; Socket
Spanner Sets
|
|
Files; Clamps
|

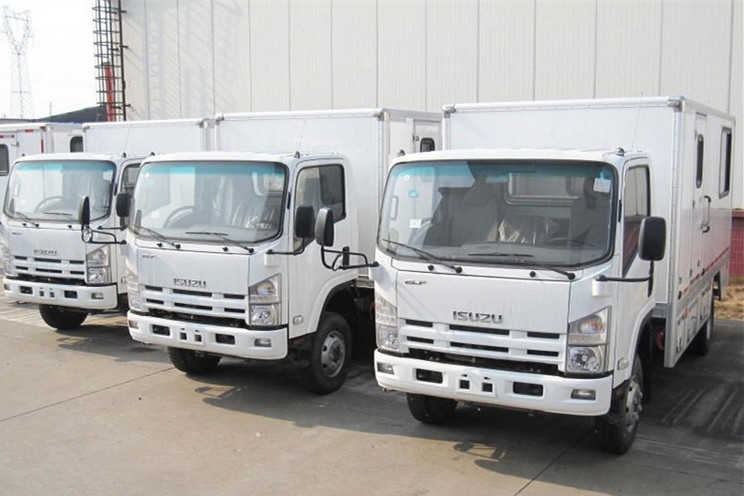

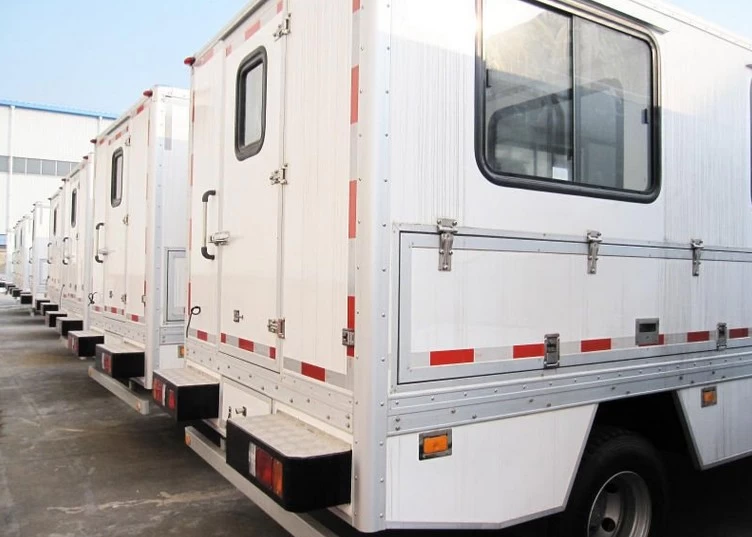

Recently Customer
Build Examples:
HOT sale Isuzu Trucks
