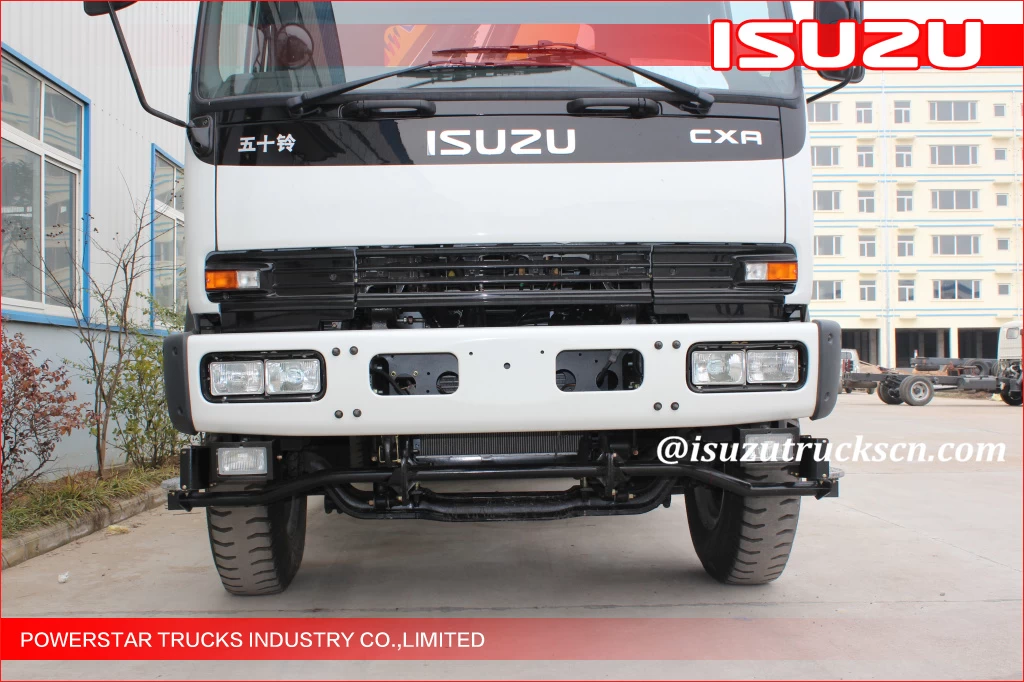

ISUZU Truck Construction Telescopic Boom Truck Mounted Crane For Municipal Services
ISUZU Construction Telescopic Boom Truck Mounted Crane For Municipal Services
- Name: Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
- Max Lifting Capacity: 6300 kg
- Max Lifting Moment: 15.7 T.M
- Max Oil Flow of Hydraulic System: 40 L/min
- Max.Lifting height: 10.5meters
- Brand: XCMG
- Crane Weight: 2160 kg
- Oil Tank Capacity: 90 L
- Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
- Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.
Description:
Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.
Telescopic boom crane SQ6.3SK2Q is lifting capacity is 6.3tons, moment is 15.7 T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model
|
SQ6.3SK2Q
|
Unit
|
Max Lifting Capacity
|
6300
|
kg
|
Max Lifting Moment
|
15.7
|
T.M
|
Recommend Power
|
20
|
kw
|
Max Oil Flow of Hydraulic System
|
40
|
L/min
|
Max Pressure of Hydraulic System
|
20
|
MPa
|
Oil Tank Capacity
|
90
|
L
|
Rotation Angle
|
360° All Rotation
|
Crane Weight
|
2160
|
kg
|
Installation Space
|
900
|
mm
|
Choice of Chassis
|
ISUZU, UD, HINO, IVECO
|
SQ6.3SK2Q Lifting capability diagram
|
Working radius (m)
|
2.5
|
3.82
|
6.17
|
8.5
|
Lifting capacity (kg)
|
6300
|
2900
|
1600
|
1200
|
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg
|
Spread
|
Fixed
|
2179mm
|
Single extension
|
2256-3556mm
|
Double extension
|
2212-4752mm
|
