Isuzu Truck Heavy Duty Airport Vacuum Road Sweeper Truck for Philippines

Isuzu Road Sweeper, Road Sweeping Truck,Japan ISUZU 4x2 DFL5120B Sweeper Truck Mount Carpet Cleaning Machin,Isuzu road sweeper truck for sale with high performance,Mini road sweeper truck,street sweeper truck,airport sweeper truck 3-5cbm on sale!8m3 Japan ISUZU 4X2 Road/ Street Sweeper Truck

S2000 Price All Closed Electric Road Street Industrial Clecning Sweeper Truck for Sale,

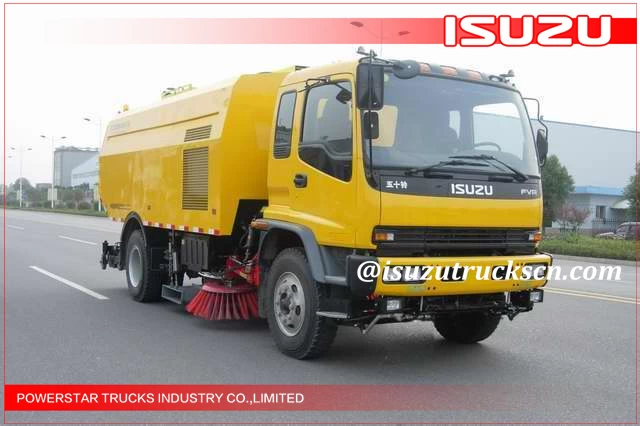

Isuzu Truck Heavy Duty Airport Vacuum Road Sweeper Truck for philippines



 Isuzu Truck Heavy Duty Airport Vacuum Road Sweeper Truck

Basic Description

Vacuum sweeper truck ISUZU (also street dustbin roas sweeper, sweeper vacuum road cleaner, suctioin road sweeper, street sweeping truck, truck mounted road sweeper, customer build road sweeper, sanitation vacuum road sweeeper, waste collection sweeper trucks) This Isuzu road sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working. The whole vehicle is stable in performance.


With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.

The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.

Key Features

Key Features of road sweeper truck ISUZU    ISUZU NKR Chassis, Durable & Performance.

Key Features of road sweeper truck ISUZU    Sweeping, Sprinkling and garbage transportation

Key Features of road sweeper truck ISUZU     Stainless steeel garbage bin & Stainless water tank, longer service life

Key Features of road sweeper truck ISUZU     Fuel Dispenser, Flow meter, Level gauage can be optional

Key Features of road sweeper truck ISUZU     POWERSTAR 20 years’ experience on road sweeper truck exporting.

Techical drawing of Isuzu road sweeper trucks






Main specifications





Model

PT5150TSL

Driving Type

4x2    (Left hand drive)

Wheelbase

4500 mm

Overall Dimension

8105X2500X3200 mm

Cab

Forward control over engine, all-steel-welded construction

Sweeping System

Auxiliary engine

Isuzu tech engine

Stainless Steel Hopper Effective Volume

8~10 CBM

Stainless Steel Water Tank Volume (L)

2500

Sweeping Width (mm)

3500

Sweeping speed (km/h)

3~25

Sweeping Capacity (m2/h)

16500~82500

Blower rated rotation speed (rpm)

1800

Blower air capacity (m3/h)

8000

Blower air pressure (Pa)

7000

Side Brush Sweeping Brush Drive and Control

Electric control lever and switch control, Hydraulic driving

Engine

Model

6HK1-TCG40

Type

Diesel, turbo charged inter-cooled, 6 cylinder

Max. Power

177 KW (240 HP)

Gearbox

MLD 6-shift, mechanical type, 6 forward and 1 reverse with

Tire

10.00-20

Color

White    (Any color & logos up to wish)

Max Speed

90 km/h


Similar Key Words:  road waste sweeping truck, road cleaner sweeper, hydraulic road sweeper, dustbin road sweeper truck, broom road sweeper truck, road brush sweeper truck, all weather road sweeper


Working Principles
