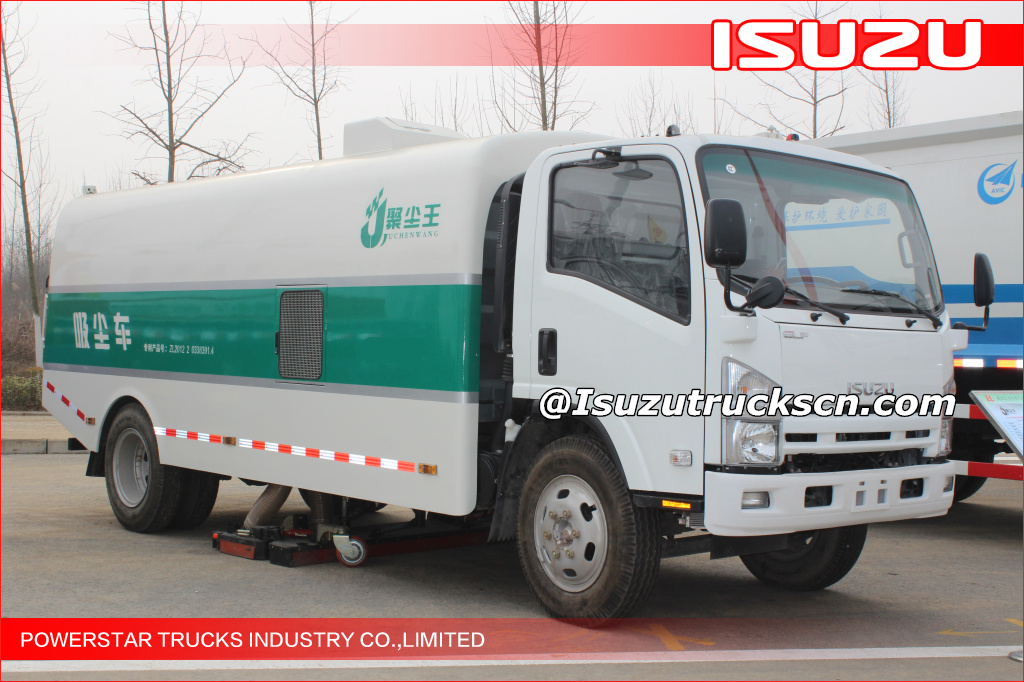

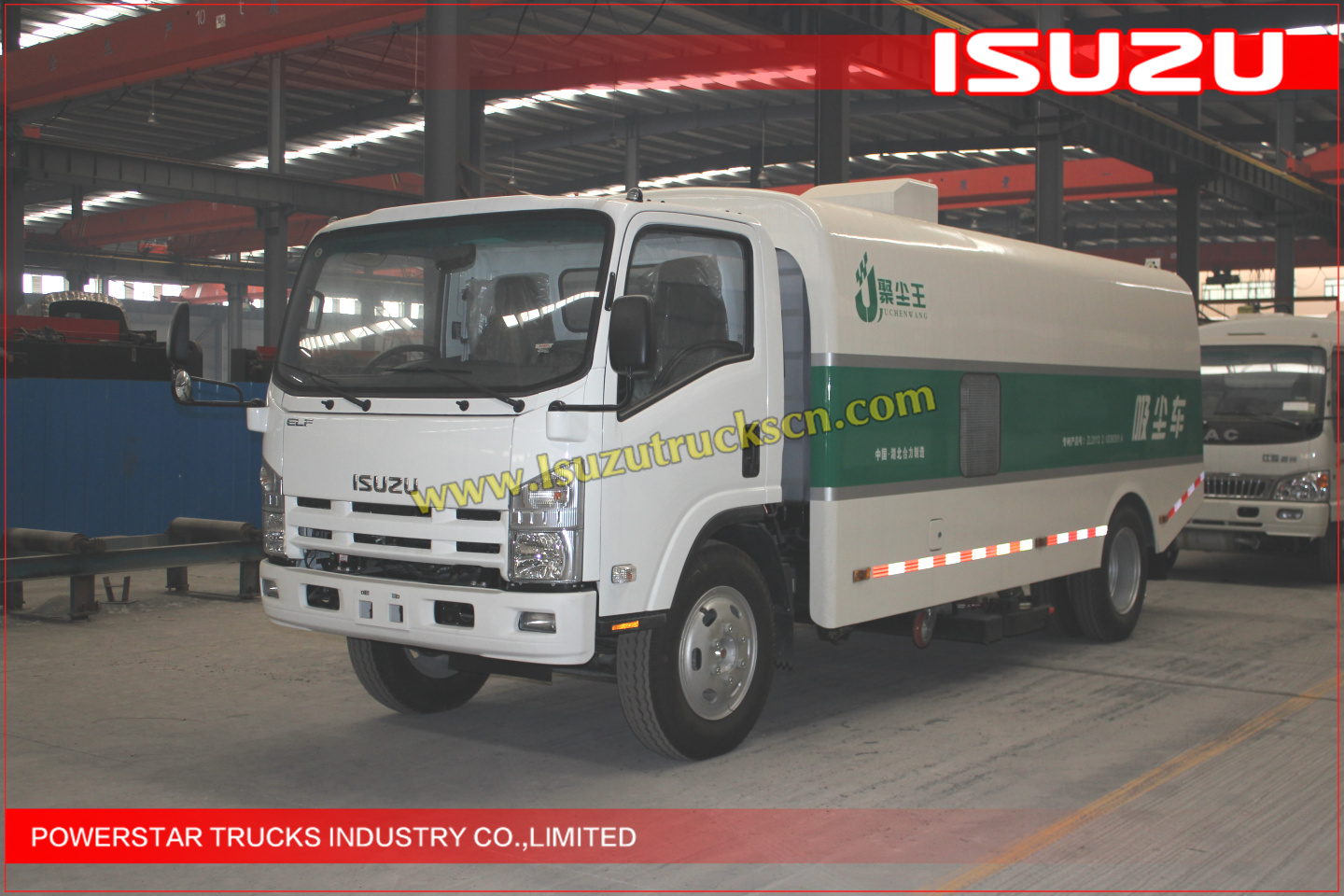

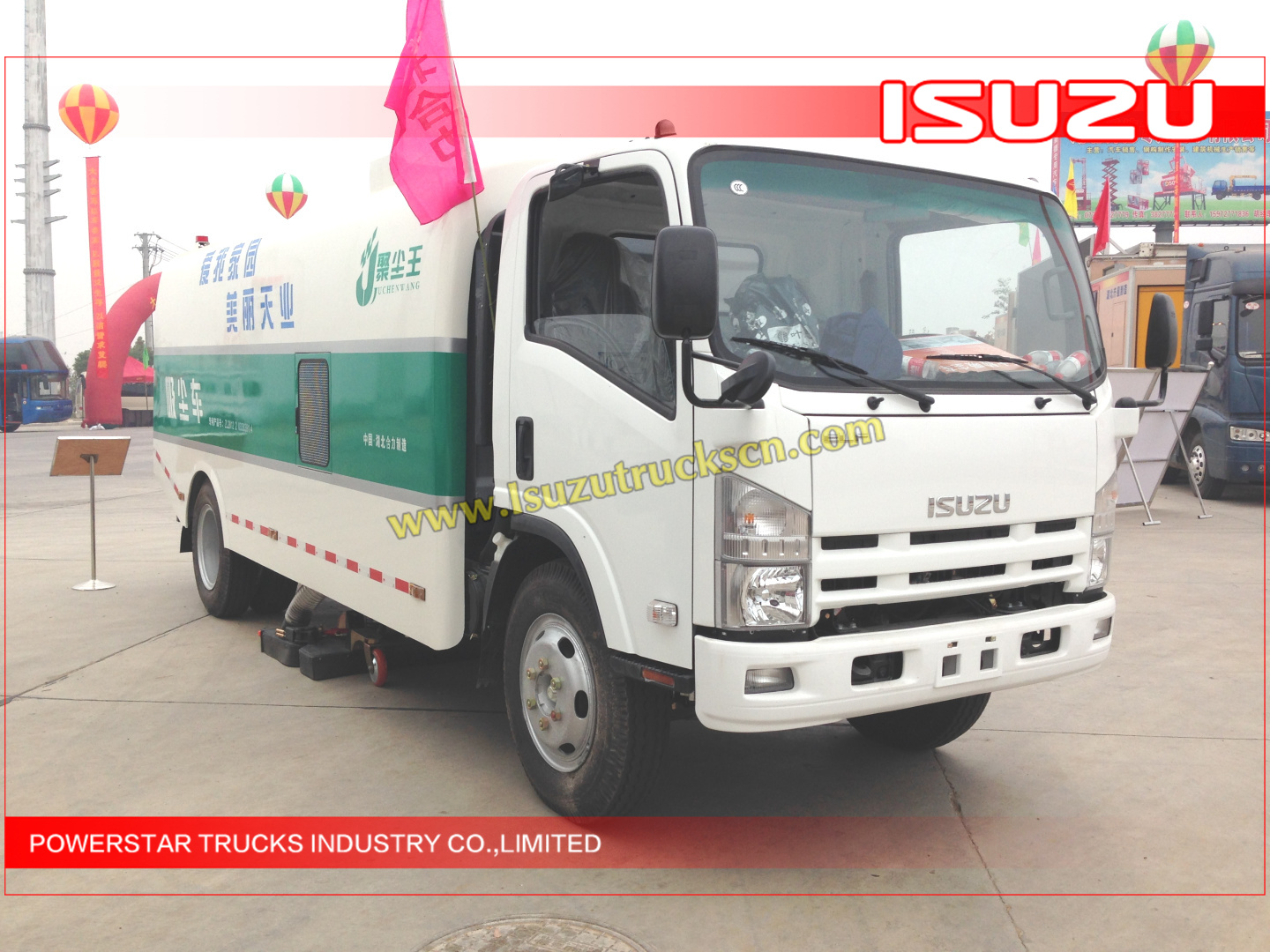

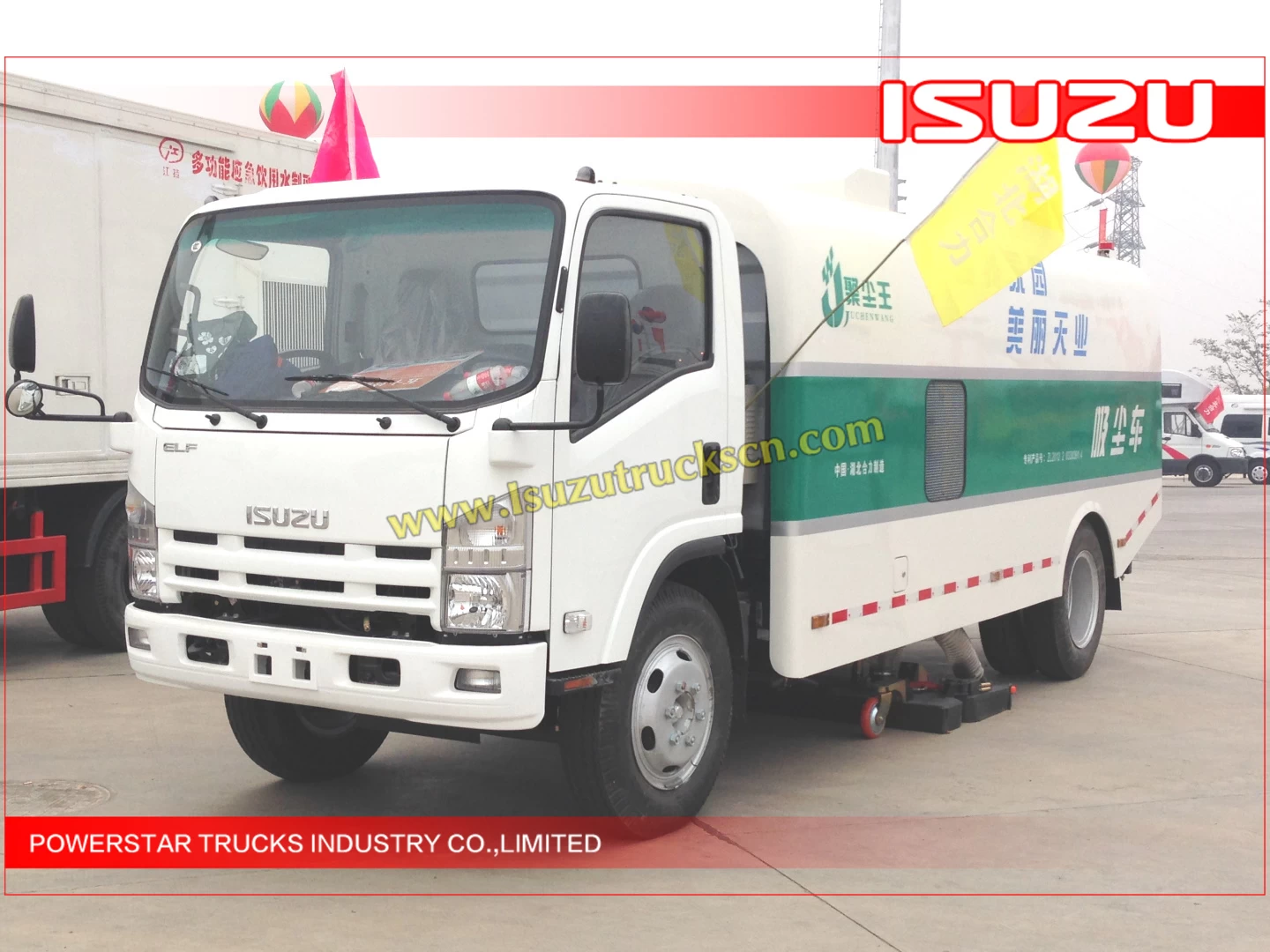

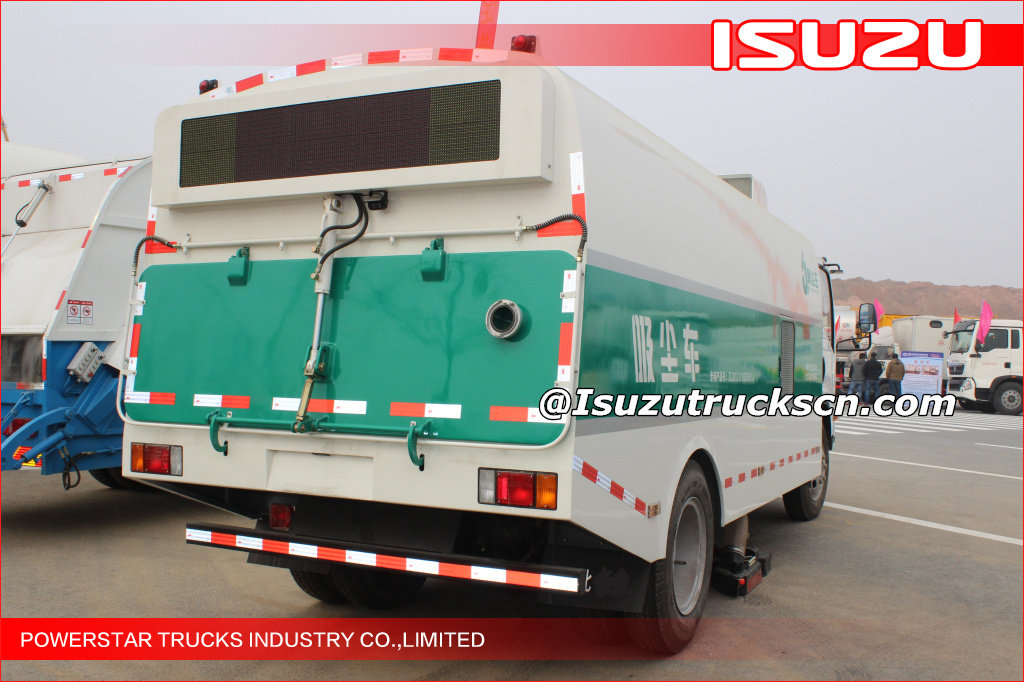

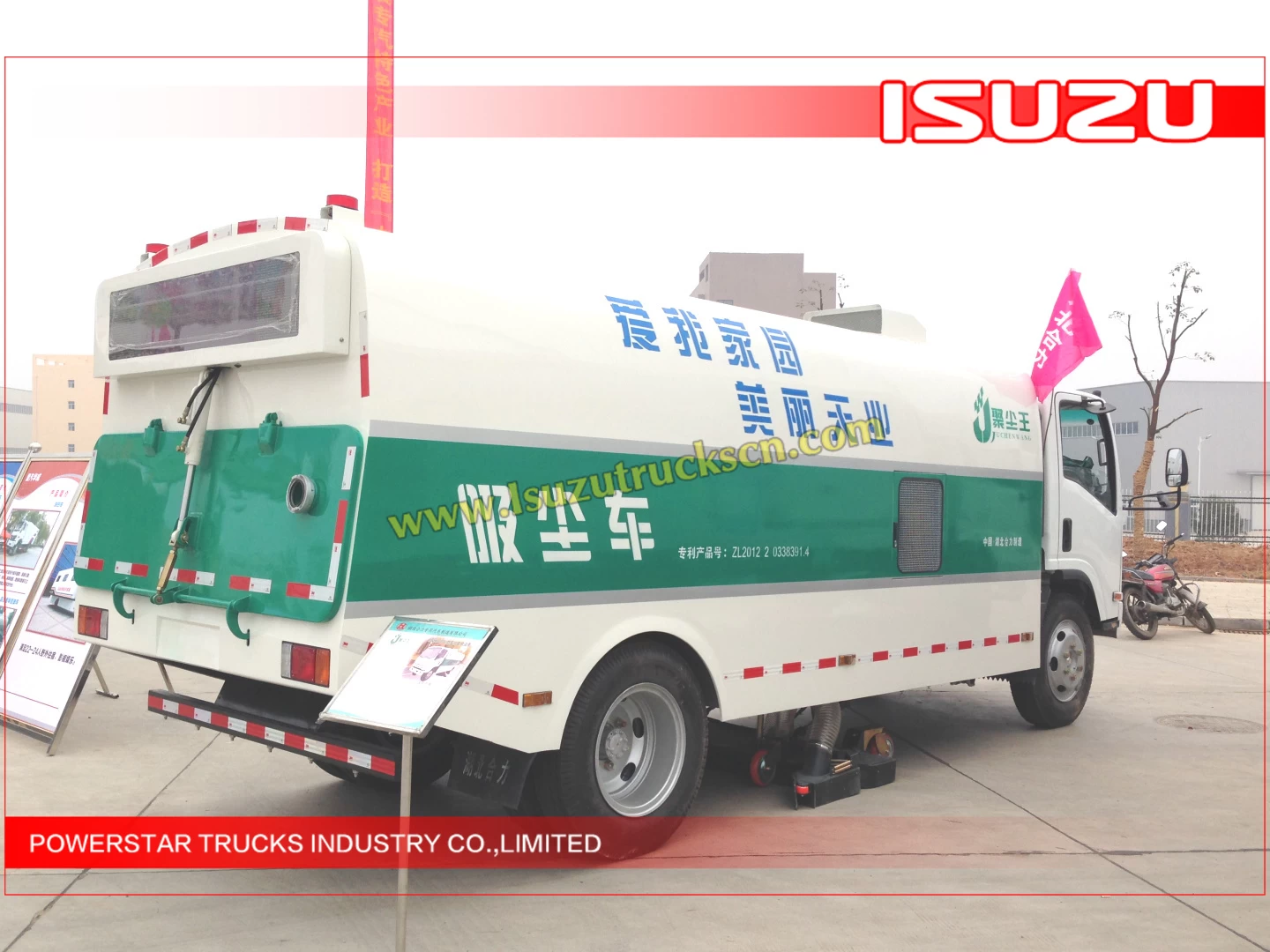

Airport Highway dust suction truck Isuzu street dust sweeper vehicle
Description:
Our new Vacuum
Suction Sweeper truck changes the traditional mode for a past motor sweeper to
brush and sweep with its disc brush rolling, entirely adopts air current to
complete an operation, and makes use of air current movement modes to collect
and store dust and garbage, with very high cleanness.
These products can
effectively reduce dust contamination, exalt air quality, lower the contents of
absorbable particles in the air and improve people’s living environment.
Features:

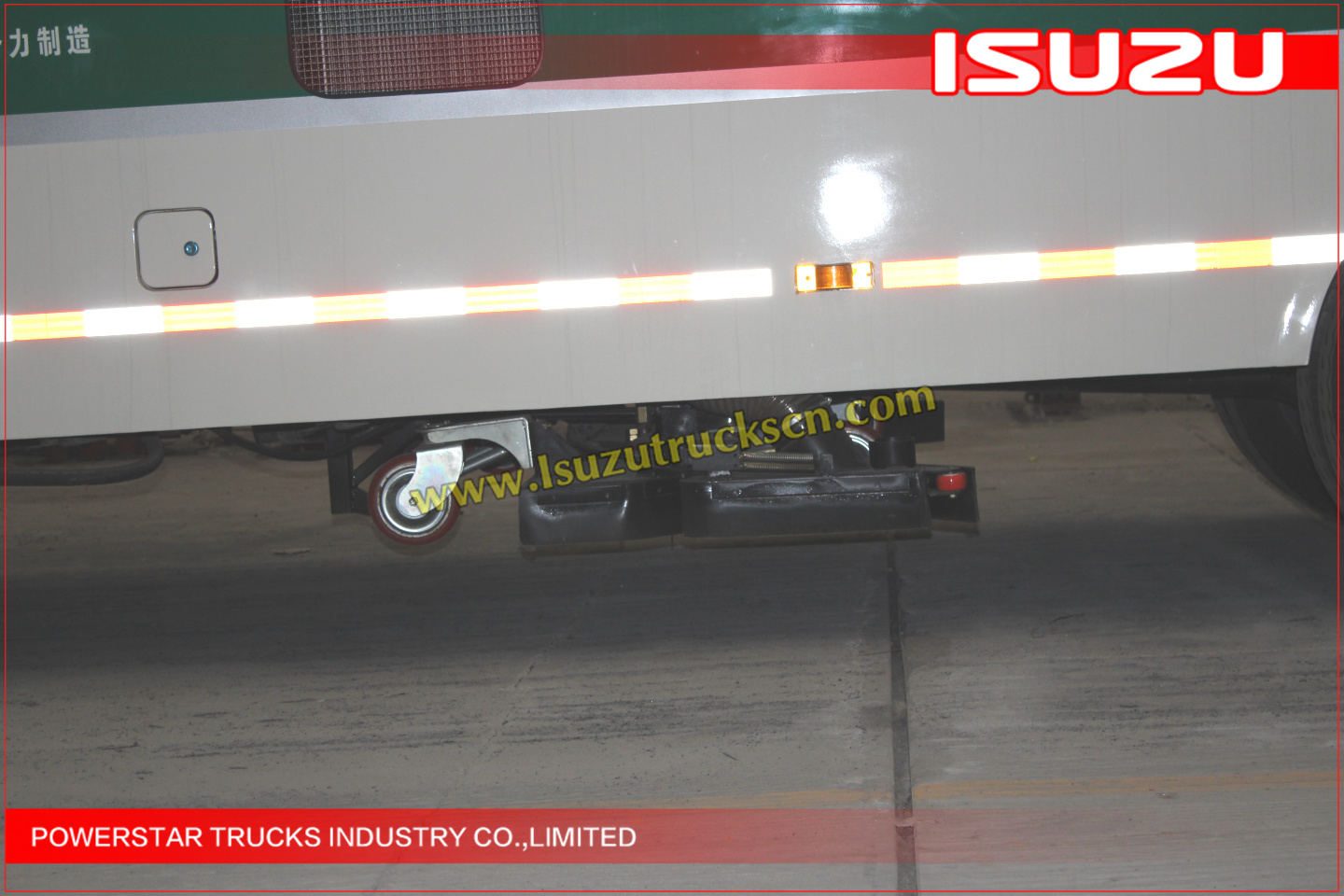

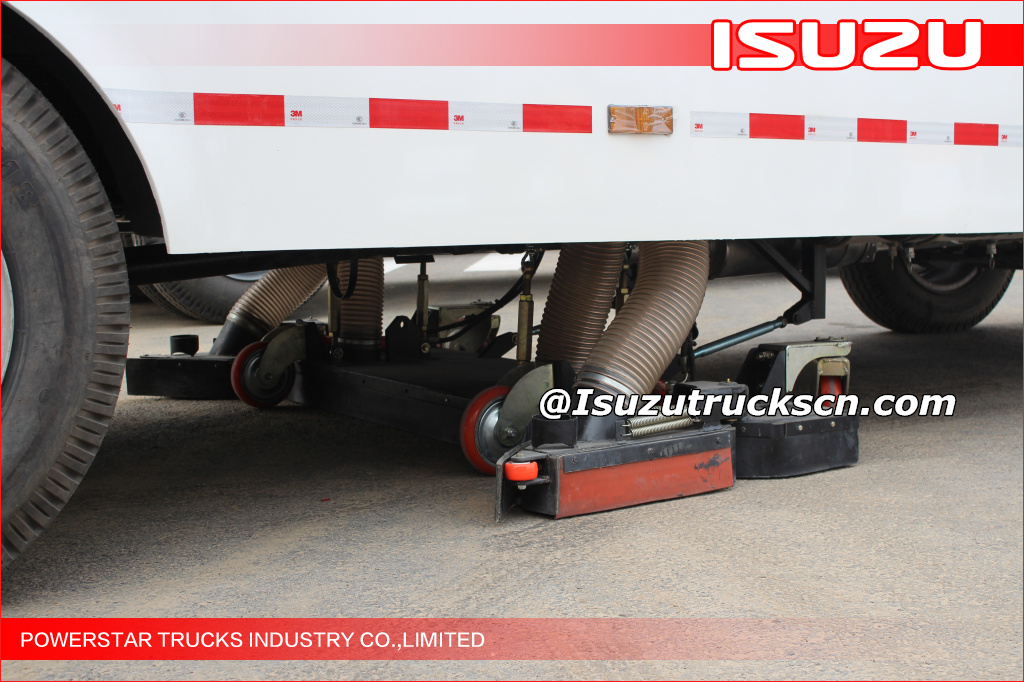

◆ Entire sucking dry. An operation uses air
current for completion, with the combination of blowing and suction but without
secondary dust emission.
◆ With a
dry suction type. As soon as it passes, the ground will be very clean

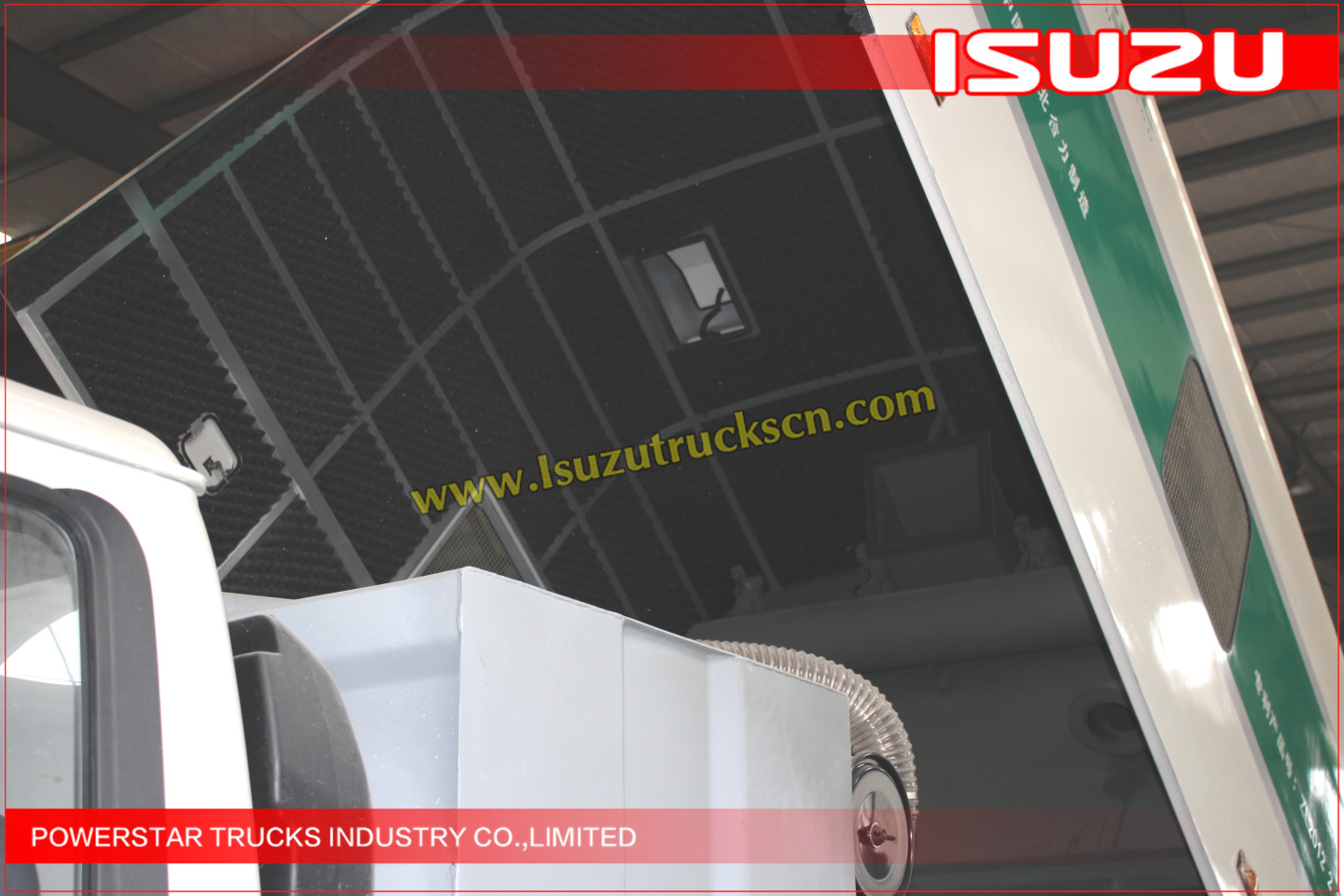

◆ The dustbin is made of stainless steel,
corrosion resistance and large capacity, which can last for a long time without
stop
◆ With imported PLC (programmable logic
controller) for integrated control
◆ Very good dust suction effect. It can
effectively clear away waste matter ranging from dust of tens of microns to
general small stones, tree leaves, etc.
◆ Its structure is simple, worn parts are few, use
and maintenance are convenient and operation is simple.
Isuzu diesel engines can run up to 10,000
miles between oil changes, minimizing downtime for maintenance. Both diesel
engines that come standard in all Isuzu diesel trucks feature a B-10 life of
310,000 miles, meaning, 90% of our engines will still be operating normally at
this high mileage.
Standard on NPR-HD, NQR and NRR
The 4HK1-TC 215 horsepower turbocharged
intercooled diesel engine is equipped with electronic high-pressure common-rail
direct injection and a water-cooled EGR system.
Specification:
Main specifications:
|
Model
|
PT5100TXC
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
4475
mm
|
|
Overall Dimension
|
7320x2250x2800 mm
|
|
Cab
|
Forward control over
engine, all-steel-welded construction
|
|

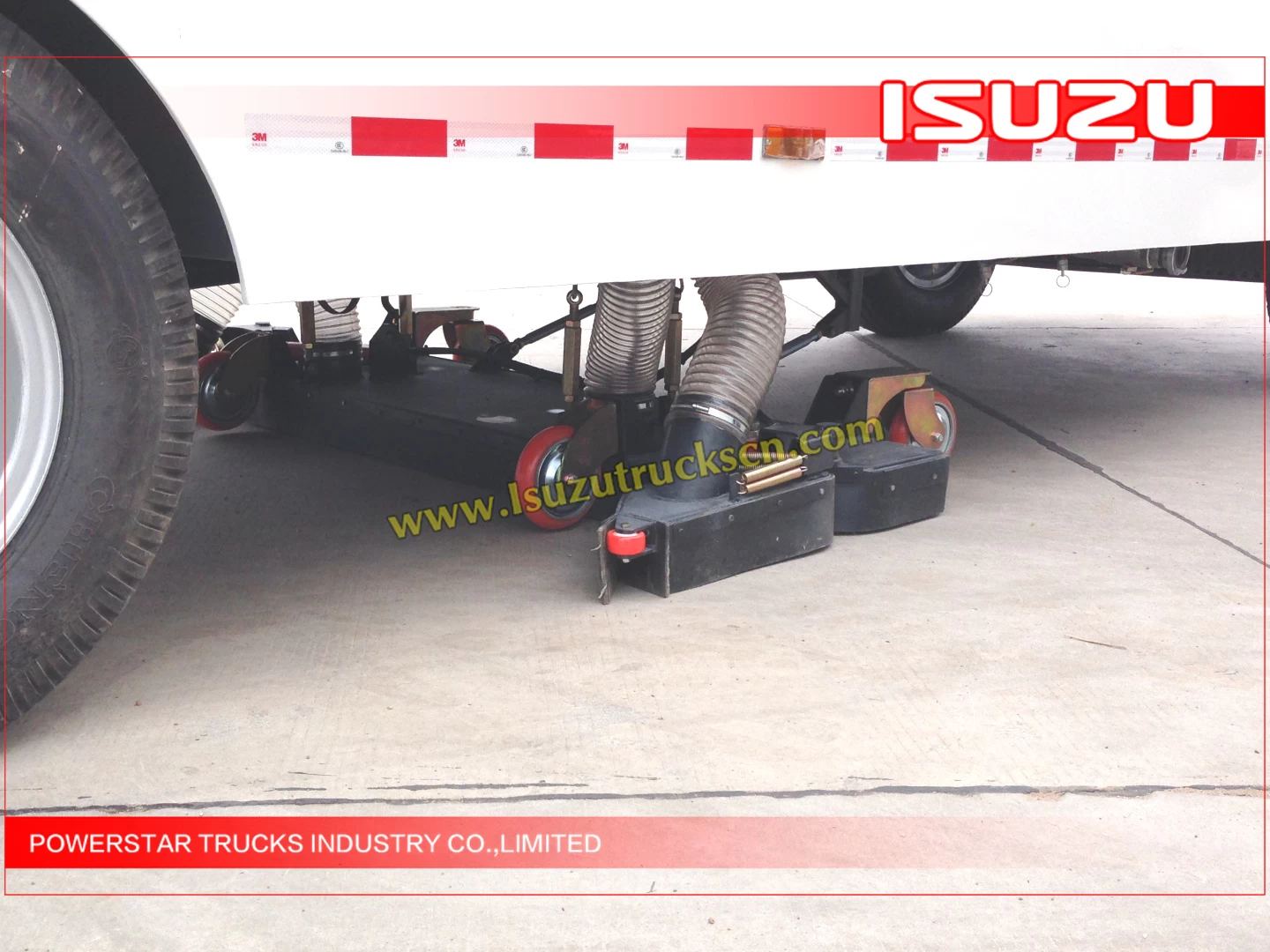

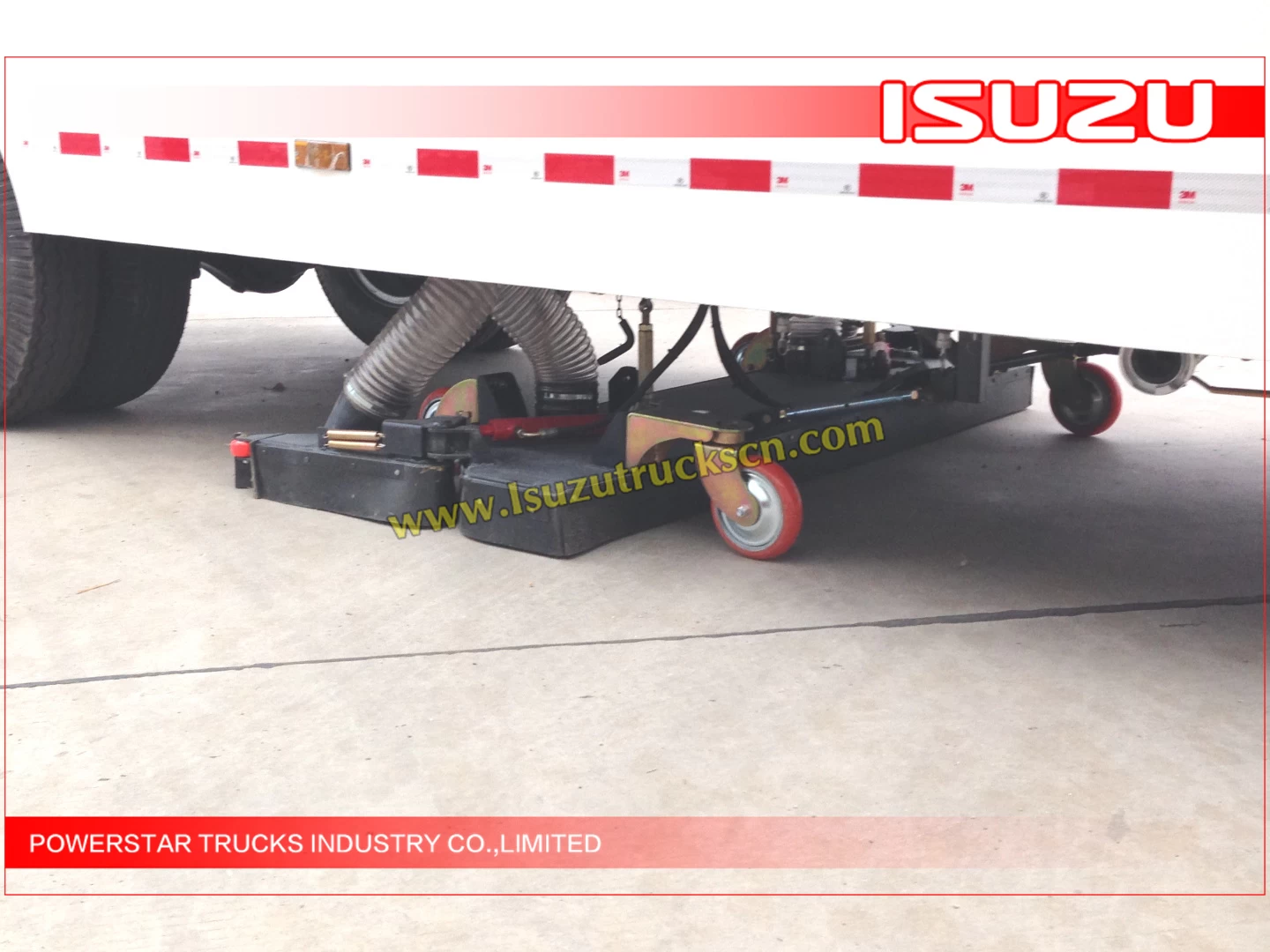

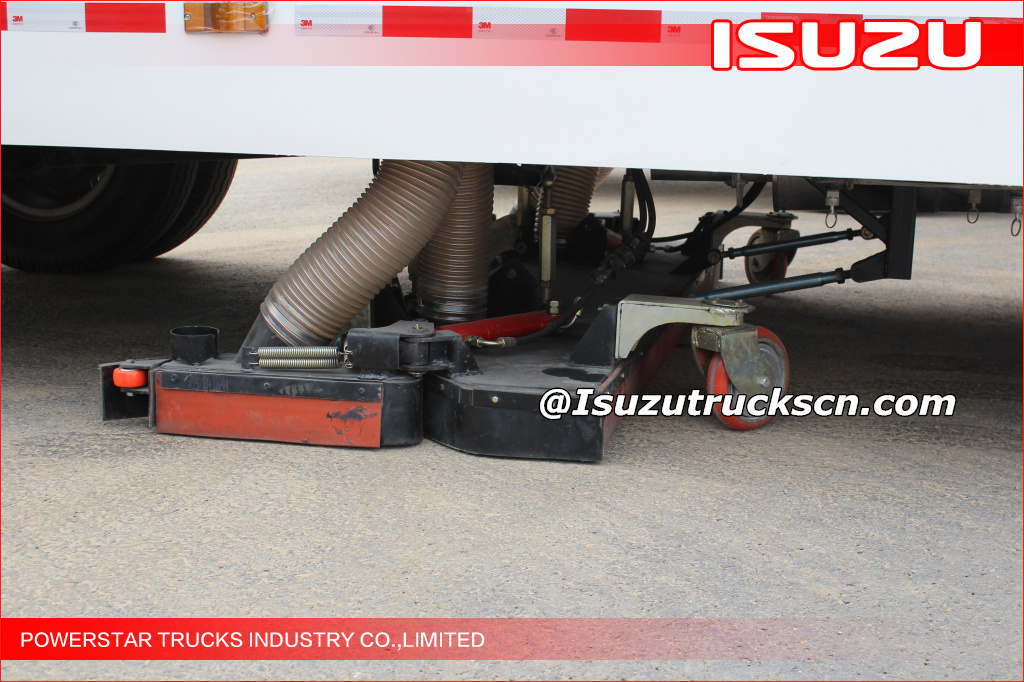

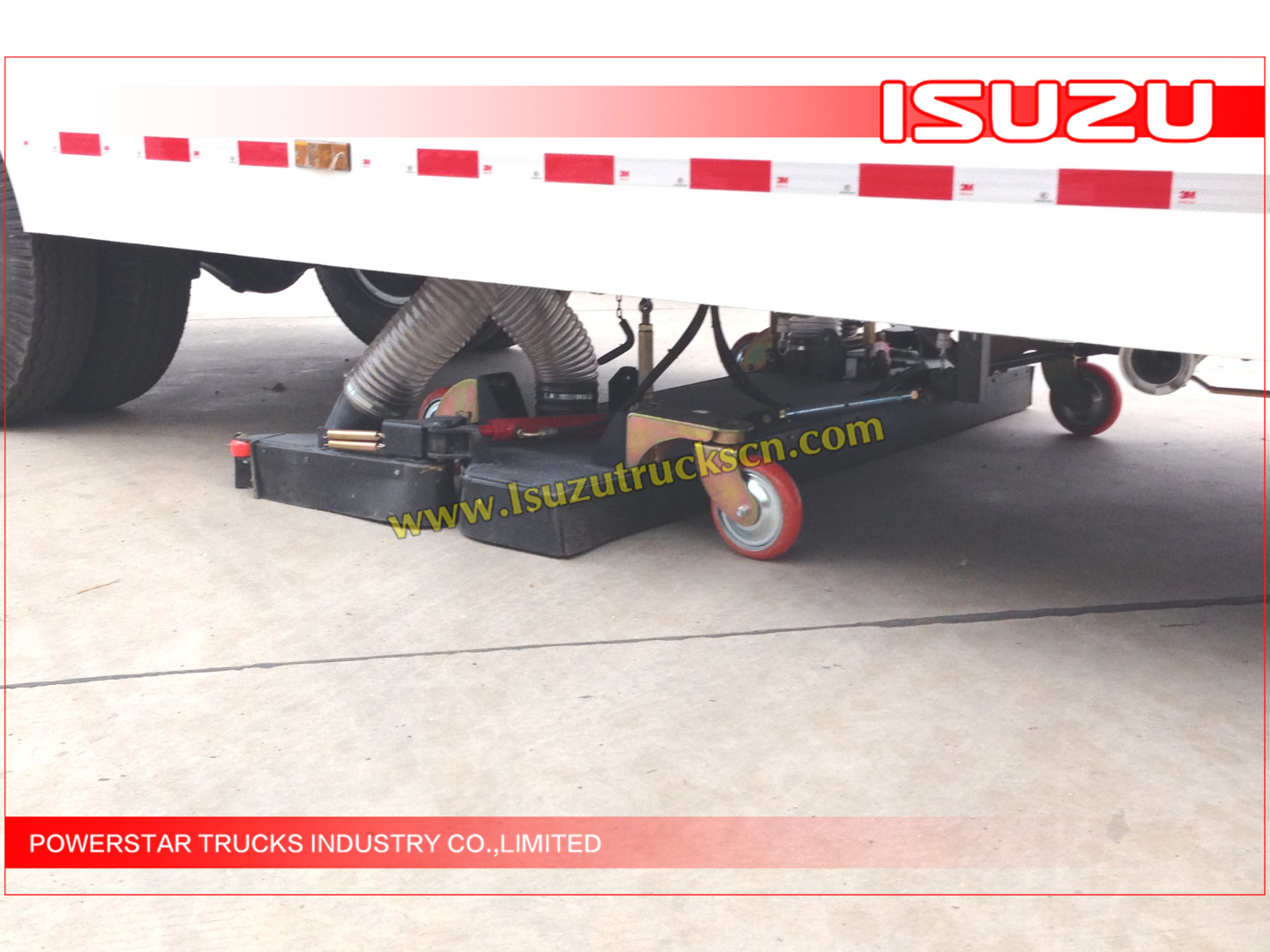

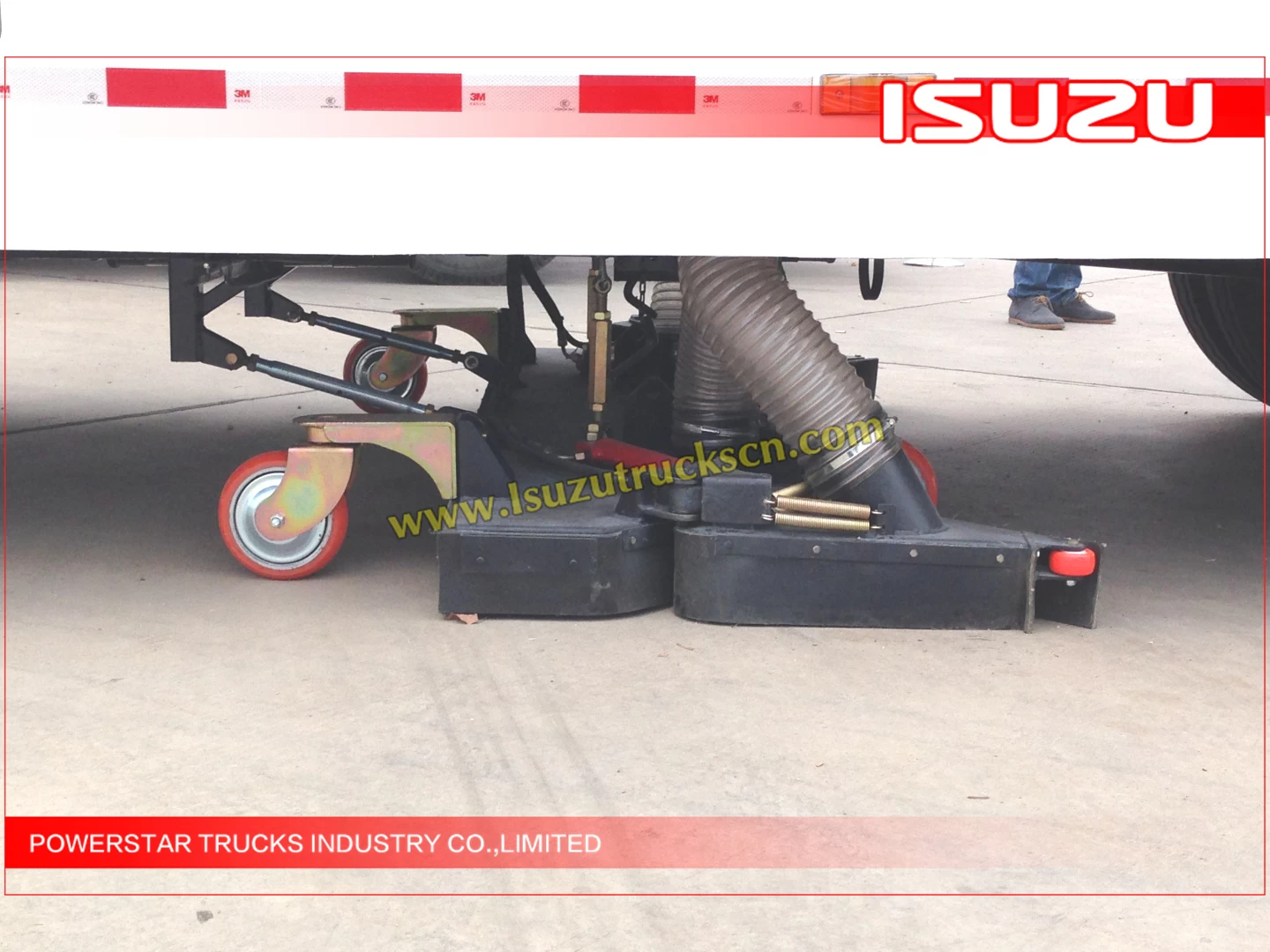

Sweeping System
|
Working
radius (mm)
|
3200
|
|
Maximum
speed of sweeping (km/h)
|
20.8
|
|
Volume
of dust collecting chamber (L)
|
5000
|
|
Percentage
of finished sweeping (%)
|
98.6
|
|
Weight
of the biggest particle collected (g)
|
1250
|
|
Diameter
of the equivalent ofthe biggest particle inhaled (mm)
|
110
|
|

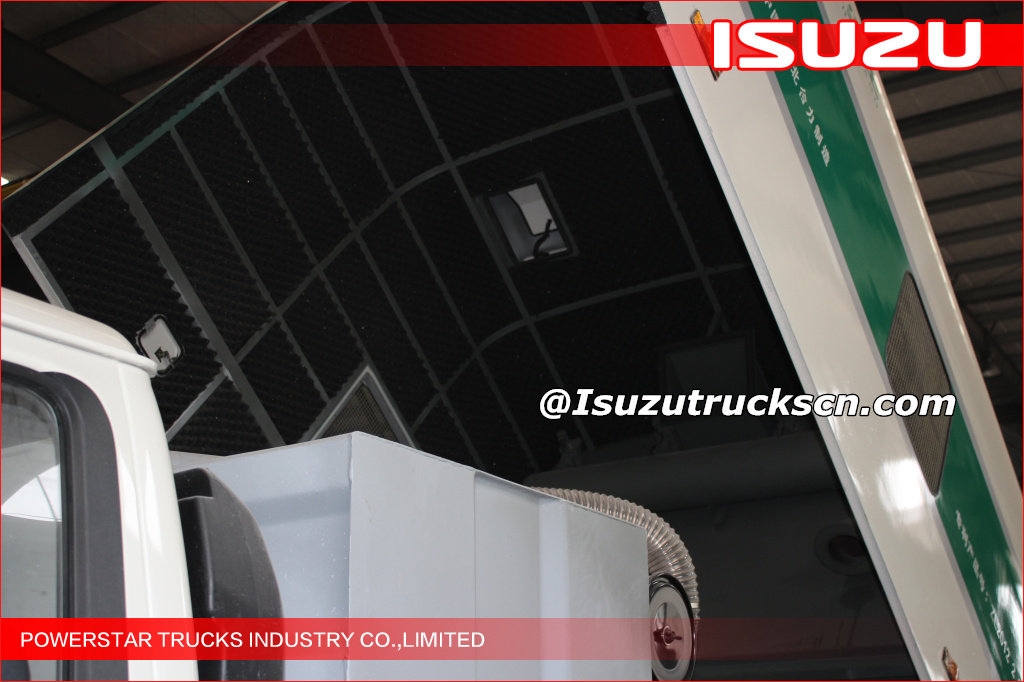

Biggest
angle of overturn of the dust collecting chamber (°)
|
47
|
|
Cleaning
ability (㎡/h)
|
70000
|
|
Engine
|
Model
|
4HK1-TCG40
|
|
Type
|
Diesel,
turbo charged inter-cooled, 4 cylinder
|
|
Max.
Power
|
139
KW (195 HP)
|
|
Gearbox
|
MLD
6-shift, mechanical type, 6 forward and 1 reverse with
|
|
Tire
|
8.25-20
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
100
km/h
|

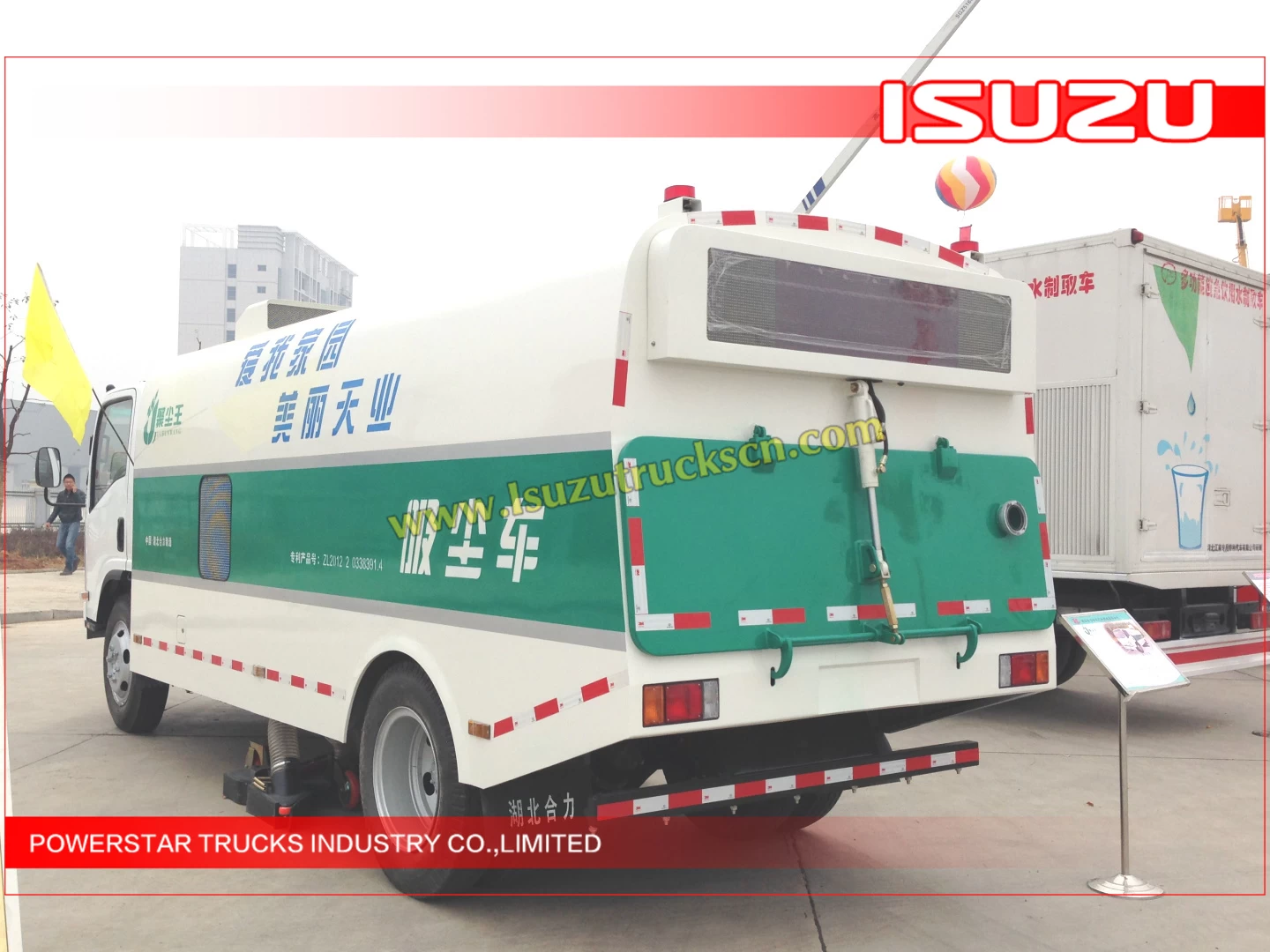

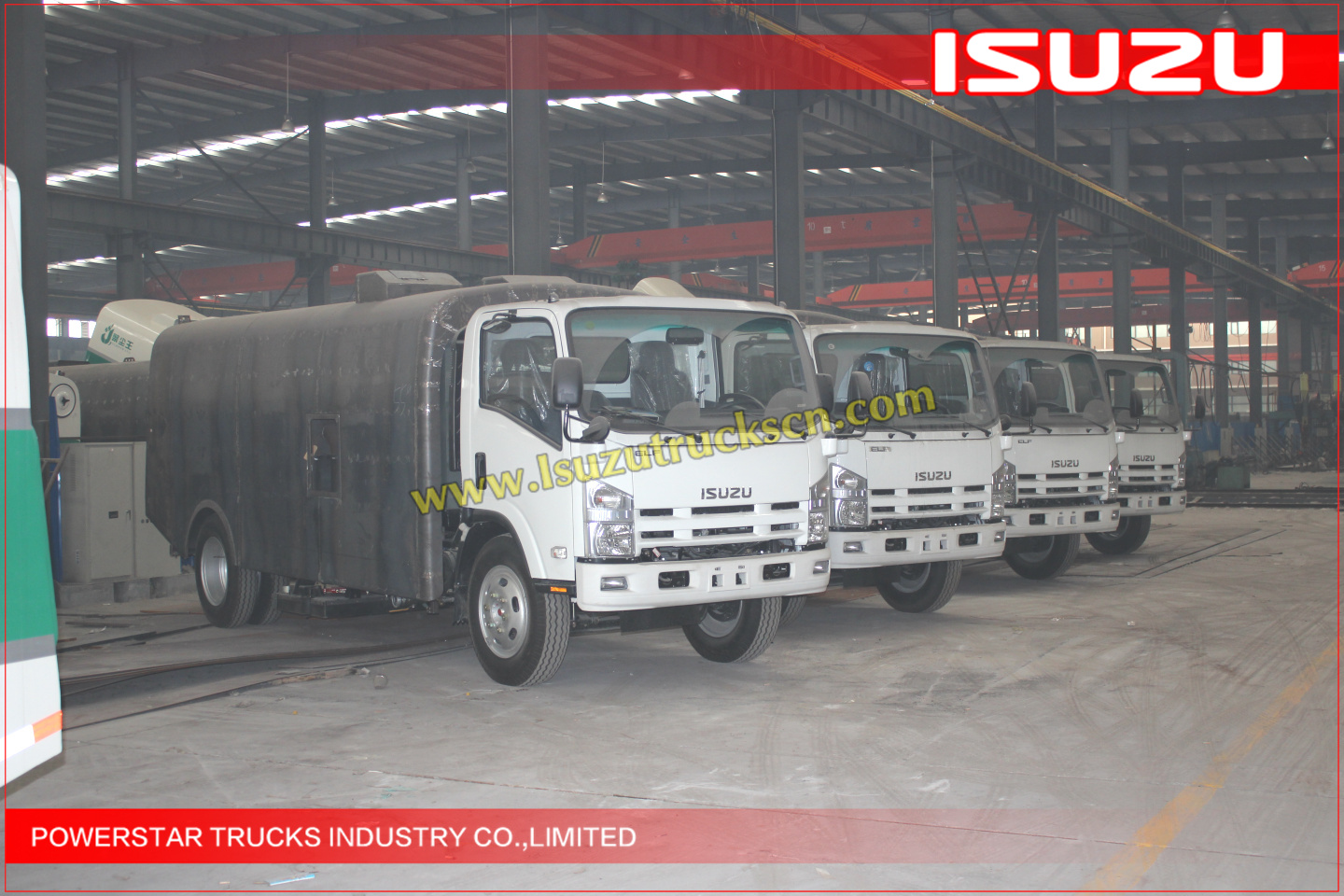

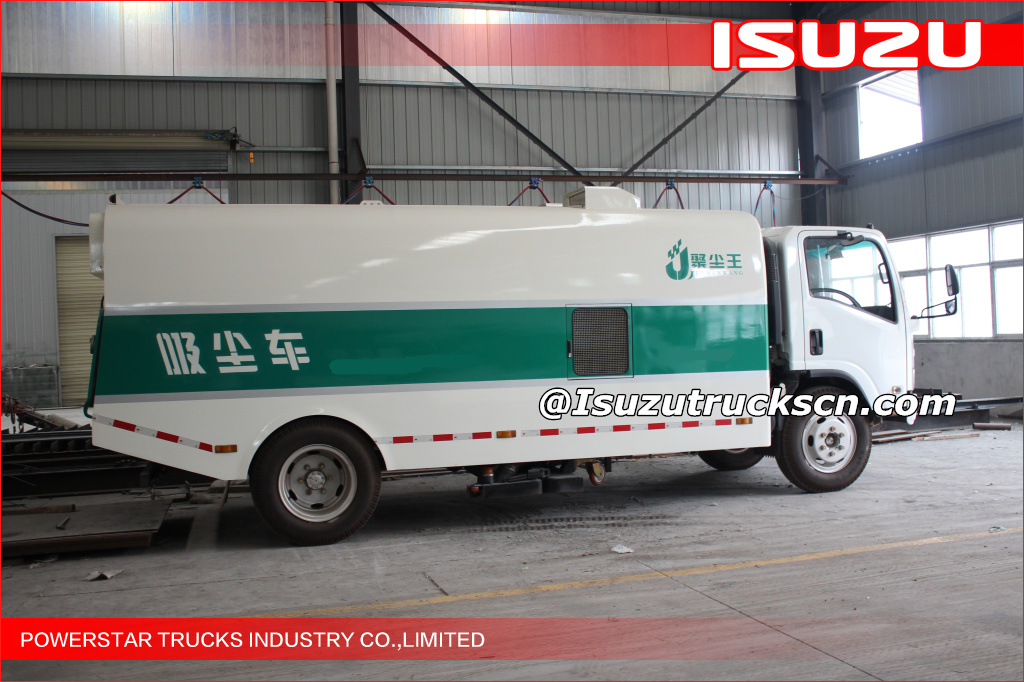

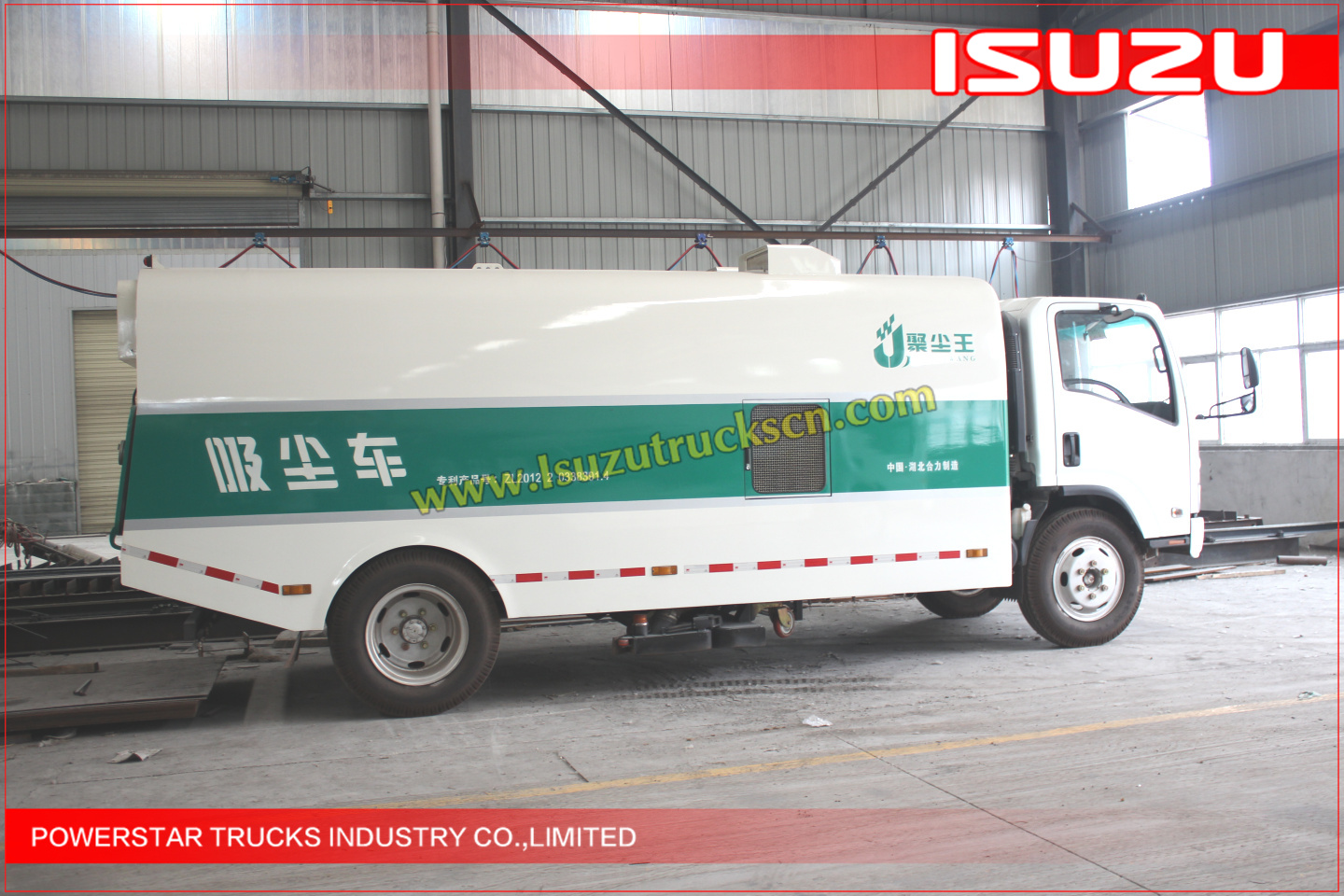

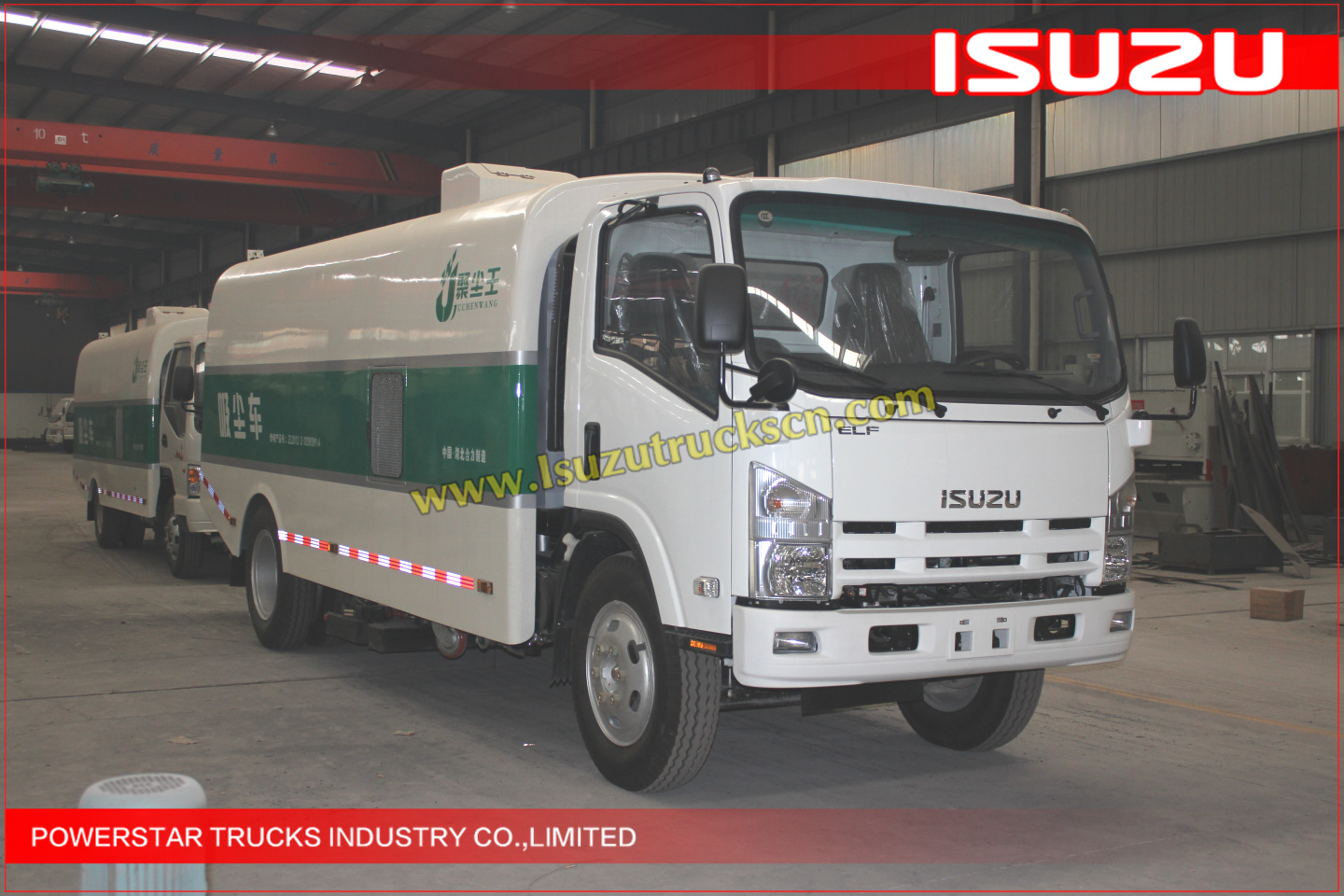

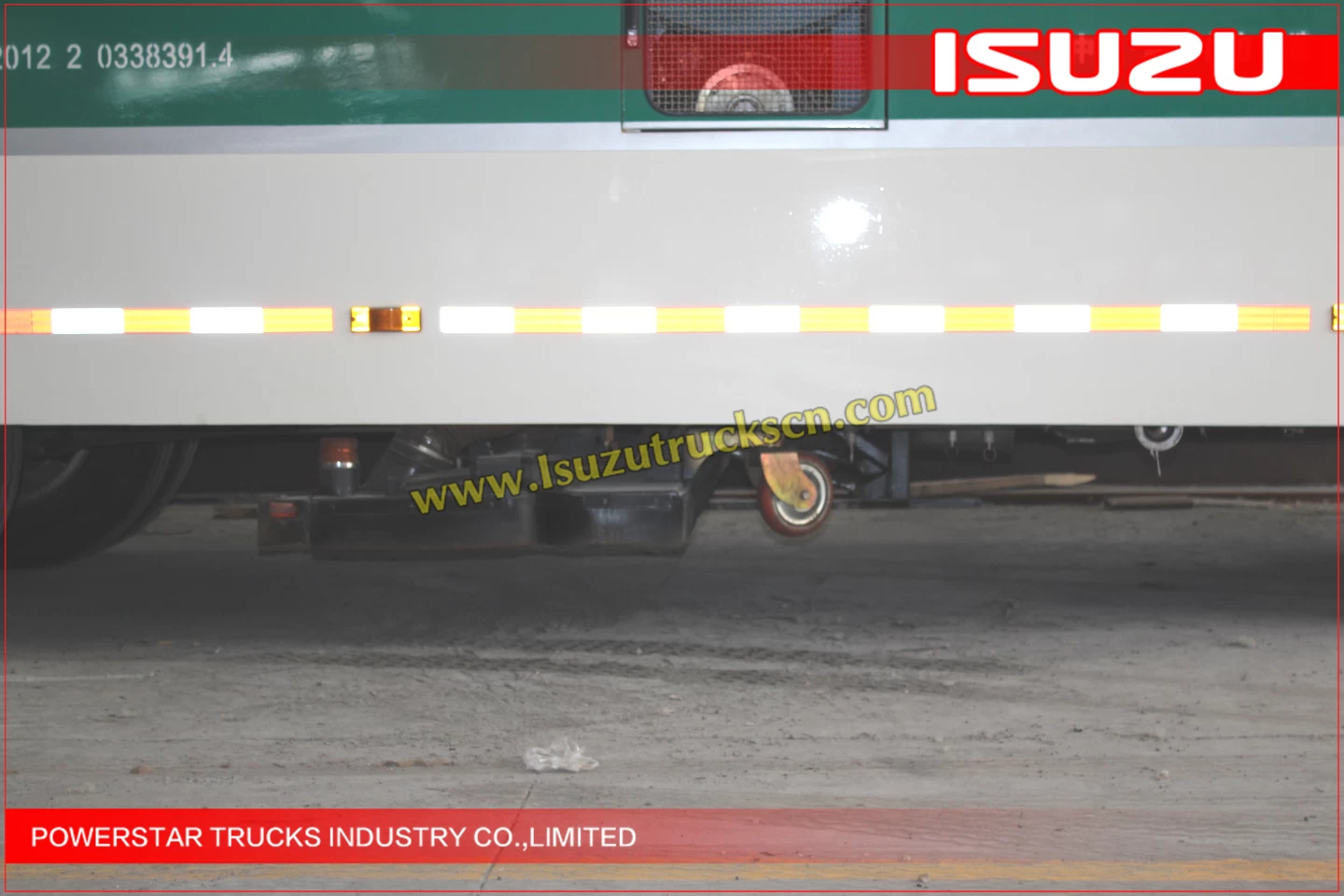

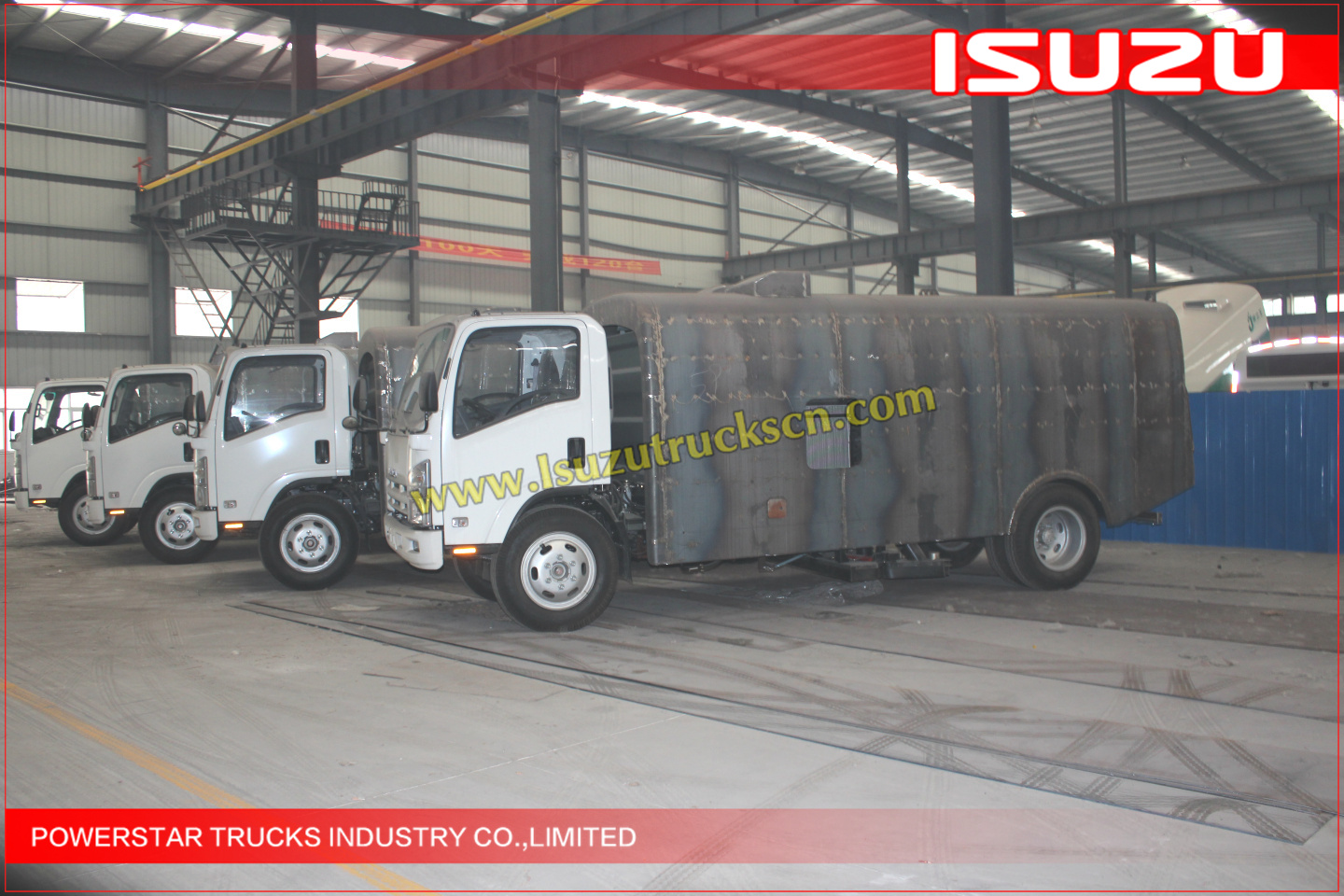

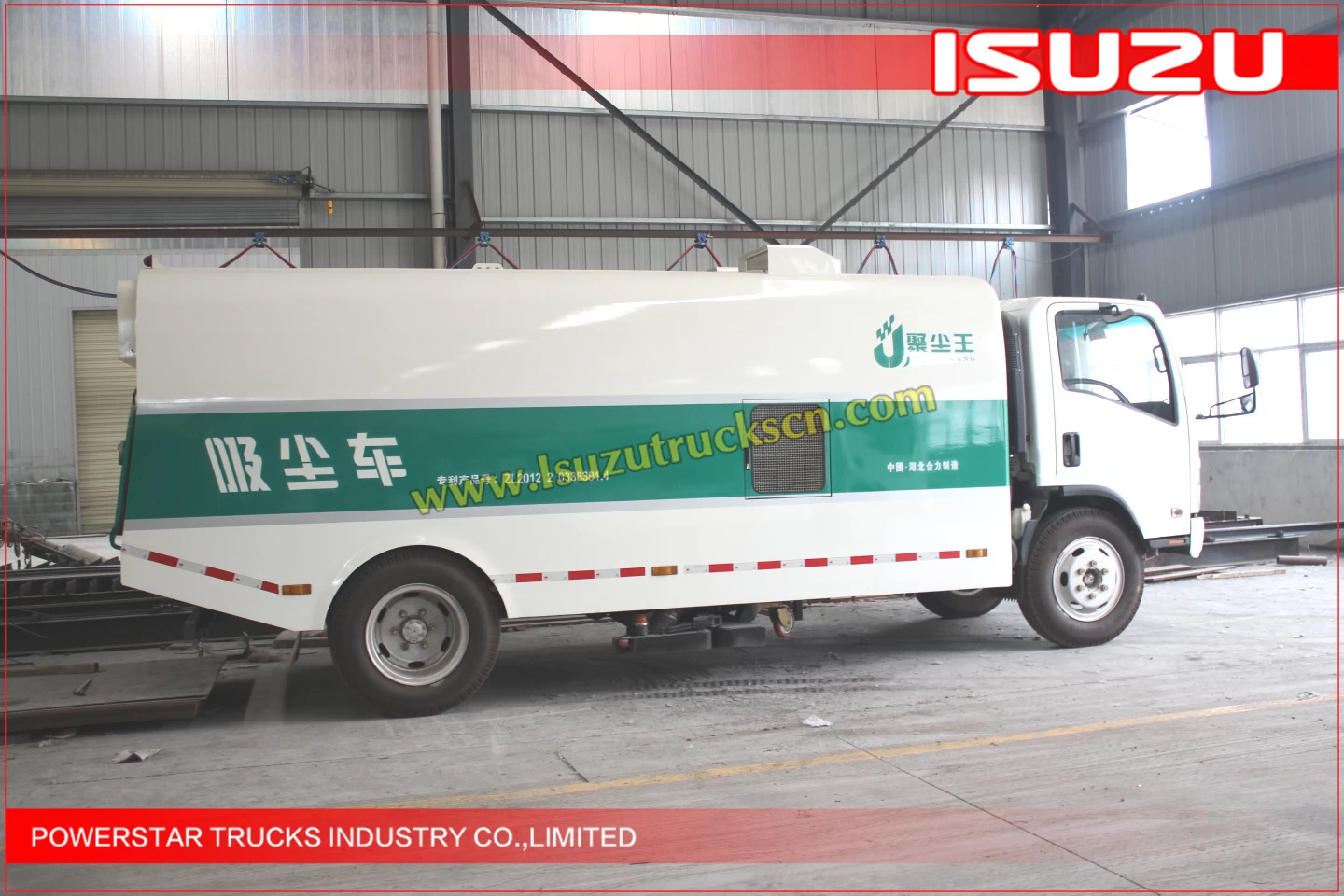

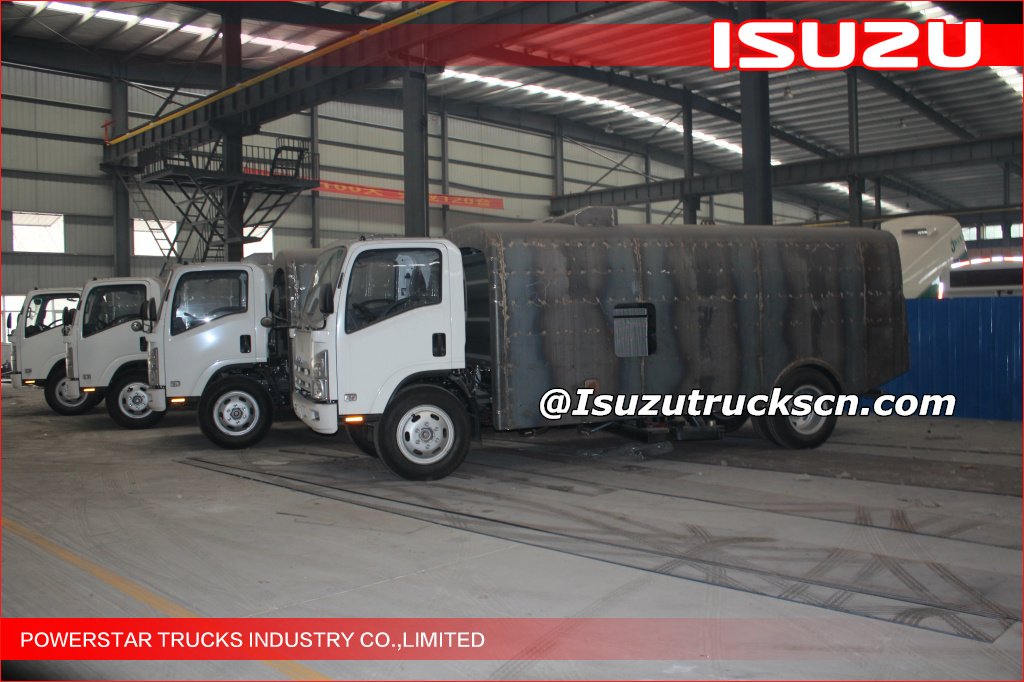

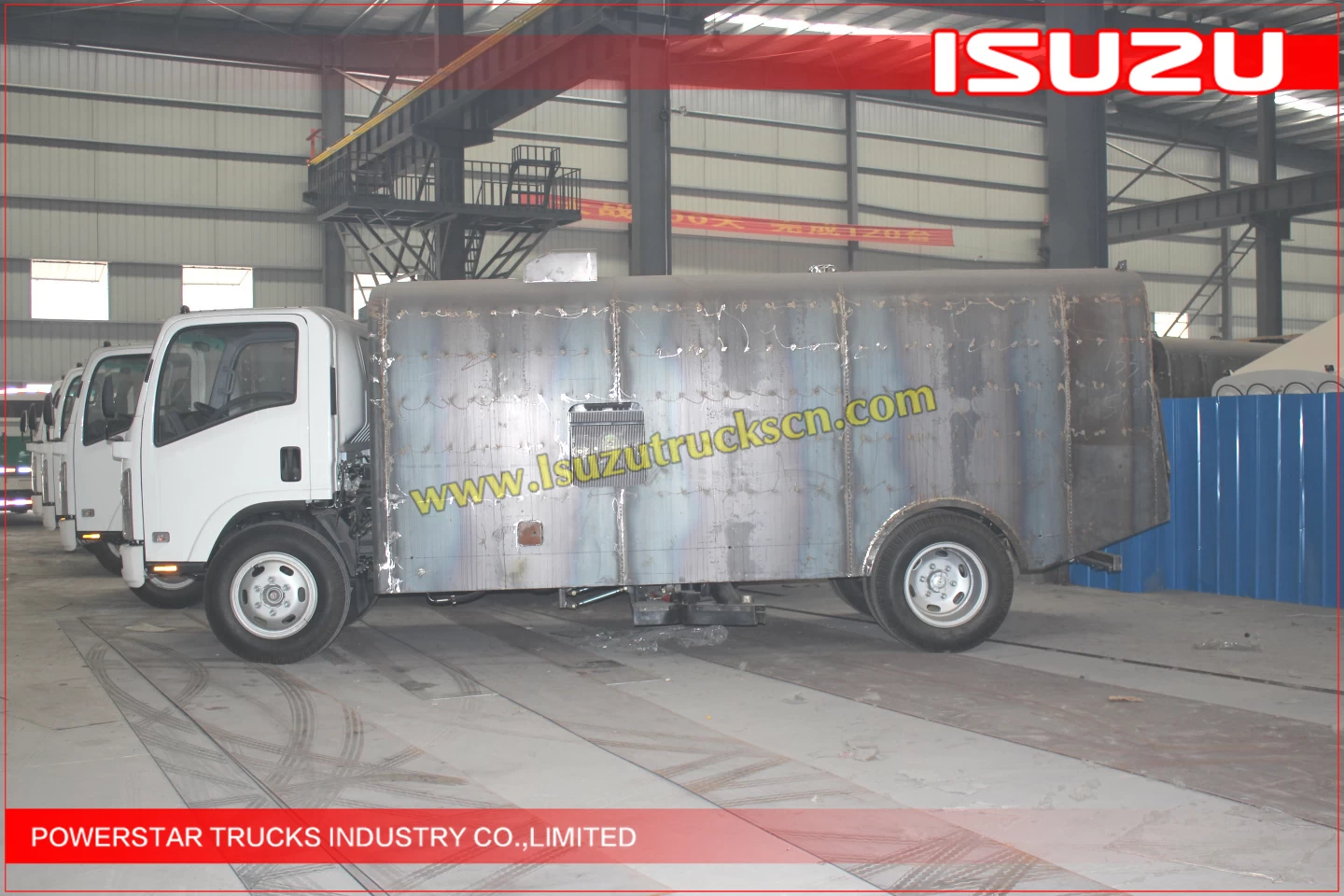

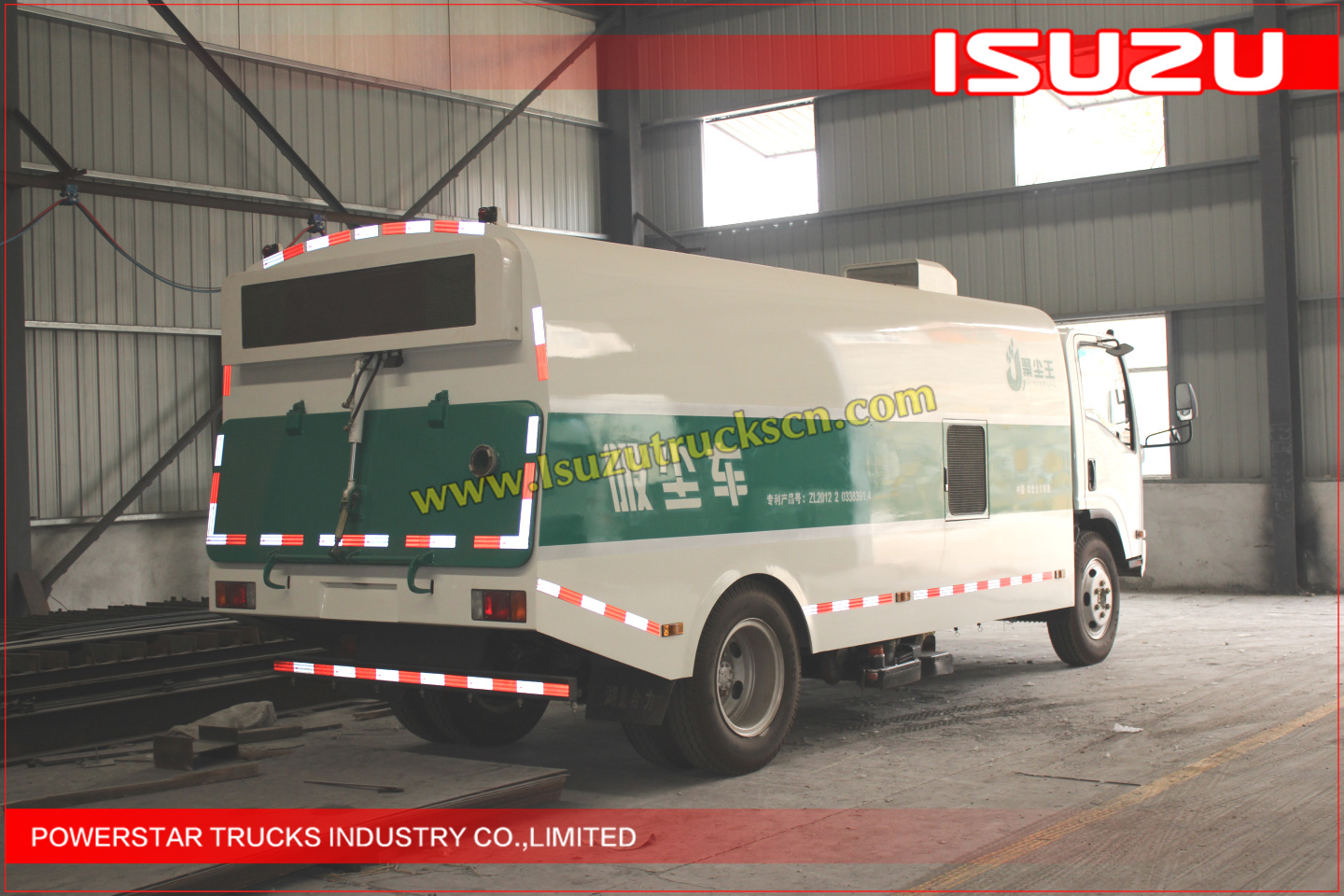

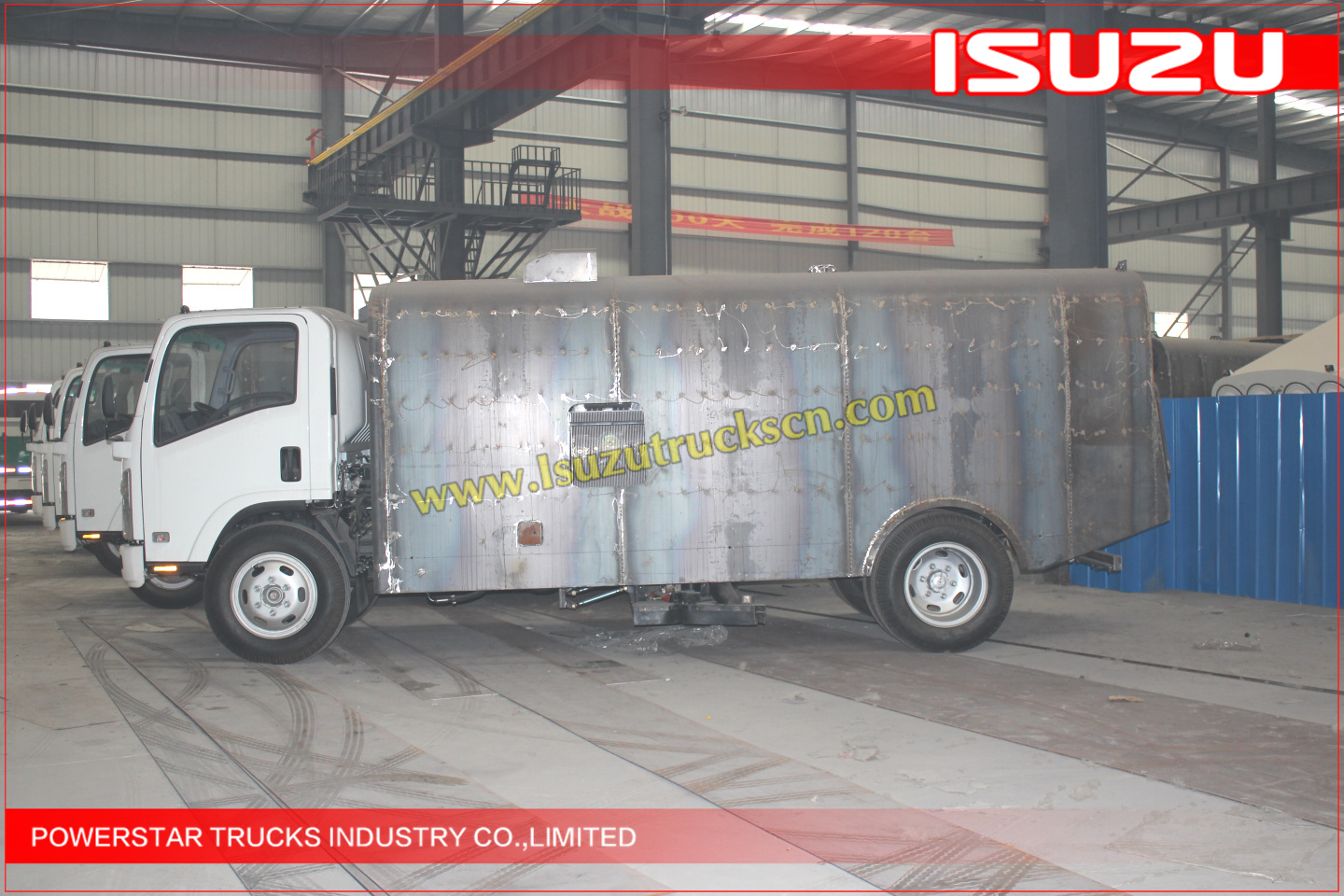

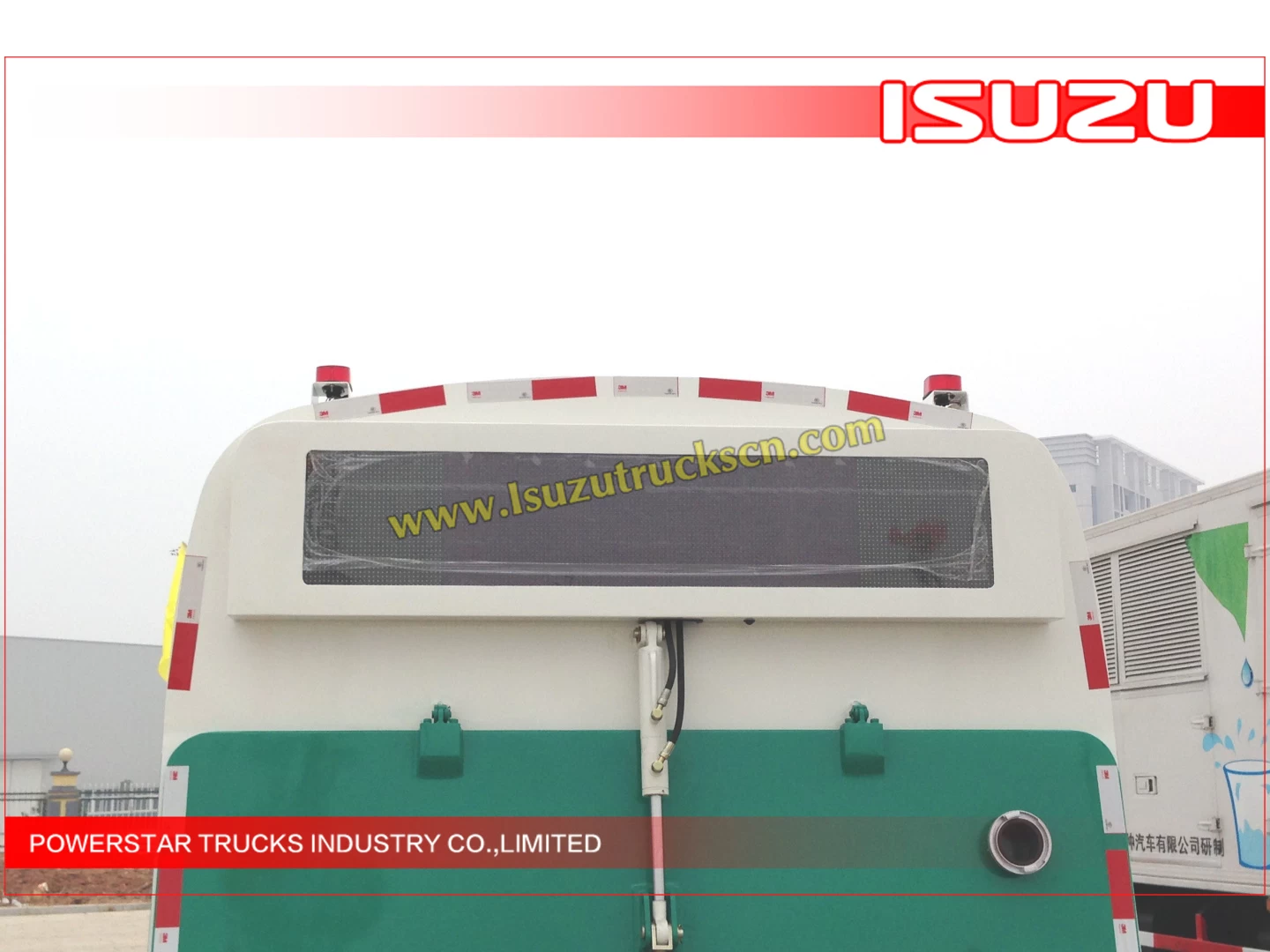

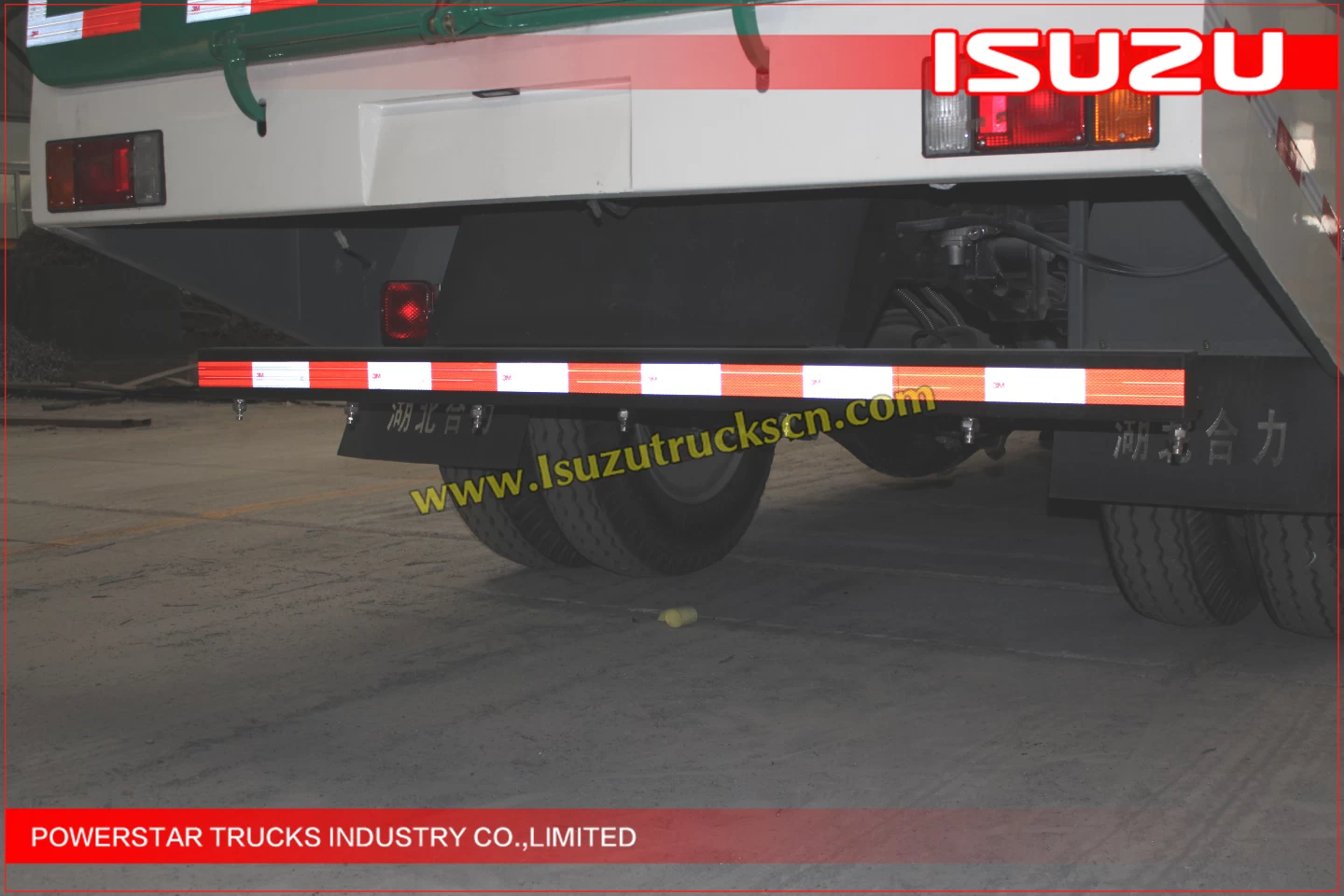

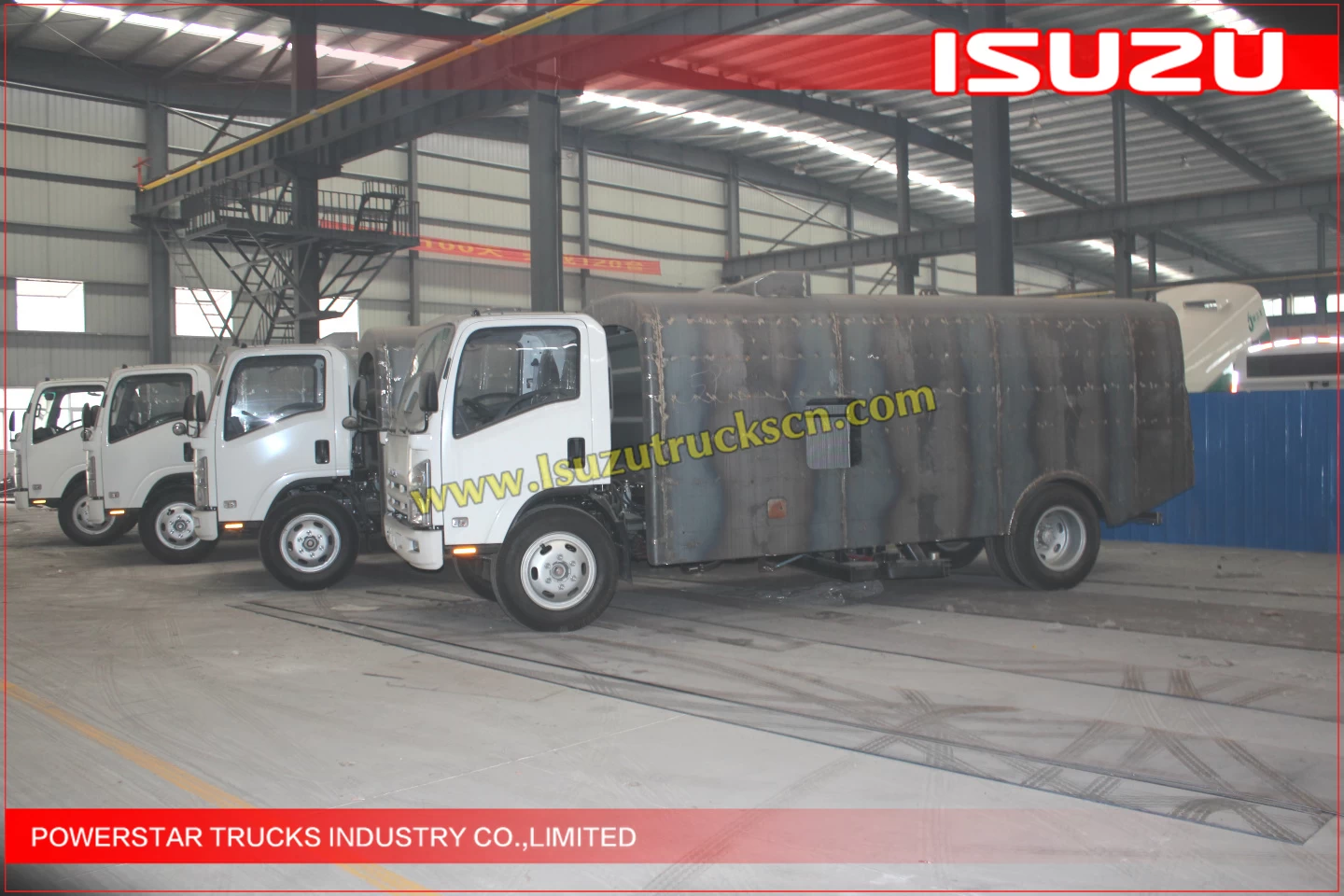

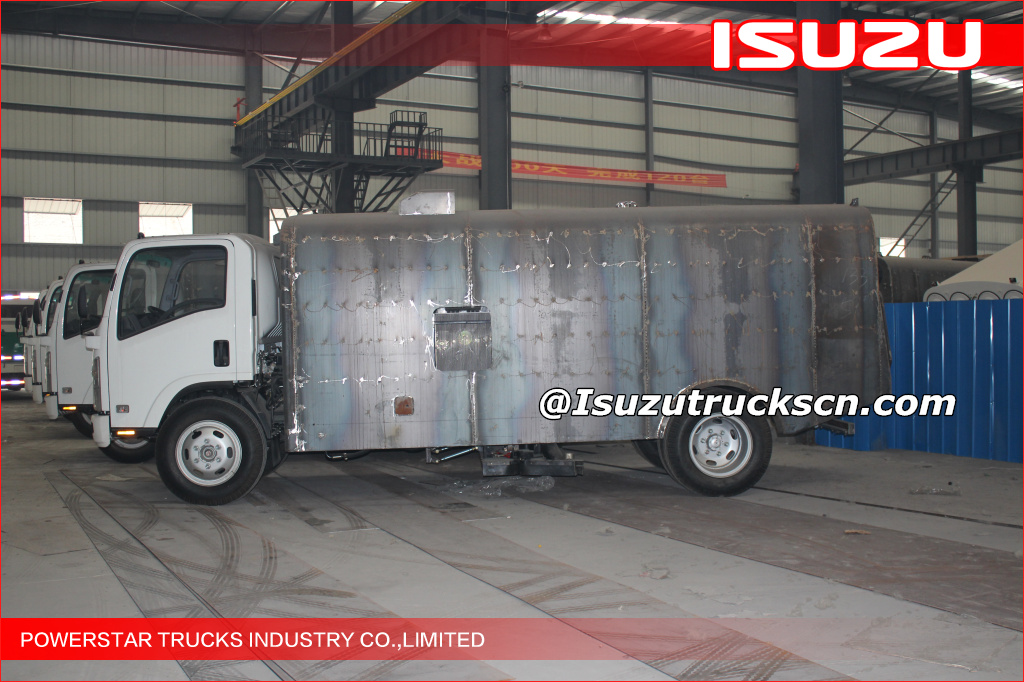

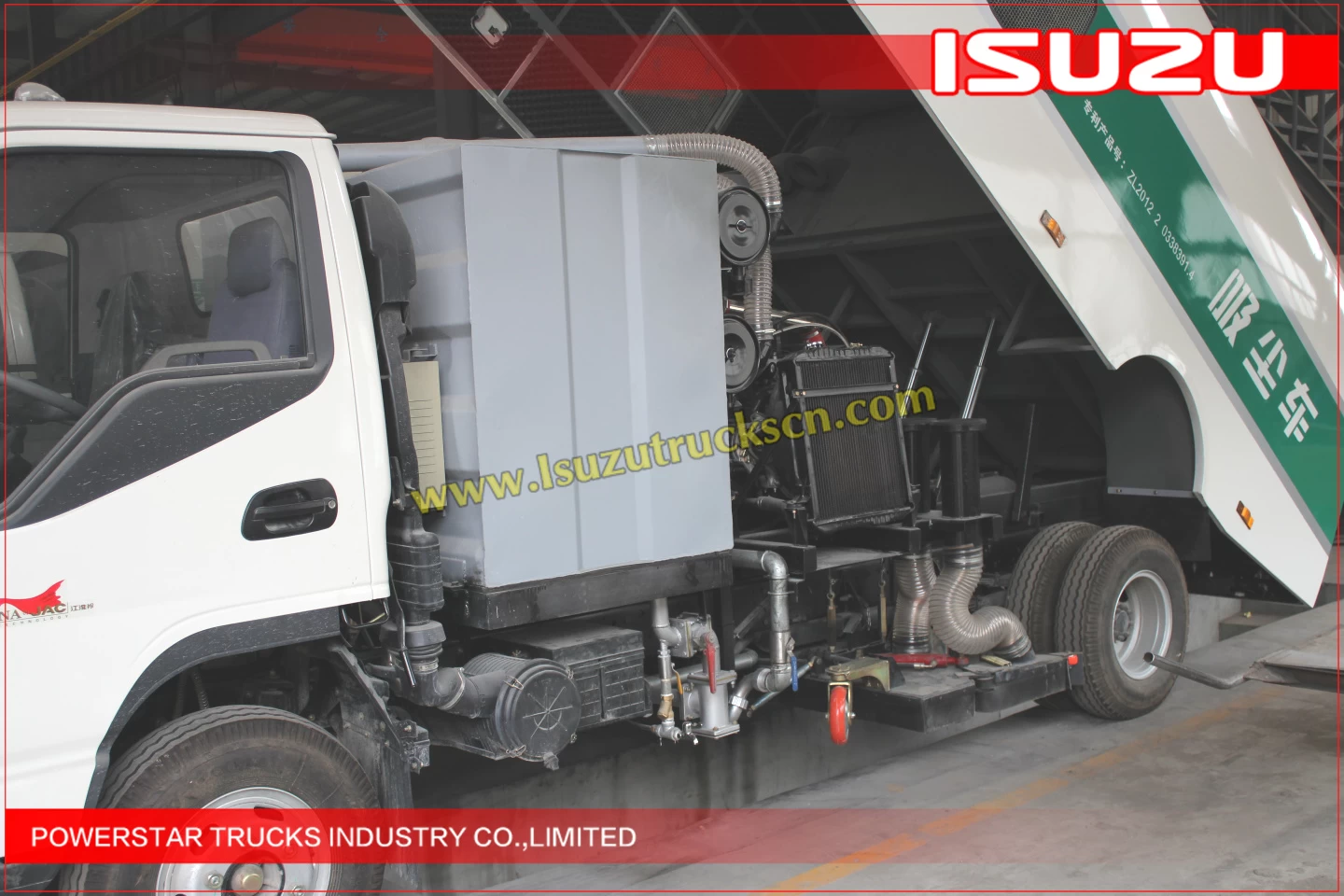

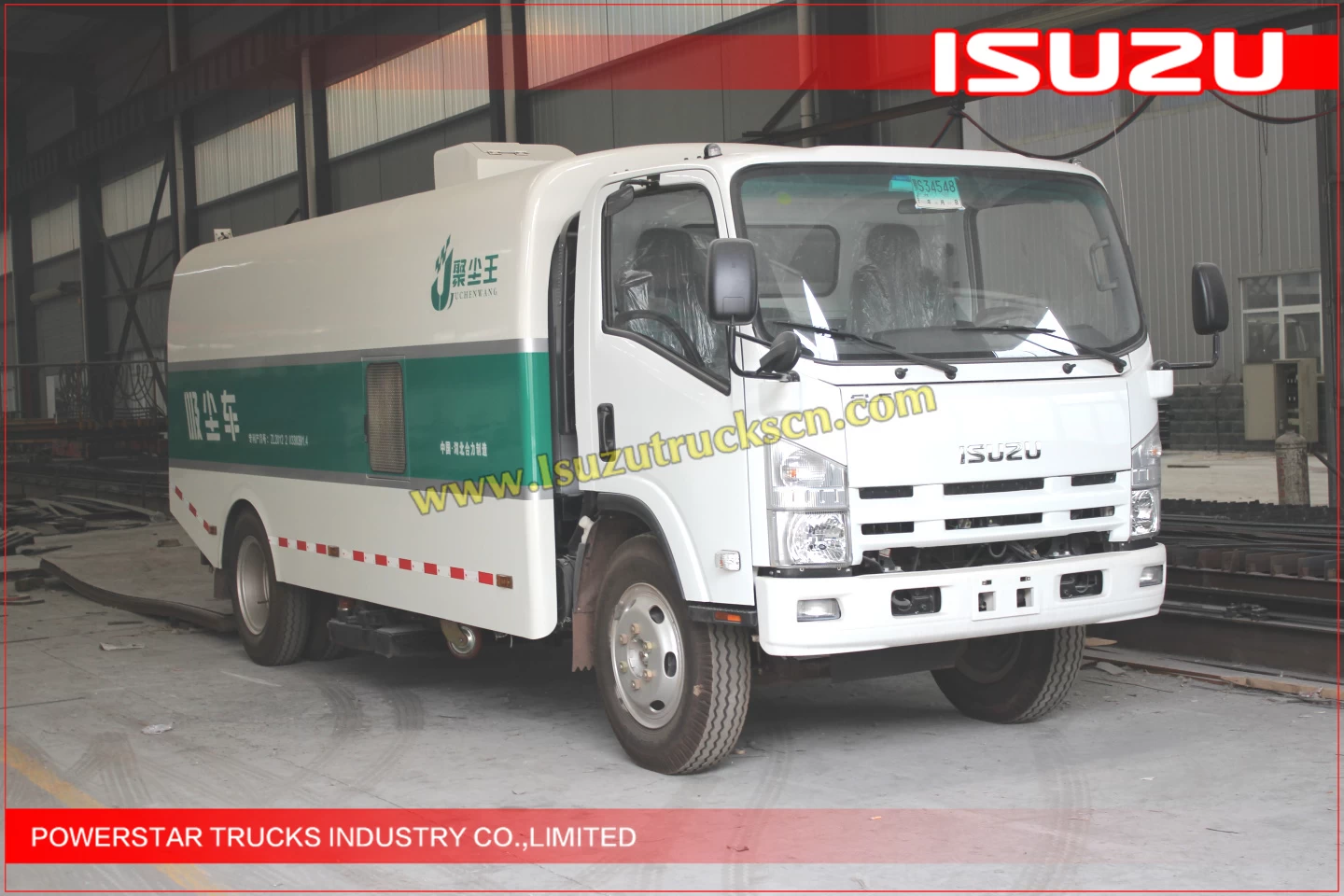

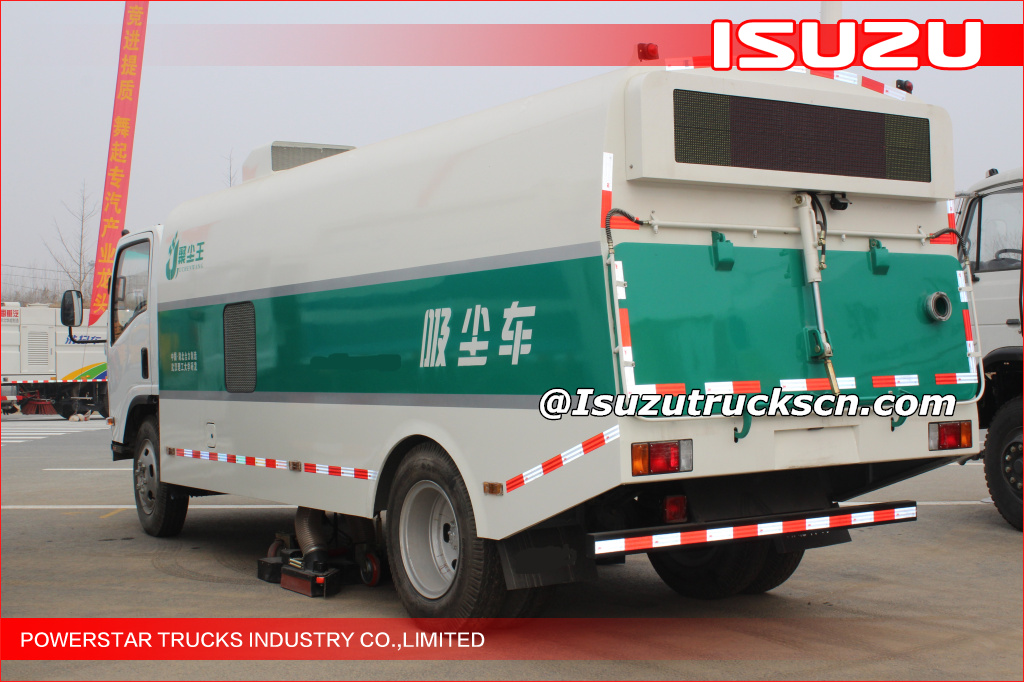

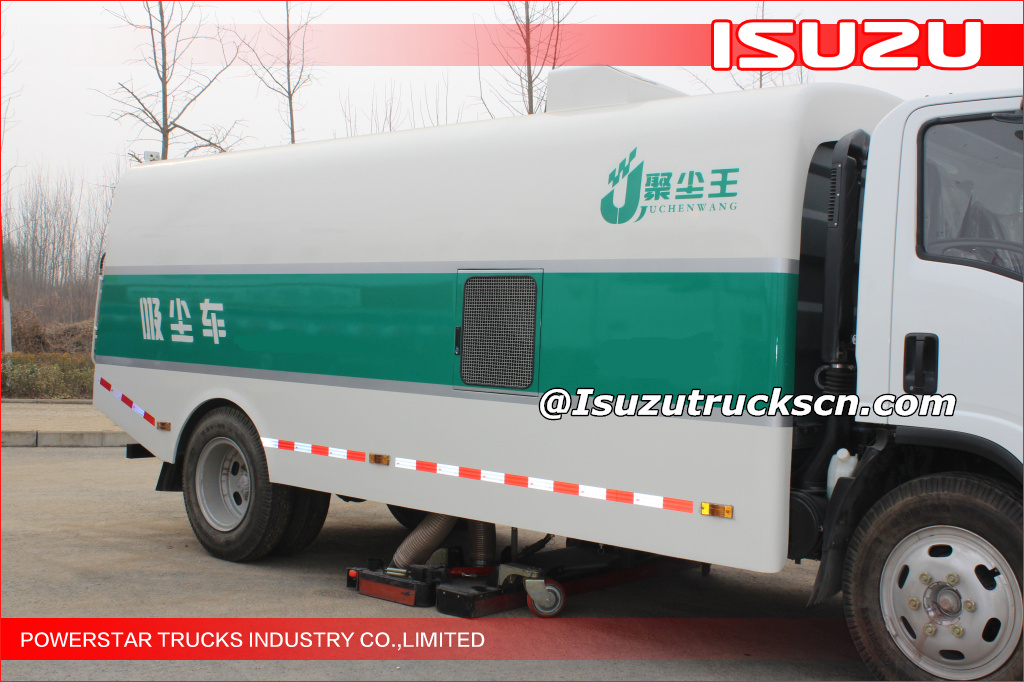

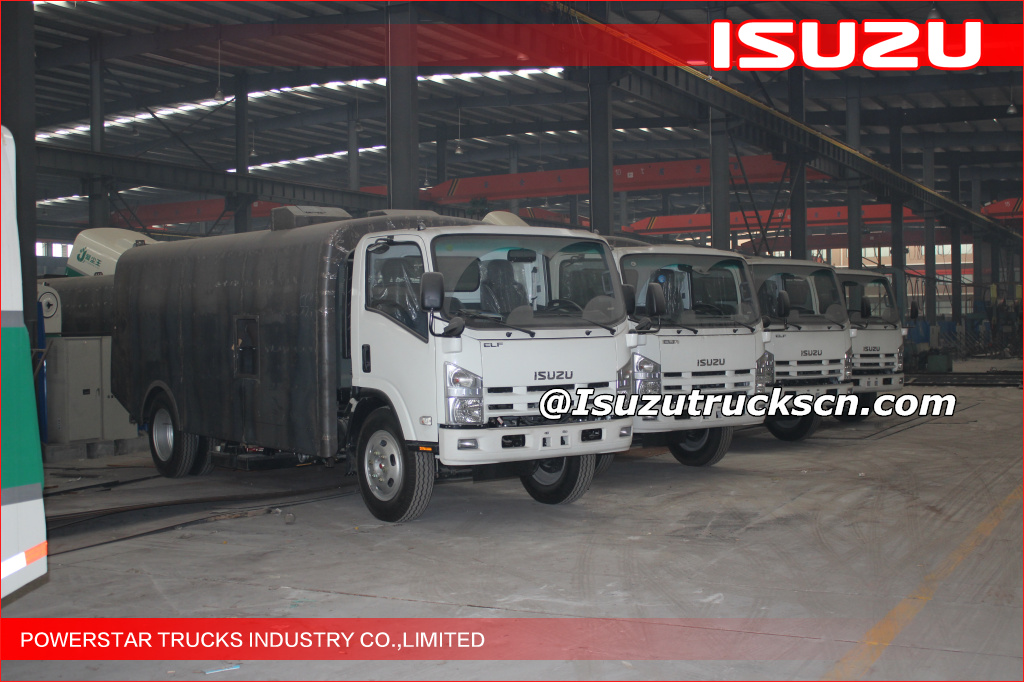

Customer build example:
