Low-noice, high-speed printing
Support cash drawer driving
Small and lightweight, beautiful shape
Light weight and portable, beautiful shape

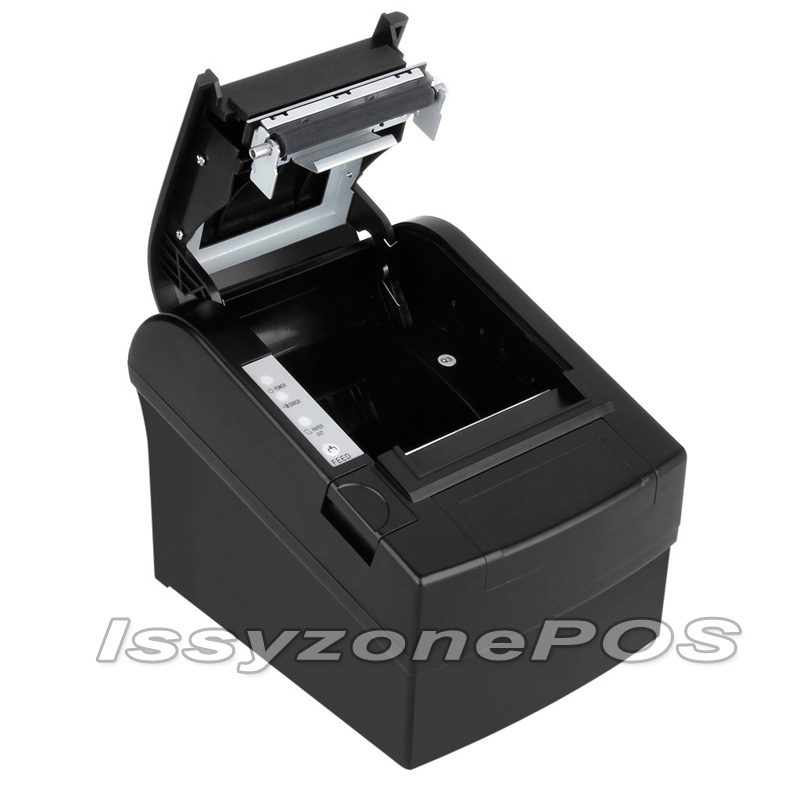

Easy paper loading structure, reasonable,easy to use maintenance
Character can enlarge print, Bold print, adjust character the line spacing printed
Support of different densities bitmap and download of grapohics printing
Low cost and High-quality thermal printing
Low power consumption, low operating costs(no ribbons, ink cartrigdes)
Compatible ESC/POS print commands set, each print characters and font is optional(Adjust DIP switch)

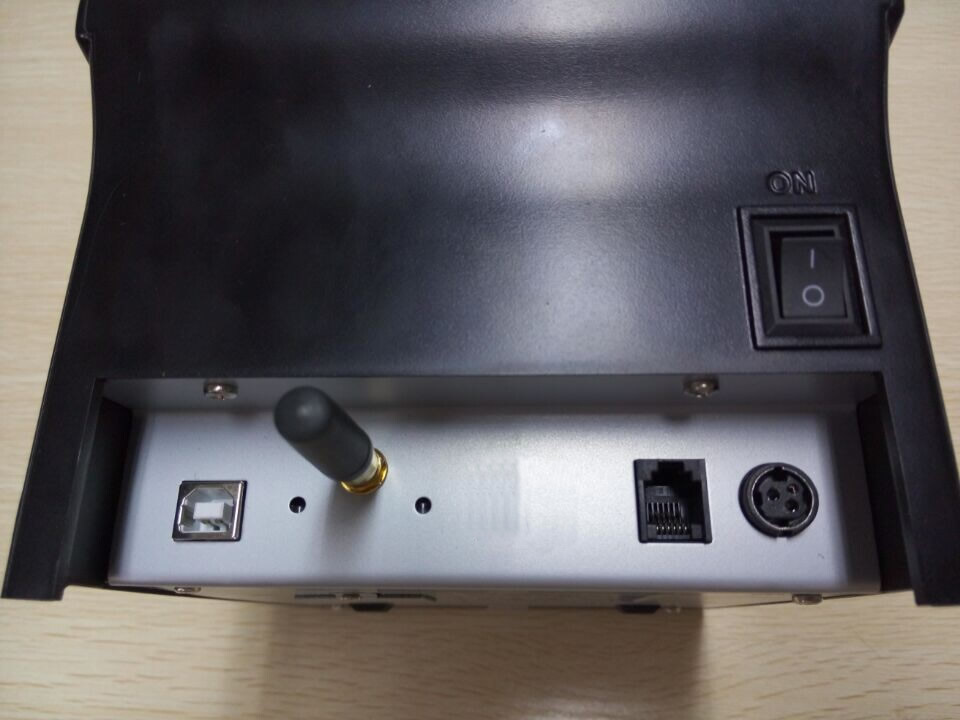

Interface type:Parallel/serial port/USB/LAN/Wifi
|
Print method:
|
thermal line printing
|
|
|
Print character:
|
576dots/line,512dots/line,ANK character
|
|
|
Font:A:
|
12*24dots,1.5(W)*3.0(H)mm
|
|
|
Font:B:
|
9*17dots,1.1(W)*2.1(H)mm
|
|
|
Simplified/Traditional:
|
24*24dots,3.0(W)*3.0(H)mm
|
|
|
Barcodetype:
|
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODABAR/ITF/CODE39/CODE93/
|
|
|
CODE128
|
|
|
Print Speed:
|
300mm/second
|
|
|
Print parameters:
|
support to download the Logo trademark
|
|
|
Printing Chinese character:
|
|
|
Chinese:
|
simplified Chinese 24x24 point support 18030 font library,support Taiwan and
|
|
|
HK traditional(complex font)
|
|
|
ANK:
|
ASC11 12 ×24
|
|
|
Extendedcharactertable:
|
OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/
|
|
|
OEM852/OEM858/IranII/Latvian/Arabic/PT1511251/
|
|
|
OEM747/WPC1257/Vietnam/OEM864/
|
|
|
Hebrew/WPC1255/Thai
|
|
|
Interface type:
|
Parallel/Serial port/USB/Ethernet
|
|
|
Print command:
|
compatible with Esc/POS
|
|
|
Print width:
|
79.5±0.5mm
|
|
|
Print Diameter:
|
83mm
|
|
|
Print thickness:
|
0.06-0.08mm
|
|
|
Power:
|
DC24V/2.5A
|
|
|
Cutter:
|
Full or Partial cut
|
|
|
Reliability print:
|
100km
|
|
|
Weight:
|
2.60kg
|
|
|
Temperature:
|
0-45℃
|
|
|
Contrast humidity:
|
10-80%
|
|
|
Drivers:
|
Win 9X ,Win 2000 ,Win 2003,Win XP,Win Vista,Win 7,win8, linux
|
|
|
External Diemension:
|
D*W*H186*145*140mm
|
|
|
Certificate:
|
CE FCC CCC ISO9001:2008
|
|
|
