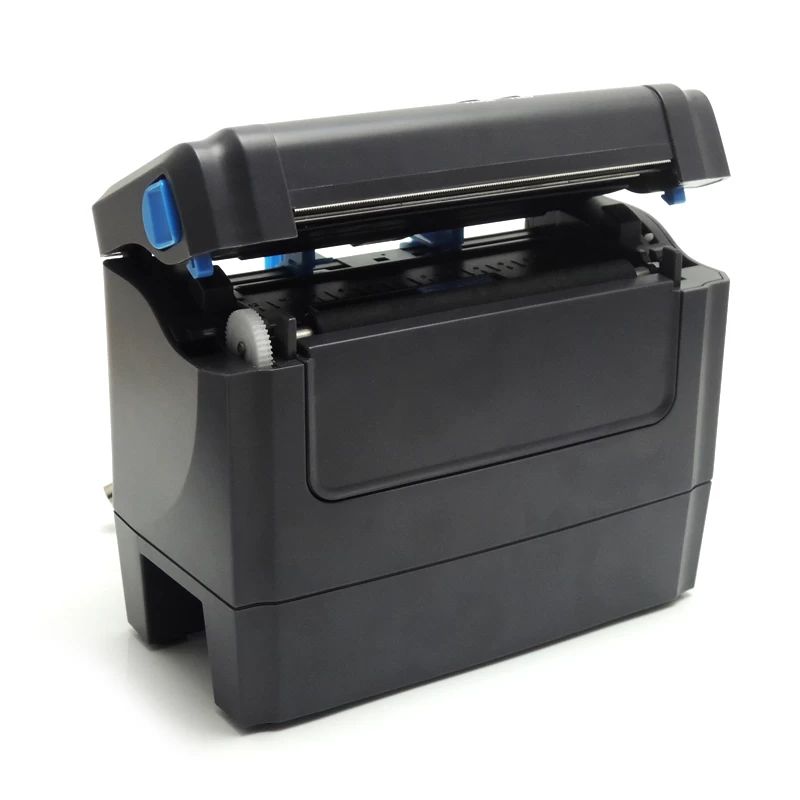

● New Mechanism, unique design
● Fast print speed up to 8 inch/s
● Easy tearing off paper with tearing blade
● Offer drop-in paper loading function for easy printing that reduce wasting of paper
● Adjustable paper width feature that allows to use 40mm to 120mm paper roll
● Automatic paper calibration and automatic temperature control
● External paper holder optional, convertible between paper roll and fan fold paper
● Modular design will meet different printing applications
|
|
Performance Parameter
|
|
Specifications
|
|
Printer Specifications
|
Print Method
|
Direct Thermal
|
|
|
Print Resolution
|
203 dpi
|
|
|
Print Speed
|
4~8 inch/s (101-203mm/s)
|
|
|
Print Width
|
Max. 104mm (4.09")
|
|
|
Print Length
|
Max. 2286mm (90")
|
|
|
Dot Density
|
203dots/inch (8dots/mm)
|
|
|
Dot Size
|
0.125x0.125mm (1mm=8dots)
|
|
|
Print Head
|
50KM
|
|
|
Interface
|
USB+RS232
|
|
Media Characteristics
|
Media Roll OD
|
130mm (5")
|
|
|
Media Type
|
Thermal paper, Thermal label, Adhesive thermal paper
|
|
|
Media Rolling Up Method
|
Printing side outward rolling
|
|
|
Media Width
|
Max.120mm (4.72") Min.40mm (1.56")
|
|
|
Media Thickness
|
Max. 0.254mm (10mil) Min. 0.06mm (2.36mil)
|
|
|
Media Roll Core Size
|
25.4mm~38mm (1"~1.5")
|
|
|
Media Gap
|
Min. 2 mm (0.09")
|
|
|
Label Length
|
10~2286mm (0.39"~90")
|
|
BarCode/Fonts/Graphics Symbologies
|
Enlargement&Rotation
|
1 ~10 times enlargement in both directions; 0°、90°、270°、360°rotation
|
|
|
Character Size
|
Font 0 ~ font 8
|
|
|
1D Barcode
|
Code39, Code93, Code128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-13,
|
|
|
|
EAN-14, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY,
|
|
|
|
POSTNET, china POS, ITF14
|
|
|
2D Barcode
|
QR code
|
|
|
Graphics Processing
|
Support BMP/PCX/BAS files
|
|
|
Editing Software
|
Nicelabel SE
|
|
Operating Characteristics
|
Power supply
|
Input: AC 110V/240V Output: DC24V/2.5A, 60W
|
|
|
Operation Condition
|
Temperature: 5~45℃(41~104℉), Humidity: 25~85%RH
|
|
|
Storage Condition
|
Temperature: -10~50℃(-10~140℉), Humidity: 10%~90%RH
|
|
Physical Characteristics
|
Printer Dimensions
|
285*210*180mm (WxDxH)
|
|
|
Printer Weight
|
Approx. 2.1KG
|
|
Accessories
|
External Media Holder
|
Optional
|
