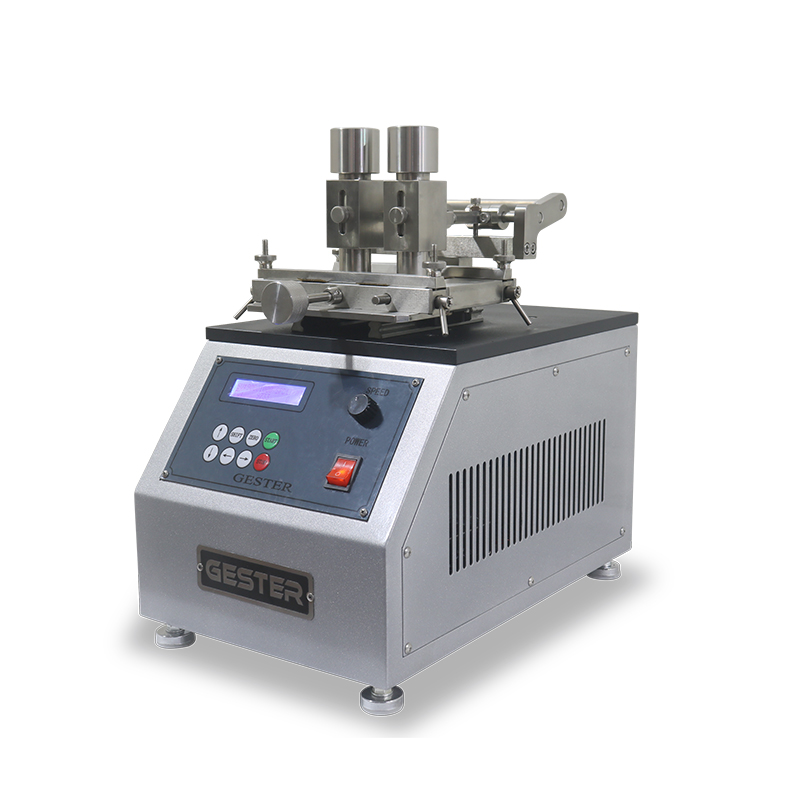

IULTCS & Veslic Leather Abrasion Tester GT-KC01-2

This IULTCS & Veslic Leather Abrasion Tester is used for color fastness testing of leather, plastic and textile. Under the specified pressure, let white wool felt to do reciprocating abrasion to the surface of dye sample.

Facebook Twitter Pinterest LinkedIn 分享

IULTCS & Veslic Leather Abrasion Tester GT-KC01-2



Product Introduction

Application:

This Leather Abrasion Tester is used for color fastness testing of leather, plastic and textile. Under the specified pressure, let white wool felt to do reciprocating abrasion to the surface of dye sample. After a specified count, to assess the color fastness of sample by checking the color change and fading of sample and the discoloration of white wool felt. It can be used for dry abrasion testing and wet abrasion test.


Standards:

DIN 4843 , ISO 11640, SATRA PM 173, QB/T 2537, GB/T 20991 section 7.3 ,

EN ISO20344 section 7.3 , AS/NZS 2210.2 section7.3

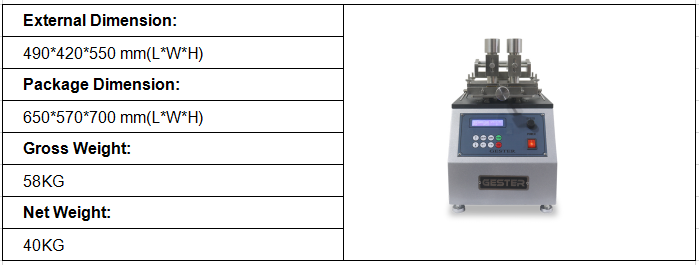

Dimensions

IULTCS & Veslic Leather Abrasion Tester

Key Specifications



Model

GT-KC01-2

Position

2

Area of testing head

15mm x 15mm

Movement speed

40 ± 2 times / min.

Rubbing stroke

35~40 mm

Rubbing finger mass

500g

Additional weight mass

500g

Fixtures distance

80mm

Sample size

120x20mm

Tension extension range of sample

0 ~ 20%

Power supply

1∮AC 220V 50/60HZ

Dimensions (L x W x H)

490x420x550mm

Weight

40kg

Standards

DIN 4843 , ISO 11640, SATRA PM 173,

QB/T 2537, GB/T 20991 section 7.3 ,

EN ISO20344 section 7.3 , AS/NZS 2210.2 section7.3



Standards accessories

1pc

500g Weights

1pc

Power line

Optional accessories

Optional

Standard wool pads

Optional

GT-C48 Pneumatic Sample Press

(Cutter: 120x20mm)

Optional

Gray Scale for color change

Optional

Gray Scale for staining
