Japanese standard PSE approved 450/750V PVC insulated wire (IV)
The Insulated wire IV cable is used for wiring of general electrical structures or devices of 450/750V or lower ,this product especially is used frequently in wiring of disaster prevention facilities.
Excellent thermal resistance Safe with self-extinguishing insulator.

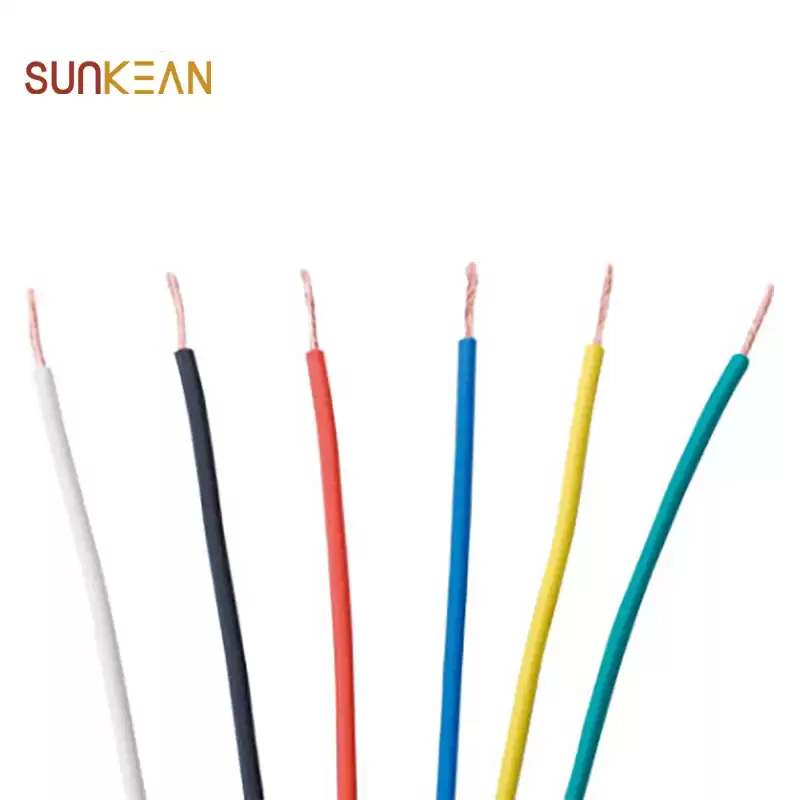

Convenient circuit identification as different colors are applied to the insulator layer.
Easy to handle.
Cable Name
|
Cross Section
(mm²）
|
Construction
(No./mm)
|
Conductor
Stranded O.D.
(mm)
|
Conductor resistance
Max (Ώ/km)
|
Cable O.D.
(mm)
|
Max.DC Voltage
(V)
|
|
IV Ground Cable
PSE certified
|
2.0mm2
|
7/0.6
|
1.8
|
9.24
|
3.4
|
600V
|
3.5mm2
|
7/0.8
|
2.4
|
5.2
|
4
|
5.5mm2
|
7/1.0
|
3
|
3.33
|
5
|
8.0mm2
|
7/1.2
|
3.6
|
2.31
|
6
|

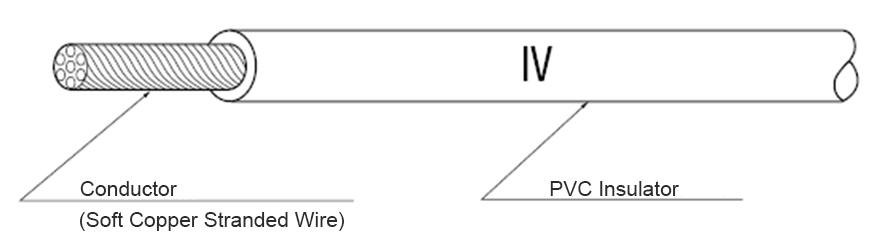

Conductor：
|
Stranded Bare Copper
|
Insulation:
|
PVC
|

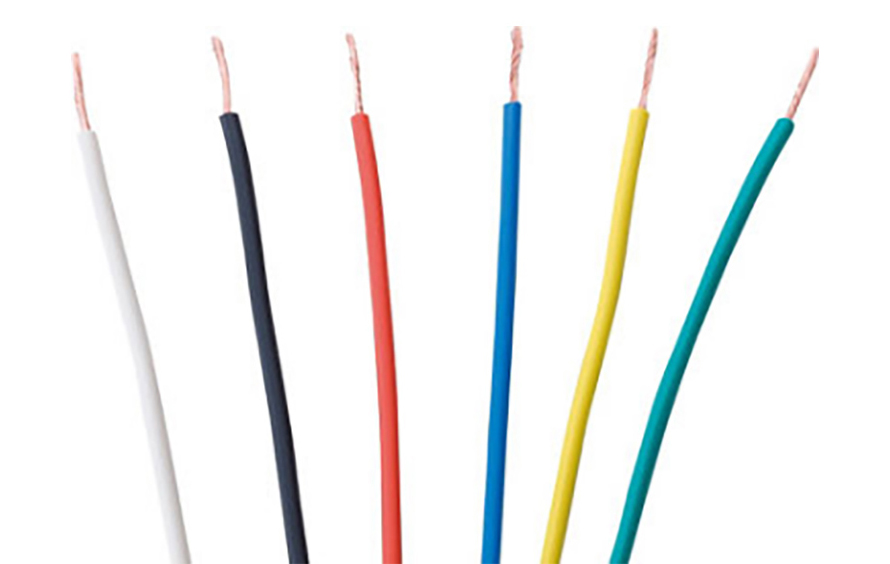

Insulation color:
|
Black、White、Red、Green、Yellow、Blue
|
Rated voltage:
|
600V
|
Test voltage:
|
1500V
|
Product Standard Certification:
|
PSE
|
Reference Standard：
|
JIS C 3307
|
